HAN5010 Hangar 9 Christen Eagle II 90 ARF

by HANGAR 9
$472.49

Key Features:

  • Lightweight balsa/plywood construction
  • Impressive scale outline
  • Multi-color Eagle UltraCote¶© trim scheme
  • Painted fiberglass cowl and wheel pants
  • Designed for glow or electric power
  • Large, easy-access top hatch
  • Cockpit details and pilot figure included
  • All hardware included

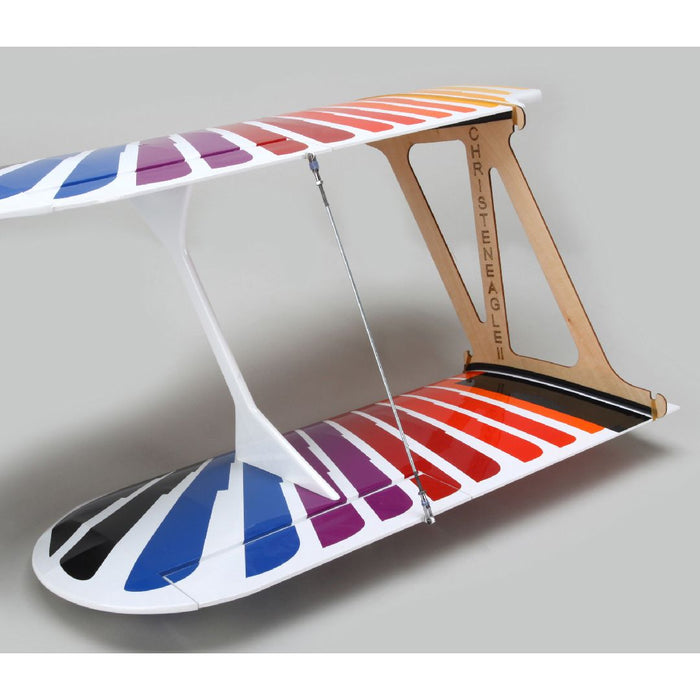

  • Wing transport frames included

You will need:

4-cycle Setup:

- 4+ channel Transmitter and Receiver radio system
- Engine
- Propeller
- Glow Plug
- Fuel
- Receiver Battery
- (5) Standard Servos

Electric Setup:
- 4+ channel Transmitter and Receiver radio system
- Motor
- ESC
- (2) 4000mAh+ 30C 4S LiPo Batteries
- LiPo-compatible Charger
- Propeller
- (4) Standard Servos

Specs:

  • Wingspan:¶ÿ54.0 in (137 cm)
  • Overall Length:¶ÿ50.8 in (129 cm)
  • Wing Area:¶ÿ878 sq. in. (56.7 sq. dm.)
  • Flying Weight:¶ÿ8.50 - 10.0 lb (3.85 - 4.50 kg)
  • Engine Size:¶ÿ.75 - .91 2-stroke; 1.15 - 1.25 4-stroke
  • Motor Size:¶ÿPower 90
  • Radio:¶ÿ4 channel radio system minimum
  • Servos:¶ÿ5 standard size servos required (4 for EP)
  • Trim Scheme Colors:¶ÿUltraCote White, Deep Blue, Orange, Black, Smoke Purple, Deep Red, Flame Red, Dark Yellow, Bright Yellow
  • CG (center of gravity):¶ÿ5 to 5-1/2 inches behind the leading edge of the upper wing at center
  • Wing Loading:¶ÿ22.3-26.2 oz/sq ft (67.9-79.3 g/sq dm)
  • Prop Size:¶ÿSaito 125: 16 x 6; Power 90: 17 x 8E
  • Spinner Size:¶ÿ2.75 inch
  • Speed Control :¶ÿ75-Amp
  • Recommended Battery:¶ÿ14.8V 4000mAh 4S 30C LiPo x2
  • Flaps:¶ÿNo
  • Retracts:¶ÿNo
  • Control Throw (Ailerons):¶ÿLow: 15mm up/down, 33% expo; High: 22mm up/down, 42% expo
  • Control Throw (Elevator):¶ÿLow: 25mm up/down, 30% expo; High: 35mm up/down, 42% expo
  • Control Throw (Rudder):¶ÿLow: 35mm right/left, 35% expo; High: 45mm right/left, 45% expo
  • Minimum Age Recommendation:¶ÿ14 years
  • Experience Level:¶ÿIntermediate
  • Recommended Environment:¶ÿOutdoor
  • Assembly Time:¶ÿ10-15 Hours
  • Is Assembly Required:¶ÿYes
