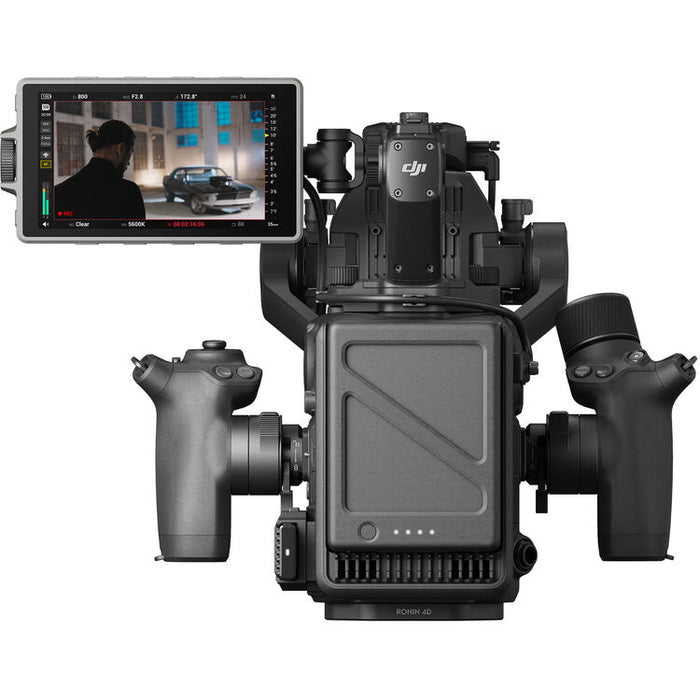

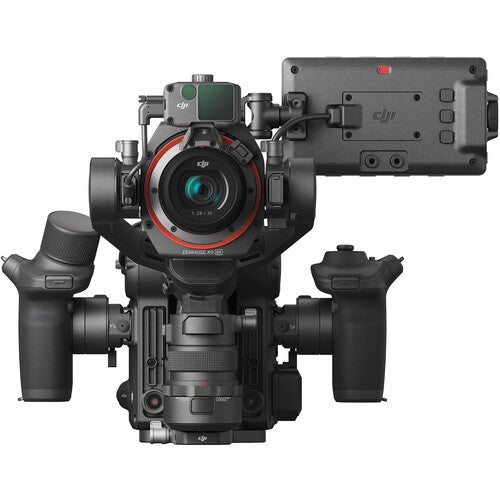

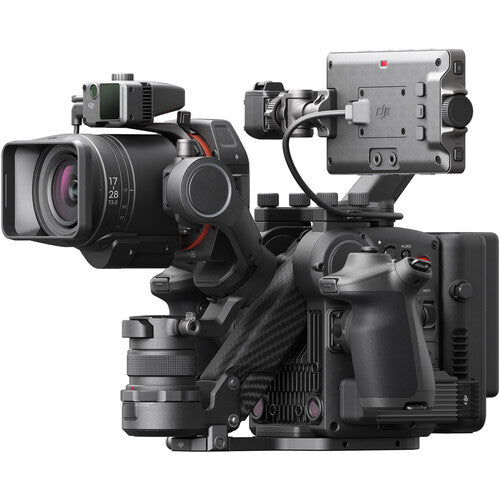

CP.RN.00000351.01 DJI Ronin 4D 4-Axis Cinema Camera 8K Combo
by DJI
$13,129.00
Inventory :
Key Features
- Highly Integrated Modular Design
- Zenmuse X9-8K Gimbal Camera
- DJI DL PZ 17-28mm T3.0 Lens Included
- 4D RAW License Requires DJI Activation
- ProRes RAW to 8K75, 4K120|Raw HQ to 8K30
- Advanced 4-Axis Stabilization
- Up to 20,000' Wireless Transmission
- 5.5" 1000 cd/m² Touchscreen Display
- LiDAR Range Finder/Focus Module
- Extensive Product Ecosystem

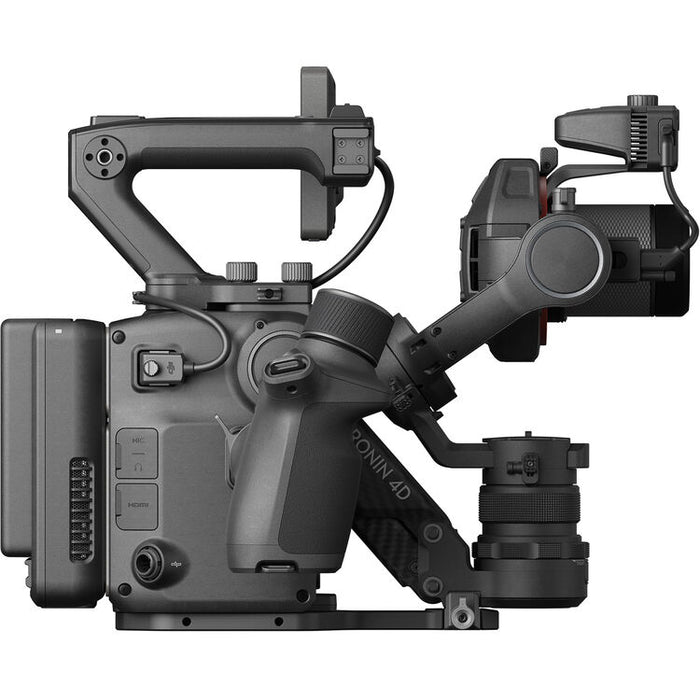

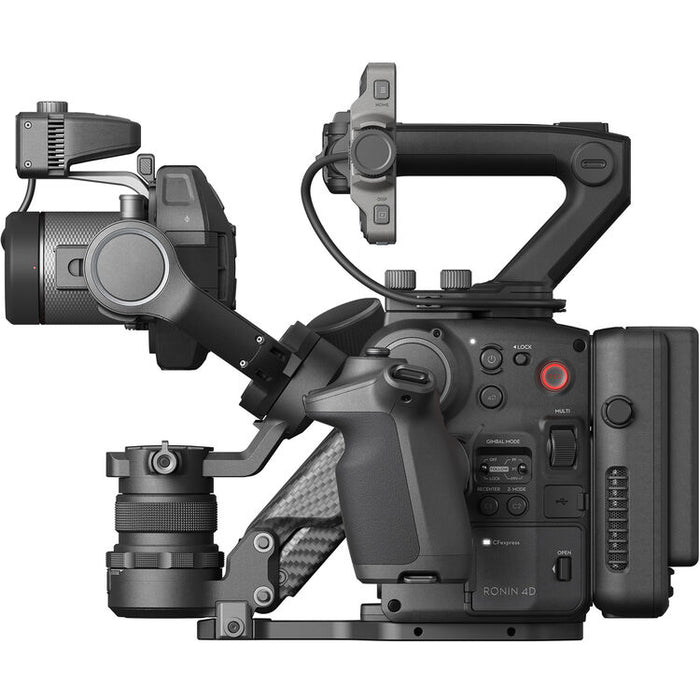

The Ronin 4D 4-Axis Cinema Camera 8K Combo Kit with DL PZ 17-28mm T3.0 ASPH Lens from DJI combines imaging, stabilization, and focusing in a lightweight, uniquely flexible gimbal/camera rig. This 4D X9-8K version pairs the Ronin 4D gimbal with the Zenmuse X9-8K camera, a DJI DL 17-28mm T3.0 lens, a LiDAR range finder, a low-pass filter, and a RAW license
The Ronin 4D 4-Axis Cinema Camera 8K Combo Kit with DL PZ 17-28mm T3.0 ASPH Lens from DJI combines imaging, stabilization, and focusing in a lightweight, uniquely flexible gimbal/camera rig. This 4D X9-8K version pairs the Ronin 4D gimbal with the Zenmuse X9-8K camera, a DJI DL 17-28mm T3.0 lens, a LiDAR range finder, a low-pass filter, and a RAW license that requires activation via DJI; wireless video transmission is available separately. With support for up to 8K60 17:9 video in Apple ProRes RAW, and 8K30 17:9 and 8K75 2.39:1 in ProRes 422 HQ, the X9-8K offers the higher imaging standards required for visual effects, cine-style capture, and broadcasting while reducing your setup time with its all-in-one combination design.
From Manufacturer
What is the DJI Ronin 4D 8K? | Everything you need to know about the 8K cinema camera
Putting the Ronin 4D-8K Sensor Through it's Paces
DJI Ronin 4D - The Future Is Rolling
Meet DJI Ronin 4D-8K
RAW License Key and PROSSD 1TB

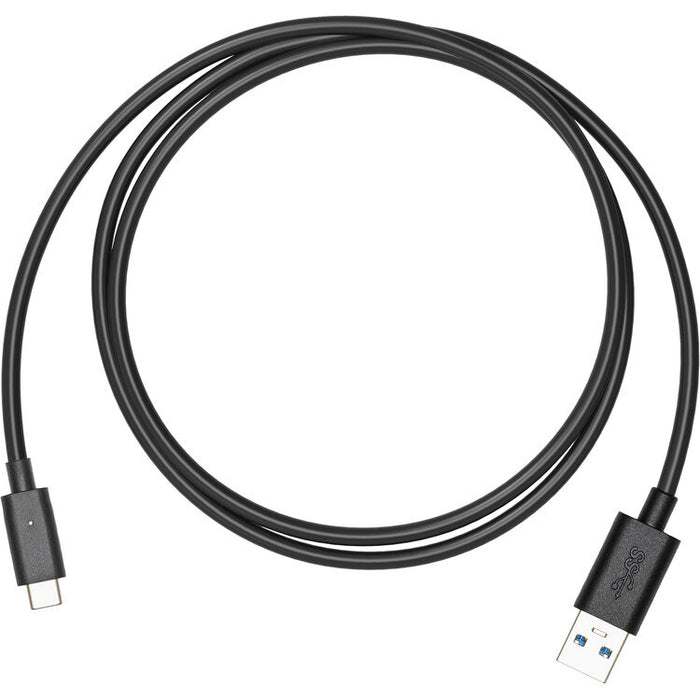

The Zenmuse X9-8K supports up to 8K video capture and includes both a RAW license key (requires activation via DJI) and the DJI PROSSD 1TB drive, DJI PROSSD mount, and USB-C high-speed data cable required for raw recording.
DL PZ 17-28mm Lens, Low-Pass Filter
In addition to the RAW license key, the X9-8K Combo includes a DL lens mount and the DJI DL PZ 17-28mm T3.0 ASPH lens plus a built-in OLPF (optical low-pass filter) for maximum color accuracy.

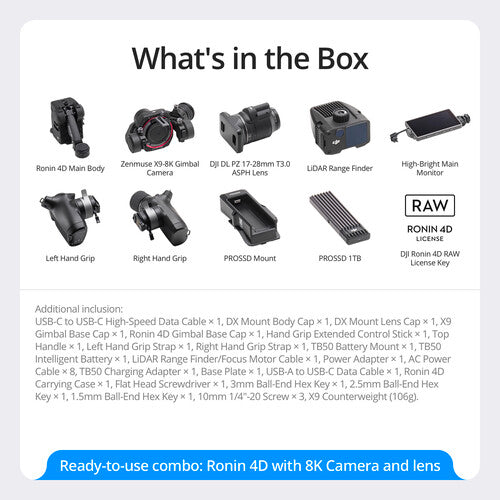

Included Components

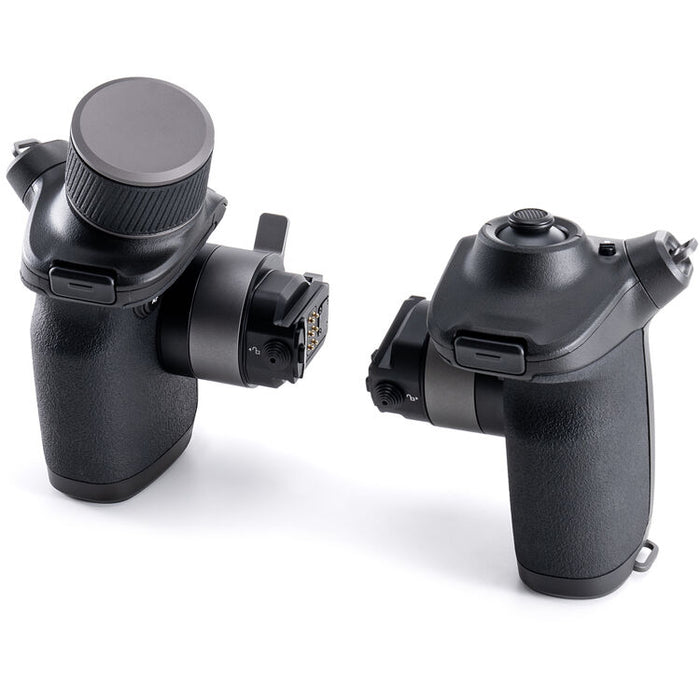

- Left and right control handgrips

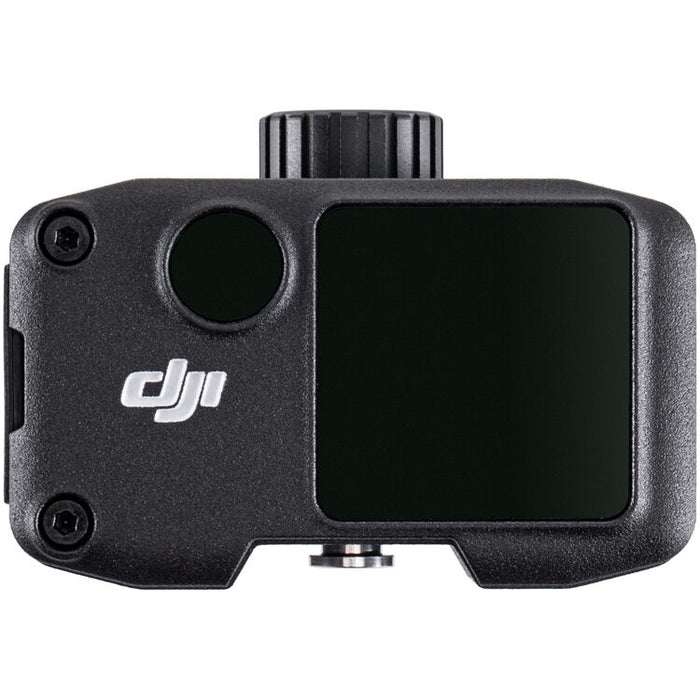

- LiDAR range finder

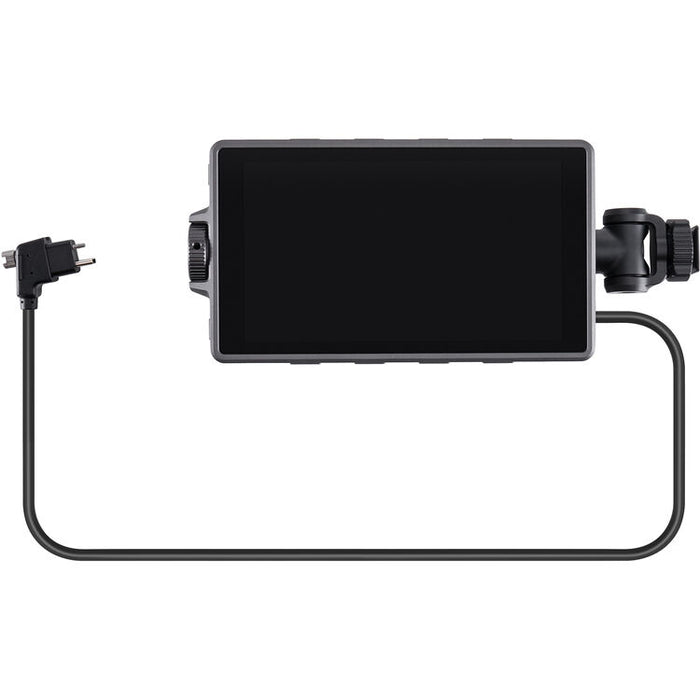

- Integrated 5.5" monitor
- NOTE: Does not include the high-bright main monitor

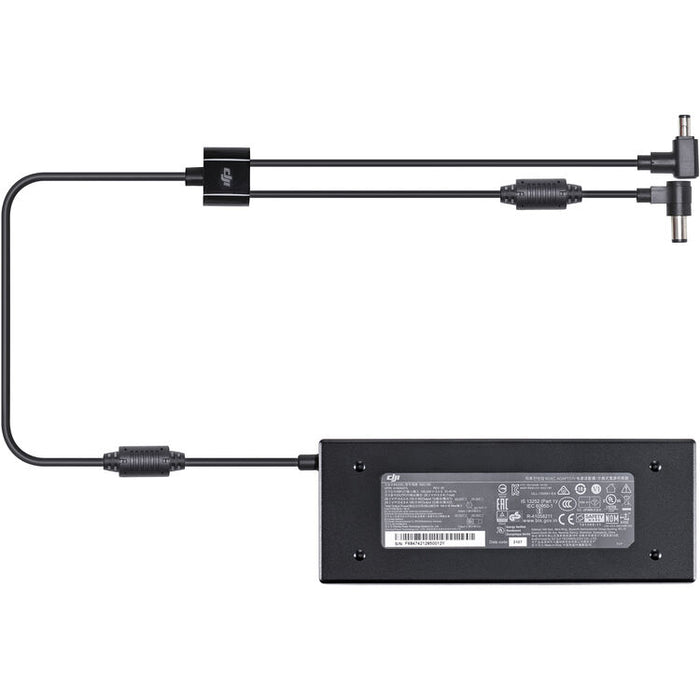

- TB50 battery and charging adapter

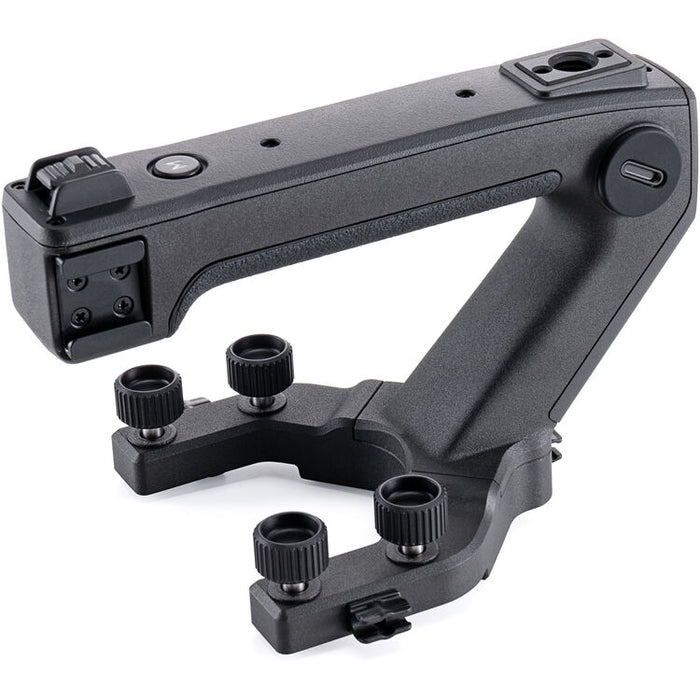

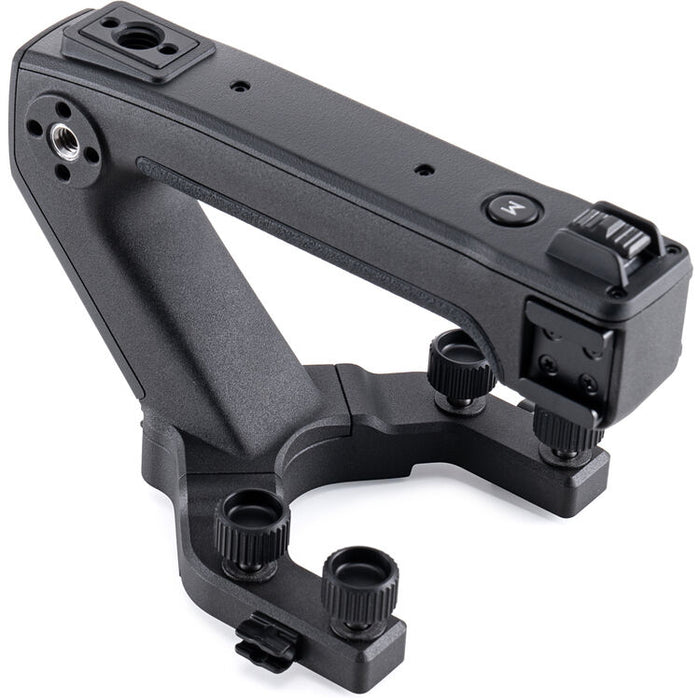

- Top handle

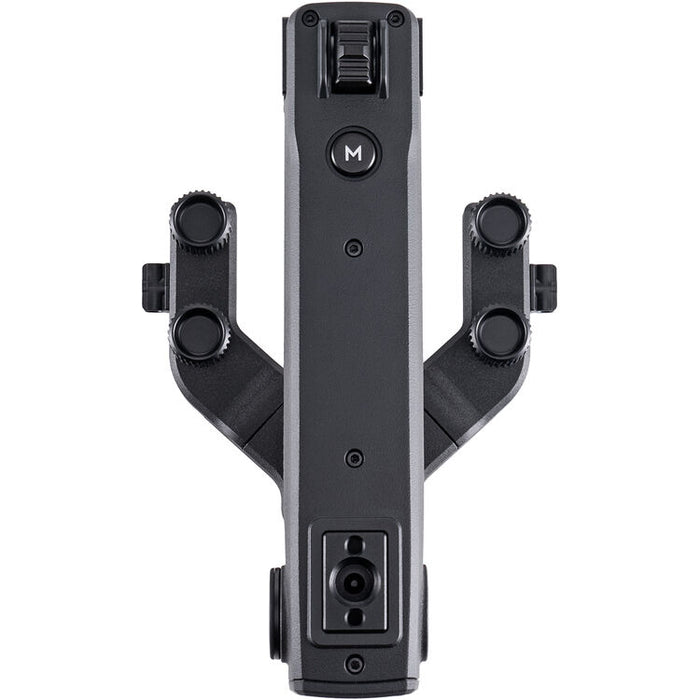

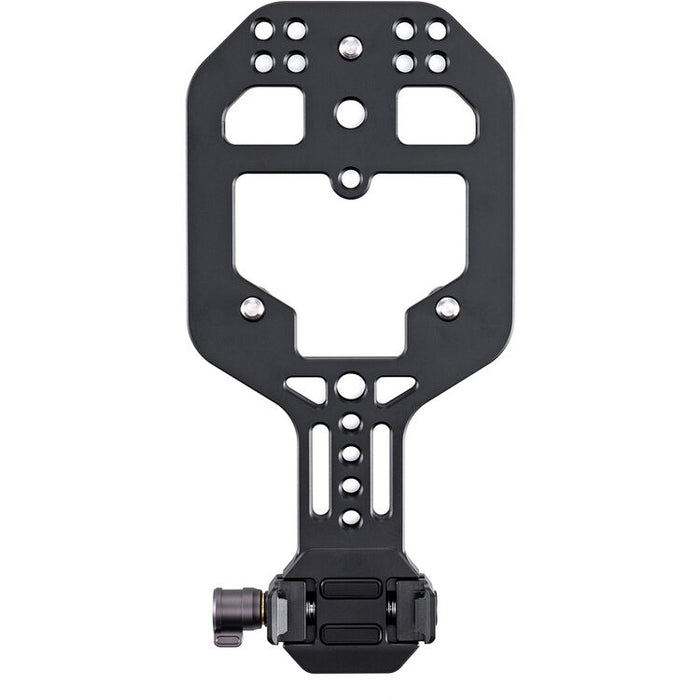

- Baseplate
- Hard carrying case
Separately Available Components
- 7" high-bright, touchscreen monitor
- Wireless video transmitter

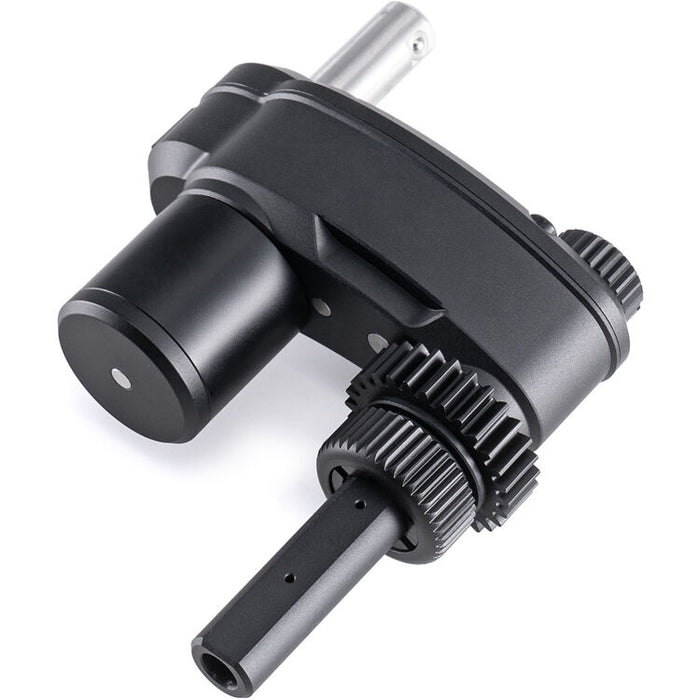

- X9 focus motor
- 3-channel FIZ lens control unit
- Expansion plate with SDI, XLR, and timecode ports
- DJI Leica L and M lens mounts
- Third-party ARRI PL and Sony E lens mounts
Advanced Image Processing with DCCS and ACES
- Support for the industry-standard ACES workflow provides easy compatibility with other cinema cameras.
- The DJI DCCS color science reproduces vivid, natural skin tones in a range of lighting conditions and creates looks that are compatible with ARRI footage.
- The full-frame Zenmuse X9-8Kcamera uses a proprietary chip for advanced processing and high-performance computing.

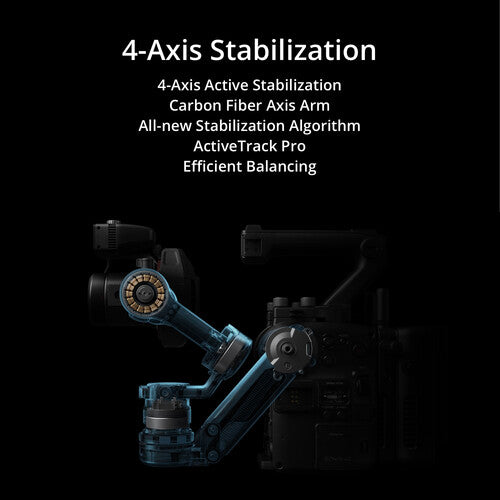

Z-Axis Camera/3-Axis Gimbal Stabilizing
- Selectable Z-axis stabilization reduces unwanted vertical camera movement, especially during dollying moves.
- Z-axis stabilization is built into the camera; 4-axis stabilization in the gimbal.
- Tilt stabilization uses dual, symmetrical motors.
- Pan and X (roll) axes with additional stiffness buffering.
- Downward ToF (time of flight) sensor.
- Forward and downward-facing dual-vision sensors.
- Built-in IMU (inertial measurement unit) and barometer.
- New and improved stabilization algorithm.

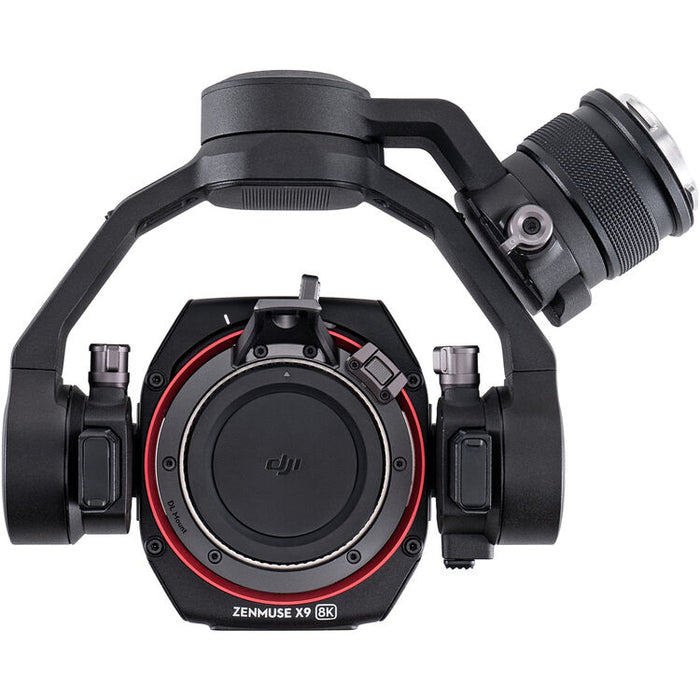

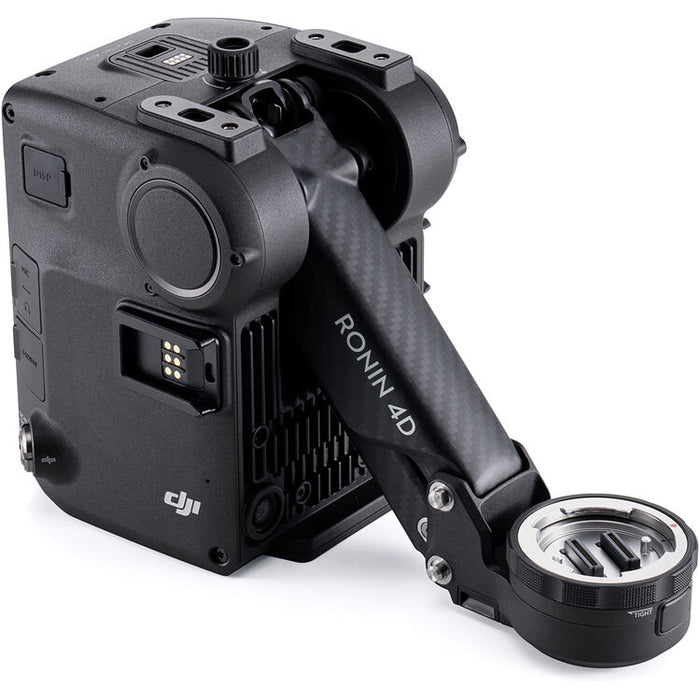

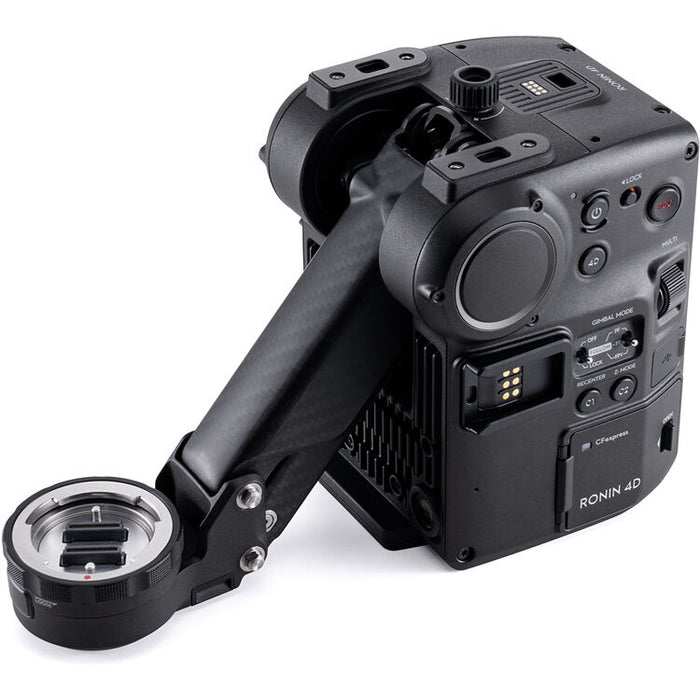

Zenmuse X9-8K Camera with DL Lens Mount
- The D4's DL lens mount supports full-frame capture with DJI's current selection of lightweight, carbon fiber 18, 24, 35, and 50mm lenses.
- Interchangeable lens mounts are available for use with Sony E-mount or Leica M-mount lenses.
- Supports ultrawide, f/0.95 large-aperture, electronic zoom, macro, and anamorphic cine lenses.
- Please see the current lens compatibility list here.

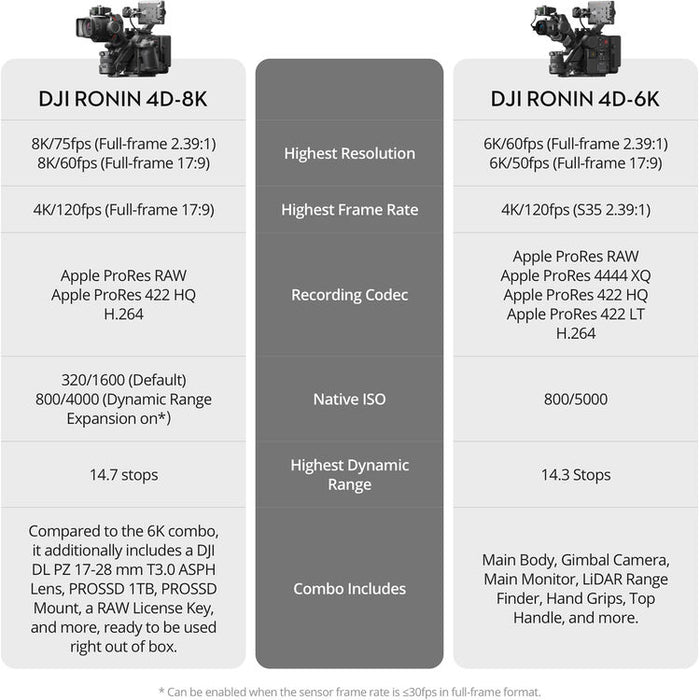

ProRes RAW, 422 HQ, and H.264 4:2:0 10-Bit Capture
- Up to 8K60 ProRes RAW in 17:9 full frame or 5.5K 60 fps ProRes RAW in 17:9 Super35.
- RAW activation required with DJI.
- Up to 8K30 ProRes 422 HQ in 17:9 full frame.
- Up to 8K75 ProRes RAW in 2.39:1 full frame.
- Up to DCI 4K60 ProRes 422 HQ or H.264 in 17:9 full-frame or Super35.
- Up to UHD 4K120 ProRes HQ, HQ LT, or H.264 in full frame.
Dual Native ISO
- With Dynamic Range Expansion off: Dual native ISO 320/1600.
- With Dynamic Range Expansion on: Dual native ISO 800/4000.
- EI 200 to EI 6400.
- 14.7 stops of dynamic range produce nuanced imaging under a range of lighting conditions.
LiDAR Focus Control
- LiDAR (light detection and ranging) system uses up to 43,200 ranging points within a 33' range.
- Excellent focusing performance even in low-light environments.
- Focus pulling can be viewed graphically, thanks to a built-in depth meter.
- Intuitive and highly accurate focusing system.
- Modular LiDAR focusing module attached to the front of the D4 rig.
Autofocus Features
- Maintains focus, even when motion blur is produced by fast-moving subjects.
- Separately available focus motor for use with manual lenses.
- Continuous autofocus is compatible with ActiveTrack Pro, a boon for solo operators.
Automated Manual Focus
- The AMF function (Automated Manual Focus) combines the accuracy of manual focus with the ease of autofocus.
- Operators can grab the focus wheel of the right handgrip at any time to manually focus.
- Handgrip focus wheel uses dynamic damping to provide a physical feel for focus changes.
In-Camera ND Filters
- Built-in ND.03 to ND2.7 filters let you easily adjust to quickly changing lighting conditions.
- Especially handy for outdoor shoots with changing cloud cover.
- Motorized filter system.
ActiveTrack Pro
- DJI's ActiveTrack Pro features combine continuous autofocusing with composition adjustment for professional-looking tracking shots out of the gate.
- ActiveTrack Pro is based on computer vision, deep learning technology, and the computing power of DJI's CineCore 3.0 imaging system.

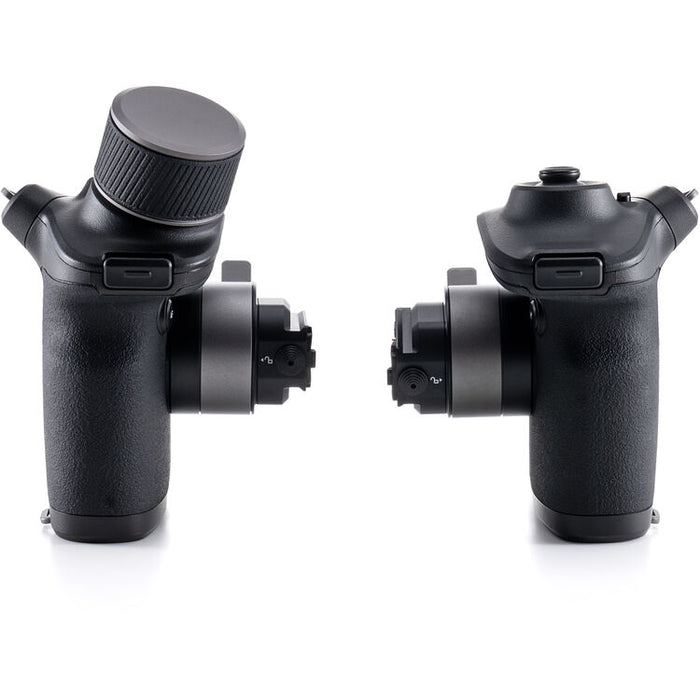

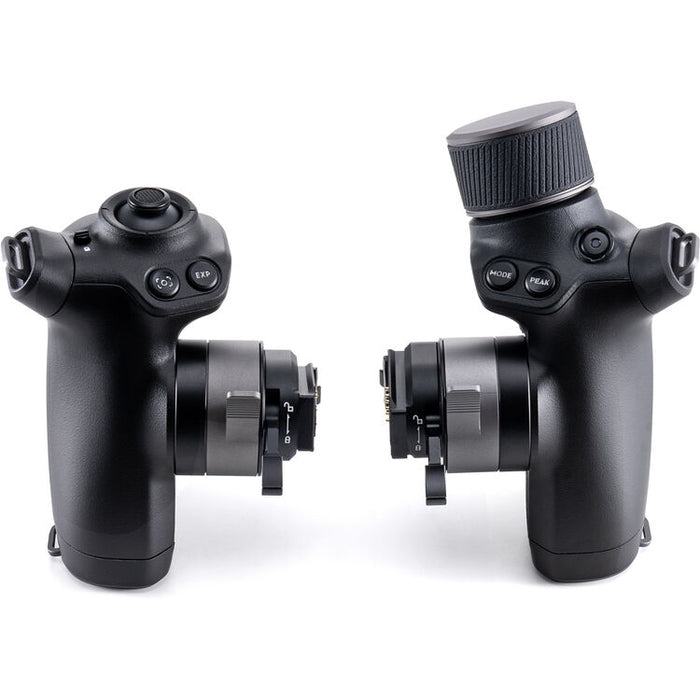

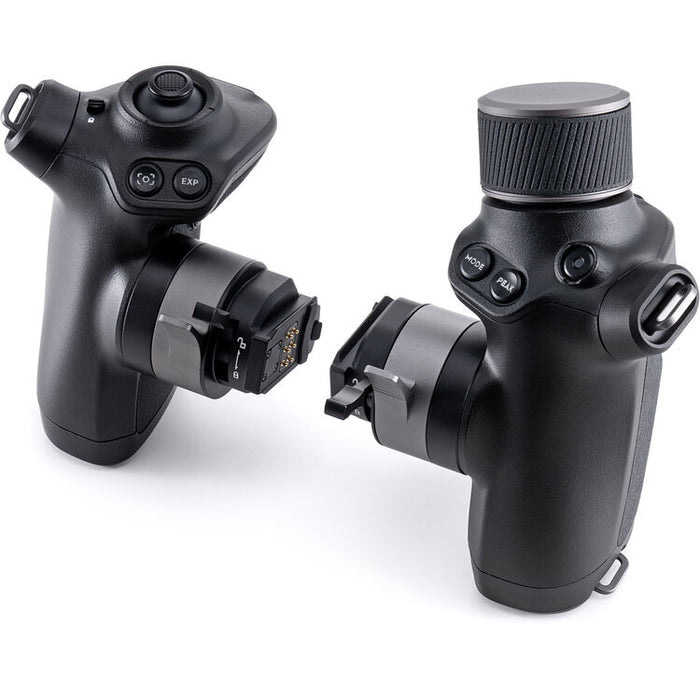

Dual Focus, Iris, and Control Grips
- Right-hand grip has a focus wheel that doubles as a control for main camera adjustments (menus, exposure, etc.).
- Left-hand grip has a full-range joystick to control pan/tilt; useful when adjusting headroom and more during follow mode.

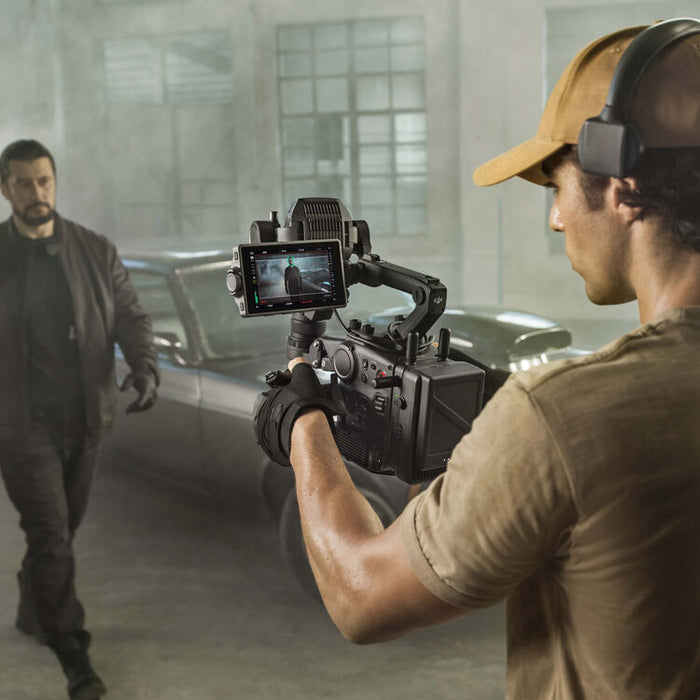

Single-User or Crew-Assisted Operation
- Top-notch stabilization in a lightweight form.
- Ideal for both solo operators as well as assistant-accompanied shoots.
- Designed to counter footsteps from inexperienced gimbal shooters.
- Works equally well with a single grip, dual grips, shoulder supported, or tripod mounted.
- Sport mode is available with the touch of a button, accommodating faster-paced action.
- Use in standard, underslung, jib, and crane setups.
Media Storage Options
- Requires a ProSSD 1TB drive (included) to capture raw footage.
- USB-C port for external recording; no reader needed to offload footage.
- Integrated CFexpress Type-B card slot.
Built-In 5.5" Touchscreen Monitor
- 5.5" 1920 x 1080 monitor.
- 1000 cd/m² display.
- Touchscreen control.
Audio Recording
- Integrated stereo microphones capture dual-channel 24-bit audio.
- Built-in 3.5mm audio input port and XLR port via expander plate.
Power Options
- Uses the same TB50 intelligent batteries as the Ronin 2 and Inspire 2.
- Each battery provides up to 2.5 hours of capture time.
- Batteries charge fully in approximately 1.5 hours.
- Support auto-heating for cold weather use.

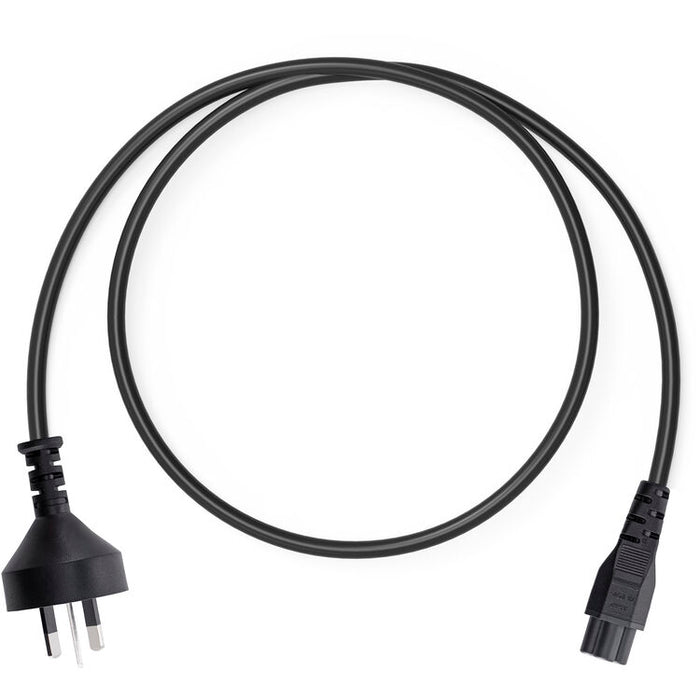

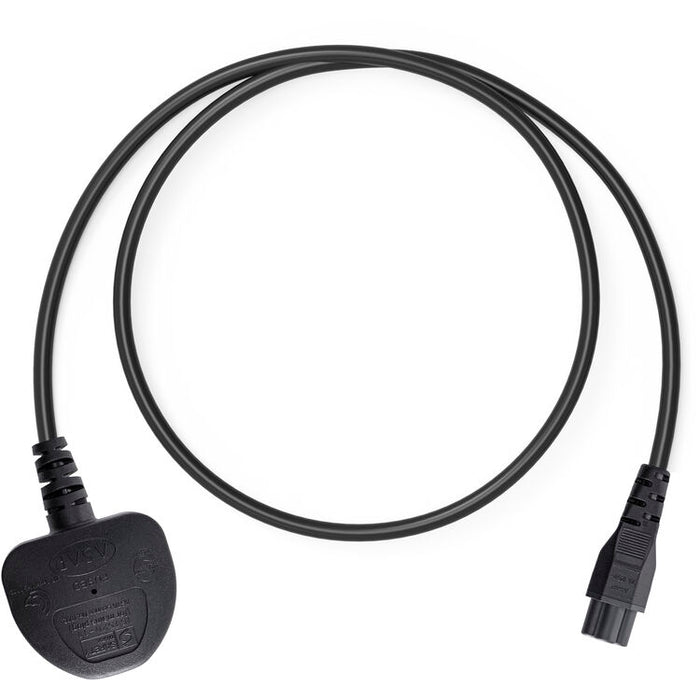

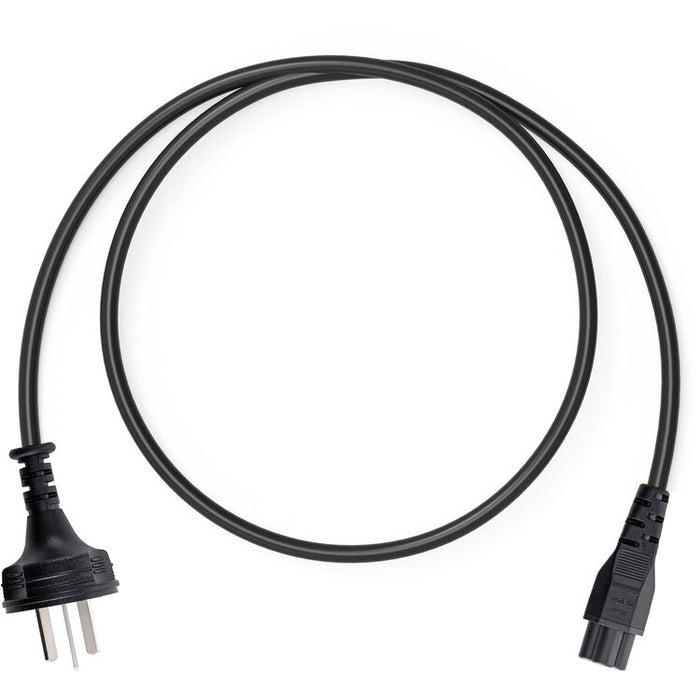

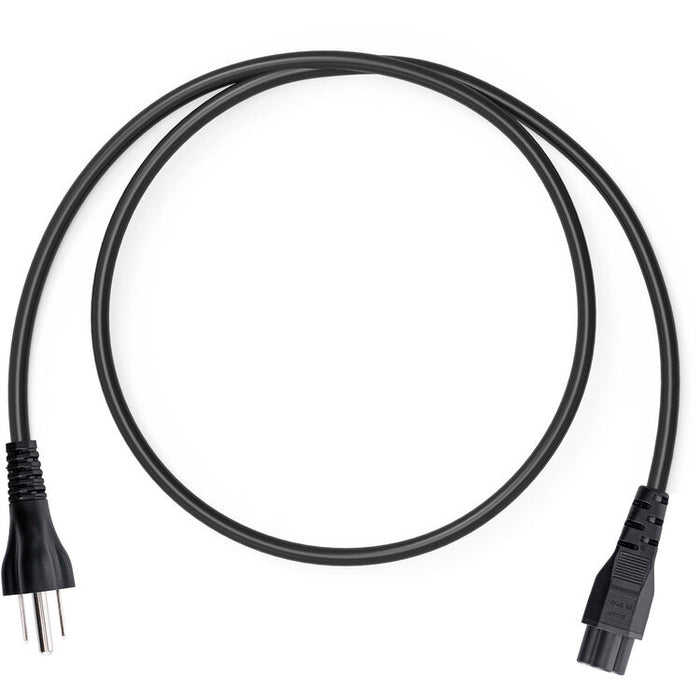

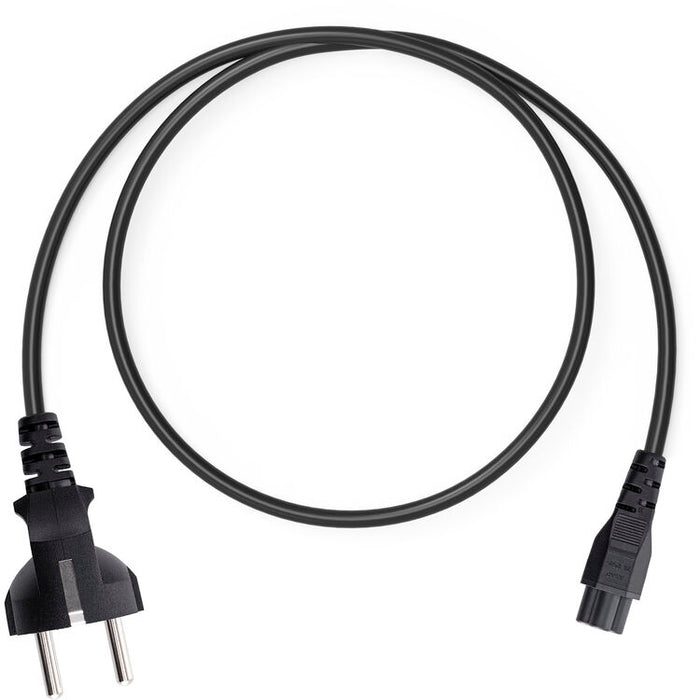

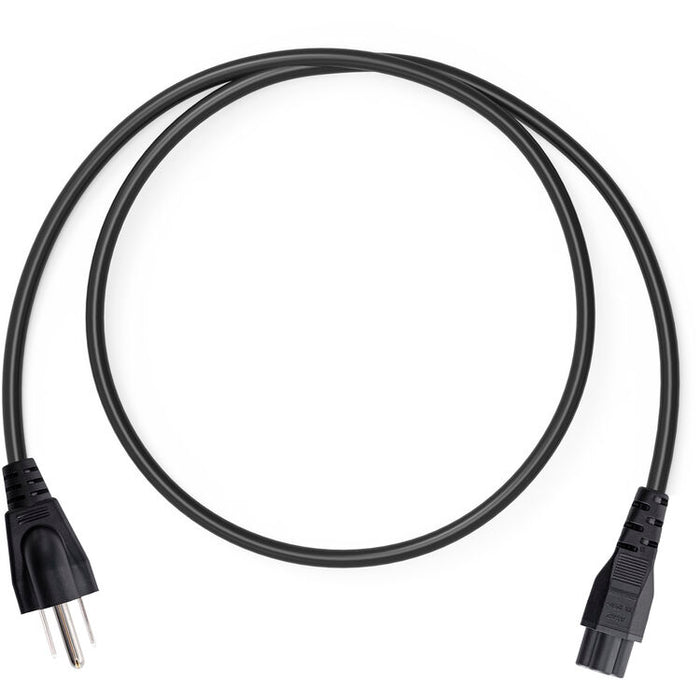

- AC adapter for uninterrupted shooting.
DJI Ronin 4D 8K Specs
Key Specs
| Lens Mount | |
| Effective Sensor Resolution | |
| Image Sensor | |
| ISO/Gain Sensitivity | |
| Internal Recording | |
| Video Output | |
| Media/Memory Card Slot | |
| Video I/O | |
| Mobile App Compatible | |
| Battery |
Imaging
| Lens Mount | |
| Sensor Resolution | |
| Image Sensor | |
| Image Stabilization | |
| Built-In ND Filter | |
| Internal Filter Holder | |
| Capture Type |
Exposure Control
| Shutter Type | |
| Shutter Speed | |
| ISO/Gain Sensitivity | |
| Advertised Dynamic Range | |
| White Balance |
Gimbal
| Rotation Range | |
| Z-Axis Adjustment Range | |
| Follow Speed | |
| Load Capacity |
Video Capture
| Internal Recording | |
| Video Output | |
| Fast-/Slow-Motion Support | |
| Gamma Curve | |
| Built-In Microphone | |
| Audio Recording | |
| IP Streaming |
Interface
| Media/Memory Card Slot | |
| Video I/O | |
| Audio I/O | |
| Power I/O | |
| Other I/O | |
| Wireless | |
| Mobile App Compatible | |
| Global Positioning (GPS, GLONASS, etc.) |
Monitor
| Display Type | |
| Resolution |
Viewfinder
| Type |
Focus
| Focus Mode |
Power
| Battery |
Environmental
| Operating Conditions | |
| Storage Conditions |
General
| Shoe Mount | |
| Accessory Mounting Thread | |
| Materials | |
| Dimensions (W x H x D) | |
| Weight |
Packaging Info
| Package Weight | |
| Box Dimensions (LxWxH) |
