CP.RN.00000111.02 DJI RS 3D Focus System
CP.RN.00000111.02 DJI RS 3D Focus System
CP.RN.00000111.02 DJI RS 3D Focus System

CP.RN.00000111.02 DJI RS 3D Focus System

by DJI
$239.00
Inventory :
Key Features
  • For DJI RS 2, RS 3, and RS 3 Pro Gimbals
  • For Continuous Focus with Manual Lenses
  • Detects Distance from Lens to Subject
  • Enables Center AF Point, Requires Motor
  • Detects Person up to 19.7' Away
  • Detects Objects up to 32.8' Away
  • 1 x USB-C Cable Included
  • 1/4"-20 to Shoe Mount Included

The Ronin 3D Focus System enables continuous focus when using manual lenses on a DJI RS 2, RS 3, or RS 3 Pro gimbal. Designed to work with a separately available lens motor, the focus system mounts on top of your camera to automatically detect the distance between the lens and subject



DJI 3D Focus System Overview

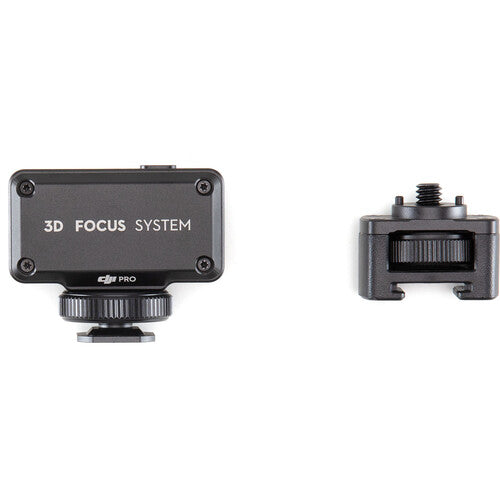

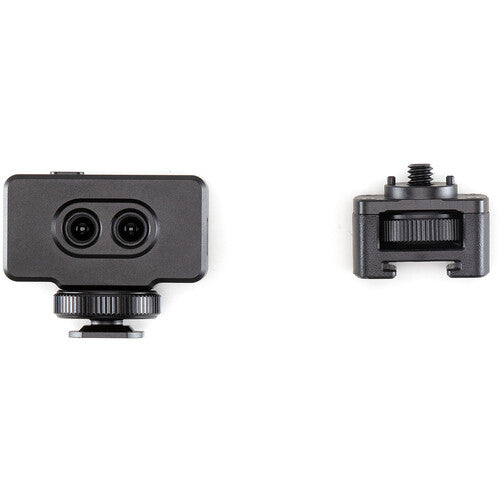

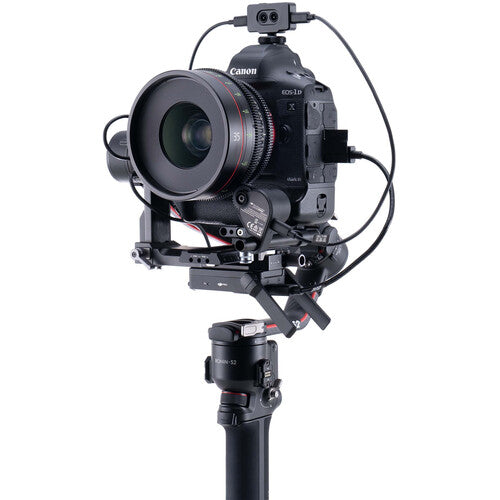

The Ronin 3D Focus System enables continuous focus when using manual lenses on a DJI RS 2, RS 3, or RS 3 Pro gimbal. Designed to work with a separately available lens motor, the focus system mounts on top of your camera to automatically detect the distance between the lens and subject to enable a center AF point. One USB-C cable and one 1/4"-20 to shoe mount adapter are included with the focus system.

Compatibility
DJI RS 2, RS 3, or RS 3 Pro gimbal

DJI 3D Focus System Specs

General
Compatibility
DJI Ronin RS 2, 3, 3 Pro
Range
Reflectivity > 80%: 1-32.8' / 30-1000 cm
Reflectivity >5-<10%: 1-13.1' / 30-400 cm
Field of View
±15°
Inputs/Outputs
USB I/O
2 x USB-C Female Input/Output
Power
Power Source
USB
Physical
Mounting
1x 1/4"-20 Thread
Color
Black
Operating Conditions
68 to 113°F / 20 to 45°C
Dimensions
2.5 x 2 x 1.1" / 63.8 x 50.1 x 27 mm
Weight
1.9 oz / 54.8 g



Items Included
  • DJI Ronin 3D Focus System for RS 2/RS 3/RS 3 Pro Gimbal
  • 1/4''-20 to Cold Shoe Adapter
  • 2 x USB Type-C Multi-Camera Control Cable (11.8")
  • 90-Day B&H Used Warranty
