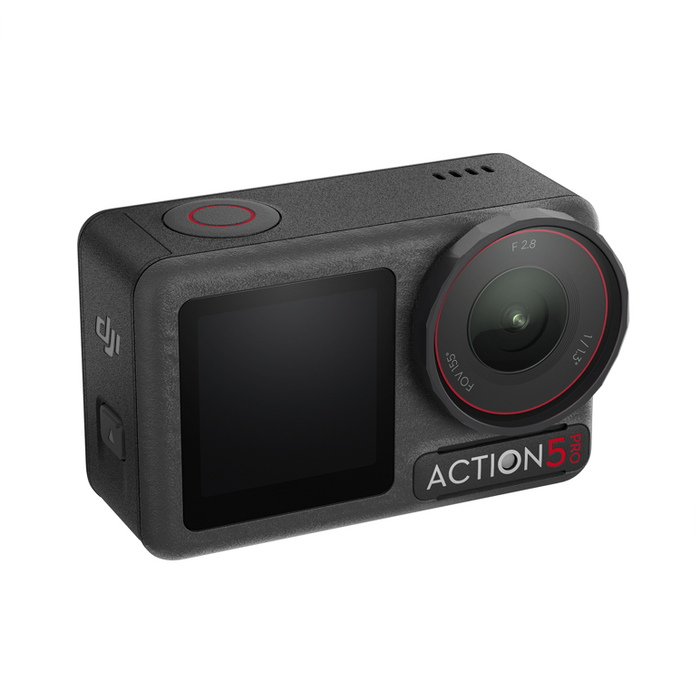

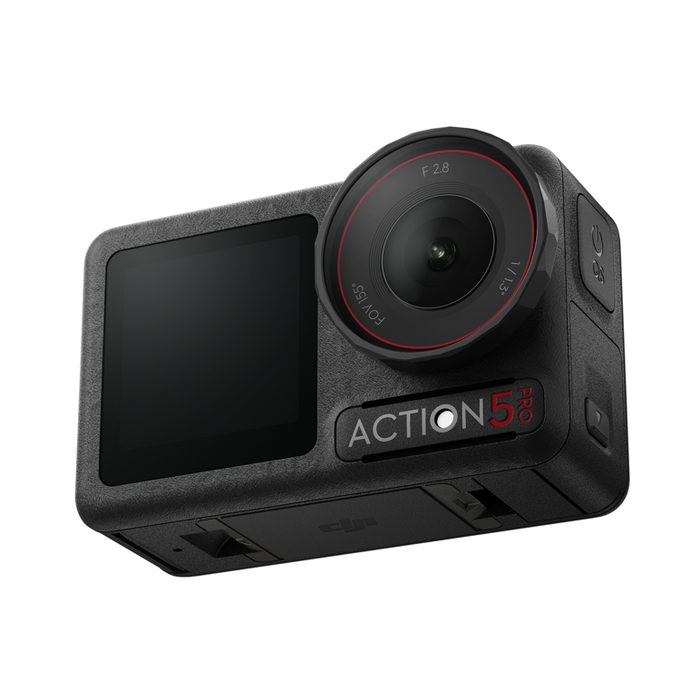

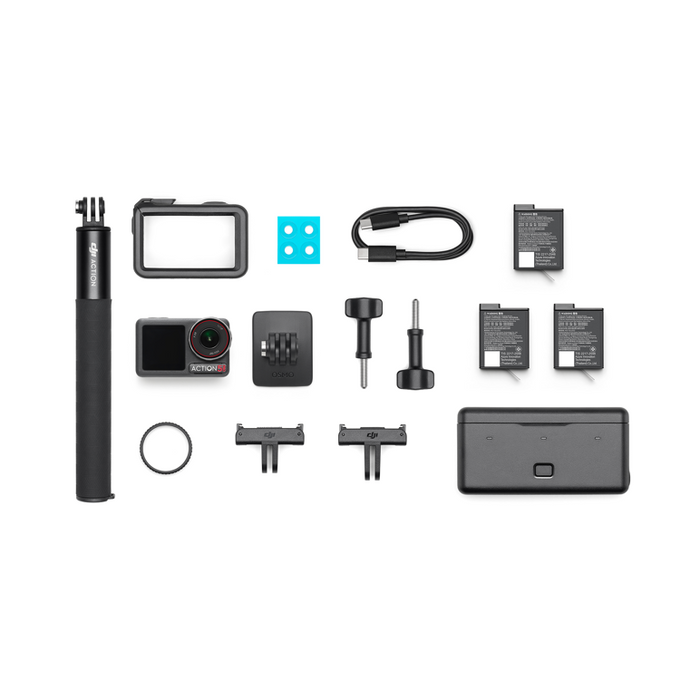

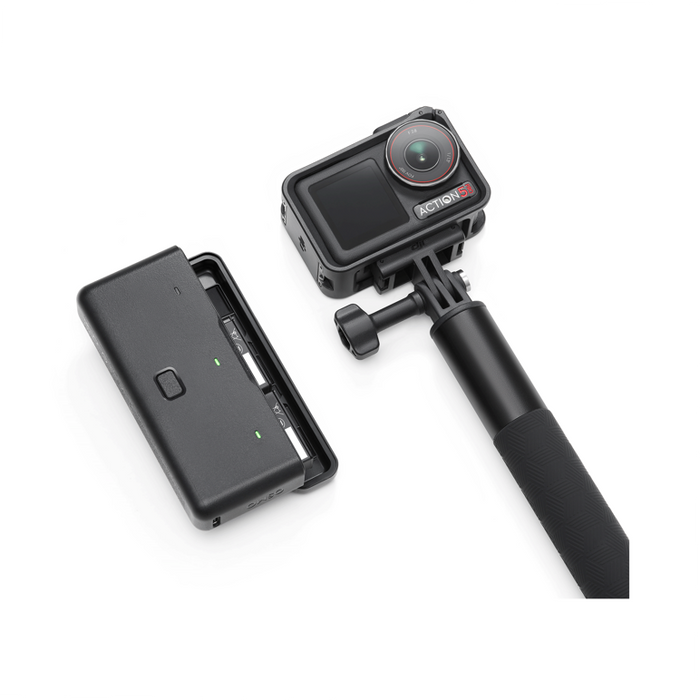

CP.OS.00000350.04 Osmo Action 5 Pro Adventure Combo

DJI Osmo Action 5 Pro: The Action Camera With Revolutionary Image Quality

The latest generation of DJI’s popular Osmo action camera series delivers several industry-first features rivalling professional cameras. From the 13.5-stop dynamic range and 4-hour battery life to the built-in subject centering and tracking, the Osmo Action 5 Pro sets a new quality standard for action photography, capturing every adventure from the sea to the mountains, whether in the sun or the snow.

Features

• Next-Gen 1/1.3" Sensor
• Subject Centering & Tracking
• Dual OLED High-Brightness Touchscreens
• 360° HorizonSteady
• 4-Hour Extended Battery Life*
• Dual DJI Microphone Direct Connection**
• Usable Built-in Storage: 47 GB
• Color Performance: 10-bit D-Log M
• Dynamic Range: up to 13.5 Stops
• High-Speed Transfer: Wi-Fi 6.0 and USB 3.0
• Charge to 65%*: 15 Minutes
• Wide Aspect-Ratio Output***: 4K/120fps 4:3
• High-Dynamic Low-Light Imaging: up to 4K/60 fps
• Frame Capture & Output: 3-Second Live Photo

* Data collected in a controlled environment. Your actual experience may vary. For details, refer to the offi cial DJI product page website.

** Direct connection to the first-generation DJI Mic is not supported. DJI microphones are sold separately.

*** Not supported in some FOV settings and some stabilization modes.

Get Into Revolutionary Imaging

Next-Gen 1/1.3" Sensor

DJI's new sensor captures your best. From city nights to dramatic sunrises, get crystal-clear images with a 4nm chip. Experience vibrant imagery with 2.4 μm pixels and 13.5 stops of dynamic range, rivalling pro cameras.

Shoot in 4K/60fps for breathtaking high-dynamic low-light video, maintaining a balance of highlights and shadows without overexposure.

SuperNight mode² uses AI noise reduction algorithms for sharper, cleaner footage in extreme low-light.

² SuperNight mode only supports 8-bit color depth and frame rates up to 30fps. It does not support HorizonBalancing, HorizonSteady, 155° ultra-wide FOV, or 4:3 aspect ratio.

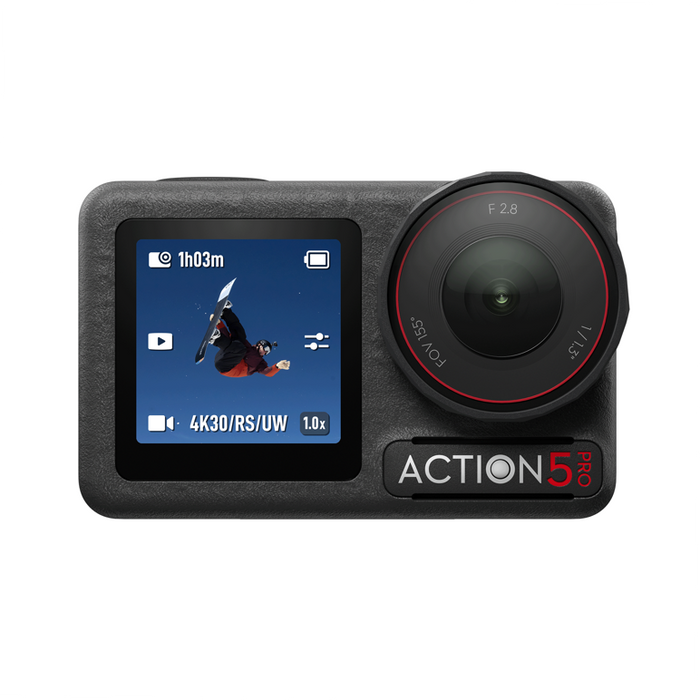

Crystal Clear OLED Touchscreens

Catching the day's action? See it clearly thanks to the rear OLED screen's peak brightness now reaching a whopping 1000 nits. Make sure each shot has rich colors and high contrast with the front and rear OLED high-brightness touchscreens. The screens are larger with narrower bezels increasing the screen-to-body ratio by 16%.³

Dual touchscreens display recording duration and specifications with low power consumption. Get essential information at a glance, without being disturbed by bright lights during nocturnal rides.

Tempered glass ensures durability, and the AF coating keeps touch controls responsive, even when wet.⁴ With Always On Display enabled, both screens show recording duration and specifications for lower power consumption. Get essential information at a glance, without being disturbed by bright lights at night.

³ Compared with Osmo Action 4.

⁴ The hydrophobic performance of the front and rear screens and the Glass Lens Cover is achieved through AF coating, which may be compromised if scratched.

Color All The Bases With 10-bit D-Log M

Action 5 Pro's front and rear touchscreens let you preview 10-bit D-Log M footage with color recovery, so you can adjust color and brightness for top-quality raw footage at a glance.

Get more color depth with 10-bit D-Log M and 10-bit HLG modes.⁵ Detailed highlights and shadows ensure your footage will stand out from the crowd.

⁵ The 10-bit D-Log M and 10-bit HLG color modes can be enabled in standard video mode, Slow Motion mode, and Hyperlapse mode.

Bursting With 40MP of Action

Simply press the shutter for stunning shots and crop with confidence. Each photo boasts approximately 4x the clarity of the previous generation with roughly 40 megapixels (7294×5472) or 8K (16:9) resolution.

Multiple Stabilization Modes

Equipped with three types of stabilization modes to fulfill various creative needs.** Whether it's a mountain downhill sprint or racing through forest trails, achieve dynamic yet stable footage.

** For details on shooting modes and specifications supported by EIS, please refer to the product page on the official DJI website.

More to See, More to Share: 155° Ultra-Wide FOV

Bring more life into every shot with the 155° ultra-wide FOV⁶ and capture video with a dynamic perspective.

The ultra-wide-angle lens captures both landscapes and your arms, intensifying the perspective and doubling the action.

⁶ The 155° FOV requires disabling stabilization modes.

4:3 Aspect Ratio Powers All the Pixels

Get more compositional space and cropping flexibility now that the maximum video specification has been upgraded to 4K/120fps in a 4:3 aspect ratio with full-pixel recording at 4K (3840×2880).

Slow-Motion Goes Super, 32 Times

Make the WOW last longer with 32x Super Slow Motion. The Action 5 Pro's powerful 4nm chip enables frame-by-frame analysis and 4x frame interpolation achieving up to 32x slow-motion;⁷ shoot at 1080p/240fps and produce the video equivalent of 960fps in post.

⁷ To use 32x Super Slow Motion, you need to record a standard video at 1080p/240fps. After recording, you can apply the slow-motion effect with just one tap in the camera's playback interface. You can also apply the slow-motion effect to 4K/2.7K/1080p standard videos shot at 100fps or higher.

OsmoAudio™ Connectivity Ecosystem, Professional Audio Recording

Action 5 Pro connects directly to the DJI Mic 2 Transmitter¹⁴ with the DJI OsmoAudio™ connectivity ecosystem, enabling ultra-high-sample-rate audio recording. This setup provides studio-quality sound while eliminating the need for a receiver, so you don't need to worry about gear falling off during your ride. When paired with two transmitters, conversations are captured clearly. Additionally, with Built-in Mic Audio Backup enabled, Action 5 Pro simultaneously records ambient sounds, adding a rich layer of authenticity to your video.

Third-Party Sports Data Integration

Cycling/motorcycling data recorded with Apple Watch, Garmin devices, or other third-party FIT files can be added to your footage in a dashboard format, showcasing your professional edge.

Stereo Recording & Wind Noise Reduction

Featuring three built-in microphones, Action 5 Pro captures immersive stereo sound from all directions. It supports both Mono and Stereo modes, with noise reduction algorithms that effectively minimize wind noise during cycling/motorcycling, ensuring clear and vibrant audio.

Quickly Locate Highlight Moments

Effortlessly mark important moments during recording or playback. Even with long-distance one takes, you can quickly locate key moments in post-production, saving time spent searching for footage.

¹⁴ Sold separately.

Spark Your Wild Side: High-Octane Features for Go-Getters

Everything's On Track Now

DJI brings subject tracking to an action camera. Action 5 Pro now intelligently detects the subject's position and dynamically adjusts the composition. Keep the subject centered in every frame, during horizontal or vertical shots.⁸

⁸ Subject Tracking mode is only available in horizontal shooting and supports shooting up to 2.7K/60fps video in both 16:9 and 9:16 aspect ratios.

4-Hour Power

DJI is setting a new benchmark for action camera battery performance. A single battery now delivers up to four hours of continuous use.¹ Never miss awesome with 50% more operating time compared to Action 4.

Even in low-temperature conditions get up to 3.6 hours⁹ recording time at temperatures as low as -20° C.

¹ Measured under laboratory conditions at 25° C, while recording 1080p/24fps (16:9) video, with RockSteady on, Wi-Fi off, and screens off. Data was collected in a controlled environment and should be taken as reference only. When activating and using Osmo Action 5 Pro in the EU and the UK, actual battery life may vary due to local regulations on product operating temperatures. Refer to the actual user experience.

⁹ Measured under laboratory conditions at -20° C, while recording 1080p/24fps (16:9) video, with RockSteady on, Wi-Fi off, and screens off. Data was collected in a controlled environment and should be taken as reference only.

Stabilize to Maximize¹⁰

360° HorizonSteady

HorizonSteady not only effectively reduces shakes but also corrects horizontal tilts within a 360° range, handling intense bumps and rotations effortlessly.

HorizonBalancing only corrects horizontal tilts within a ±45° range and supports video recording up to 4K/60fps.

RockSteady 3.0

This mode effectively reduces shakes while retaining the dynamic impact of motion, delivering a more immersive first-person perspective and supports video recording up to 4K/120fps.

Master Every Scene: Flexible, All-Scene Creativity

Built-in Professional Water Pressure Gauge for Intelligent Recording

Action 5 Pro allows you to check real-time underwater depth and duration while diving or swimming¹¹. You can also enhance your footage by adding depth data in the Mimo app. The camera automatically starts or stops recording upon entering or exiting the water¹², allowing you to capture every thrilling moment while facilitating crisp and efficient shooting.

¹¹ The water pressure gauge activates at a depth of 1 meter underwater and is only effective when the camera is submerged without a waterproof case.

¹² With the Auto Record and Auto Stop functions enabled, the camera will automatically start recording at a depth of 1 meter underwater and stop recording upon exiting the water.

20m Waterproof

The rugged, waterproof camera body innovatively advances the Osmo Action's waterproof capabilities. Moreover, it is certified with EN13319, meeting the globally recognized standard for diving accessories. Simply power on with one button and dive up to 20 meters, ¹³ without additional accessories.

¹³ Before use, close the battery compartment cover and the USB-C port cover, and tighten the Glass Lens Cover. It is recommended to install the Waterproof Case for long-duration underwater shooting or in environments with high water impact pressure. Osmo Action 5 Pro and its Waterproof Case have an IP68 waterproof rating. Do not use the camera in hot springs or extreme underwater environments, or let it come into contact with corrosive or unknown liquids.

Vivid Underwater

Action 5 Pro delivers true-to-life colors with the built-in color temperature sensor. Pair it with Mimo's Vivid Underwater feature for even clearer and more natural underwater footage.

Mimo App: Intelligent Shooting and Editing

Once wirelessly connected to Action 5 Pro, the Mimo app allows you to preview the camera view and adjust the settings. It comes with a variety of editing templates and a One-Tap Edit feature, all without needing to download the footage during editing, thus saving your phone's storage space. The Mimo app also includes diverse editing features for action cameras, such as Sports Dashboard, Vivid Underwater, and InvisiStick.

While downloading footage, the Mimo app can continue to download in the background even if you switch to other apps on your smartphone.

* The performance of the background download feature is affected by the system policies of different smartphone manufacturers. To enhance user experience, avoid running the DJI Mimo app in the background for extended periods and ensure the phone's screen remains on during the download.

The Mimo app supports color recovery for D-Log M footage, allowing for more stylish adjustments. This process is quick and convenient, with no computer required.

The Mimo app can generate static and live photos including model information and shooting parameters [20]. Traditional video screenshots are limited to screen resolution (approximately 1080p to 2K), while DJI's Screenshots feature can capture high-definition photos up to 4K resolution, maintaining the original quality.

Specifications

• Image Sensor: Next-Gen 1/1.3" CMOS; 13.5 Stops of High Dynamic Range
• HDR Recording: High Dynamic Range for All Video Specifications; 4K/60fps High-Dynamic Low-Light Imaging
• Screens: OLED & High-Brightness Display
• Max Photo Resolution: Approx. 40 MP
• Operating Time¹: 240 minutes
• Waterproof Performance: 20 m (without waterproof case); 60 m (with waterproof case); EN13319 Certified
• Wi-Fi: Wi-Fi 6.0, up to 80 MB/s
• Built-in Pressure Gauge: It displays water depth and altitude; Automatically starts/stops recording when entering/exiting water.
• Built-in Storage: 47 GB

¹ Measured under laboratory conditions at 25° C, while recording 1080p/24fps (16:9) video, with RockSteady on, Wi-Fi off, and screens off. Data was collected in a controlled environment and should be taken as reference only. When activating and using Osmo Action 5 Pro in the EU and the UK, actual battery life may vary due to local regulations on product operating temperatures. Refer to the actual user experience.
