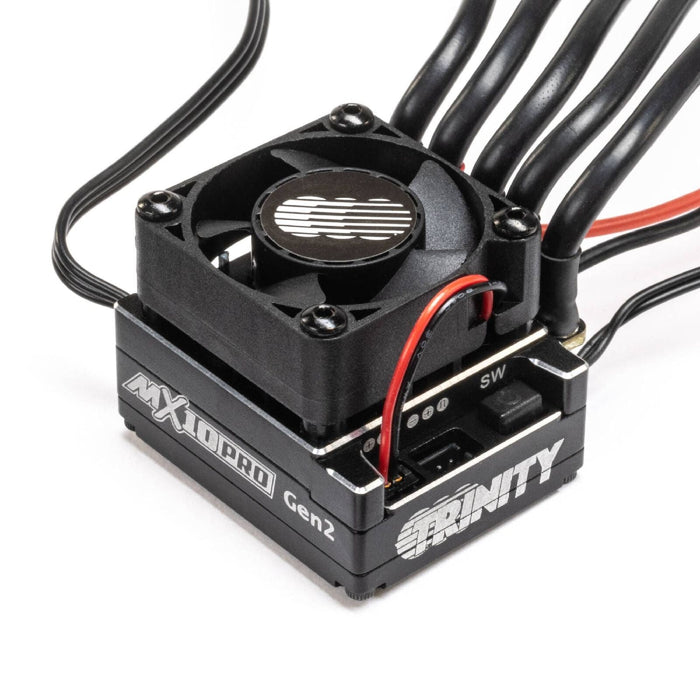

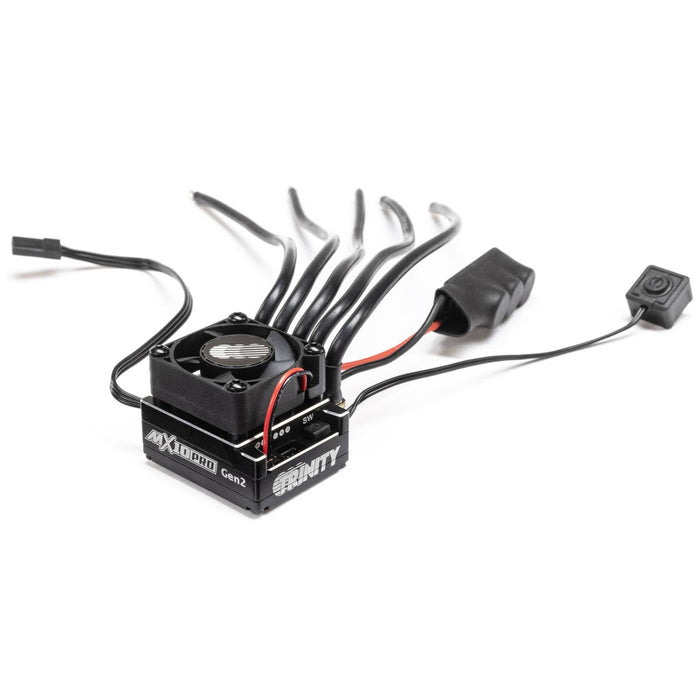

TEP0013 MX10 1/10 Gen 2 200A ESC
Trinity MX10 Gen 2 200A Sensored ESC Overview
The Trinity MX10 Gen 2 200A Sensored ESC has been designed for the most competitive 1/10 and 1/12 scale stock and mod racers. The MX10 offers an industry leading 200-amp constant power rate and an incredible 1000-amp burst rate. All this power comes in a sleek black machined aluminum case designed for maximum heat dissipation. This second generation of ESC also features a 32-bit microprocessor for more powerful processing capability and more precise power output. Each ESC comes with our updated high strand count, high flex 13-gauge wire, fan, and capacitor bank. A shortened receiver connector wire comes standard to make sure your wiring looks clean. The MX10 Gen 2 ESC can be programmed by the MX Gen 2 Wireless Module (sold separately) to take your driving to the next level, right from your phone!
Features
- 200A Current Rating
- 1000A Burst Current Rating
- Adjustable 6.0v/7.4v BEC
- 2-Pole 3.5T Motor Limit
- Low voltage cut-off, over-heat, and throttle signal loss protection
- Proprietary proportional boost and turbo functionality
- Enhanced throttle response, excellent acceleration, linearity, and drivability
- Data logging for real-time maximum ESC temperature, motor RPM, Voltage and more
- 32-bit microprocessor for more powerful processing capability and more accurate motor output
- Includes updated high strand count, high flex black 13-gauge wire
- Lightweight heat sink design, with highly efficient heat dissipation system and 30mm fan
- Built-in power button
- Programmable using the MX Gen 2 Wireless Module (TEP0015, sold separately) and Trinity Programming App
Please Note:
- 2S-3S Use Only!
- Not Recommended for Drag Applications
- Warranty is void if used in Drag Application
- Warranty is void if original motor wires are changed or RX wire is altered in any way
Product Specs
Adjustable Timing
Yes
Auto Cutoff
Yes
BEC
Yes
BEC Type
Adjustable
BEC Voltage
6.0v / 7.4v
Input Voltage
2-3S LiPo / 5-10S NiMH
Low-Voltage Cutoff Programmable
Yes
Maximum Burst Current
1000A
Maximum Continuous Current
200A
Motor Limit
2-Pole 3.5T
Motor Type
Brushless
Overload Protection
Yes
Product Height
0.82" (21 mm)
Product Length
1.63" (41 mm)
Product Weight
102g
Product Width
1.45" (37 mm)
Programmable
Yes
Reverse
Yes
Sensored
Yes
Water-Resistant
No
Wire Gauge
13 AWG
