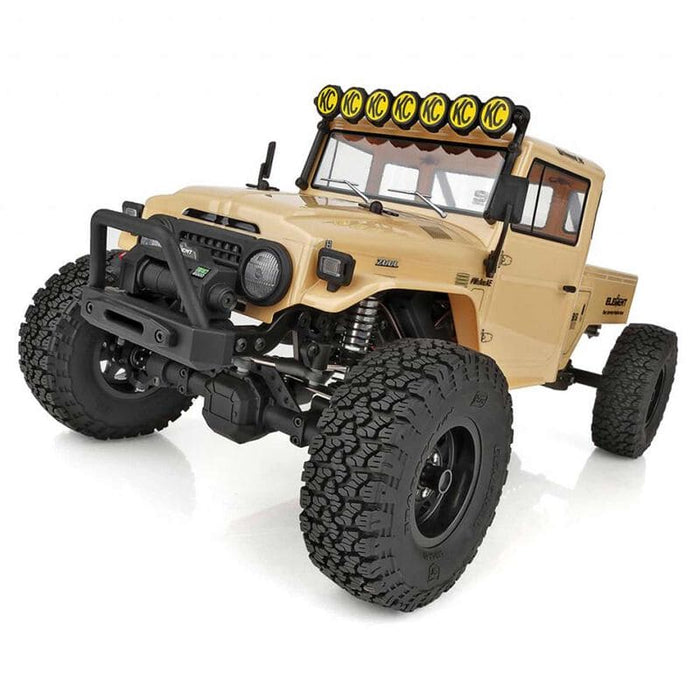

ASC40124 Enduro Trail Truck, Zuul Tan RTR

by ASSOCIATED
$543.98
Inventory :

Product Details



In The Box
  • (1) 1/10 Enduro Trail Truck, Zuul Tan RTR
  • (1) 2.4GHz Radio System
  • (1) 1/10 Enduro Trail Truck, Zuul Tan RTR Manual



Needed to Complete
  • (4) AA Batteries for Transmitter
  • (1) 7.2V - 7.4V Battery
  • (1) Battery Charger
Quick Links

Introduction

Aimed at the serious RC rock crawler enthusiast, the new Enduro Trail Truck, Zuul RTR is packed full of performance features that are sure to impress.

Features

  • Behind-the-axle (BTA) steering
  • Aluminum steering plates
  • Integrated servo winch mount
  • Threaded aluminum shock bodies
  • CMS (Chassis Mounted Servo)
  • Universal front drive axles
  • Stamped steel frame rails
  • 12mm steel wheel hexes
  • Aluminum motor plate
  • Optimized ball cups for more fluid axle articulation
  • Telescopic driveshafts front and rear
  • One-piece rear axle design
  • Splined front axle with adjustable caster
  • Machined input pinion gear
  • Metal ring gear
  • Machined steel top shaft
  • Heavy duty 5mm diameter steel links
  • Heavy duty 5mm diameter steel links
  • Metal ball bearings included
  • Steel 25T servo horn
  • Adjustable front track bar
  • Extruded aluminum driveshaft splines

Body Features

  • Thermoformed polycarbonate body styled after early pickup trucks
  • Narrow body design for increased performance and clearance
  • Clear windows
  • Dropped bed design
  • Adjustable injection-molded front bumper
  • Injection-molded fairlead
  • Injection-molded mock winch
  • Injection-molded grill and signal lights with clear lenses
  • NEW licensed 1.9” × 4.19” x 1.4” General Grabber A/TX tires
  • Licensed 1.9" Method 701 Trail Series wheels

Reliable Performance You Can Count On

The Gatekeeper Suspension package (GKS™) package consists of rear trailing arms that move the shocks forward, allowing a larger window for shock tuning and providing improved weight bias. The trailing arms are paired with a rear anti-roll bar for a more stable and consistent suspension when crawling on the rocks. An adjustable aluminum track bar mount firmly bolted to the chassis rail gives the Enduro more reliable and responsive steering without the flex. Our shock mount inserts with multiple mounting positions allow for precise suspension tuning, whether they’re moving the shocks up, down, forward, or back.

The performance doesn’t stop there. The Enduro Trail Truck, Zuul is built on our proven stamped steel C-channel Enduro chassis and retains the same awesome features as before.

The behind-the-axle (BTA) steering link greatly improves approach angle and front-end clearance, making rough terrain much easier to handle. The Stealth® X features the ability to adjust the rear drive ratio independently of the front drive across three levels: stock overdrives the front end 5.7% (installed in RTR), option 1 provides a one-to-one drive ratio front-to-rear (available separately), and option 2 overdrives the front end 11.83% (included with RTR).

Feeding the power to the tires are 3-piece telescopic driveshafts with an extruded aluminum center section, universal front drive axles, and hardened steel ring and pinion gears. With the Enduro drivetrain, delivering useful power will not be an issue.

With all these amazing features packed in one box, we know the Enduro Trail Truck, Zuul RTR is a high-performance rock-crawling machine that’s ready to take on the terrain. – Are you?


Aluminum Track Bar Mount

The GKS package includes an aluminum track bar mount bolted directly to the steel frame rail, making the front suspension more rigid and flex-free with a more precise steering feel.

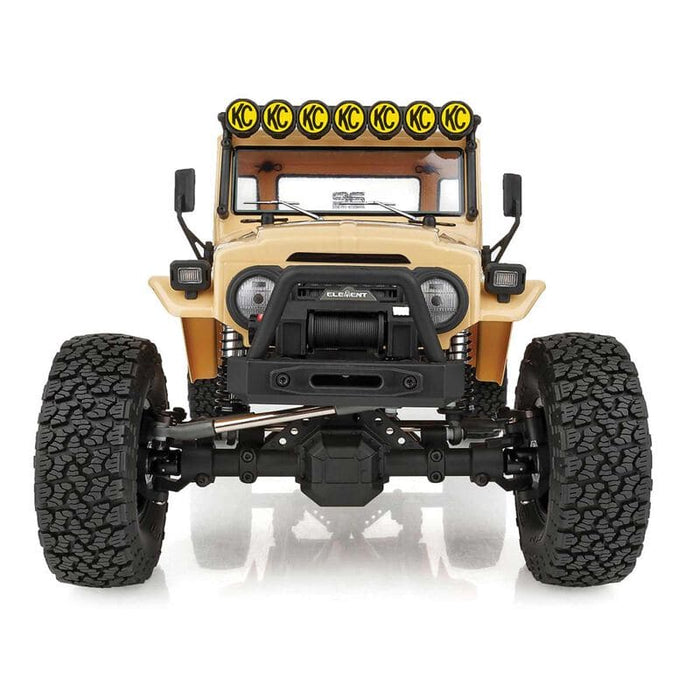

Front Bumper

Adjustable injection-molded front bumper, fairlead, and mock winch.

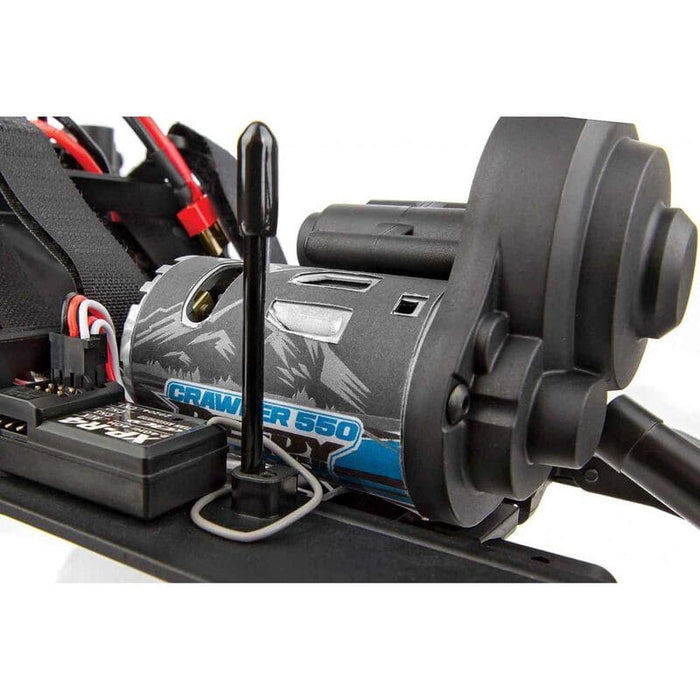

Reedy Power Crawler Motor

The Reedy Power 5-slot 14-turn brushed crawler motor provides ample torque with a smooth power delivery. This allows for slow, precise acceleration while maintaining consistent power over rough terrain and obstacles.

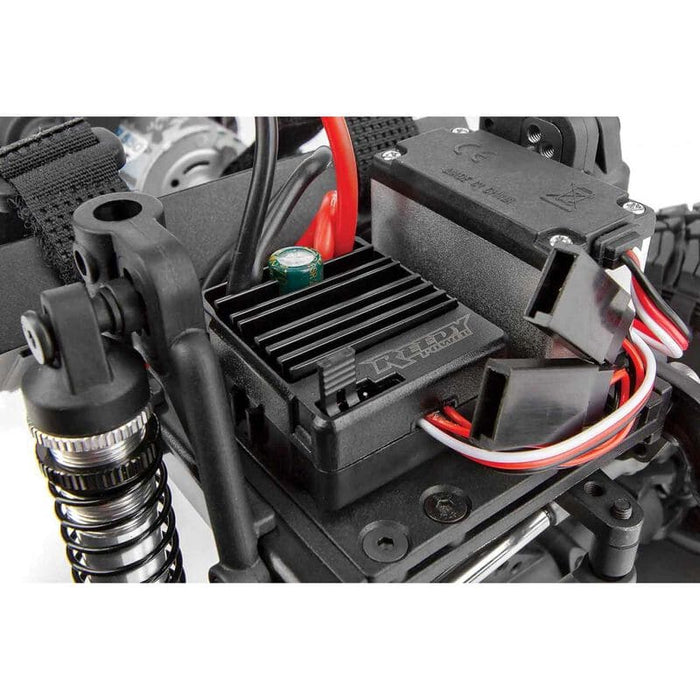

Reedy Power Electronic Speed Controller

The water-resistant SC480X brushed ESC is specifically programmed for crawling with proportional forward/reverse, dual auxiliary power output leads, LiPo low-voltage cutoff protections, and T-plug connector.

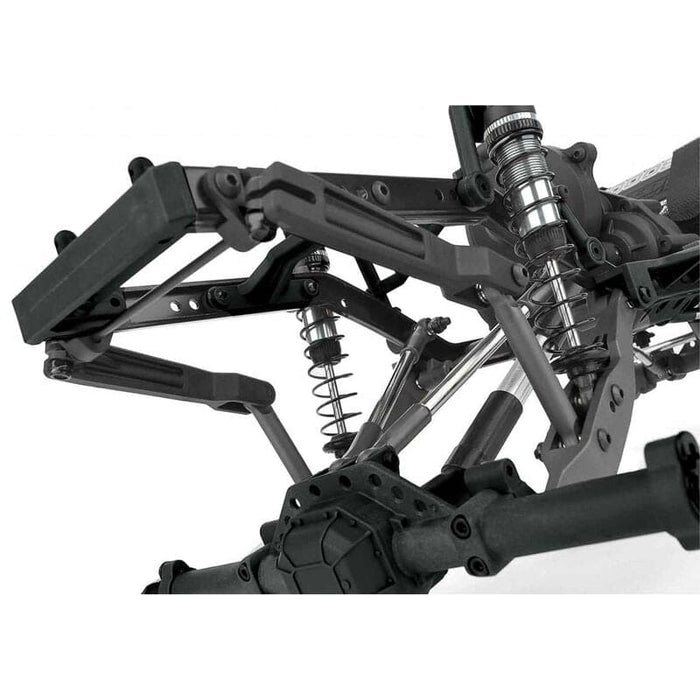

Trailing Arm Rear Suspension

At the heart of the Gatekeeper Suspension (GKS) are the rear trailing arms. This design moves the shocks forward, thus improving weight bias. Because the shock mounting points are farther forward on the lower links and chassis, this allows for a larger window for shock tuning and an optimized anti-roll bar mounting position.

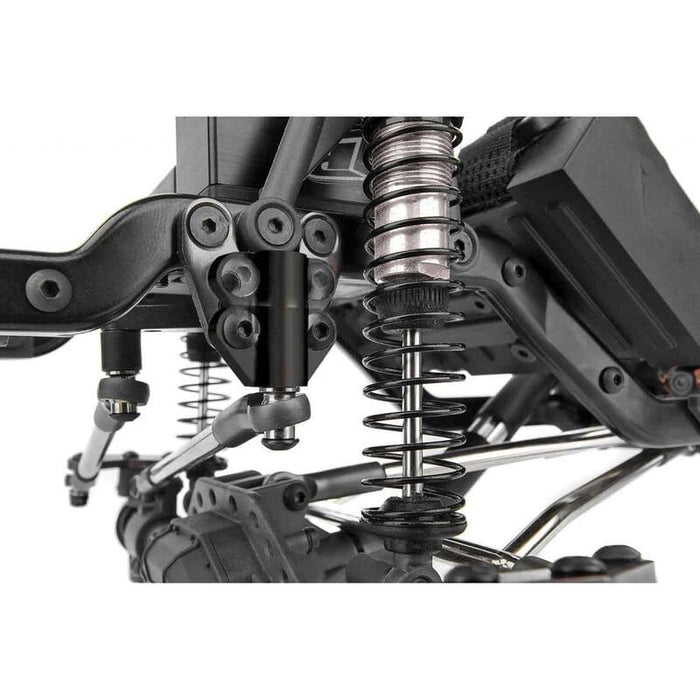

Shock Mount Inserts

GKS shock mount inserts provide drivers with the ability to tune shock angle, droop and vehicle ride height without affecting spring preload.




Stealth X Transmission

The transmission features the ability to adjust the rear drive ratio independently of the front drive in 3 levels: stock overdrives the front 5.7%, option 1 (not included) is a one-to-one drive ratio and option 2 overdrives the front 11.83%.

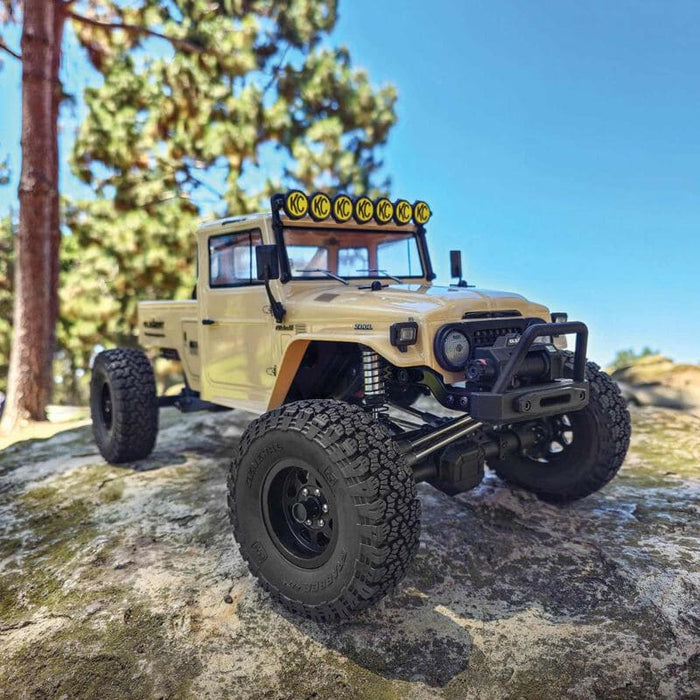

High Performance Scale Looks

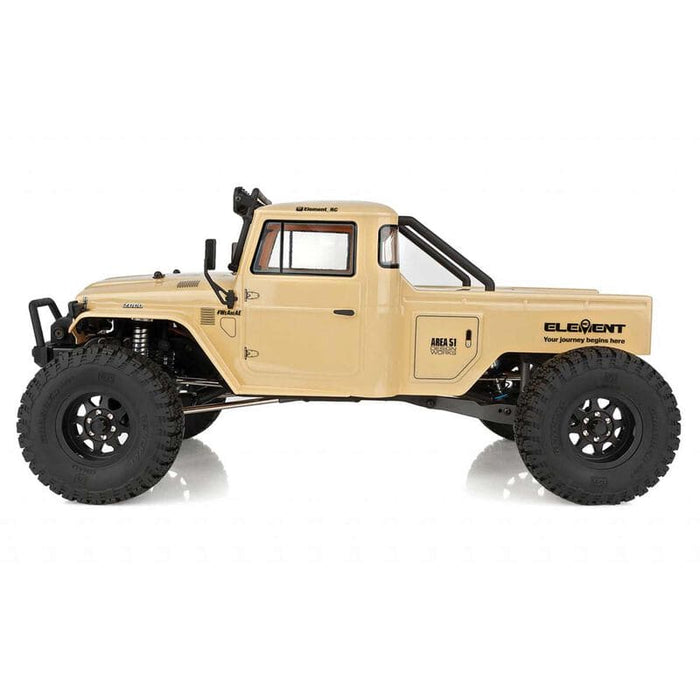

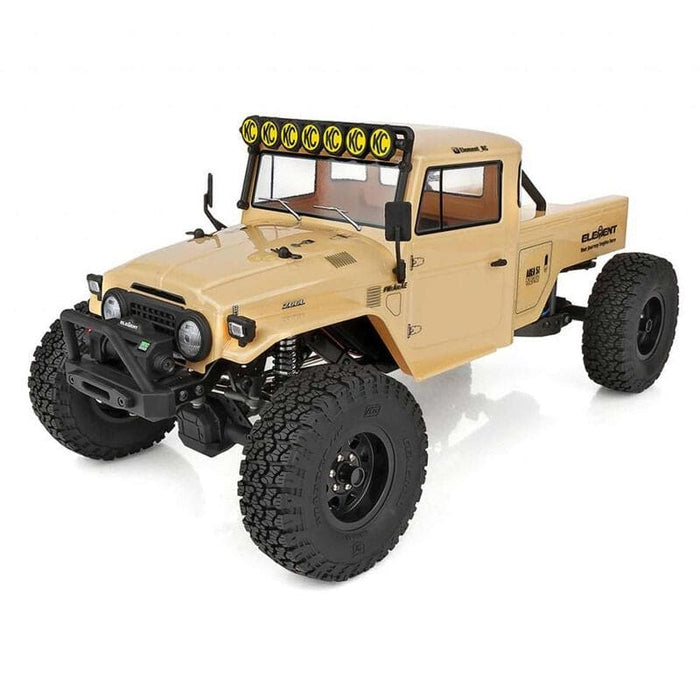

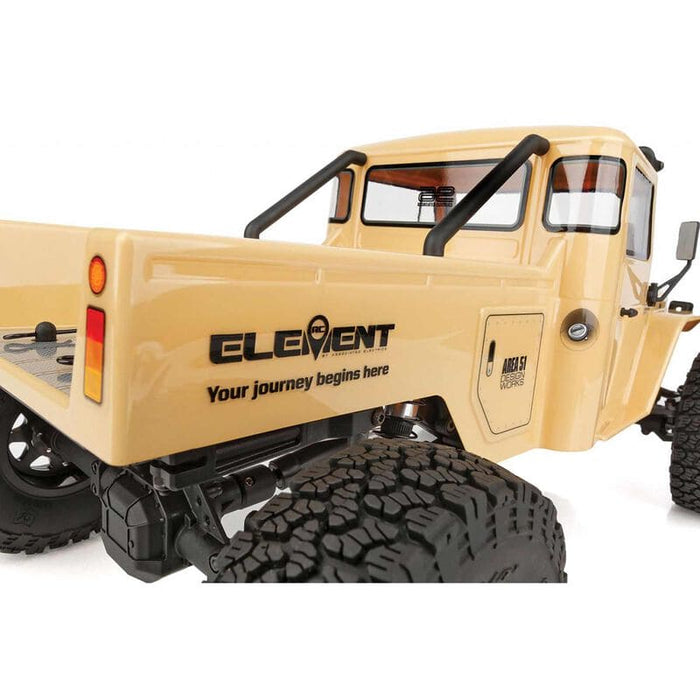

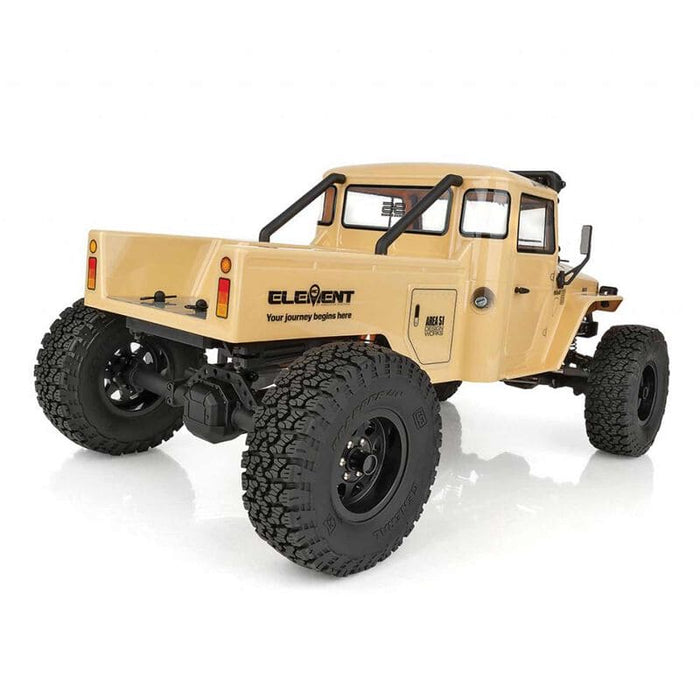

The Enduro Zuul Tan Trail Truck RTR isn’t just all about performance, it’s got looks, too. With inspired styling from vintage off-road vehicles, the Enduro Zuul looks awesome tackling the terrain.

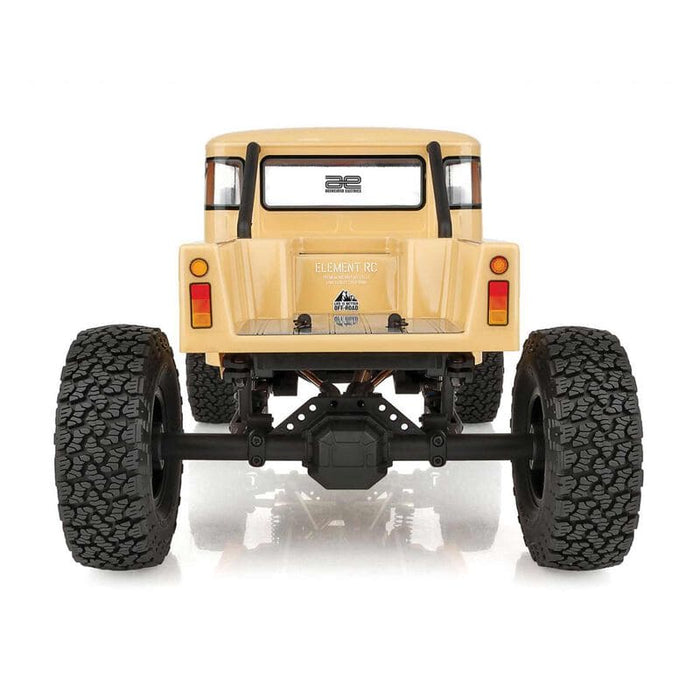

Rear Anti-Roll Bar

The rear anti-roll bar (above) helps keep the rear suspension stable while driving over rough terrain and improves climbability on steep inclines or side hills.




Officially Licensed Wheels and Tires

Gripping the trail is a set of NEW officially licensed General Grabber A/TX tires molded in a highperformance, soft compound rubber. The General Grabber A/TX tires are mounted on Method 701 Trail Series beadlock wheels. No more worrying if your RTR tires will come unglued.



Product Specifications

Power Type Electric
Servos Included
Battery Sold Separately
Connector Type Deans
Product Length 18.19" (462 mm)
Suspension Solid Axle / Trailing Arm
Vehicle Size Standard
Inner Tire / Outer Wheel Diameter 1.9 in
Product Width 9.29" (236 mm)
Radio Included
Vehicle Type Rock Crawler
Chassis Frame Rails
Completion Level Ready-To-Run
Drivetrain 4WD
Drive Type Forward/Brake/Reverse
Approximate Assembly Time No Assembly Required
Body Pre-Painted Polycarbonate
Scale 1/10
Charger Sold Separately
Differential Gear Diffs
Receiver Included
Shock Type Oil-Filled Coil-Over Shocks
Motor Type Brushed
Speed Control Included
Wheelbase 12.8" (325 mm)
