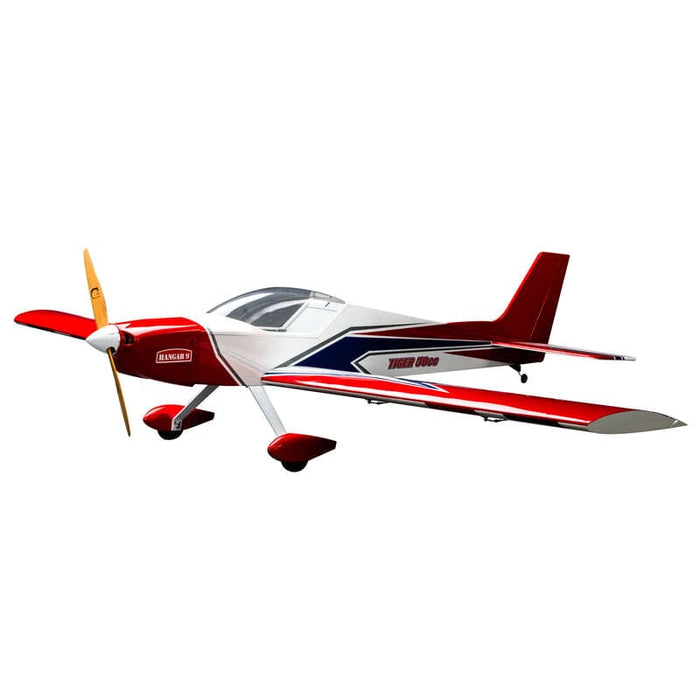

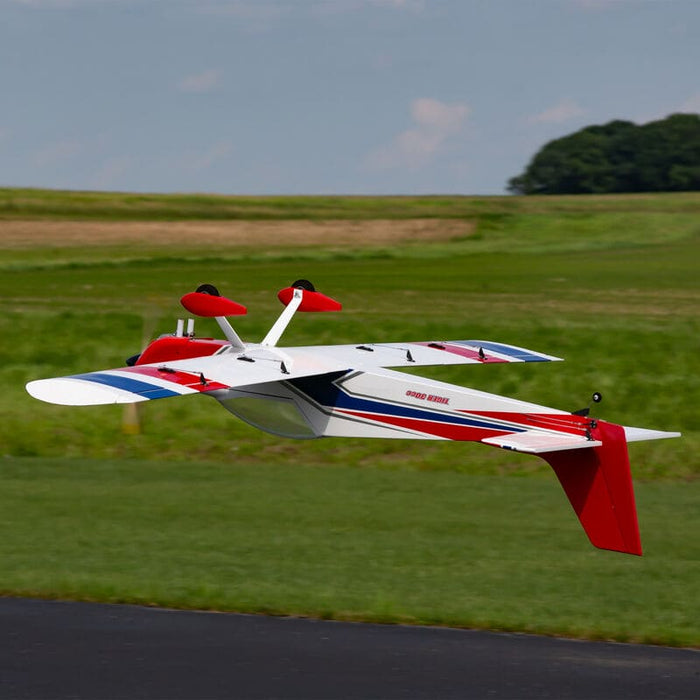

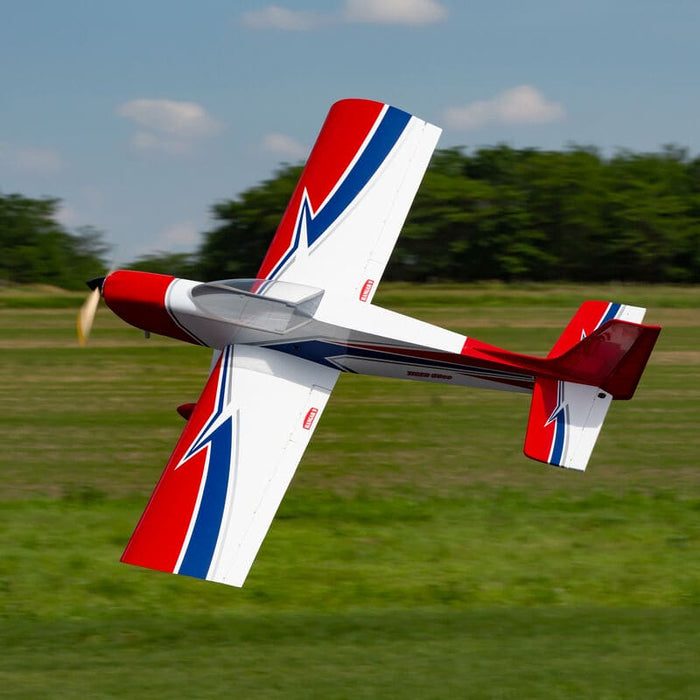

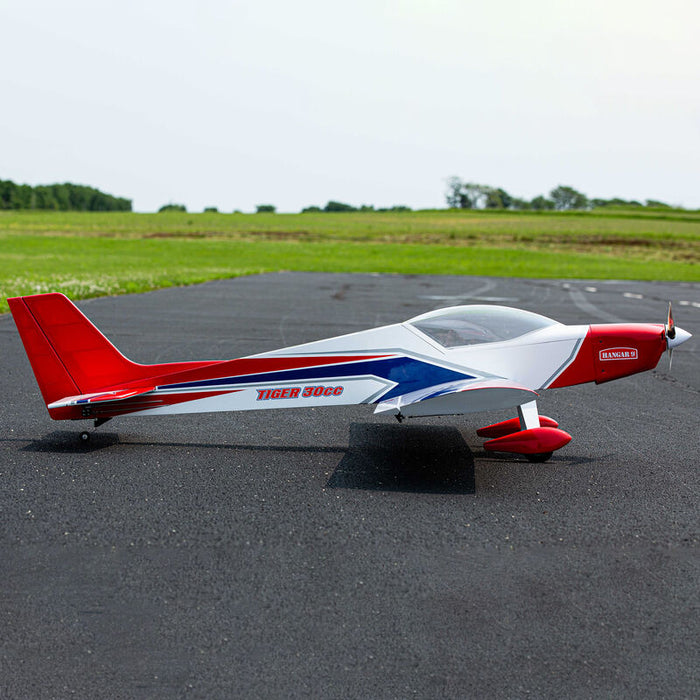

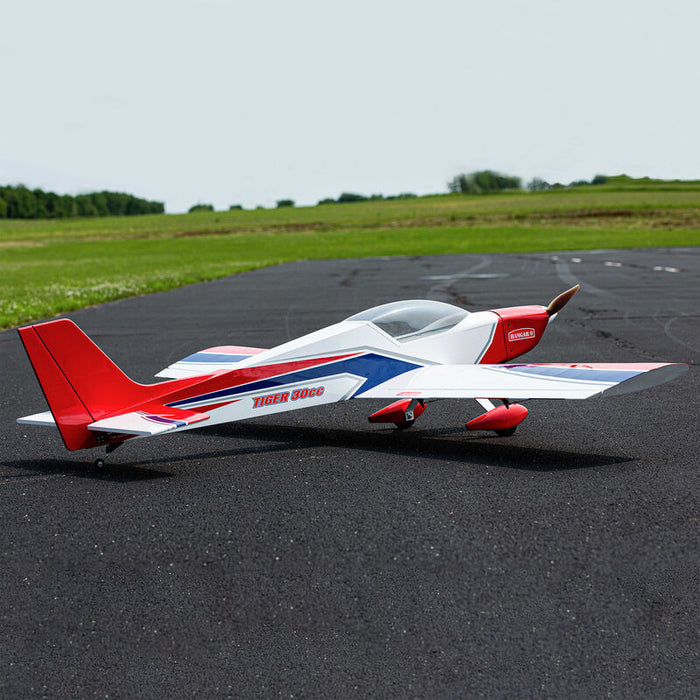

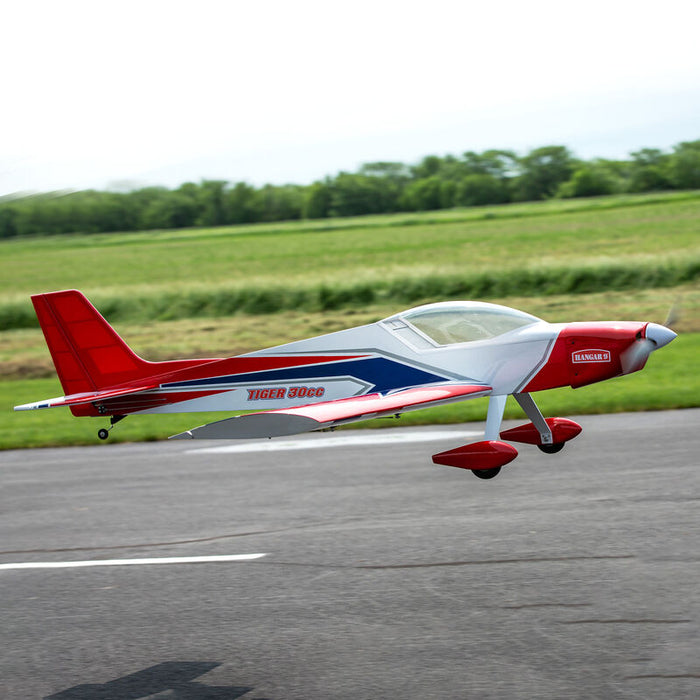

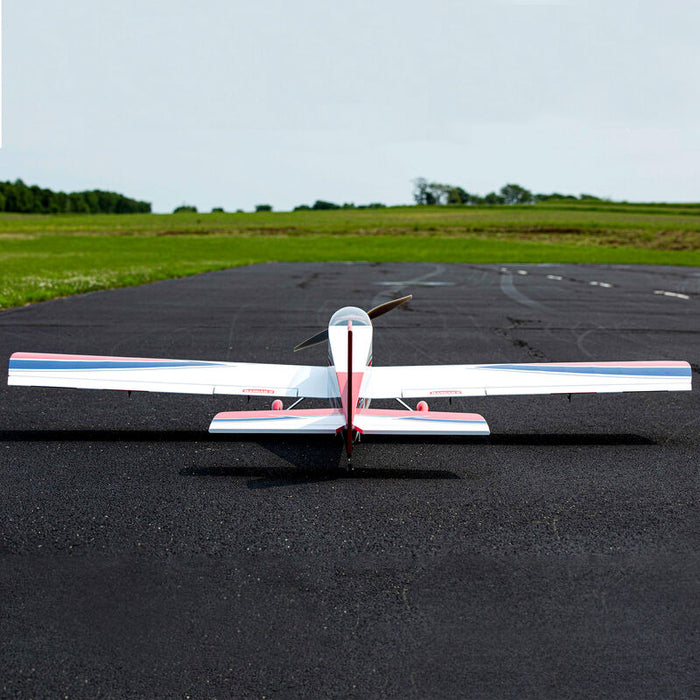

HAN2370 Tiger 30cc ARF, 90"
by HANGAR 9
$579.99
Inventory :
In The Box
- (1) Hangar 9 Tiger 30cc ARF
- (1) Product manual
Needed to Complete
- For Gas Engine or Electric Motor Setup:
- (1) Full-range, 6+ channel radio system
- (5-8) Standard High-Torque Servos
- (5-8) 9-18 Inch Heavy Duty Servo Extensions
- (1) Battery for receiver
- (1) 3 inch spinner
- Tools and adhesives (see manual for complete list)
- For Gas Setup:
- (1) DLE-35RA or similarly sized 30cc 2 or 4 stroke gas engine
- (1) Battery for electronic ignition
- (1) 18x10 Wood Propeller
- Gas tubing and fuel filler
- For Electric Setup:
- (1) 160-180 Brushless Outrunner Motor
- (1) 90-Amp+ Electronic Speed Control
- (2) 6S 22.2V 5000-7000mAh LiPo Batteries
- (1) 18x10 Electric Propeller
Needed to Complete
- For Gas Engine or Electric Motor Setup:
- (1) Full-range, 6+ channel radio system
- (5-8) Standard High-Torque Servos
- (5-8) 9-18 Inch Heavy Duty Servo Extensions
- (1) Battery for receiver
- (1) 3 inch spinner
- Tools and adhesives (see manual for complete list)
- For Gas Setup:
- (1) DLE-35RA or similarly sized 30cc 2 or 4 stroke gas engine
- (1) Battery for electronic ignition
- (1) 18x10 Wood Propeller
- Gas tubing and fuel filler
- For Electric Setup:
- (1) 160-180 Brushless Outrunner Motor
- (1) 90-Amp+ Electronic Speed Control
- (2) 6S 22.2V 5000-7000mAh LiPo Batteries
- (1) 18x10 Electric Propeller
Features
- Lightweight balsa and plywood construction for a strong and lightweight airframe

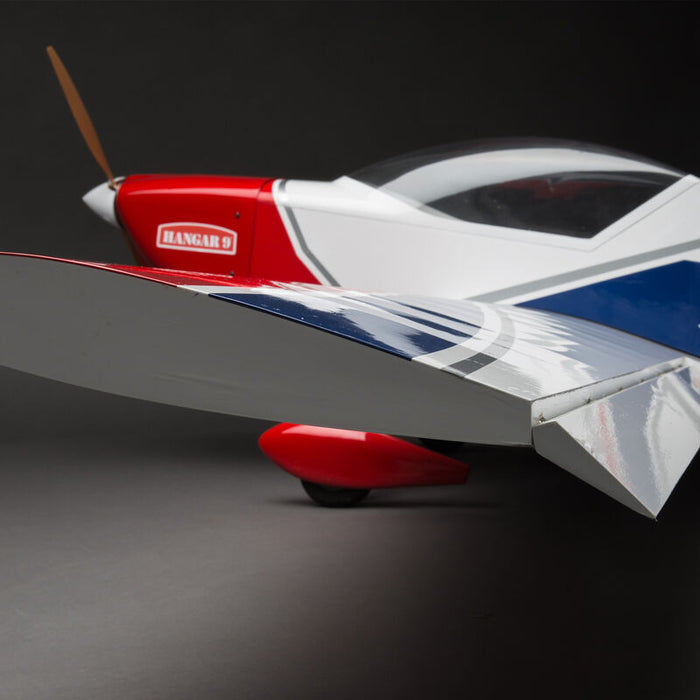

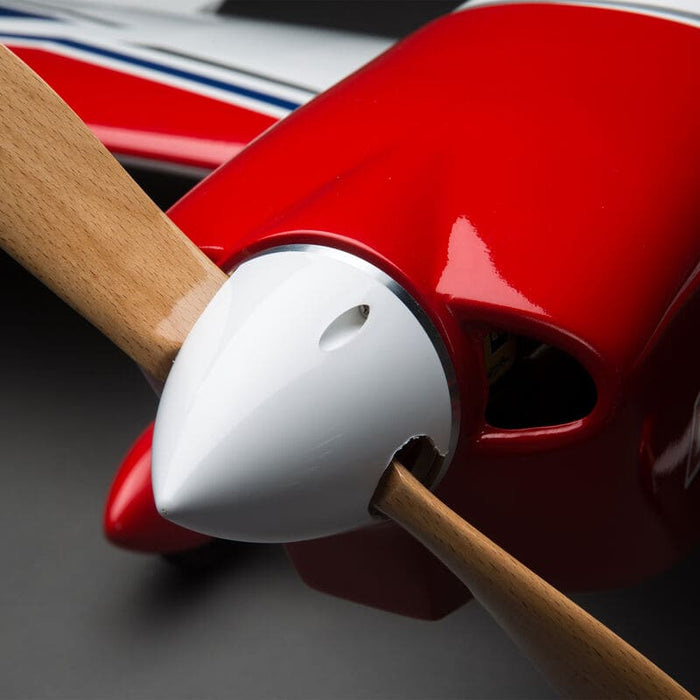

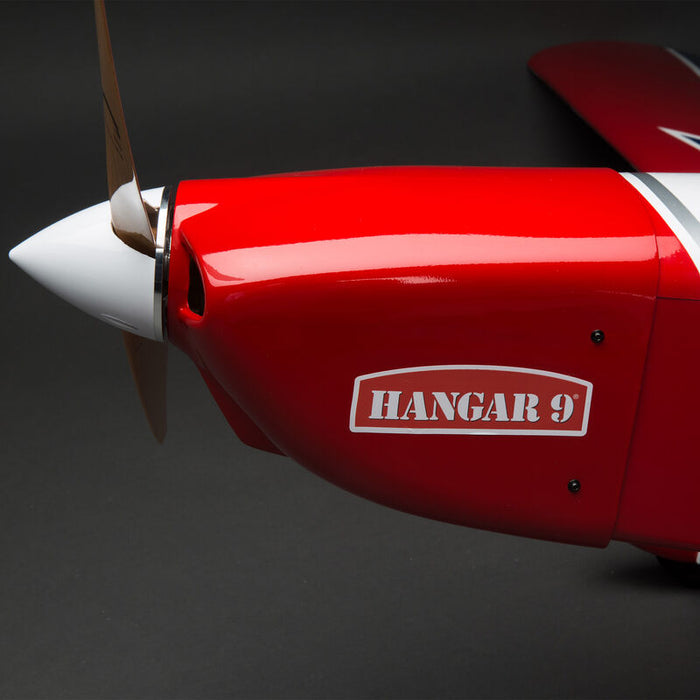

- Fiberglass cowl requires no finishing by the customer
- One-piece painted aluminum landing gear attaches to fuselage

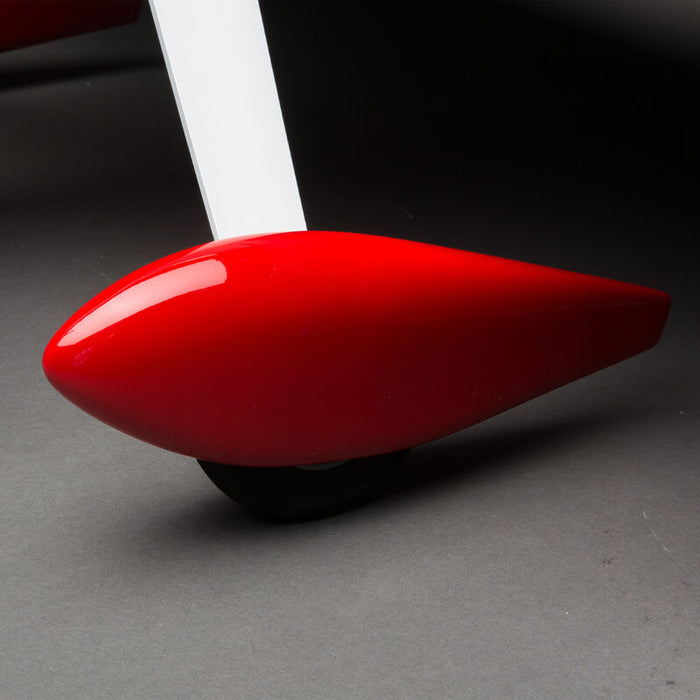

- Finished fiberglass wheel pants matches the covering perfectly

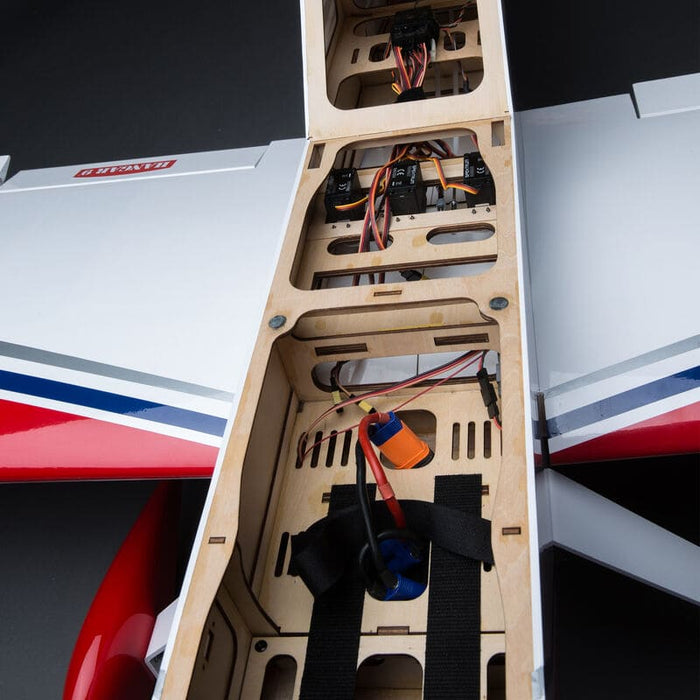

- Large canopy hatch provides easy access to radio gear, batteries and fuel system
- Bolt-on two-piece wings for easy transportation and handling

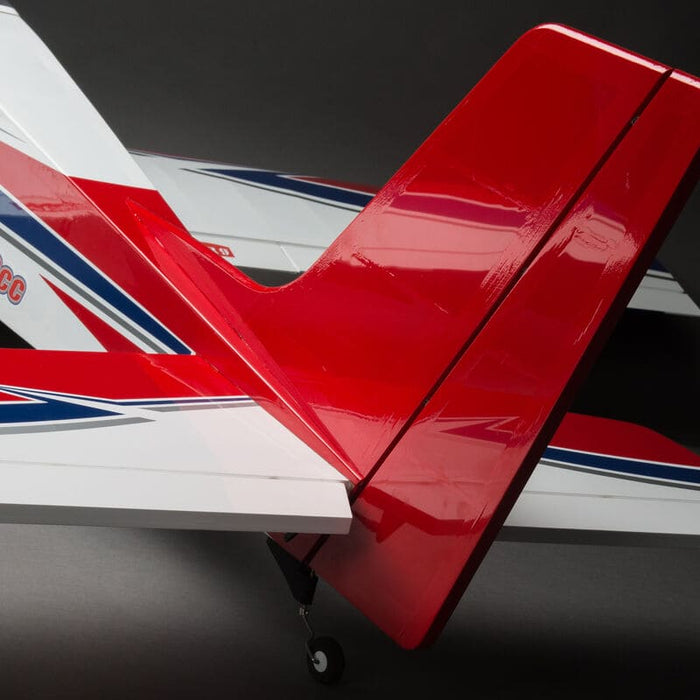

- Steerable tail wheel
- Taildragger gear configuration

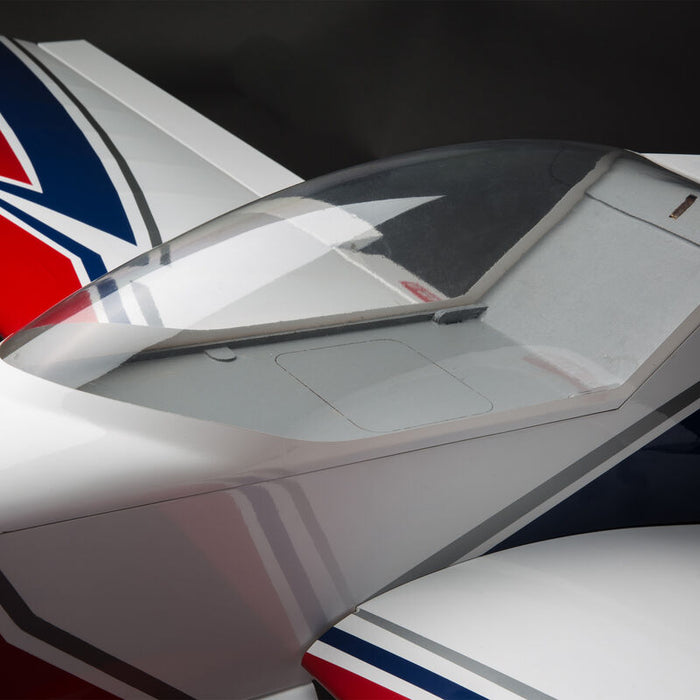

- Clear canopy
- Full-span ailerons with option for functional flaps
- Pre-hinge control surfaces help you save on build time
- Included decal sheet allows you to customize the look of your aircraft
- Complete hardware package included
- Designed to accept gas/petrol engines and electric motors

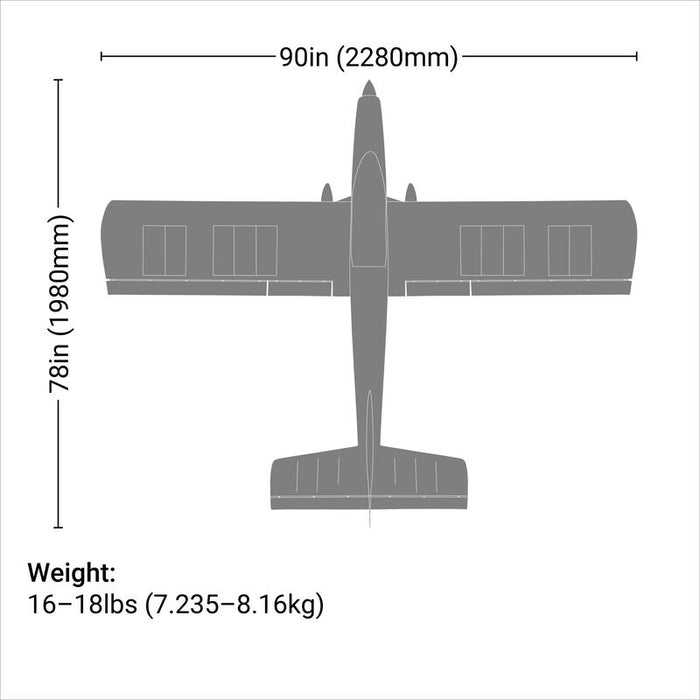

Tiger 30cc ARF, 90" Product Specs
- Airfoil Shape Semi-symmetrical
- Approximate Assembly Time 15-20 Hours
- CG (Center of Gravity) 3.5 - 5" (89 - 127mm) measured from leading edge of wing at fuselage side
- Charger Sold Separately
- Completion Level Almost Ready-To-Fly
- Engine Size 1.8 cu in (30cc)
- LiPo Compatibility 6S
- Material Wood
- Minimum Required Radio 6-channel
- Motor Size 160 - 180 brushless outrunner
- Outer Diameter 1.125 in (30mm)
- Power Type Electric/Gas
- Product Length 78" (1.98m)
- Receiver Sold Separately
- Recommended Motor Battery Two 6S 5000mAh LiPo
- Skill Level Level 3
- Speed Control Sold Separately
- Spinner Size 3" (76.2mm) (sold separately)
- Transmitter Range Full range
- Trim Scheme Colors Red, White, Sapphire Blue and Aluminum
- Wing Area 1417.5 sq in (91.45 sq dm)
- Wing Loading 26 - 29 oz/sq ft (79.34 - 88.49 g/sq dm)
- Wingspan 90" (2.28m)
