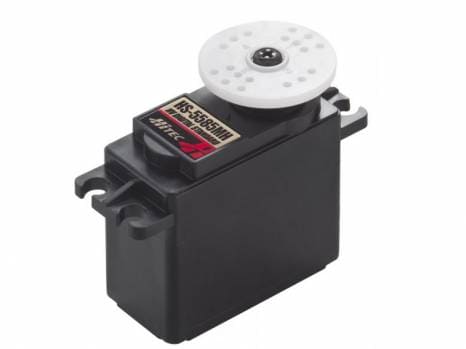

HIT35585S Hitec HS-5585MH Coreless Digital Servo
by HITEC RCD INC
$100.99
Inventory :
Increase your performance not your budget with the high voltage, high torque, digital HS-5585MH. Featuring a high performance coreless motor, heavy-duty metal gears and dual ball bearings, the HS-5565MH is rated for 7.4 volt, 2S LiPo operation. The HS-5585MH, supplies your 1/10th monster trucks to 1/8th scale buggies and truggies and high performance airplanes up to 35 percent with outstanding strength and precision.
Features:
- Our Most Economically Priced High Torque Digital Coreless Servo
- Quick and Precise Coreless Motor
- Heavy Duty Metal Gears
- 7.4v 2-Cell LiPo Capability
- Standard Programmable Digital Circuit
Programmable Functions:
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Data Save / Load
- Program Reset
| Radio Control Applications | |
|---|---|
| Physical Specifications | |
| Performance Specifications | |
| Operating Voltage Range (Volts DC): | 6.0V ~ 7.4V |
| Speed (Second @ 60°): | 0.17 ~ 0.14 |
| Maximum Torque Range oz. / in.: | 194 ~ 236 |
| Maximum Torque Range kg. / cm.: | 14 ~ 17 |
| Current Draw at Idle: | 4 mA |
| No Load Operating Current Draw: | 300 mA |
| Stall Current Draw: | 2,700 mA |
| Dead Band Width: | 2 us |
| Dimensions (Inches): | 1.57 x 0.78 x 1.49 |
| Dimensions (Metric): | 39.8 x 19.8 x 37.8 |
| Weight (Ounces): | 2.1 |
| Weight (Gram): | 60 |
| Circuit Type: | G1 Programable Digital |
| Motor Type: | Coreless Metal Brush |
| Gear Material: | Metal |
| Bearing Type: | Dual Ball Bearing |
| Output Shaft (type / 0mm): | Standard 24 |
| Case Material: | Plastic |
| Dust / Water Resistance: | N / A |
| Connector Gauge (AWG) / Strand Count: | 25 / 40 |
| Parkflyer: | N / A |
| Sport Plane: | 0.3 |
| Sailplane: | 2 meter and up |
| 3D Performance: | 0.3 |
| Scale: | 0.3 |
| Electric Helicopter: | 700mm |
| Gas Helicopter: | 90+ Class |
| On Road: | 1/8th |
| Monster Truck: | 1/8th |
| Buggies: | 1/8th |
| Truggies: | 1/8th |
| Short Course / Truck: | 1/8th |
| Crawlers: | 1/8th |
| Sail Boat: | = >1 meter & Scale |
| Power Boat: | N / A |
