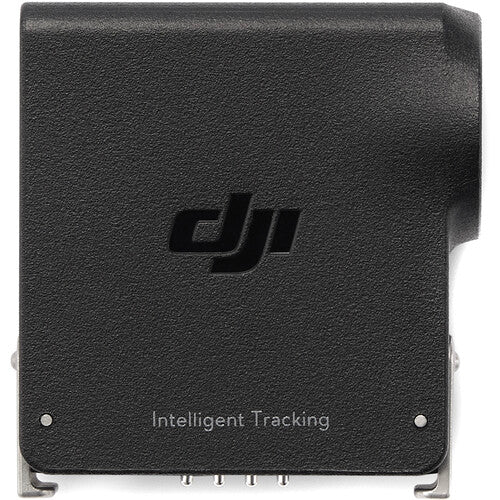

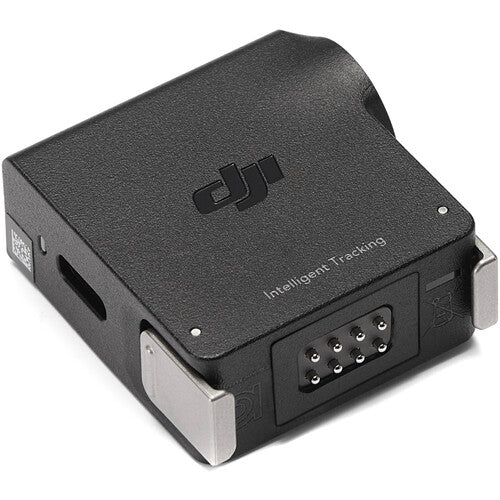

CP.RN.00000499.01 DJI RS Enhanced Intelligent Tracking Module

• ActiveTrack & Center Tracking Modes
• Intelligent Subject Reframing
• Keep Current Framing Mode
• Tracks People, Pets & Vehicles
• Tricolor LED Ring Status Indicators
• Tracks Person up to 32.8' Away
• Joystick, Touchscreen & Gesture Control
• Orbit, POV, Backward Shot Tracking
• Magnetic Mounting Design

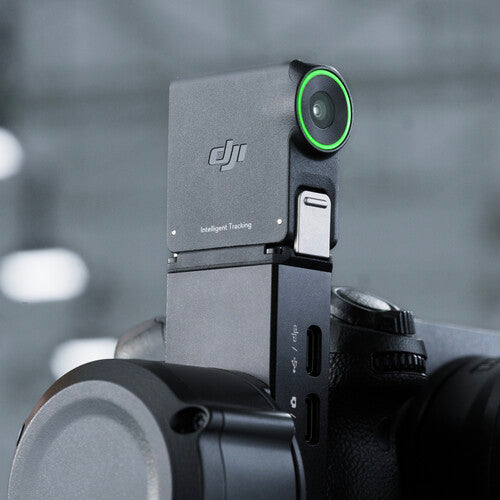

Reliably track your subjects when using an RS 5 gimbal stabilizer with the RS Enhanced Intelligent Tracking Module from DJI. This compact module snaps onto your gimbal via its magnetic mount and securely locks into place. It works with the gimbal's ActiveTrack technology for smooth,

Intelligent Tracking and Framing

Reliably track your subjects when using an RS 5 gimbal stabilizer with the RS Enhanced Intelligent Tracking Module from DJI. This compact module snaps onto your gimbal via its magnetic mount and securely locks into place. It works with the gimbal's ActiveTrack technology for smooth, intelligent tracking and framing of human subjects from up to 32.8' away.

Multiple Modes

• The tracking module can be controlled using the gimbal or by using hand gestures.
• You can start/stop tracking or enable different modes, such as orbit mode, POV/selfie mode, or backward tracking shots.
• Once framed, it keeps your subject perfectly positioned.
• The tracker can even reacquire the person after they've temporarily left the frame.

Tricolor LED Ring Indicators

• A green, yellow, and red LED ring lets you quickly see the status of the tracking function.
• Solid and blinking indicators include sleep, in use, temporary subject loss, adjusting, and countdown modes.



DJI CP.RN.00000499.01 Specs

General

Compatibility	DJI RS 5 Gimbal Stabilizer
Operating Conditions	> 20 Lux

Inputs/Outputs

USB I/O	1 x USB-C 2.0 Female Input
LED Indicators	Solid Red: Disabled: Sleep Mode or Subject Lost Solid Green: In Use Blinking Green: Subject Lost Temprorarily Solid Yellow: Composition Being Adjusted Blinking Yellow: 3-Second Countdown Timer

Wireless

Range

Tracking Distance: 1.6-32.8' / 0.5-10 m

Power

Power Source	Proprietary Interface
Power Consumption	1 W

Physical

Mounting	1x Magnetic Mount
Color	Black
Operating Conditions	32 to 113°F / 0 to 45°C
Dimensions	1.5 x 1.4 x 0.7" / 38.5 x 35.9 x 17.5 mm
Weight	0.7 oz / 19 g

Packaging Info

Package Weight	0.14 lb
Box Dimensions (LxWxH)	3.8 x 2.5 x 1.1"





Items Included

• DJI RS Enhanced Intelligent Tracking Module
• Adapter Mount
