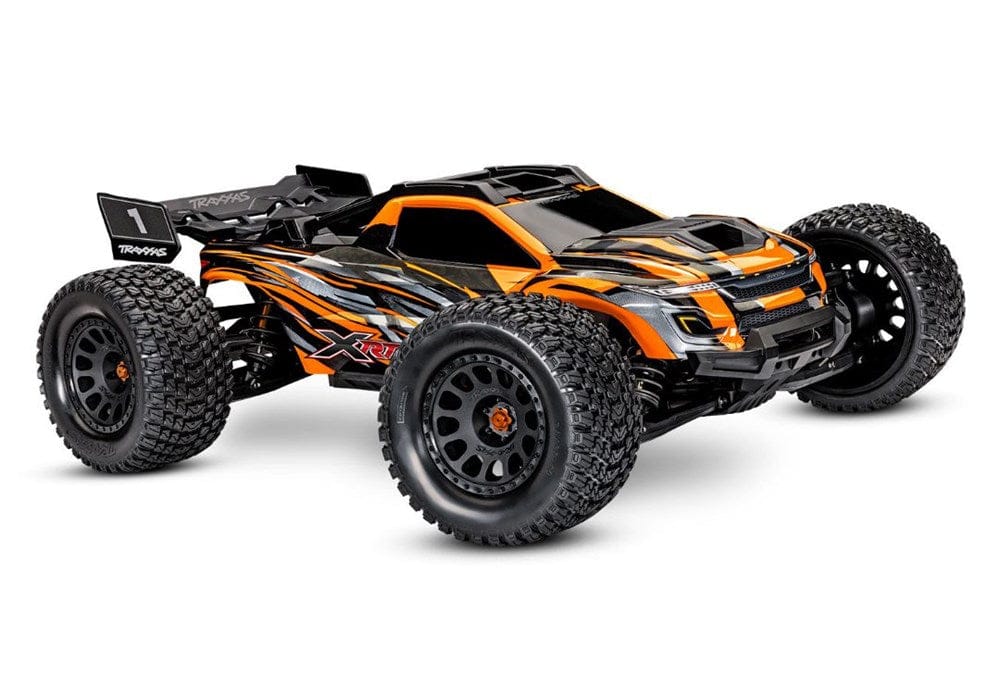

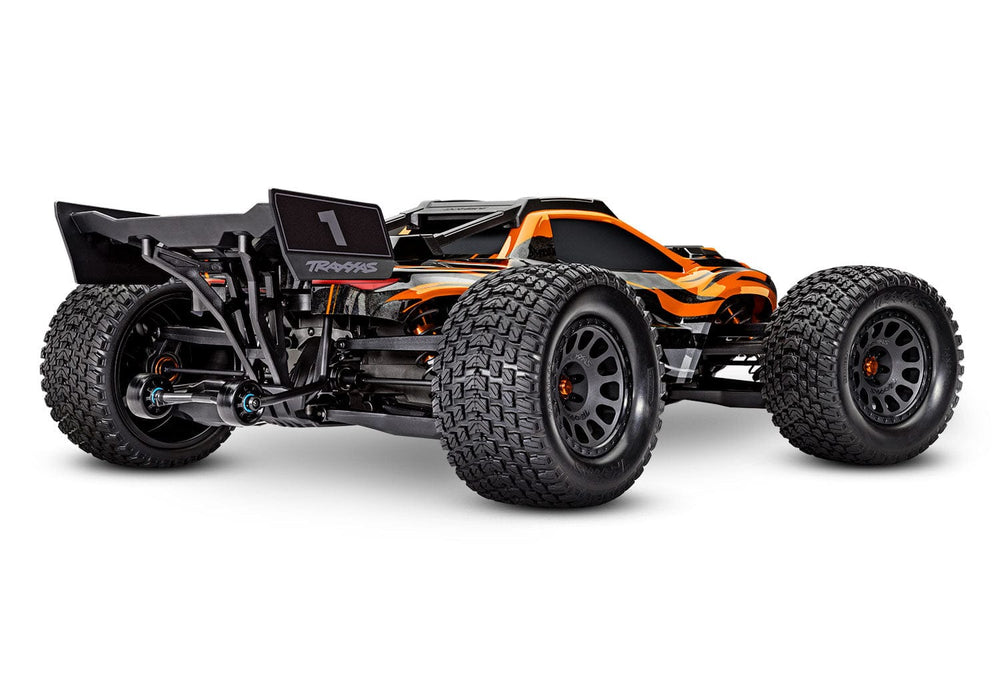

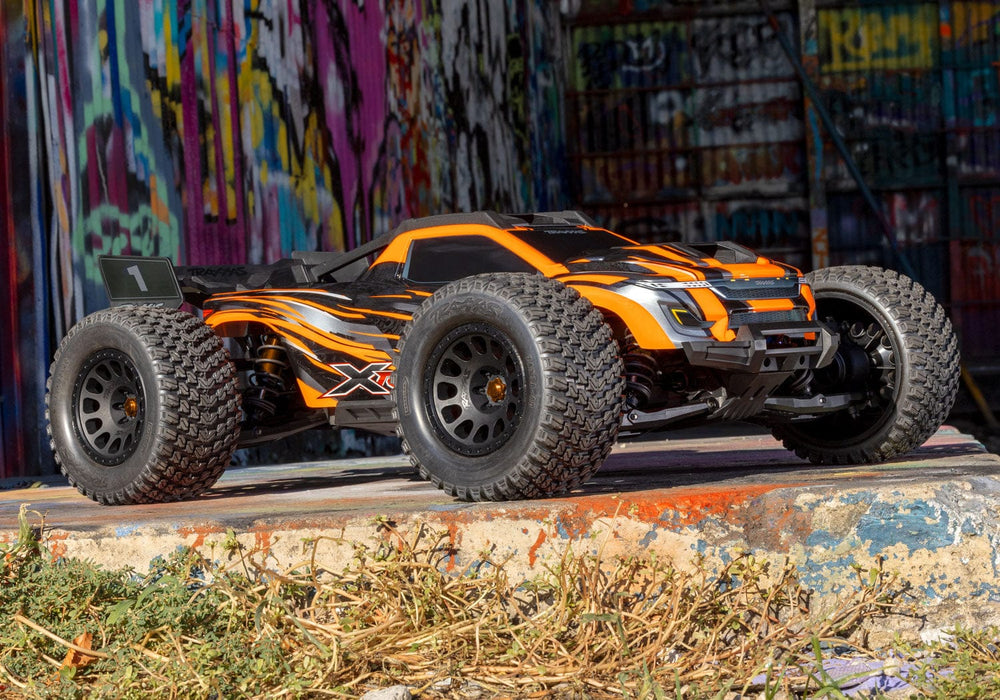

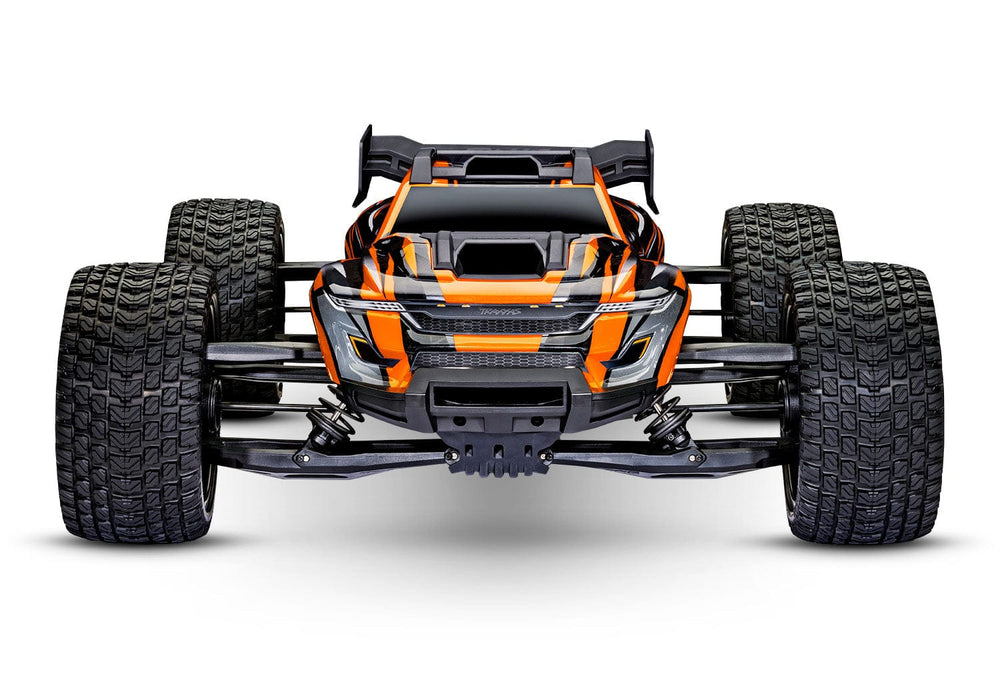

TRA78086-4 Traxxas X-Maxx Race Truck (XRT) - Orange YOU will need this part # TRA2997 to run this truck **
RACE-INSPIRED ENGINEERING
EXTREME 8S POWER AND SPEED

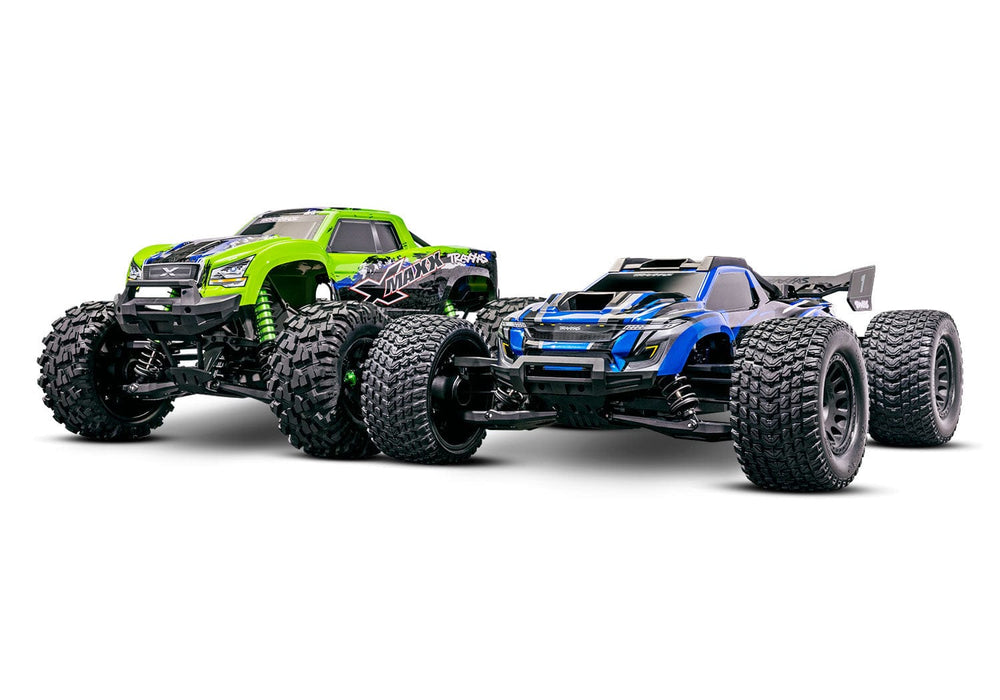

X-TRUCK™ SIZE AND STRENGTH
The Traxxas XRT fuses race-inspired design and engineering with X-Maxx® power and strength. The result is an all-new platform with sharp reflexes and unprecedented stability that is capable of exploiting the upper range of extreme 8s power and speed.
What’s In The Box:
- XRT, Ready-To-Race® model with Traxxas Big Block™ brushless motor
- VXL-8s waterproof electronic speed control with integrated telemetry
- Quick Start Guide

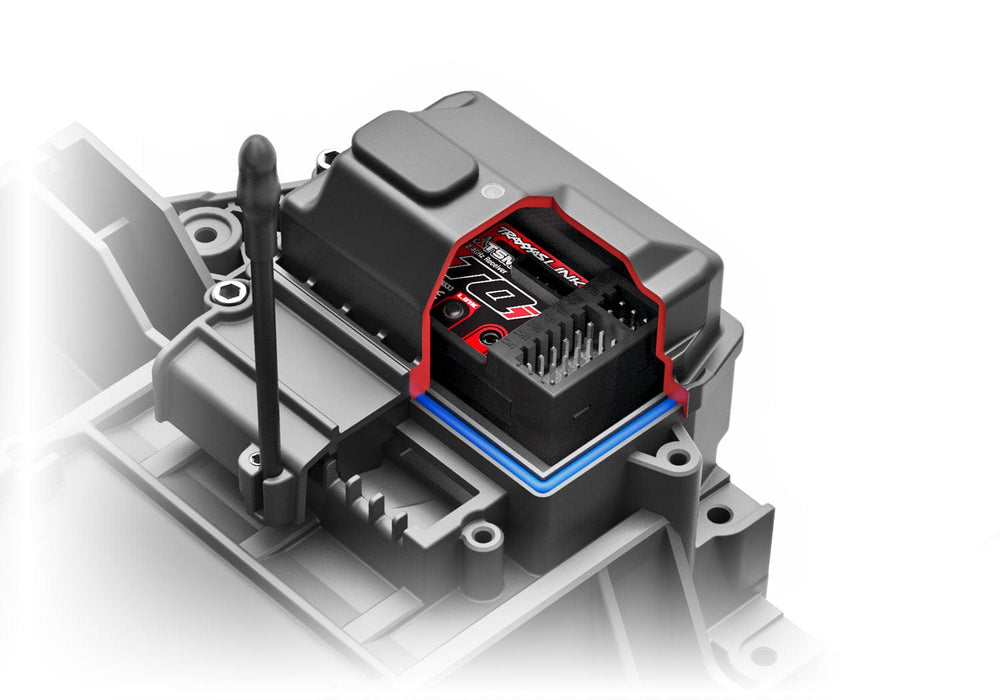

- TQi™ 2.4 GHz radio system
- High quality maintenance tools

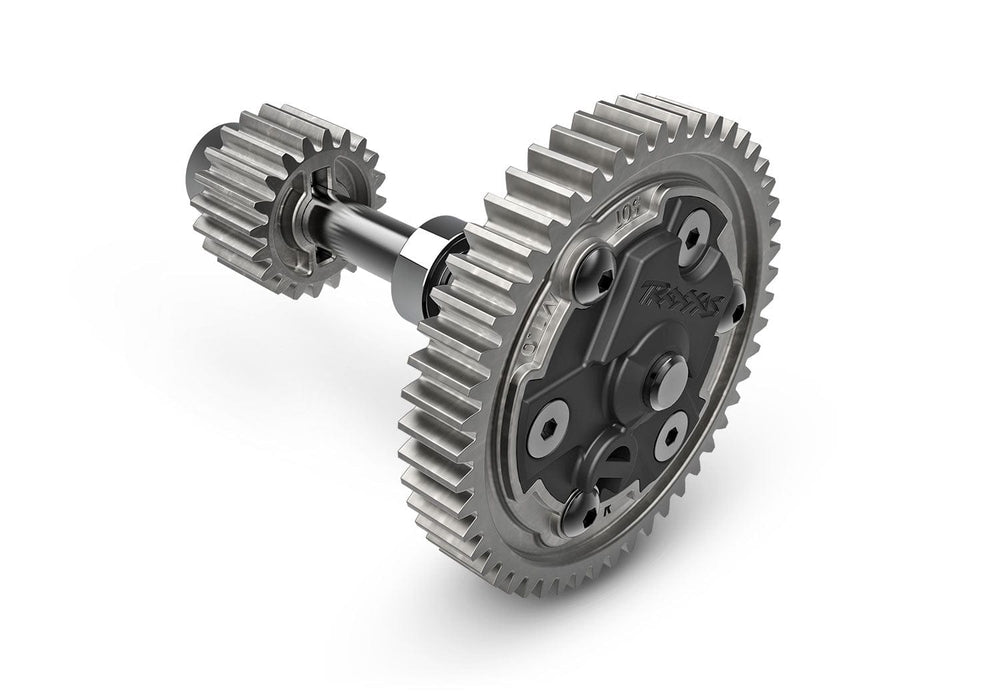

- Optional speed gears
What You’ll Need:
- LiPo Batteries
Traxxas recommends dual 2890X 4-Cell, 6700 mAh Power Cell LiPo batteries or the 2997 Dual 4s Completer Pack.
- Charger
- EZ Peak Live Dual LiPo Balance Charger with iD®
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
MODEL SPECS
| Model Name: | XRT |
|---|---|
| Model Type: | Monster Truck |
| Model Speed: | 60+ mph with dual 4s LiPo batteries and optional gearing |
| Model Skill Level: | 5 |
| Scale: | X-Truck™ |
| Weight: | 21.03 pounds (9.54 kg) |
| Length: | 31.41 inches (798 mm) |
| Width: | 23.43 inches (595 mm) |
| Front Track: | 23.43 inches (595 mm) |
| Rear Track: | 23.43 inches (595 mm) |
| Height: | 10.15 inches (258 mm) |

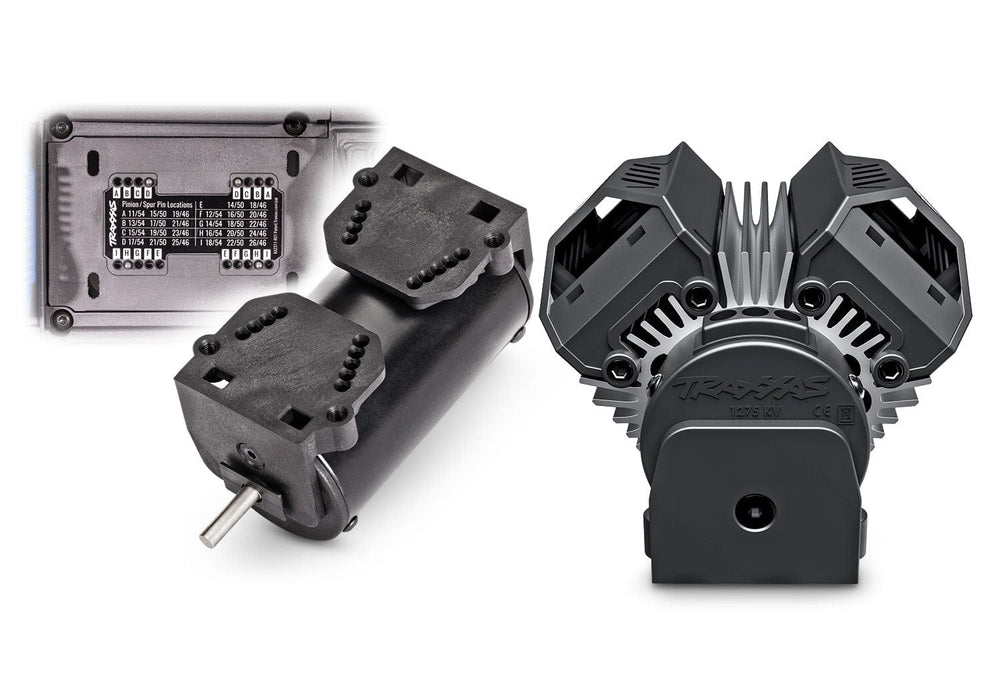

MOTOR SPECS

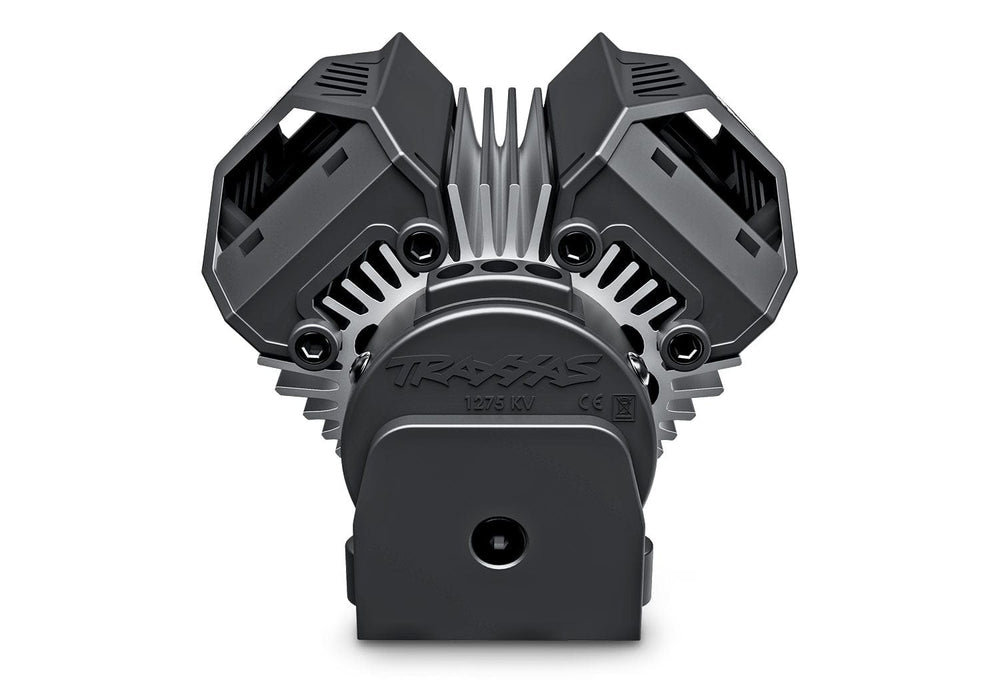

| Motor Name: | Velineon® 1200XL |
|---|---|
| Motor Type: | 1275 kV sensorless brushless |
| Motor Weight: | 23.44 ounces (665 g) |
| Motor Length: | 4.32 inches (110 mm) |
| Motor Diameter: | 1.88 inches (48 mm) |
| Motor Shaft Size: | 5 mm |
| Motor Connector Type: | 6.5 mm bullet connectors |
ESC SPECS
| ESC Name: | Velineon® VXL-8s |
|---|---|
| ESC Type: | Brushless |
| ESC Case Size: | 2.23 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm) |
| ESC Weight: | 7.60 ounces (215.5 g) |
| Motor Connectors: | 6.5 mm bullet connectors |
| Battery Connectors: | Traxxas High-Current Connectors |
| ESC Power Wire: | 10 gauge Maxx® Cable |

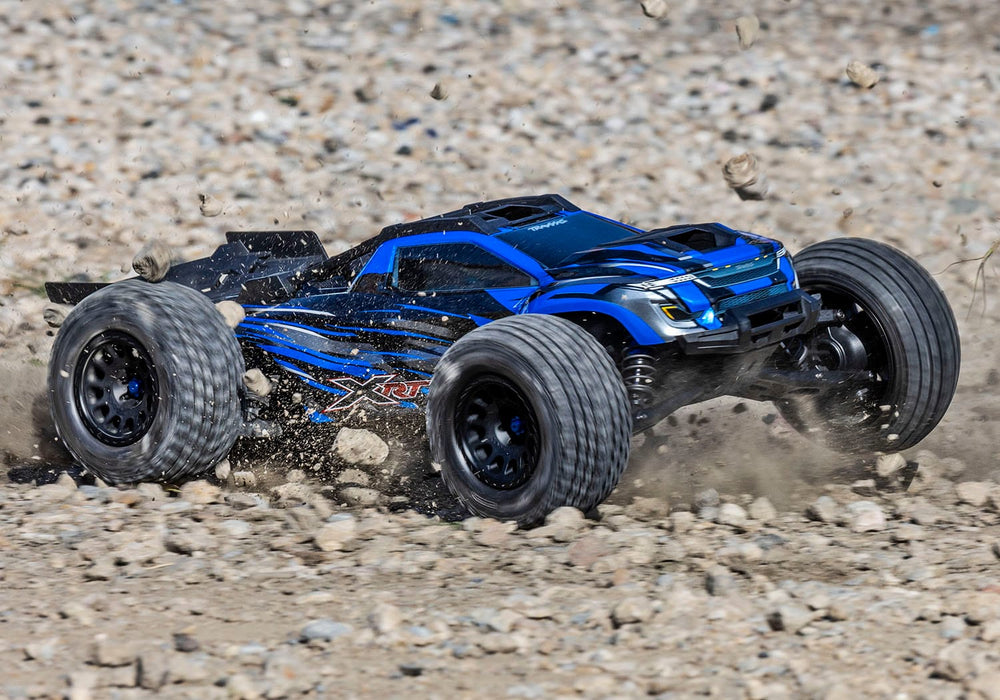

BUILT FOR SPEED AND HANDLING

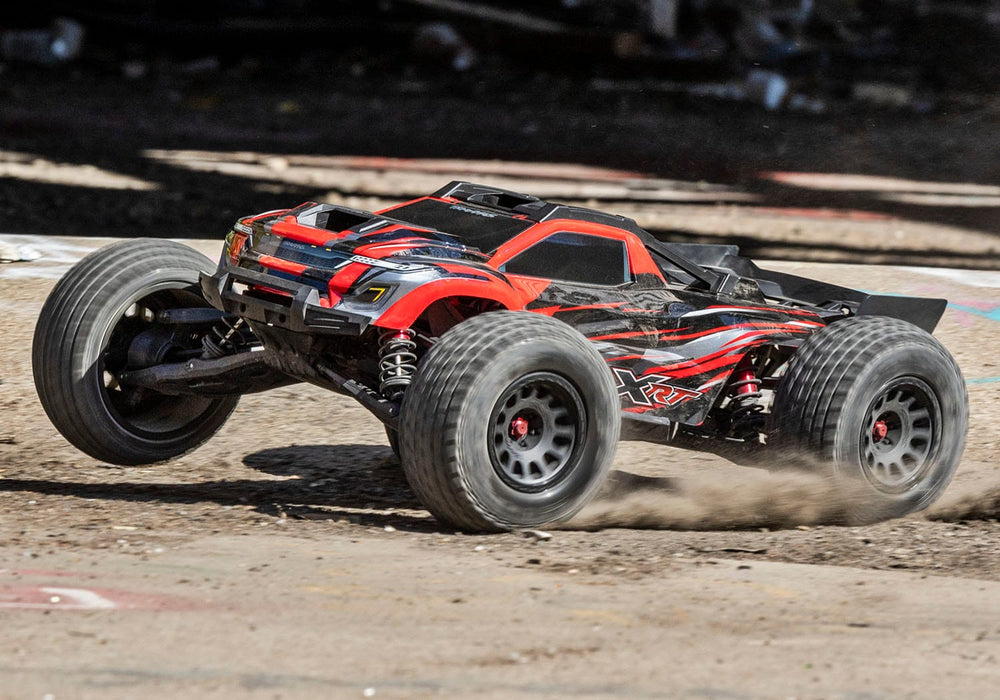

XRT was engineered with a focus on speed, handling, and performance. XRT’s low center of gravity, ultra-wide stance and low-profile body deliver confidence and control as XRT accelerates across the wide-open spaces to an all-out speed of 60+MPH.

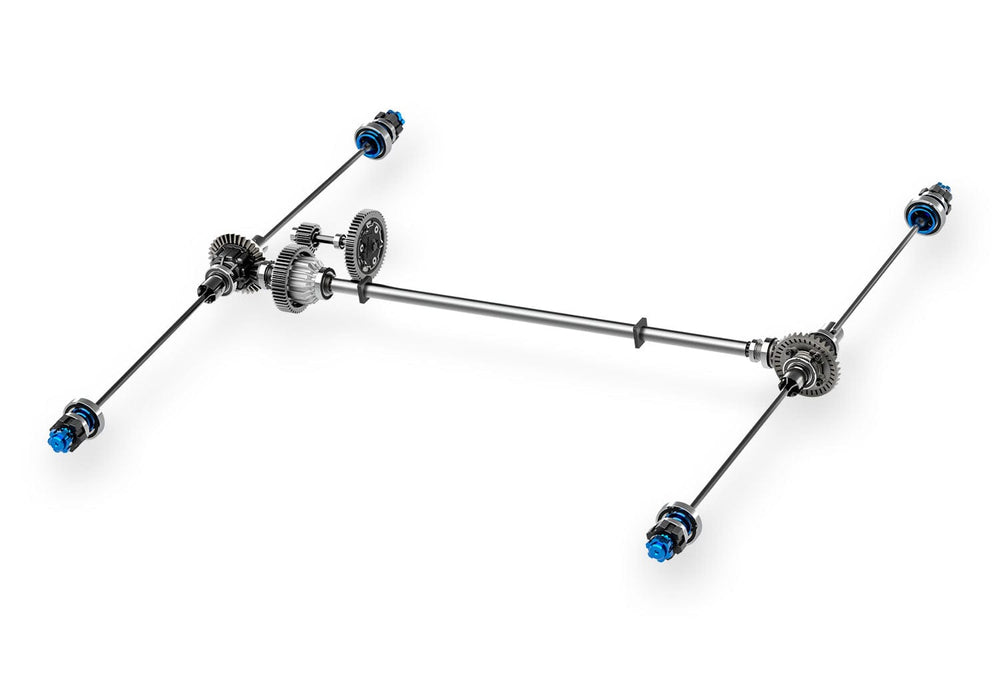

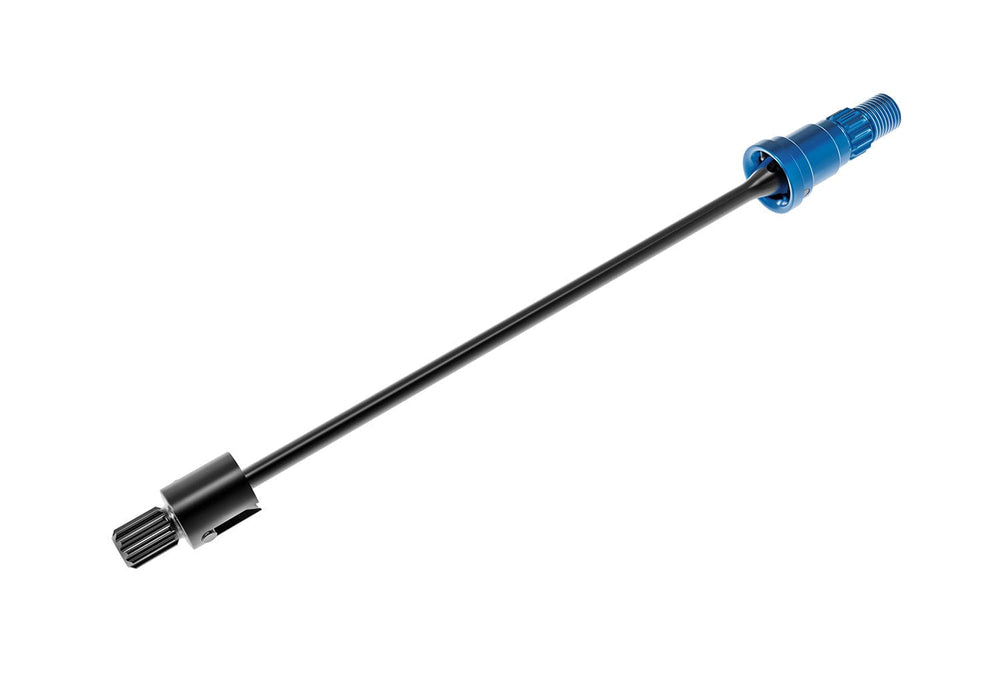

PROVEN TOUGH ALL-METAL DRIVELINE

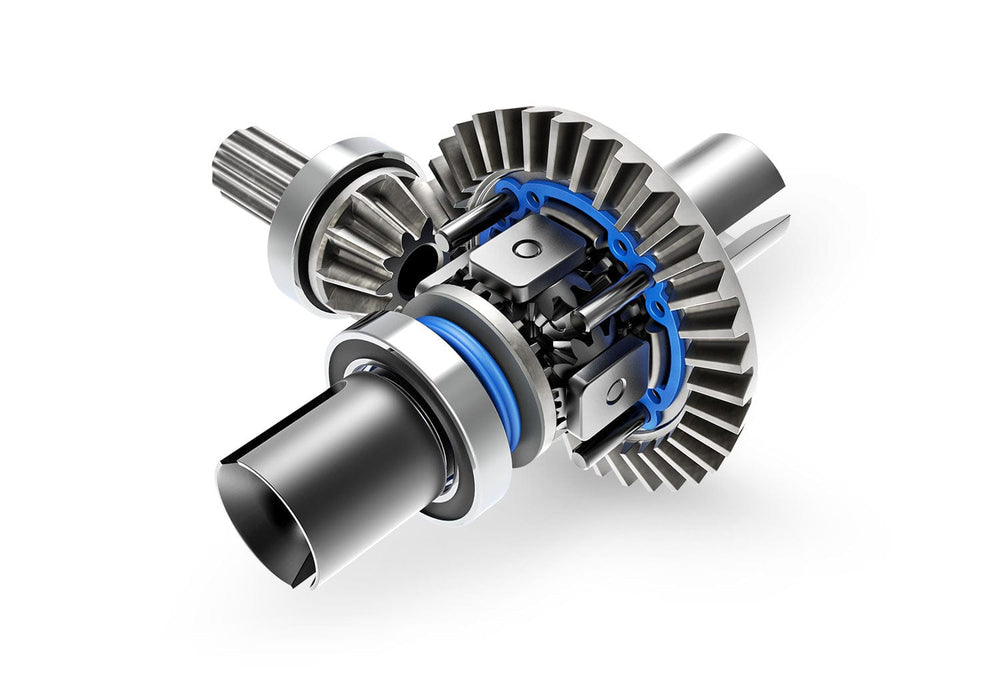

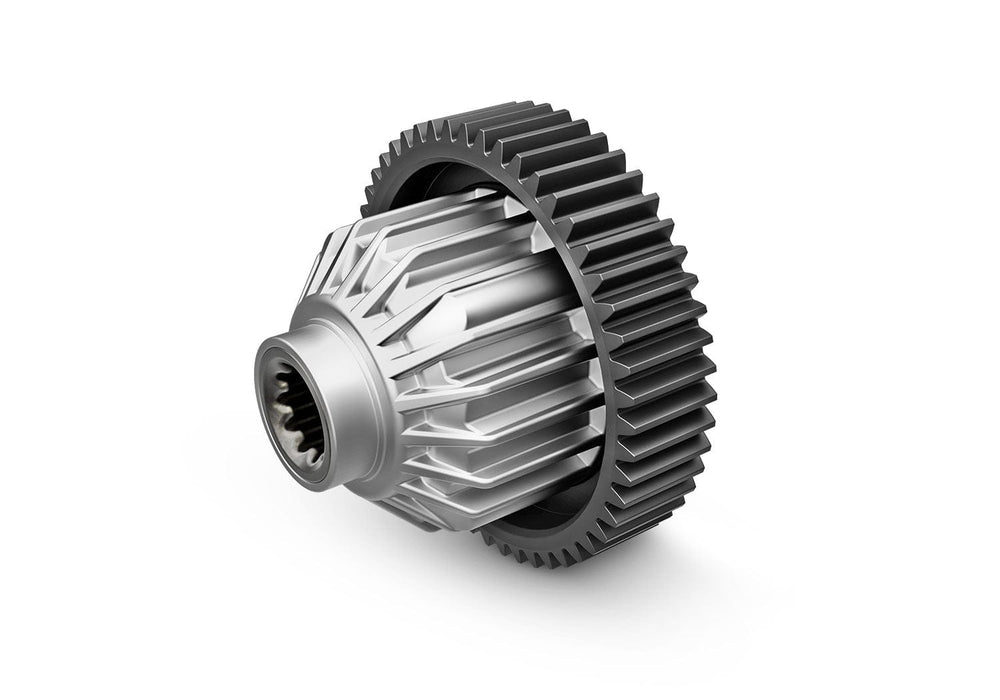

XRT performance and durability begins with its all-metal 8s driveline. Steel 4-gear differentials and steel driveshafts are joined by a high-strength extruded aluminum center shaft. It’s a precision-engineered recipe that has been proven monster-truck tough in the X-Maxx.

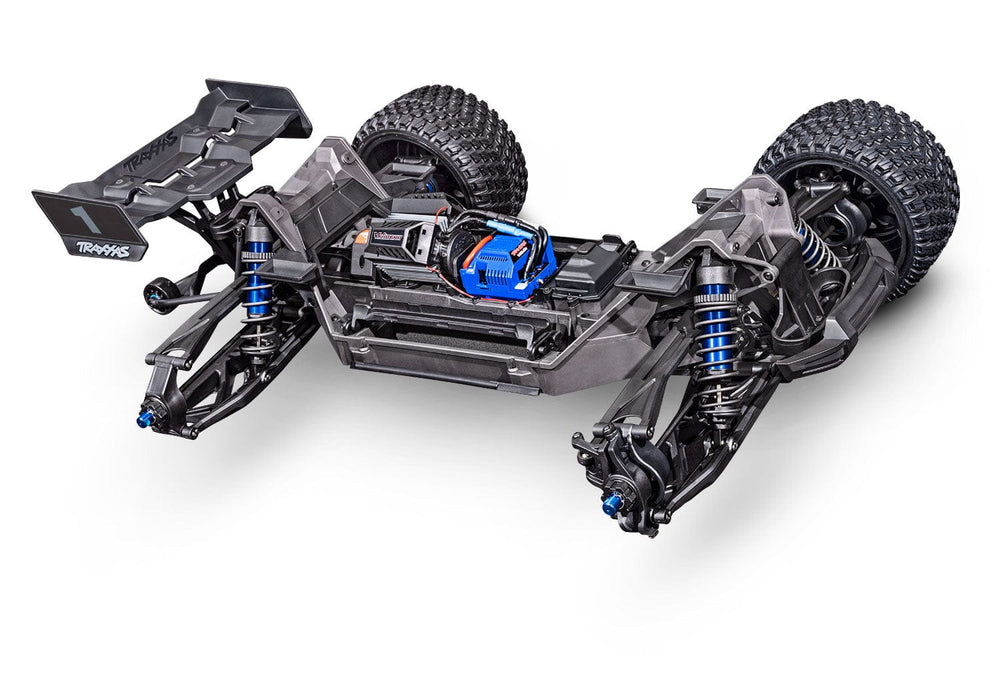

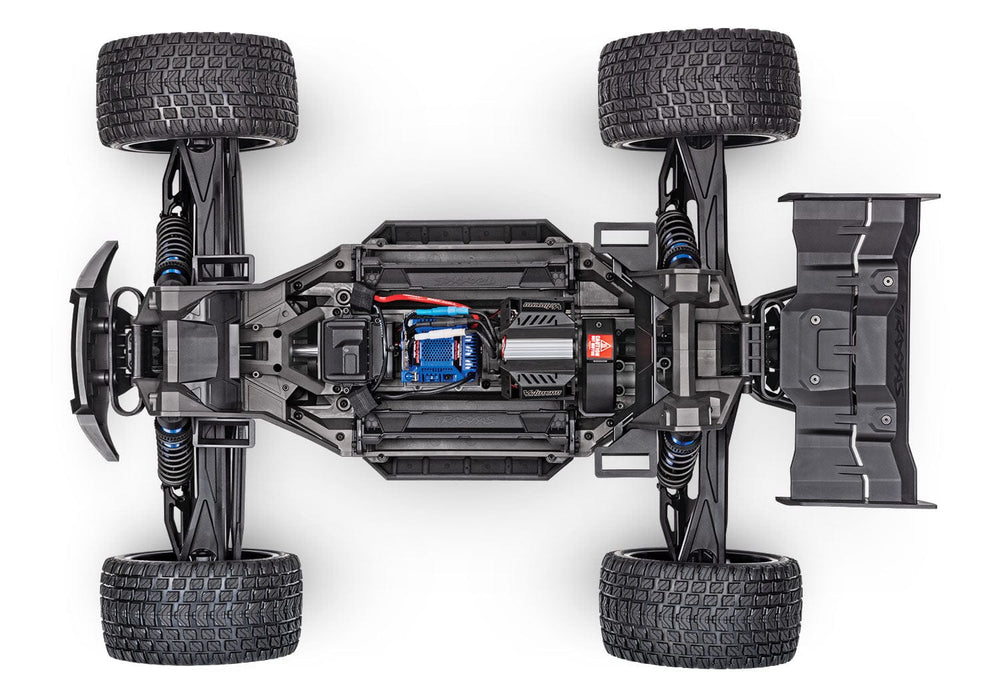

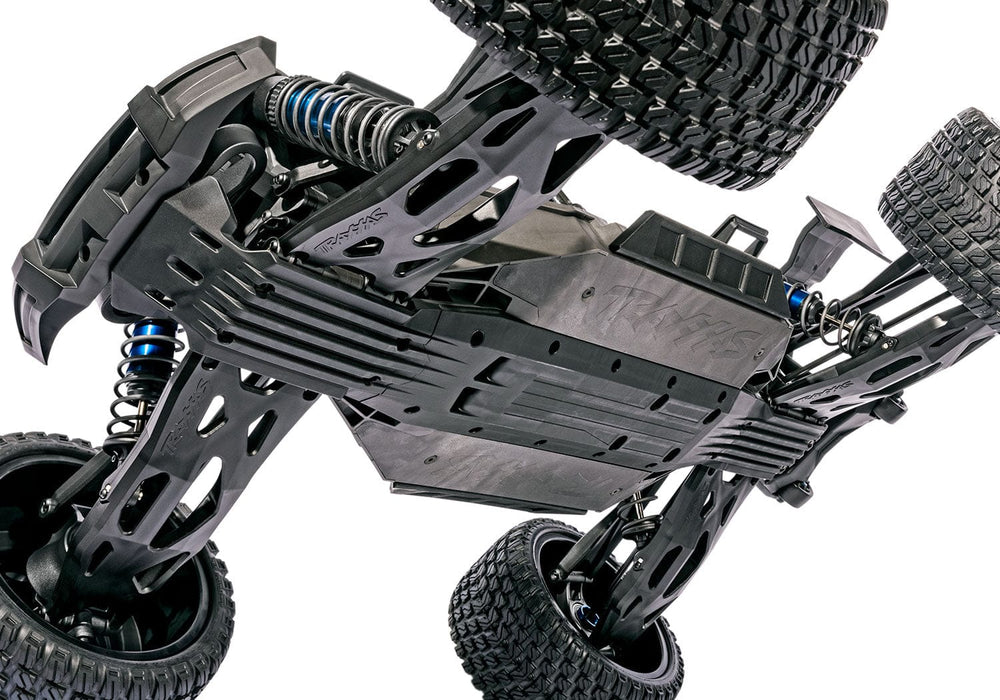

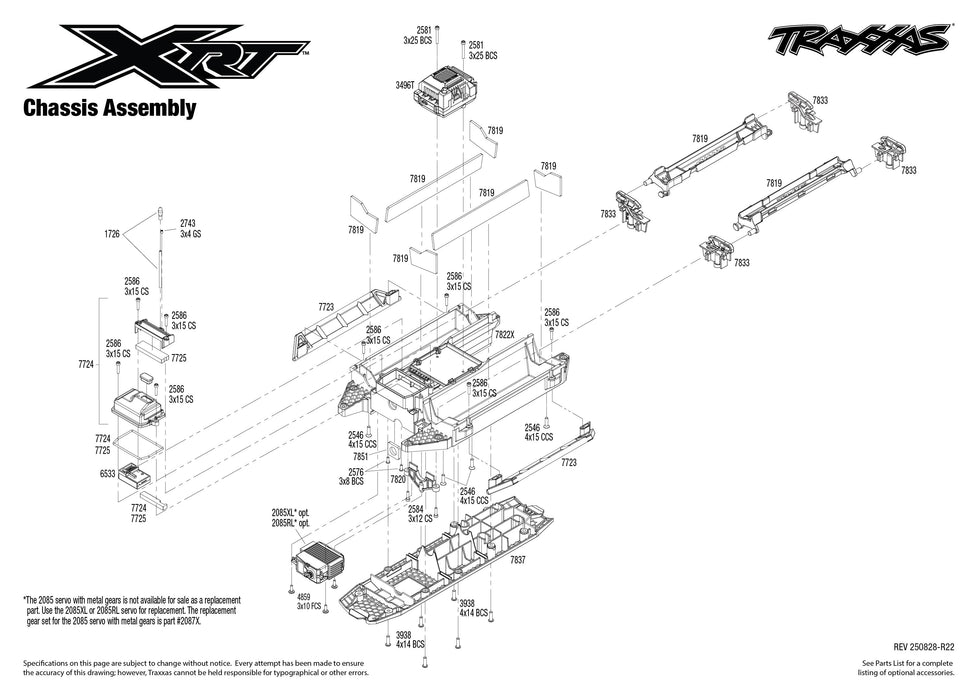

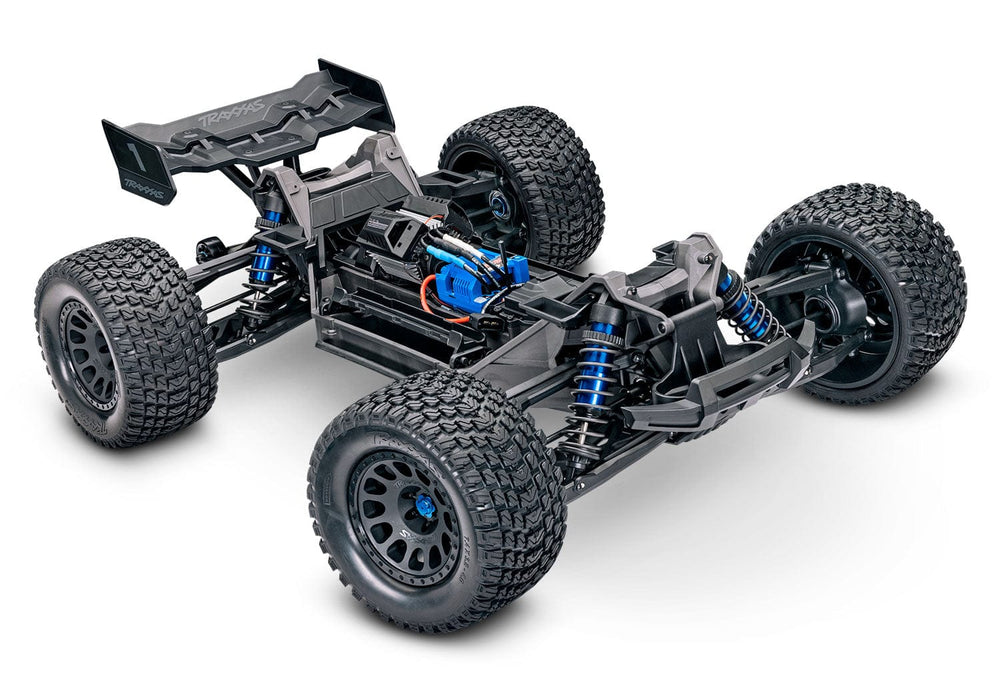

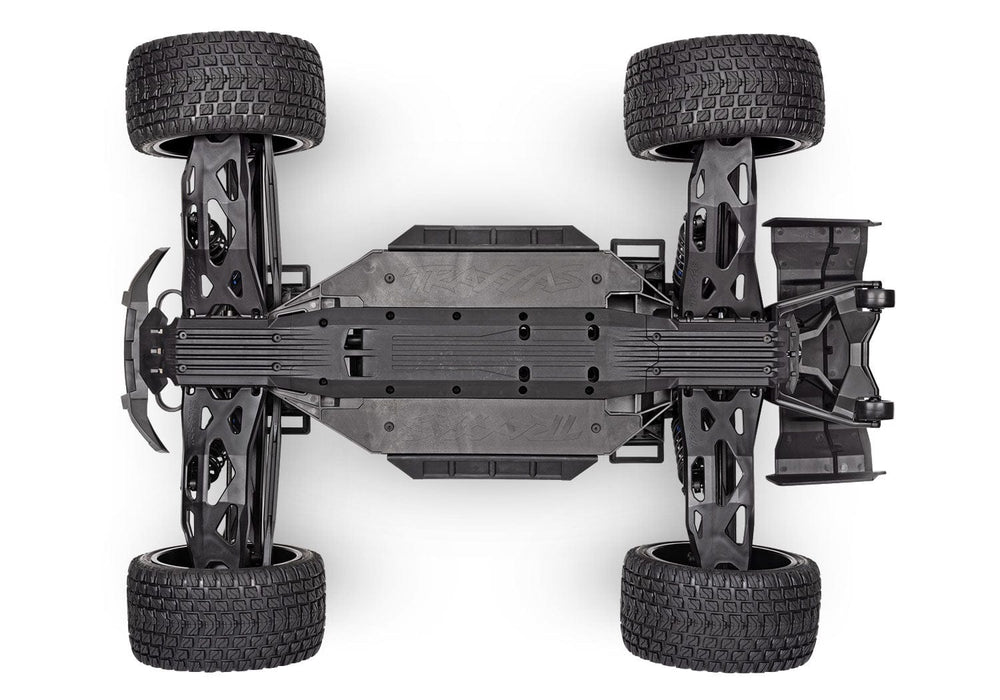

RACE-INSPIRED LOW-CG CHASSIS

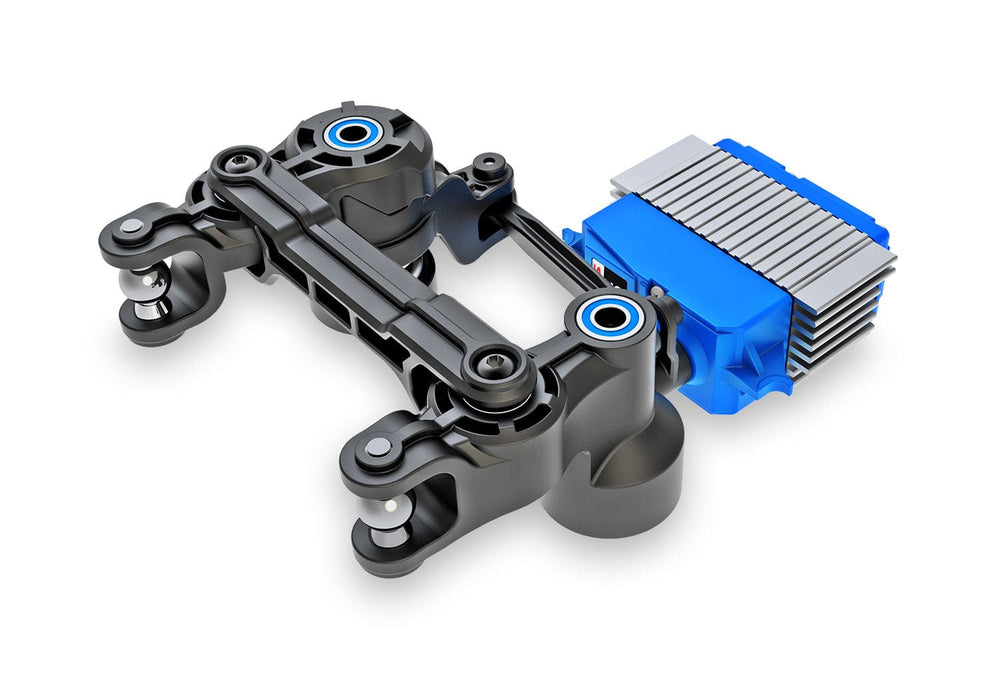

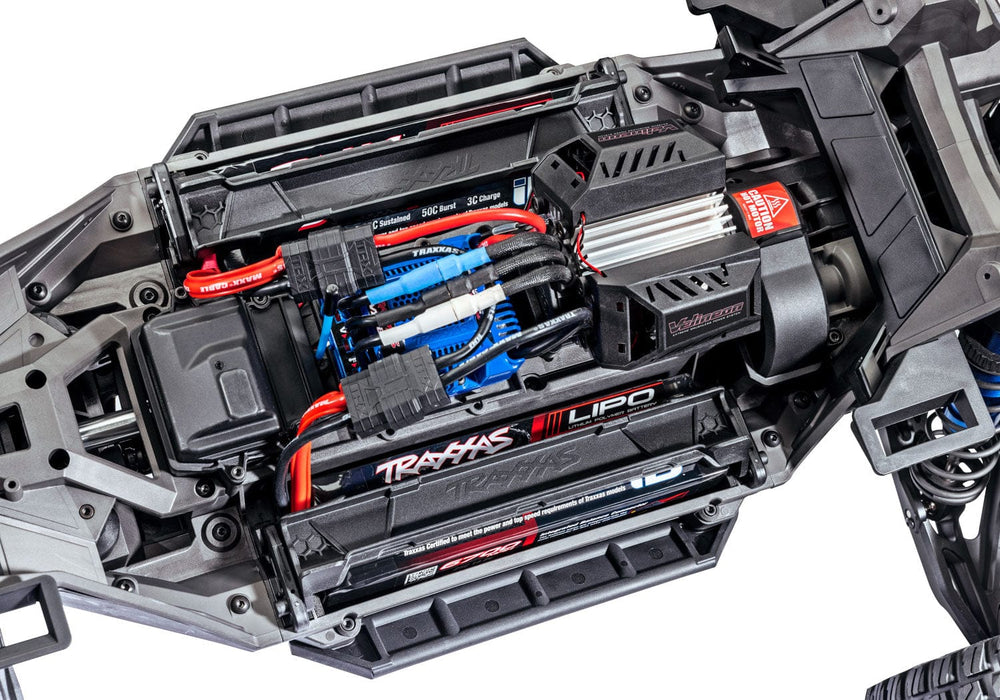

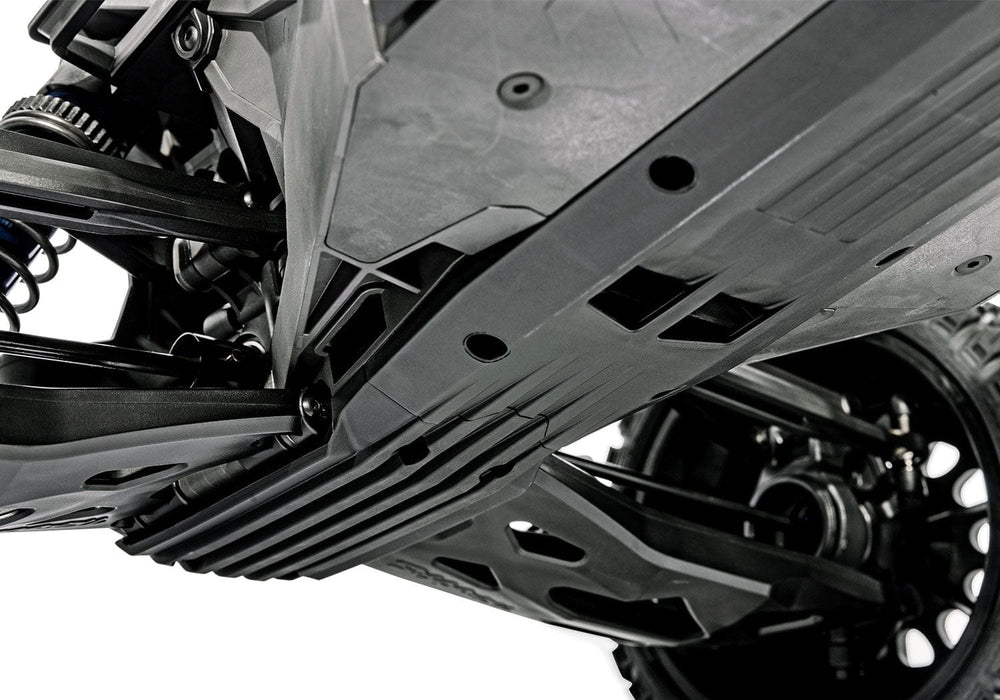

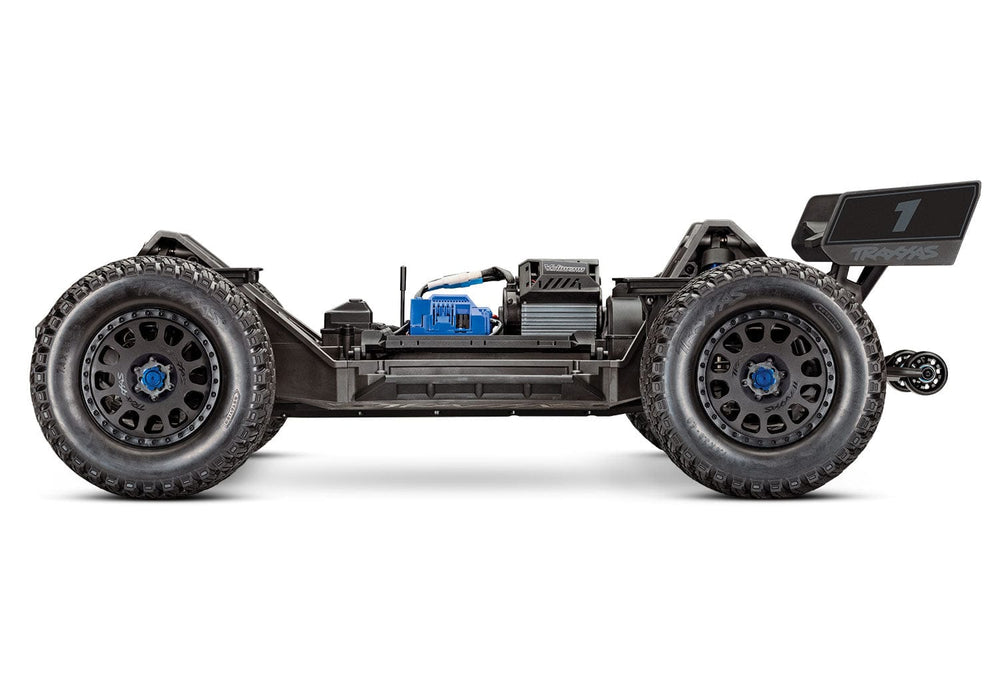

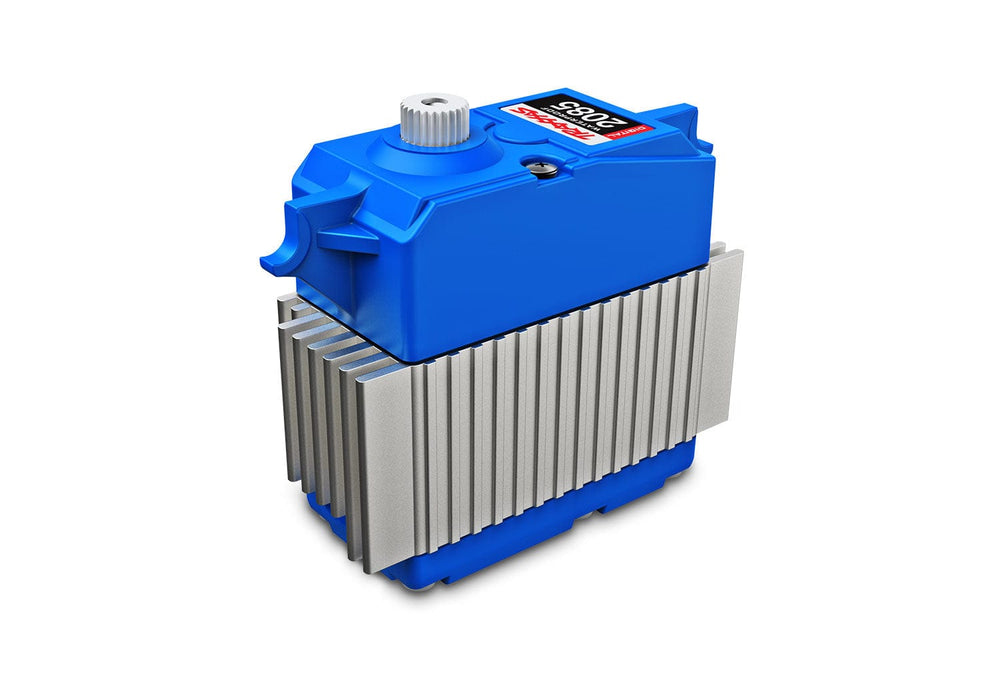

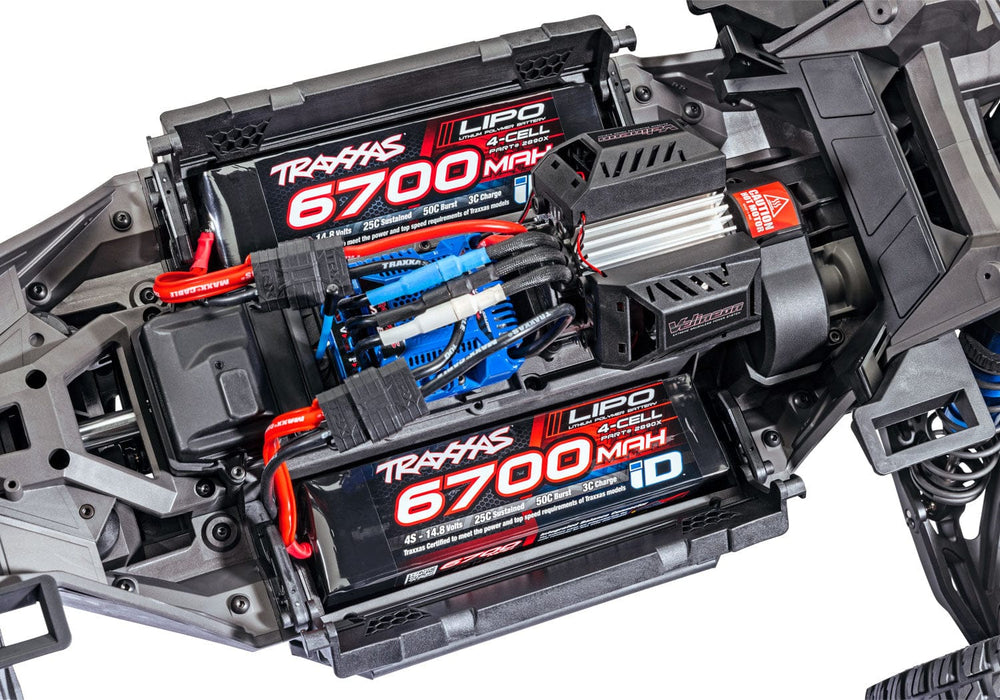

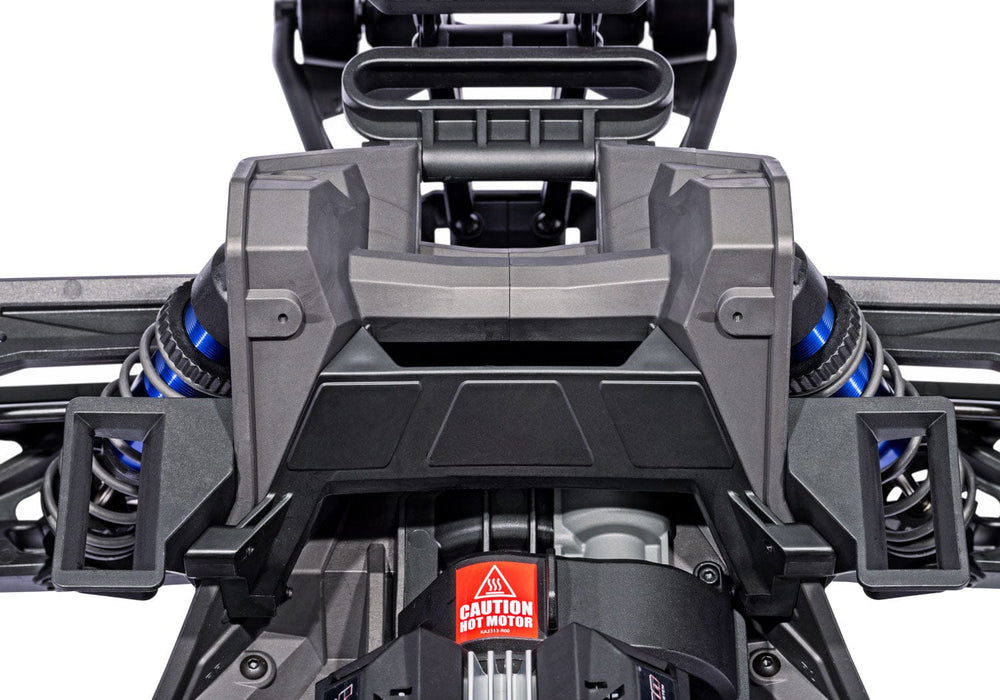

XRT’s performance-focused chassis design is configured to lower the center of gravity for superior handling and stability. The dual 6700 4s batteries and the steering servo are positioned to place the weight as low as possible in the chassis and provide protection for these critical components.

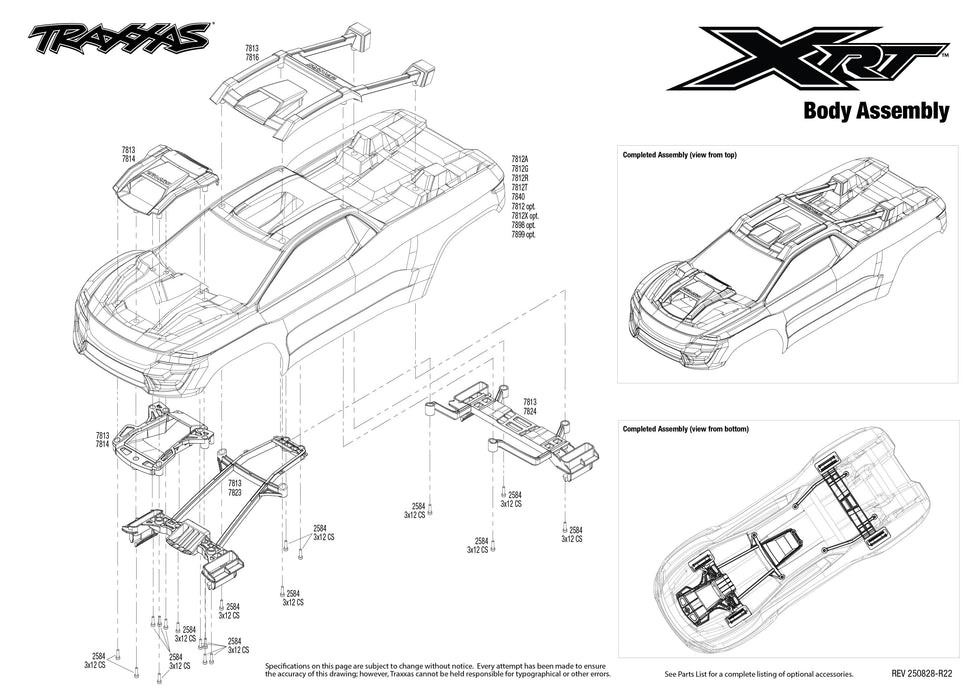

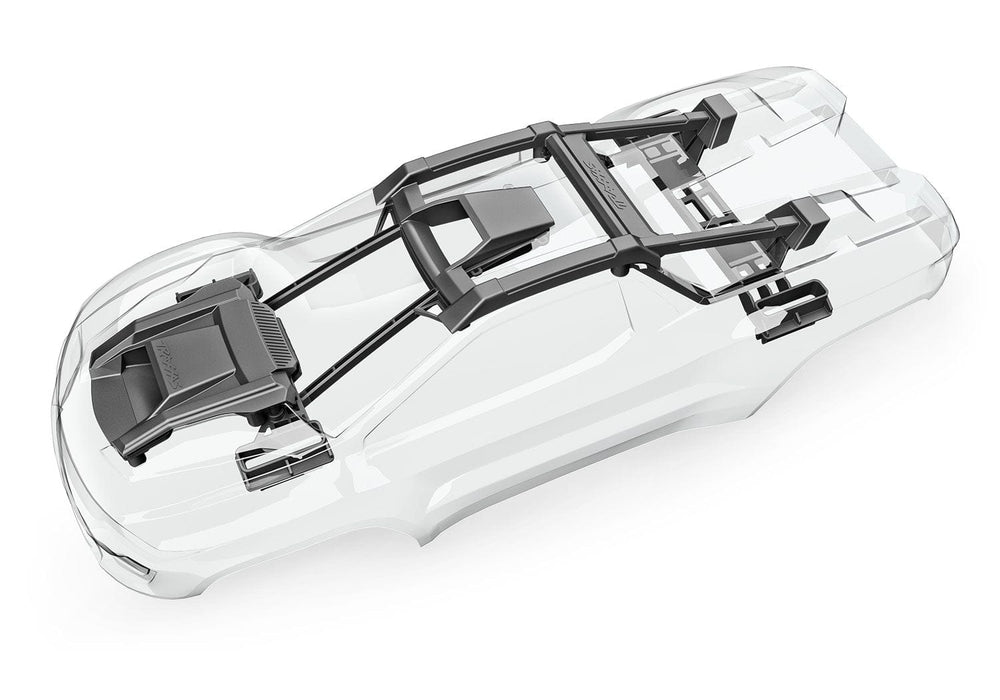

PATENT-PENDING CLIPLESS BODY
XRT’s patent-pending clipless body easily removes and installs in just seconds and yet it locks in place with incredible strength and security. The system uses a cage inside the body to minimize flex while external skids are strategically placed to protect the body.
GRAVIX™ RACE TIRES

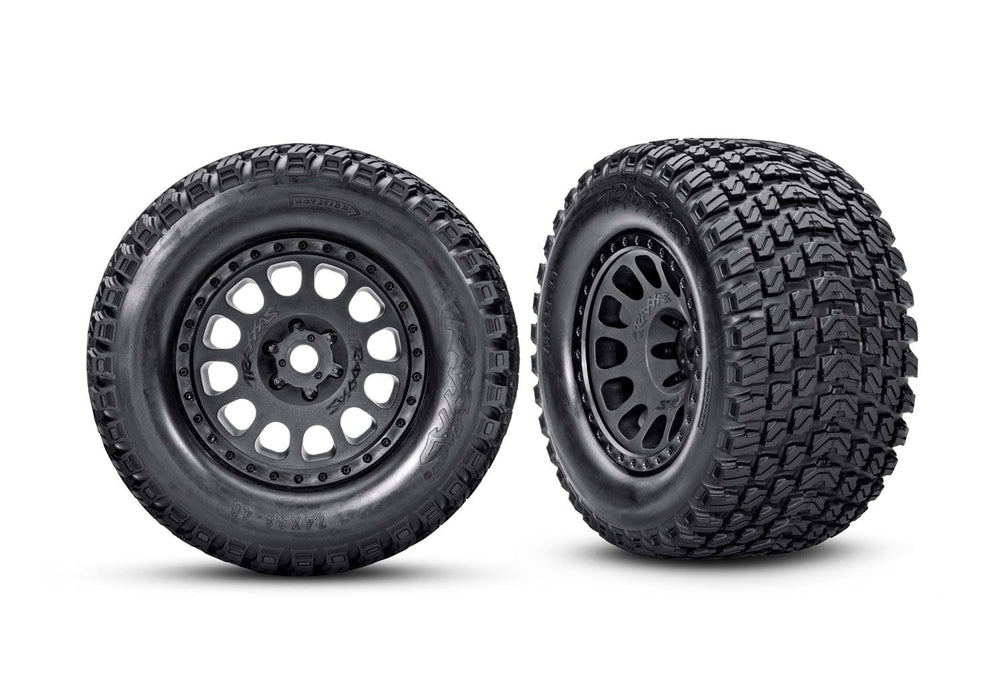

XRT’s Gravix™ race tires are a revolutionary new hybrid design with densely packed biting edges and sipes. They deliver outstanding grip on hard-packed surfaces along with fast and quiet-running precision.

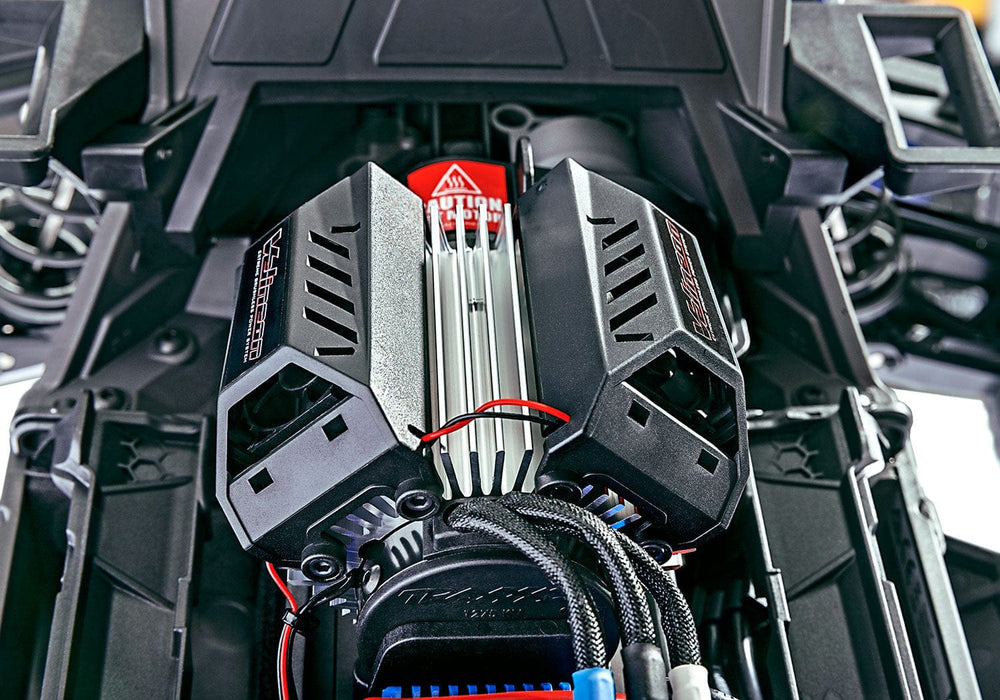

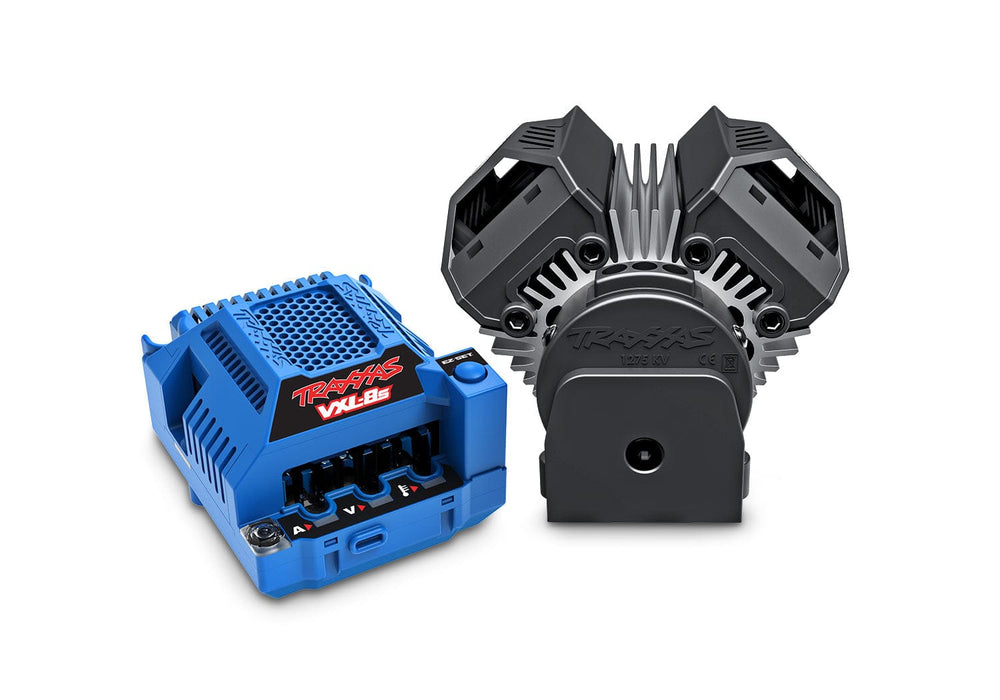

VXL-8S POWER SYSTEM
Already Traxxas’ most powerful speed control, XRT’s VXL-8s™ goes even further with an aggressive tune that maximizes power output across the entire RPM range. More power under the curve delivers mid-range punch that hits hard for rolling wheelies on demand. Bury the throttle at any speed and XRT responds instantly with effortless acceleration.
