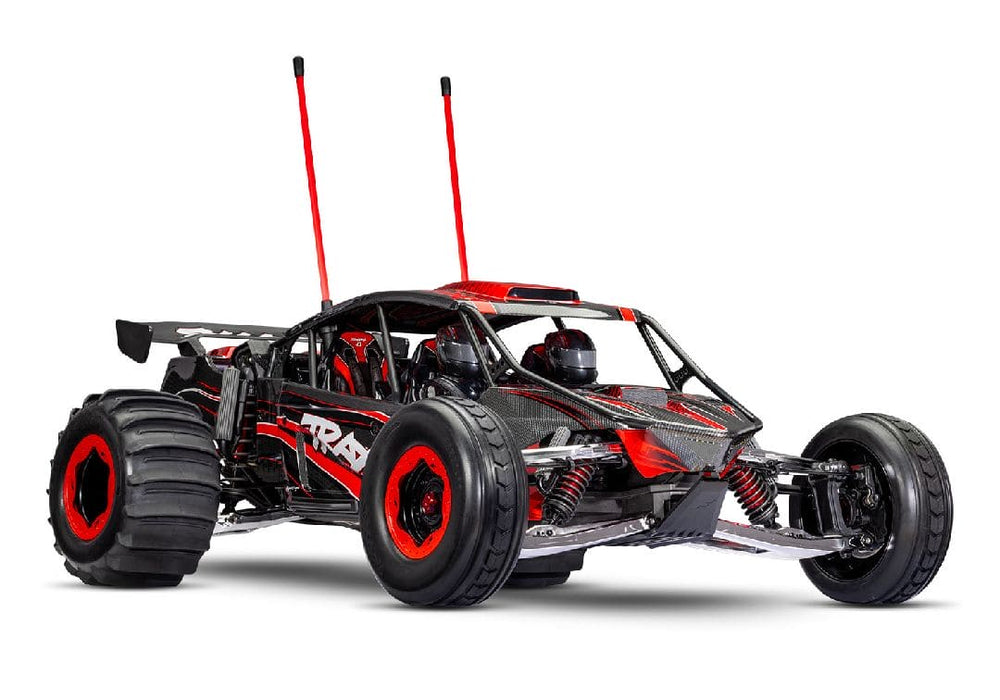

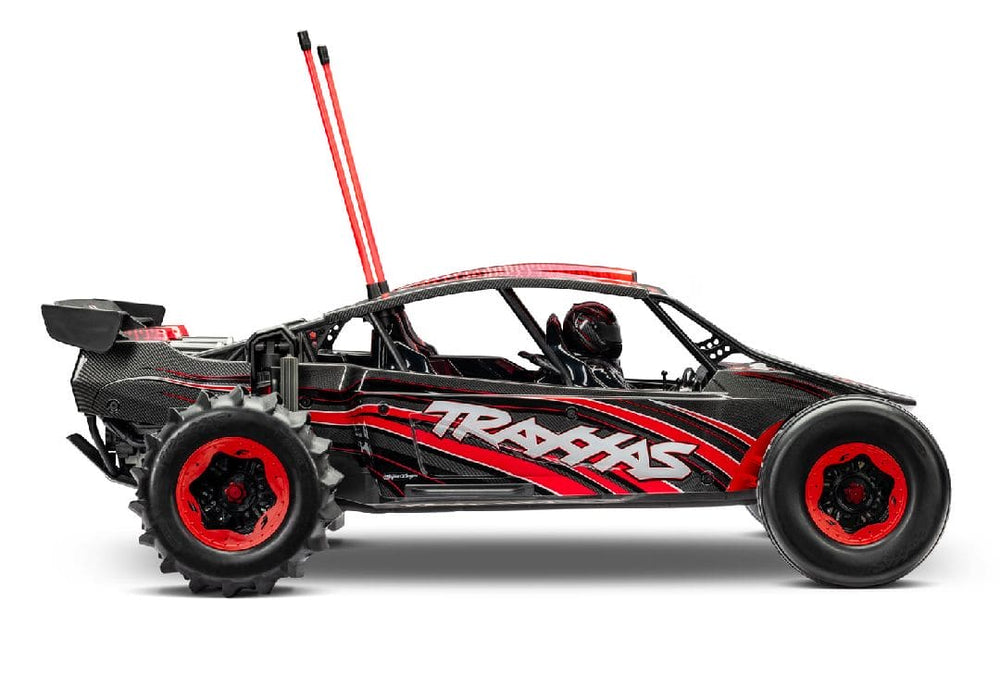

TRA109076-4RED Traxxas Pro-Scale Funco Motorsports Sand Car 2wd RTR - Red ** Needed to Complete # TRA2997
King of the Dunes
Driving a sand car is an adrenaline-fueled thrill ride like nothing else on Earth. Outfitted with 1000+ horsepower engines and trick long-travel suspension systems, sand cars can top 150 mph and wheelie with just a blip of the throttle. The new Traxxas Pro Scale® Sand Car is a 55+ mph replica purpose-built to deliver the same raw excitement and thrill of driving the full-size Funco Motorsports car in dramatic X-Series™ scale.
What’s In The Box:
- Pro Scale Sand Car Ready-To-Race model with Traxxas Big Block™ brushless motor
- VXL-8s waterproof electronic speed control with integrated telemetry
- Quick Start Guide
- TQi™ 2.4 GHz radio system
- High visibility whip lights
- Wheelie bar
- Speed gearing
- High quality maintenance tools
What You’ll Need:
- LiPo Batteries
Traxxas recommends dual 4-Cell, 6700 mAh Power Cell LiPo batteries (part 2890X) or the Dual 4s Completer Pack (Part 2997).
- LiPo Balance Charger with iD®
Traxxas EZ-Peak® Live Dual 4s-capable charger is recommended for easy and fast charging performance (model 2973).
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
MODEL SPECS
| Name: | Pro Scale Sand Car |
|---|---|
| Speed: | 55+ mph with dual 4s LiPo batteries and speed gearing |
| Scale: | X-Series |
| Length: | 32 inches (812 mm) |
| Width: | 21.7 inches (551 mm) |
| Ground Clearance: | 1.98 inches (50 mm) |
| Weight: | 22.06 pounds (10 kg) |
| Height: | 11.1 inches (283 mm) (body), 19.6 inches (498 mm) (whip lights) |
| Wheelbase: | 21.4 inches (543 mm) |
| Shock Length: | 5.08 inches (129 mm) (front), 7.13 inches (181 mm) (rear) |
| Tires (Arrow Pattern, Front): | 6.8″ x 2.3″ (173 mm x 58 mm) |
| Tires (Paddle, Rear): | 7.5″ x 4.0″ (191 mm x 102 mm) |
| Wheels (Front): | 3.2″ (82 mm, inner) x 4.9″ (125 mm, outer) |
| Wheels (Rear): | 3.6″ (91 mm, inner) x 4.7″ (120 mm, outer) |
MOTOR SPECS
| Motor Name: | Velineon® 1200XL |
|---|---|
| Motor Type: | 1275 kV sensorless brushless |
| Motor Weight: | 23.44 ounces (665 g) |
| Motor Length: | 4.32 inches (110 mm) |
| Motor Diameter: | 1.88 inches (48 mm) |
| Motor Shaft Size: | 5 mm |
| Motor Connector Type: | 6.5 mm bullet connectors |
ESC SPECS
| ESC Name: | Velineon® VXL-8s |
|---|---|
| ESC Type: | Brushless |
| ESC Case Size: | 2.23 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm) |
| ESC Weight: | 7.60 ounces (215.5 g) |
| Motor Connectors: | 6.5 mm bullet connectors |
| Battery Connectors: | Traxxas High-Current Connectors |
| ESC Power Wire: | 10 gauge Maxx® Cable |
X-Series Size
Both longer and wider than the legendary X-Maxx®, the Pro Scale Sand Car is the largest member of the X-Series family. This immense size gives the Sand Car incredible scale detail, authentic driving dynamics, and an imposing presence. The Sand Car’s huge footprint provides extra stability to blast down desert trails and fly over dunes with ease.
Scale Details
Traxxas pulled out all the stops to replicate the full-size Funco GTU Sand Car in exact detail. The Pro Scale Sand Car features a full interior with dashboard and driver figures and replica remote-reservoir 3.5″ shocks. The engine is a work of art, comprised of 9 different pieces, including licensed R2C air filters and a Whipple supercharger.
Front Disc Brakes

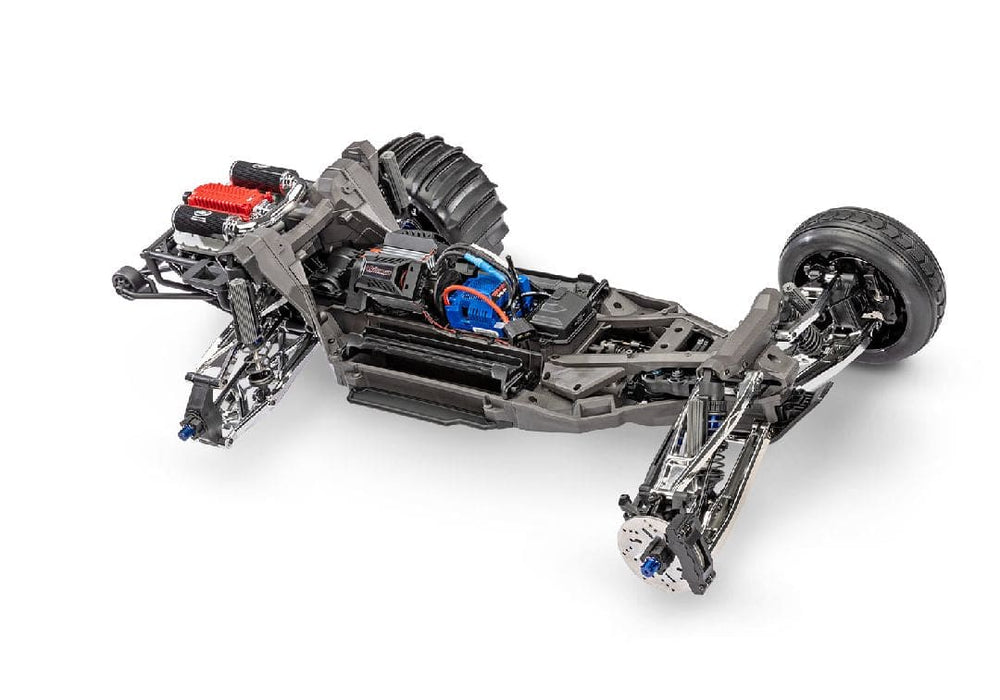

Powerful front disc brakes work in tandem with the rear motor braking for powerful and controlled 4-wheel stopping power. Sheathed cables clamp the calipers down on drilled stainless steel rotors for scale authenticity. A digital 2075 servo actuates the brakes through an adjustable linkage for greater braking precision and control.
Belted Paddle Tires
The Pro Scale Sand Car’s aggressive paddle tires feature twice the traditional number of ribs for extreme traction off the line. A belted carcass prevents the paddles from distorting for maximum forward bite in the sand and powerful acceleration.

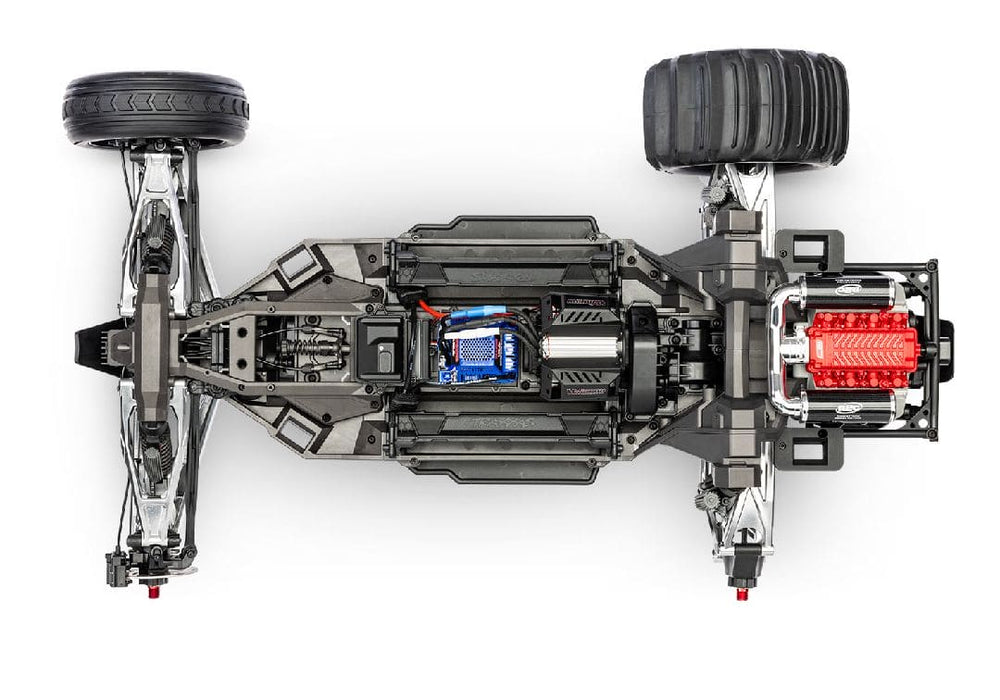

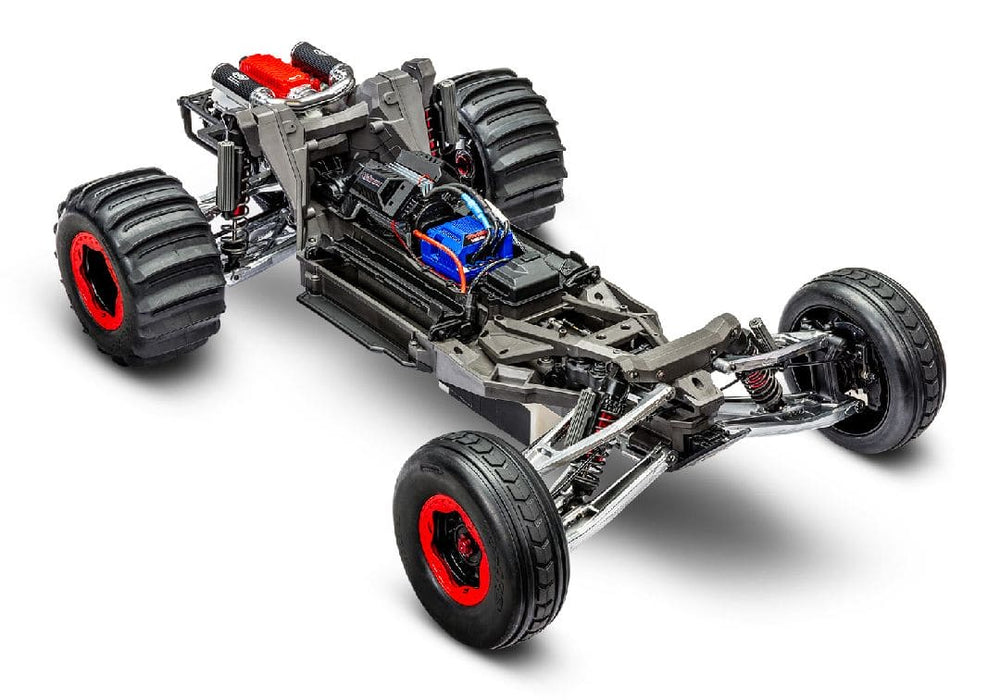

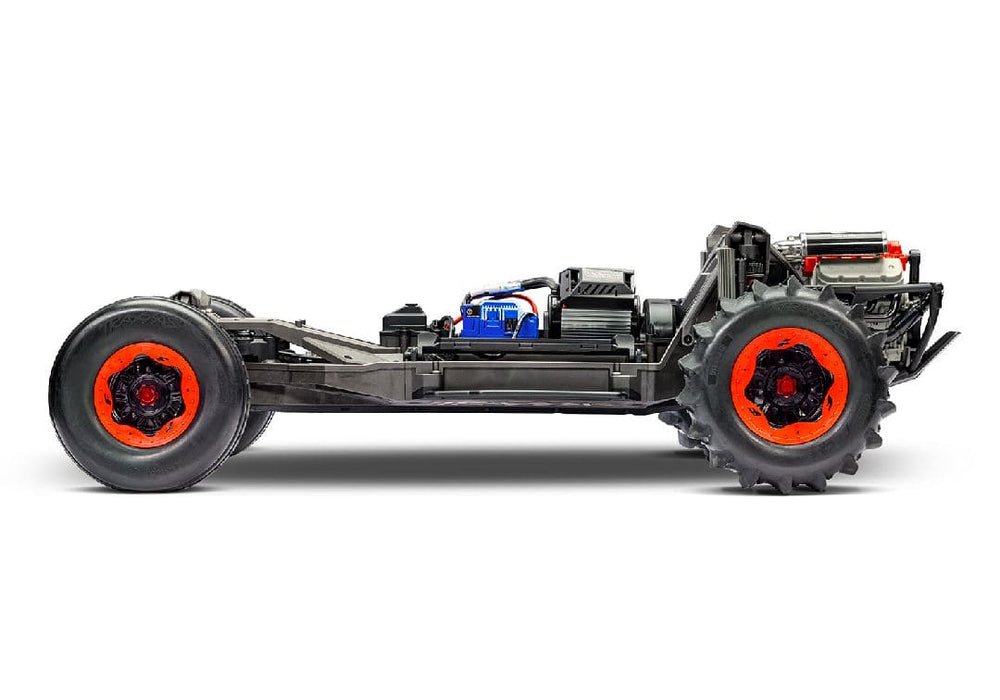

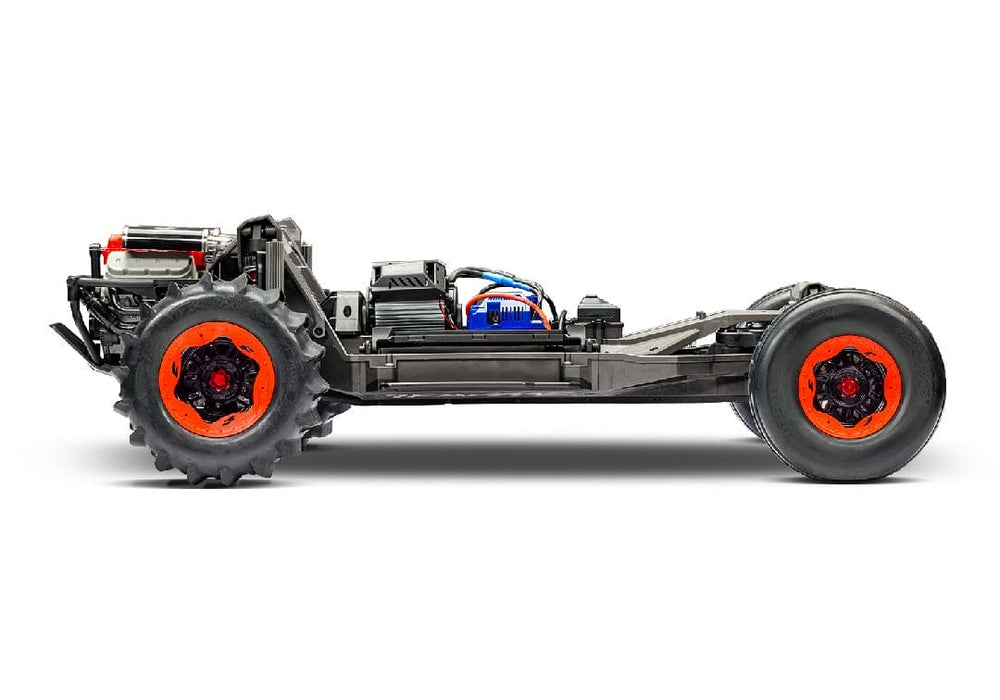

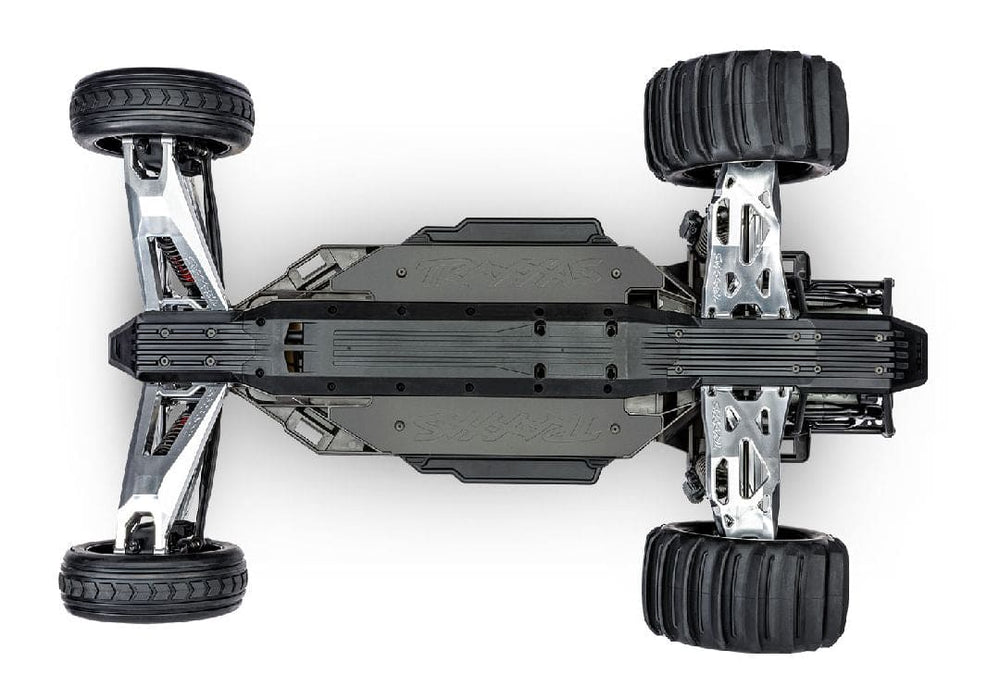

Internal Tube Frame
A rugged tube frame supports the entire Pro Scale Sand Car body from end to end. The heavily reinforced structure protects the car in case of rollovers and provides a rigid mounting point for the wing and clipless mounts. When it’s time to release the body, simply pull on the self-energizing latches and the entire structure lifts off in seconds.
VXL-8s Power System

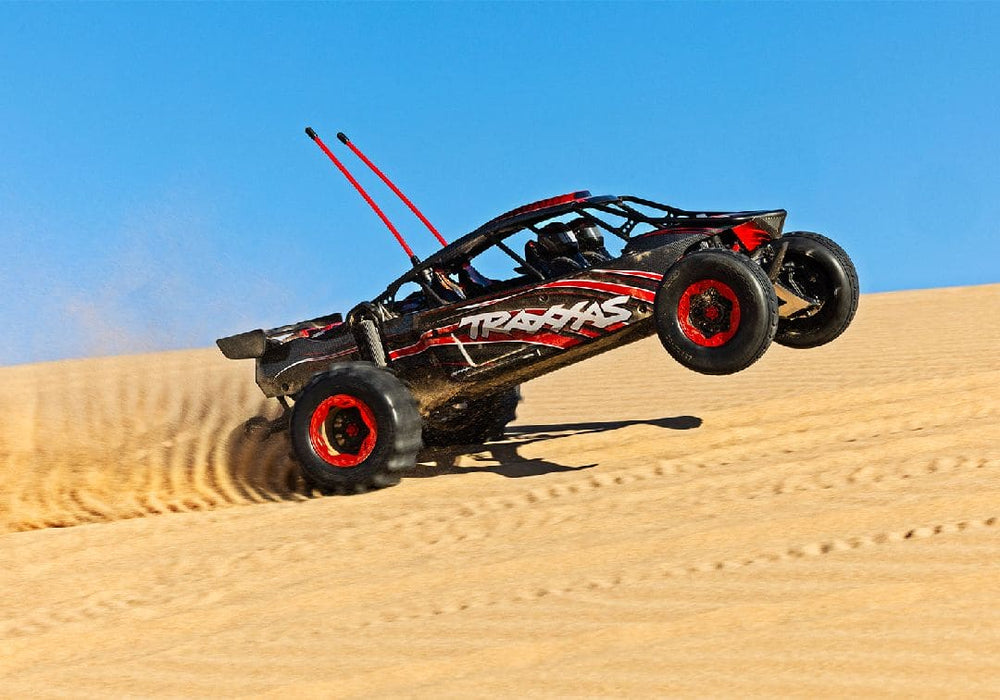

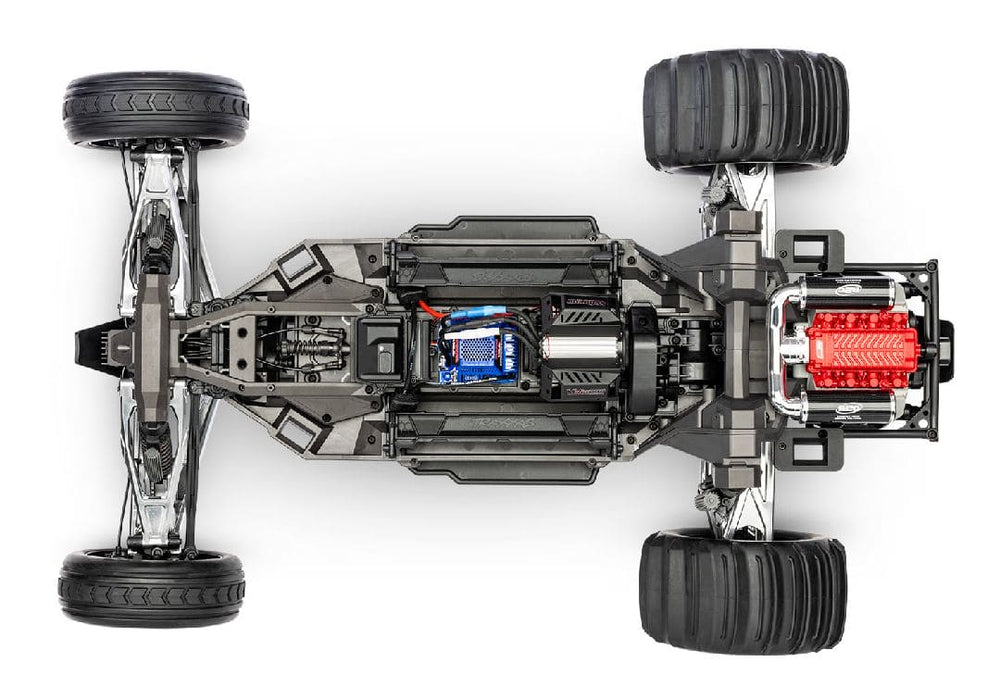

The Pro Scale Sand Car features Traxxas’ most powerful brushless system, the Velineon® VXL-8s™ speed control and 1200XL motor. The high-performance VXL-8s maximizes power output across the entire rpm range. Bury the throttle at any speed and the Sand Car instantly wheelies until you back off…or run out of desert.
Precision Driveline
With 30+ volts of brushless power going only to the rear wheels, the Pro Scale Sand Car needs a radically strong driveline. Inside the massively reinforced case, huge module 1.5 wide-face transmission gears feed uninterrupted power to the wheels. A beefed-up X-Maxx differential with larger output cups engages steel driveshafts to form the toughest driveline ever outfitted to a Traxxas vehicle.

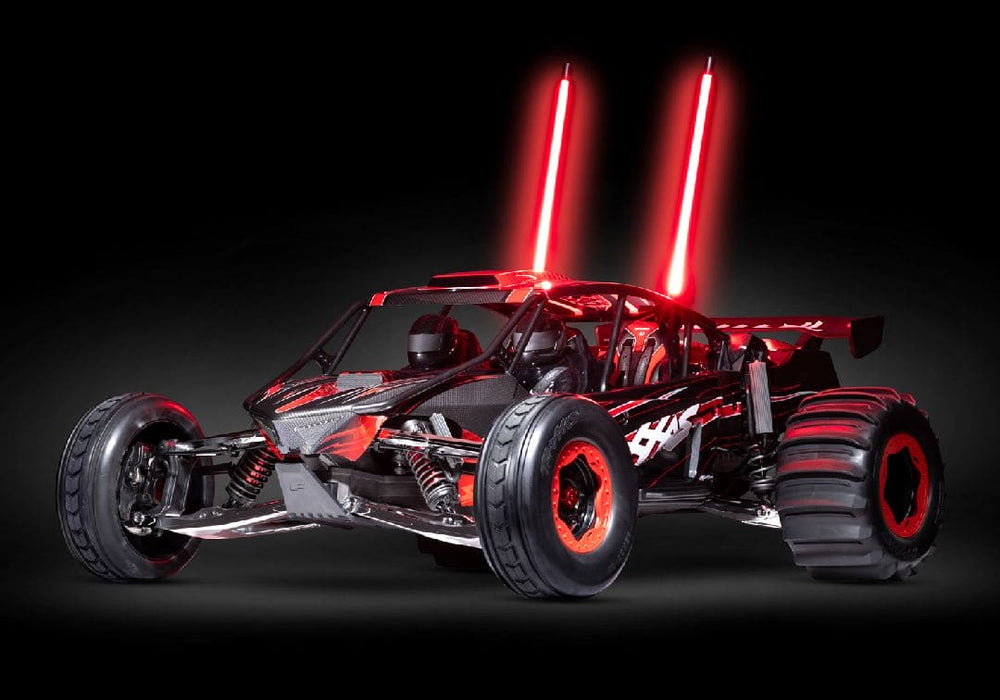

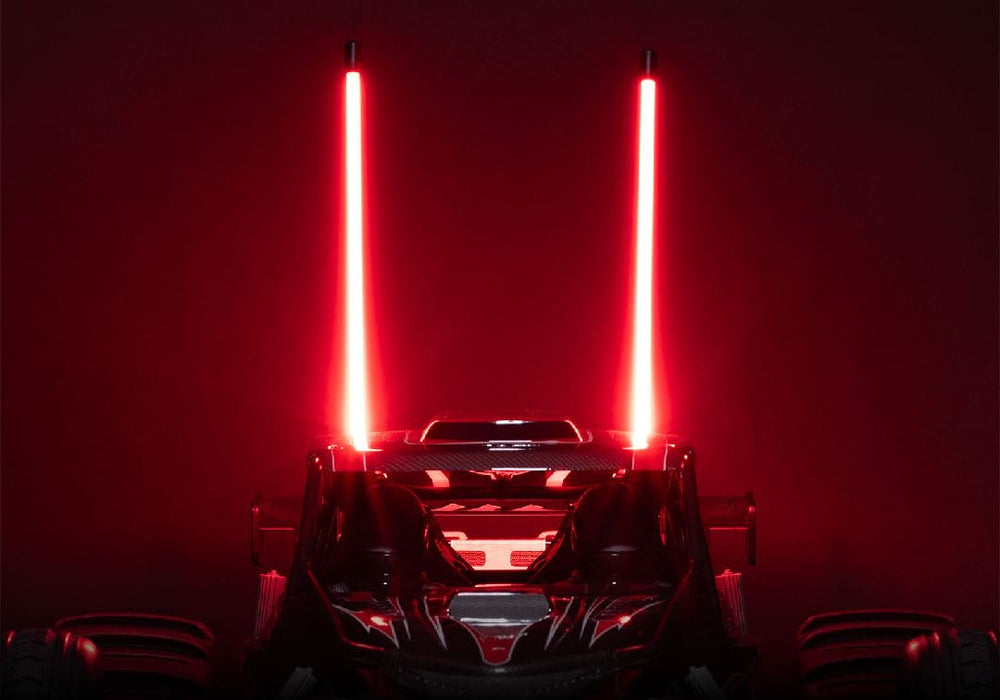

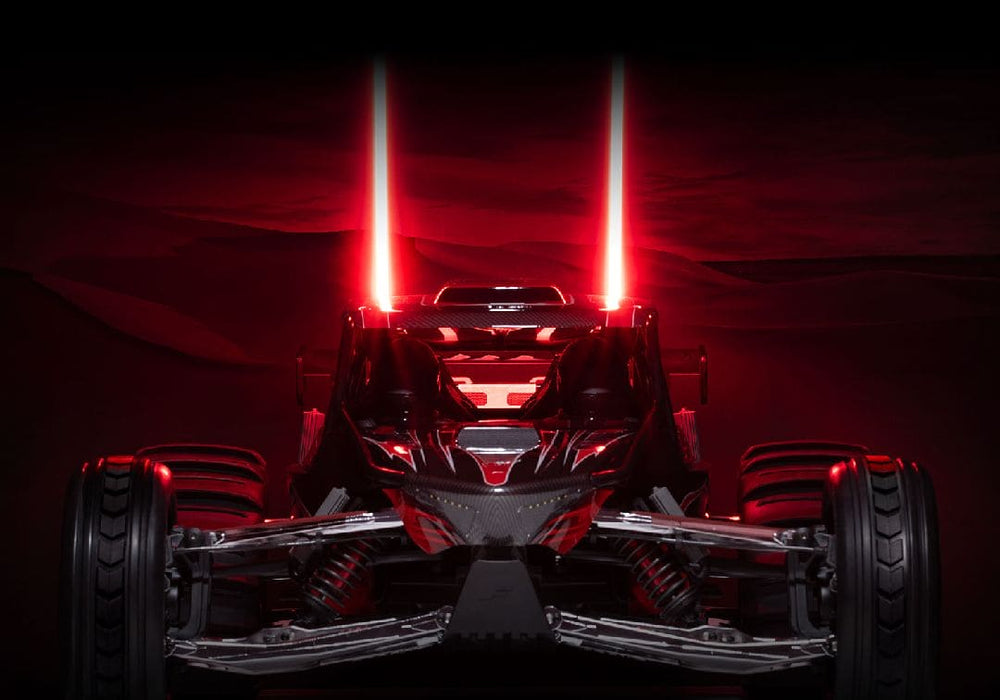

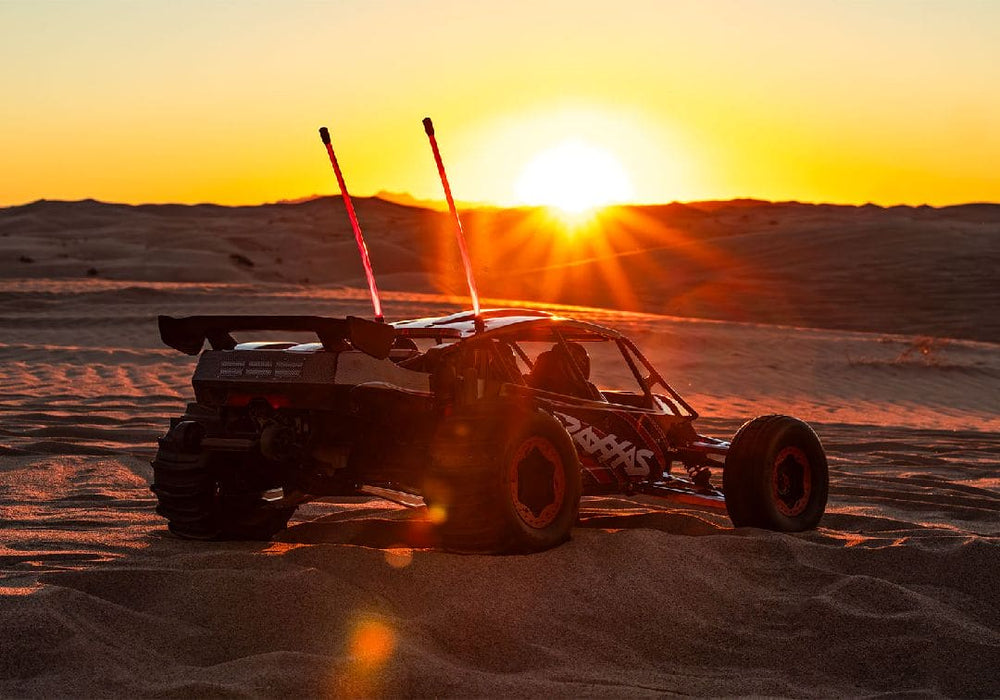

High-Visibility Whip Lights
Colorful whip lights rise over 10 inches above the body to provide a clear and bright visibility marker when storming dunes at 55+ mph. The lights are color-matched to the body to give the car a dramatic look. New Flex-Tech™ spring-loaded mounts allow the whip lights to bend without breaking in case of rollovers.
Overview
-
Pro Scale Experience
Traxxas re-engineered the X-Series platform to create a sand car that would accurately replicate not just the look of the Funco machine, but also its mind-blowing driving dynamics. Grab full throttle on the Traxxas Pro Scale Sand Car and you’ll experience the thrill and excitement of driving a top-tier 1000+ horsepower sand car for yourself.
