TRA106064-4GREEN Traxxas Disruptor High-Performance Boat, 4S VXL - Green
Full-Throttle, Non-Stop Fun
The all-new 4s Disruptor? is the one boat that holds nothing back. The fun begins when you pin the throttle and Disruptor launches hard on its way to 40+MPH on a single 4s LiPo battery. At 26? long, Disruptor is perfectly sized to be quick and agile on small ponds and stable in open water. Disruptor is purpose-built by Traxxas for the wildest stunts and unstoppable fun?all with Rapid Right? self-righting security.
RAPID RIGHT SECURITY
There?s no need to back off the throttle or tone down the fun with Disruptor's Rapid Right security. Take full advantage of 4s Velineon? brushless horsepower anytime, anywhere. If Disruptor should land upside down, applying reverse full throttle rights the boat almost instantly and gets you back in the action.
AGILE HANDLING
Disruptor?s perfectly sized hull delivers agile handling for tight turns with equally impressive 40+MPH speed. A new low-CG design concentrates weight inboard along the centerline for perfect weight distribution. Hammer the throttle and Disruptor gets on plane quickly with lightning-fast reflexes and high-speed stability.

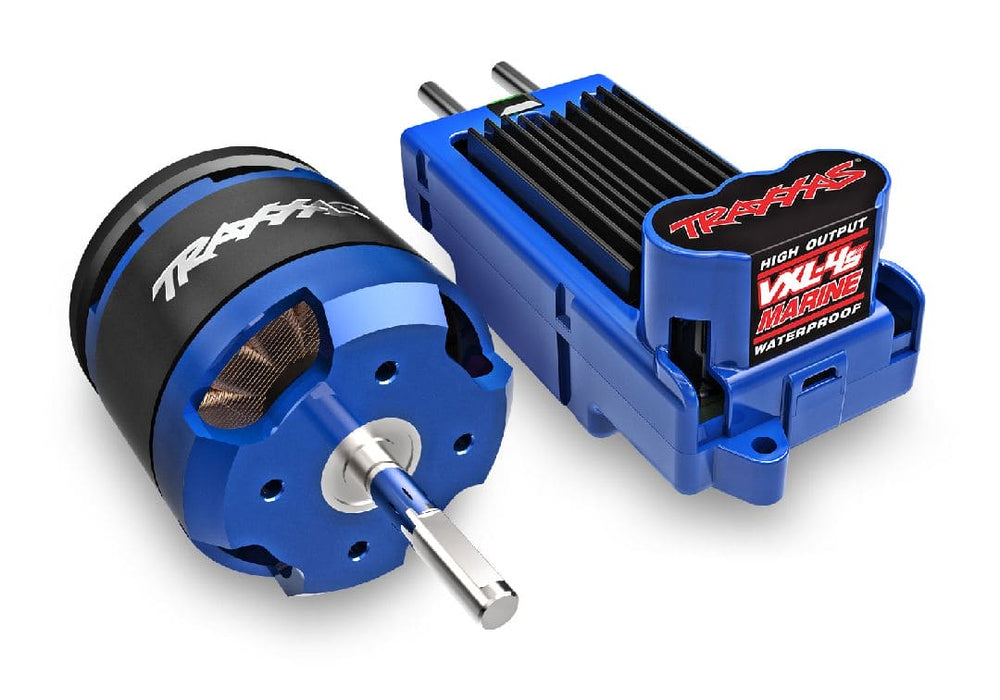

NEW 4s POWER SYSTEM
The Velineon VXL-4s Marine brushless power system is a clean-slate design optimized to deliver maximum thrust on a single 4s LiPo battery. The all-new brushless outrunner motor is a model of efficiency and power, combining thunderous torque with high-RPM speed. Two independent water cooling systems keep temperatures in check for maximum run time.
Injection-Molded ABS Hull

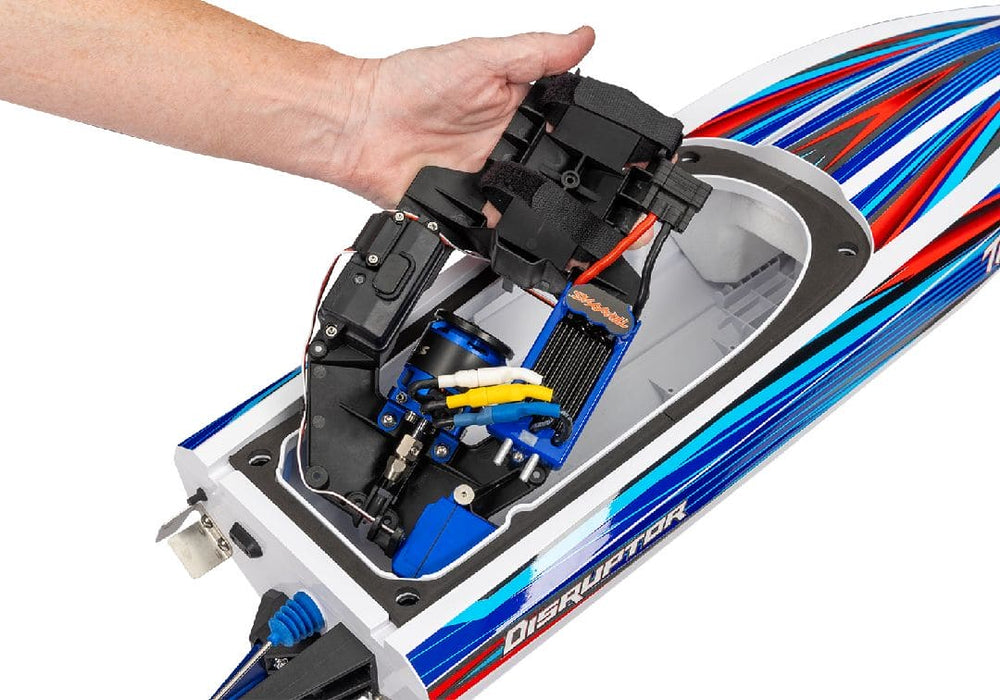

Disruptor?s ABS hull provides the superior strength and rigidity required for high-voltage brushless horsepower without excess weight. The unique injection-molded design features multiple support trusses and ridges for exceptional strength. Molded bosses secure the removable electronics tray in place with minimal hardware for additional weight savings.
-
Rapid Right Self Righting
Disruptor's confidence-inspiring speed and handling encourage jumps, twists and barrel rolls that might land it upside down. Just a quick blip of reverse throttle and Rapid Right self righting instantly puts Disruptor right back in the action.
Details
High Performance Prop
Disruptor?s prop gets the boat on plane quickly to reach maximum speed with the least current draw. Traxxas engineers tested countless prop configurations to find the perfect balance of performance, efficiency, and durability. Molded composite construction makes the prop light and tough, with no balancing or sharpening required.
High Strength Aluminum Hardware
Disruptor?s rudder and drive strut are machined from tough 6000-series aluminum for maximum strength and then anodized vivid blue for that unmistakable Traxxas look. The drive strut uses special oiled bushings for corrosion-free performance.
Stainless Steel Hex Hardware
Disruptor uses corrosion-resistant stainless-steel and nickel-plated screws and hardware throughout for good looks, easy maintenance, and long-lasting performance.
Stainless Steel Trim Tabs and Turn Fins
Dual trim tabs and turn fins are critical to Disruptor?s high-speed performance. The parts are precision die-cut and bent from stainless steel to resist corrosion as they provide aggressive cornering 'bite' and the proper hull attitude for extreme speed.
Dual Water Inlets and Outlets
Dual water pickups in the hull route cooling water to the motor and ESC independently. A streamlined dual-outlet plate on the transom evacuates water from the rear of the boat.
Clipless Latching System
Disruptor comes outfitted from the factory with heavy duty, low-profile hatch nuts to keep the rigid ABS hatch securely fastened. Just a quick turn with the included hatch nut tool gives you full access to the hull. Disruptor also includes a set of optional wingnuts for quick toolless installation and removal.
Factory Applied Graphics
Disruptor?s bold graphics make a statement on the lake, with a custom look even pro painters can't match. No painting is required; all the graphics are pre-applied to get Disruptor out of the box and into the water with speed and style.

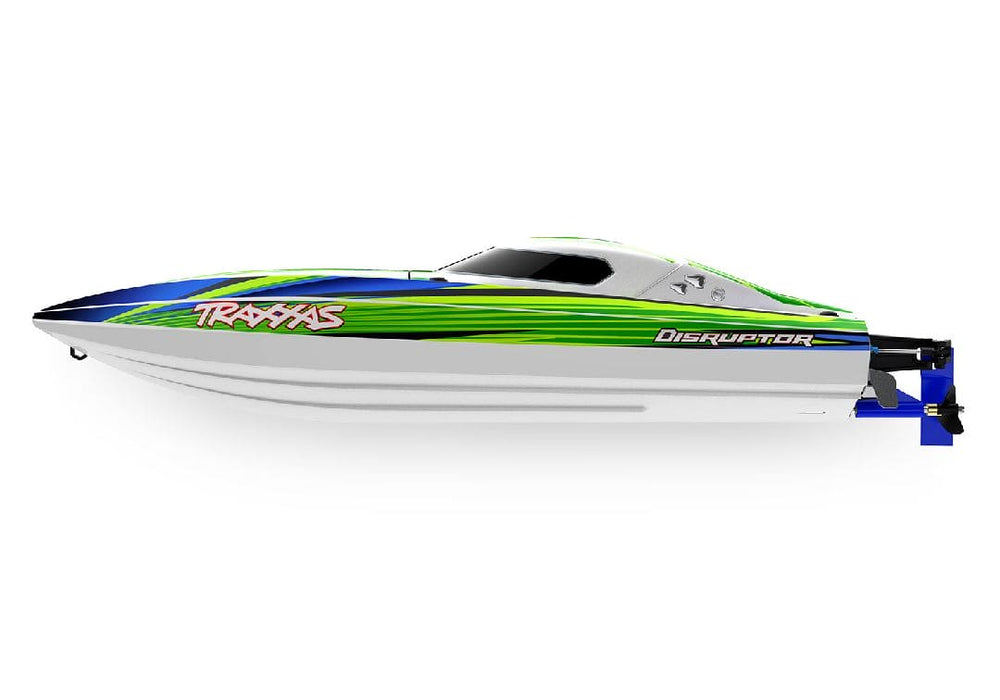

26? Deep-V Hull
Disruptor is perfectly sized for fun with a light and maneuverable 26? hull. The deep-V hull design adds extra stability on choppy water and gets on plane quickly and efficiently for maximum acceleration and speed.
Flex Cable Drive System
Originally designed for outrageous 6s power, Disruptor?s flex cable drive system is efficient, reliable, and ready for all day fun. Disruptor?s electronics tray moves the motor further back towards the transom for a shorter and more direct path to the prop.
High-Torque Waterproof Servo
Disruptor requires a powerful steering servo for responsive performance, and Traxxas delivers with the 2056 high-torque servo. O-ring seals make the servo completely waterproof, and there's plenty of steering muscle with 80 oz-in of torque at your command.
Quick-Release Flex Cable
A clamping collet holds Disruptor?s flex cable tightly and centers it perfectly with the motor's output shaft for smooth, efficient operation. The collet releases quickly with a twist of the included wrenches for easy maintenance. Once loosened, the prop and flex cable simply slide out, making it easy to keep your Disruptor running in peak form.
3-Channel Receiver with Fail-Safe Security
In the event of signal loss due to an accidental transmitter switch-off or depleted batteries, the receiver automatically returns the throttle to neutral and holds the last commanded steering position. The fail-safe programming is conveniently built-in and does not need to be activated.

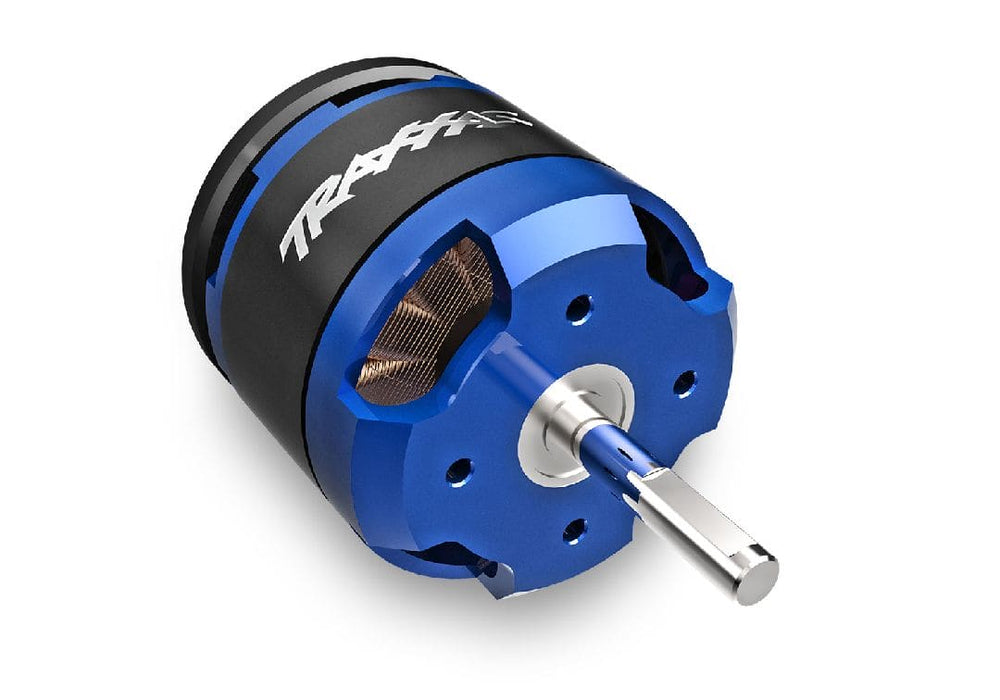

Brushless Outrunner Motor
Disruptor?s brushless outrunner motor is optimized for maximum power and high-RPM efficiency in marine applications with ultra high-temperature sintered neodymium magnets, a precision-balanced rotor, and high-speed ball bearings.
Sealed Receiver Box
Traxxas' patented waterproof receiver box routes wires neatly through a special watertight seal. A blue O-ring allows easy access to the receiver box without losing its sealing properties.
Waterproof Electronics
Waterproof electronics are a must in a marine environment. Traxxas electronics are fully waterproof (not just water resistant). The speed control, servo, and receiver all feature rugged waterproofing protection for dependable operation you can count on.

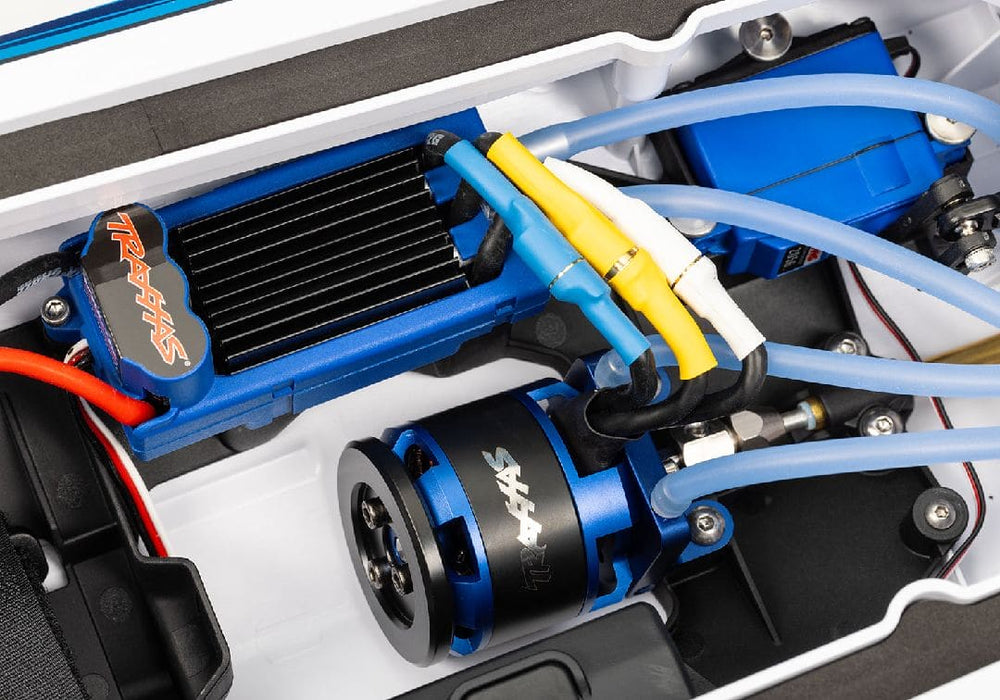

VXL-4s Marine Speed Control
The VXL-4s Marine ESC uses a single 4s 14.8-volt LiPo battery for maximum 40+MPH speed (also compatible with 3s and 2s LiPo batteries). The VXL-4s Marine features an oversized aluminum heat sink with integrated water cooling for reliable all-day performance. Traxxas? patented Training Mode? can be used to limit power to 50% for new drivers.
Built-In Flotation
Disruptor?s built-in foam flotation ensures the boat stays afloat under adverse conditions. In addition to making Disruptor virtually unsinkable, the fitted foam insert adds extra rigidity to the bow.
Hull Type: | Deep-V |
---|---|
Hull Length: | 26.22 inches (666 mm) |
Overall Length: | 29.76 inches (756 mm) |
Beam: | 7.64 inches (194 mm) |
Height: | 5.91 inches (150 mm) |
Deadrise: | 25 degrees |
Weight (no battery): | 3.66 pounds (1.66 kg) |
Speed Control: | VXL-4s? Marine electronic speed control |
Motor (electric): | 14-pole brushless outrunner |
Cooling: | Independent dual-inlet water cooling |
Hull Material: | Injection-molded ABS |
---|---|
Drive System: | Direct drive 0.15-inch flex cable |
Prop: | 42 mm 2-blade composite (59 mm pitch) |
Outdrive: | Anodized aluminum |
Steering Servo: | 2056 waterproof |
Radio System: | TQ? 2.4 GHz (2-channel) |
Receiver: | 6519 2.4 GHz 3-channel |
Skill Level: | 2 |
Battery Compartment (L/W/H): | 180 mm long x 49 mm wide |
Required Batteries: | 4 ?AA? (transmitter), Boat (see battery finder) |
Type: | 14-pole brushless outrunner motor |
---|---|
Weight: | 8.04 ounces (228 g) |
Length: | 2.68 inches (68 mm) |
Diameter: | 1.89 inches (43 mm) |
Motor Shaft: | 5 mm |
Motor Connectors: | 6.5 mm bullet |
Input Voltage (cells): | 2s-4s LiPo |
---|---|
Case Size: | 3.82? (97 mm) x 1.5? (38 mm) x 1.5? (38 mm) |
BEC Voltage: | 6.0 volts |
Thermal Protection: | Two-stage thermal shutdown |
Battery Connector: | Traxxas High Current Connector |
- 26? Deep-V Hull
- Made from lightweight injection-molded ABS
- Internal buttresses and bracing
- Pre-applied graphics
- Modular electronics tray
- Foam bow insert
- Rigid Injection-Molded Clipless Hatch
- Four quick-release hatch nuts with tool
- Foam seal to repel water
- Includes optional wingnuts
- 40+MPH with Single 4s LiPo Battery
- TQ? 2.4 GHz Transmitter
- Full-size 2-channel transmitter
- All-day comfort with precise long-range control
- 3-channel micro receiver with fail-safe security
- Patented waterproof receiver box
- Rapid Right Self Righting
- Rights an overturned boat almost instantly
- Requires no special skills
- VXL-4s Marine Speed Control
- Water-cooled aluminum heat sink
- Innovative waterproof design
- Programmable Drive Profiles
-
- Sport Mode - forward / brake / reverse
- Training Mode? - 50% forward / brake / 50% reverse (patented)
- Built-in two-stage low-voltage detection for LiPo batteries
- LiPo battery packs: 2-4 cells (7.4 to 14.8 volts)
- Brushless outrunner Motor
- 14-pole outrunner design
- Ultra high-temperature sintered Neodymium magnets
- Efficient, high-speed ball bearings
- Optimized for power in marine applications
- 5 mm output shaft
- Extra-Long 180 mm Battery Tray
- Centralizes battery weight
- Accommodates multiple battery sizes
- Secure hook-and-loop straps
- Driveline
- Direct drive 0.15-inch flex cable
- Quick-release motor collet
- Blue-anodized aluminum drive strut
- Low-maintenance bushings
- Steering
- High-torque waterproof 2056 servo
- Blue-anodized aluminum rudder
- Precision-Cut Stainless Steel Trim Tabs and Turn Fins
- Stainless Steel Hex Hardware Used Throughout
MODEL 106064-4: Disruptor?: brushless 4s boat with Rapid Right?, TQ? 2.4 GHz 2-channel radio system, Velineon? VXL-4s? Marine speed control with brushless outrunner motor, and factory-applied graphics. Requires: batteries and charger.
What?s In The Box:
- Disruptor 4s boat with VXL-4s Marine ESC and outrunner motor
- Quick Start Guide
- TQ 2.4 GHz radio system
- Boat stand
- Hatch nut tool
- Maintenance tools
- Optional hatch wingnuts
What You?ll Need:
- Batteries
Disruptor requires a 4-cell LiPo battery for maximum performance. 2 and 3-cell LiPo batteries are optional. See full list of batteries.
- Charger
Traxxas EZ-Peak? Live (2971) is recommended for easy and fast charging performance.
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
