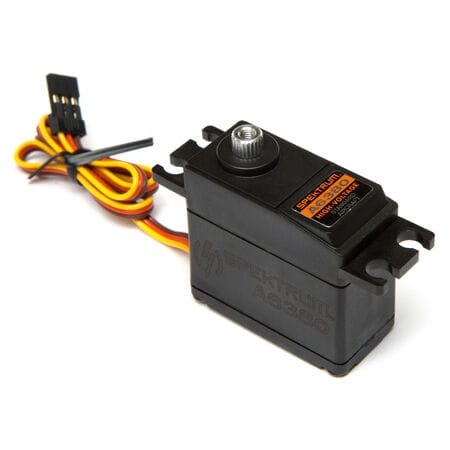

SPMSA6380 A6380 Standard Digital HV High Torque High Speed Metal Gear Aircraft Servo
by SPEKTRUM
$55.99
Inventory :
Overview
The Spektrum™ A6380 high-voltage, digital servo is the perfect budget-solution for your sport plane. With its durable design combined with dual bearing output support, metal-gear durability, smooth coreless motor operation, an impressive 160 oz-in torque rating at 8.4 volts, the A6380 servo boast specifications that easily beat other standard-size competitors in its class.
Specification
ApplicationAircraft BearingDual Bushing Or BearingBearing Connector TypeUniversal Connector Wire Length11.8 in (299.7mm) Gear TypeMetal Maximum Servo Torque100-199 oz-in Product Height1.47 in (37mm) Product Length1.52 in (39mm) Product Weight1.5 oz (42.5 g) Product Width0.74 in (19mm) ProgrammableNo Servo Operating Voltage6.0 - 8.4V (HV) Servo Size CategoryStandard Servo Speed0.17 sec/60 deg @ 6.0V, 0.13 sec/60 deg @ 8.4V Servo TypeDigital Spline Count23 - Tooth Torque102 oz-in (7.3 kg-cm) @ 6.0V, 160 oz-in (11.5 kg-cm) @ 8.4V Wire Gauge22 AWG
