HIT32628S Hitec HS-628MG High Speed Metal Gear 25T Analog Sport Servo
by HITEC RCD INC
$48.98
Inventory :

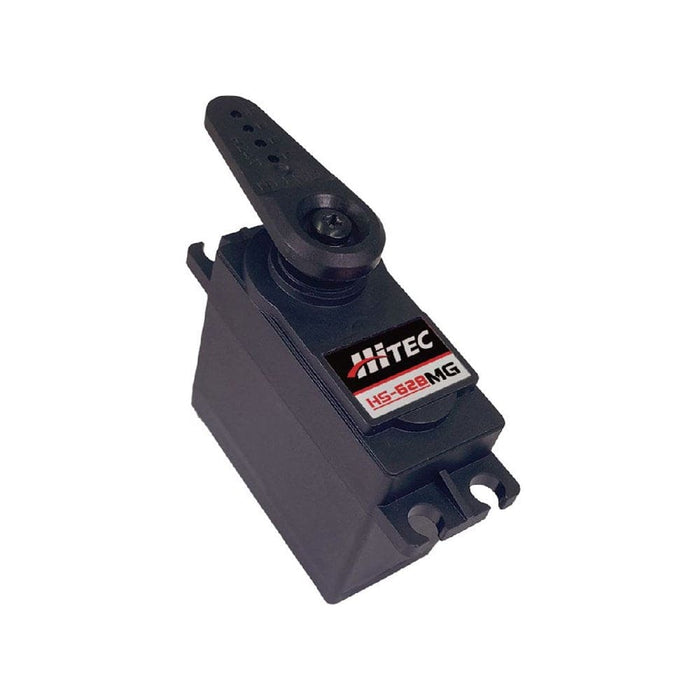

Hitec HS-628MG High Speed Metal Gear 25T Analog Sport Servo
Featuring the industry standard 25-tooth output spline with 3mm hex screw and metal gears for maximum durability, the new HS-628MG is the 25-tooth version of the powerful high-speed HS-625MG. It's the perfect choice for applications requiring a fast and strong standard-size servo. Utilizing M/P and metal gear train technology, the HS-628MG is a fantastic sport servo for larger planes and 1/10th scale sport vehicles.
Features
- Affordable High Speed Metal Gear Servo
- Cored Metal Brush Motor
- Heavy Duty Metal Gear Train
- Revolutionary Metal/Plastic First Gear (MP Gear)
- Dual Ball Bearing-Supported Output Shaft
General Specifications
| Specification | Value |
|---|---|
| Operating Voltage Range | 3.5 ~ 6.8V |
| No Load Speed (4.8V / 6.0V) | 0.18 sec/60° / 0.15 sec/60° |
| Stall Torque (4.8V / 6.0V) | 5.5 kgf·cm (76.38 oz·in) / 6.8 kgf·cm (94.43 oz·in) |
| Peak Efficiency Torque (4.8V / 6.0V) | 1.1 kgf·cm (15.3 oz·in) / 1.9 kgf·cm (19.4 oz·in) |
| Standing Current | 9mA |
| No Load Running Current (4.8V / 6.0V) | 400mA / 500mA |
| Stall Current | - |
| Deadband | 8μs |
| Continuous Rotation | n/a |
| Connector Wire Length | 300mm (11.811 in.) |
| Connector Wire Gauge | 22AWG |
| Dimensions | 40.6 x 19.8 x 37.8mm (1.598 x 0.780 x 1.488 in.) |
| Weight | 55.2g (1.947 oz) |
| Motor Type | Cored Metal Brush |
| Bearing Type | 2 Ball Bearings |
| Case Material | Engineering Plastic |
| Gear Material | 1 Metal+Plastic & 3 Metal Gears |
| Horn Gear Spline | 25T (Ø6.0) |
| IP Rating | IP4X |
| Servo Amplifier Type | Analog Controller |
