CP.RN.00000102.02 DJI Ronin Focus Motor
CP.RN.00000102.02 DJI Ronin Focus Motor
CP.RN.00000102.02 DJI Ronin Focus Motor
CP.RN.00000102.02 DJI Ronin Focus Motor

CP.RN.00000102.02 DJI Ronin Focus Motor

by DJI
$125.00
Inventory :
Key Features
  • Works with Front Dial of RS 2 and RSC 2
  • Also Compatible with Ronin Focus Wheel
  • Adjustable Lens Gear Included
The Ronin Focus Motor is designed to work with the front dial of the DJI RS 2 and RSC 2 gimbals to control focus, iris, and zoom. It's also compatible with the optional Ronin Focus Wheel when used with the RS 2.

DJI CP.RN.00000102.01 Overview


The Ronin Focus Motor is designed to work with the front dial of the DJI RS 2 and RSC 2 gimbals to control focus, iris, and zoom. It's also compatible with the optional Ronin Focus Wheel when used with the RS 2.

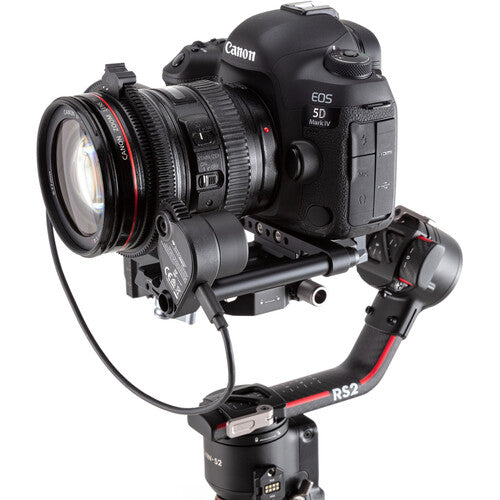

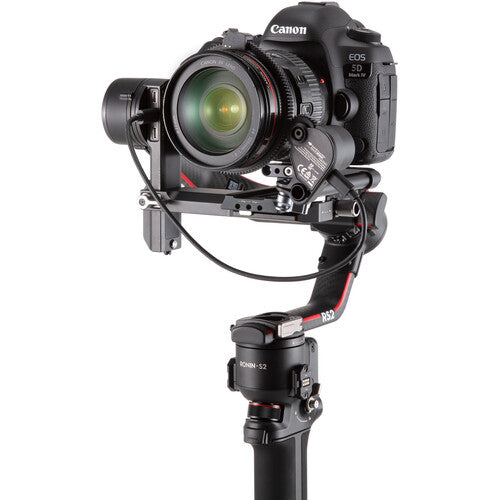

The motor attaches to the gimbal via a single-rod-mount system and connects to the gimbal using a supplied USB cable. A lens gear is included and is adjustable to fit virtually all lenses the gimbal is capable of operating with.



DJI CP.RN.00000102.01 Specs

Maximum Torque
0.27 Nm
Maximum Speed
100 rpm
Operating Voltage
5 V / 8 V
Gear
Diameter: 1.2 to 4.3" / 30 to 110 mm
Gear Length: 14.8" / 377 mm
Operating Temperature
-4 to 113°F / -20 to 45°C
Dimensions
2.8 x 1.9 x 1.3" / 7.1 x 4.7 x 3.4 cm
Weight
3.1 oz / 88 g
Packaging Info
Package Weight
0.55 lb
Box Dimensions (LxWxH)
5.8 x 3.8 x 2.5"

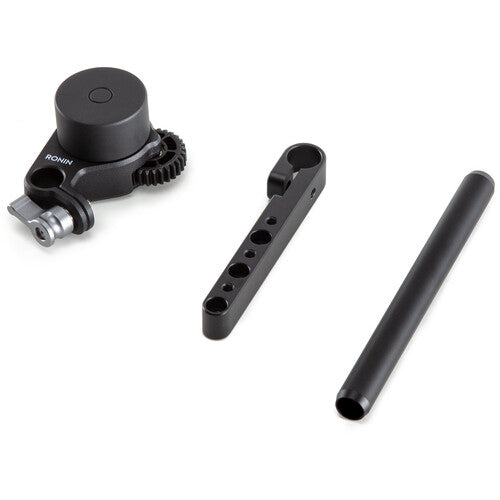

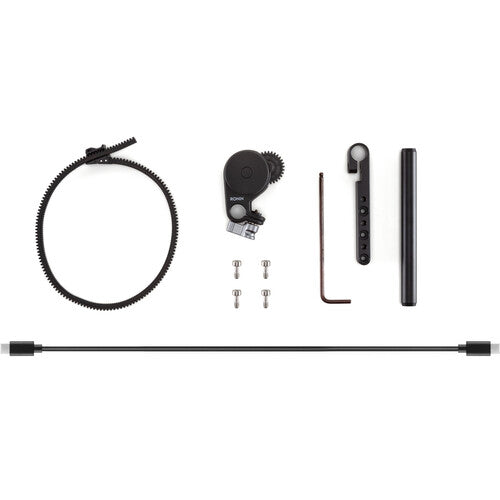

Items Included
  • DJI Ronin Focus Motor for RS 2 and RSC 2
  • Rod Mount (12mm)
  • Rod (12mm)
  • Set of Four M4 Screws
  • Focus Gear Strip
  • USB Type-C Multi-Camera Control Cable (11.8")
  • Allen Key
  • Limited 1-Year Warranty
