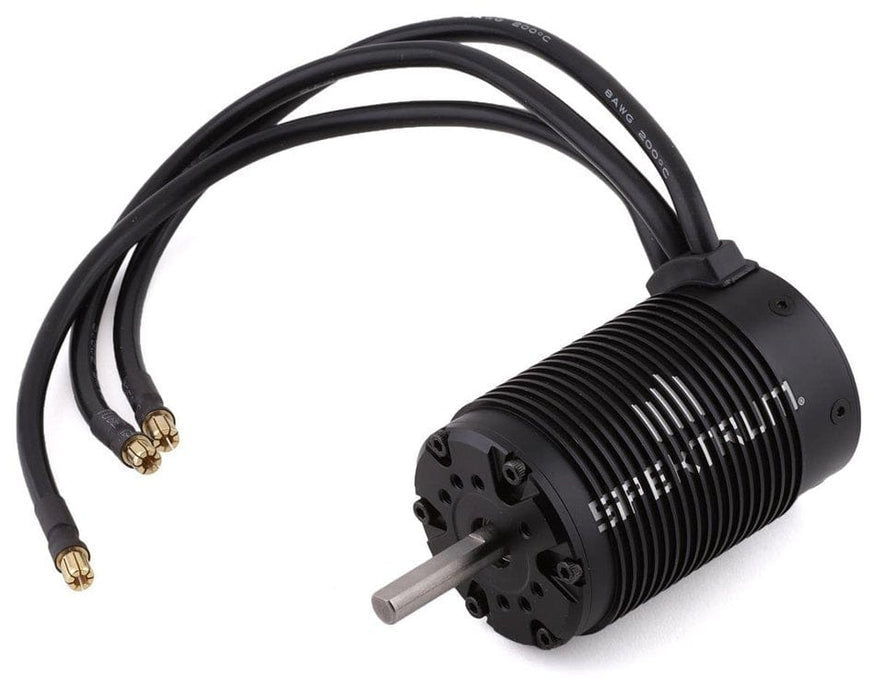

SPMXSM2400 FIRMA 5687 750kv 4-pole Brushless motor
by SPEKTRUM
$318.99
Inventory :
Overview
The Firma 750Kv brushless motor is a perfect option for 1/6 scale buggies, truggies or monster trucks with 3S-6S Lipo powered setup. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 8mm output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 6.5mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 150 Smart ESC.
Features
Product Specifications
| Application | 1/6 scale buggies, truggies or monster trucks with 3S-6S Lipo powered setup |
| Connector Type | 6.5mm Bullet |
| Efficiency | 87% |
| Input Voltage | 12 25.2V |
| Maximum Continuous Current | 80A |
| Motor Design | Inrunner |
| Motor Size | 5687 |
| Motor Type | Brushless - Sensorless |
| Number of Poles | 4 |
| Outer Diameter | 2.2" (56 mm) |
| Output | 3950W |
| Product Length | 3.43" (87 mm) |
| Product Weight | 2.08lbs (947g) |
| RPM/Volt (Kv) | 750Kv |
| Shaft Diameter | 0.314" (8 mm) |
