SPMX-1015 Avian Brushless Outrunner Motor, 8086-200Kv 24-Pole (40cc)

Product Details

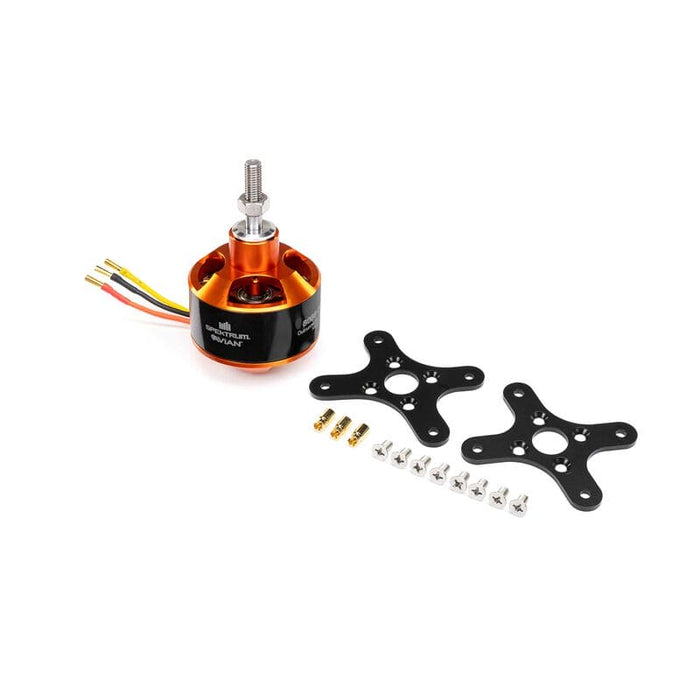

In The Box

Avian Brushless Outrunner Motor, 8086-200Kv 24-Pole1

Sets of Motor Mounts2

Hardware

Female ESC Connectors

Avian Brushless Outrunner Motor, 8086-200Kv 24-Pole (40cc) Overview

This Spektrum™ Avian brushless outrunner motor provides the perfect upgrade for pilots using 40cc gasoline engines. The combination of superior performance, reliability, and user-friendly features make Spektrum Avian™ brushless motors an excellent choice for your next aircraft project. Using 8-12S LiPo power, and built with powerful rare-earth neodymium magnets, this motor is very efficient when combined with a 18x10 propeller. Combine this motor with a Spektrum Smart Avian ESC for detailed system telemetry, and enjoy confidence-inspiring flights!

• Provides the perfect electric upgrade for pilots using 40cc gasoline engines
• Excellent power and efficiency on 12S power when matched with an 18x10 propeller
• Powerful and durable rare-earth neodymium magnets
• 24-pole stator for smooth and precise propulsion
• Includes all required hardware: preinstalled gold-plated bullet connectors, two aluminum motor mounts, prop adapter, and female ESC connectors
• Perfect match for the Avian 160A or 200A HV brushless ESCs

Avian Brushless Outrunner Motor, 8086-200Kv 24-Pole (40cc) Product Specs

• Adjustable TimingNo
• ApplicationLarge scale aircraft
• Bushing Or BearingBearing
• Connector Type6mm Bullet
• Input Voltage8-12S LiPo
• Motor TypeBrushless
• Number of Poles24
• Outer Diameter3.2" (81 mm)
• Product Length3.4" (86 mm)
• Product Weight30.7 oz (871g)
• RPM/Volt (Kv)200Kv
• Shaft Diameter0.39" (10 mm)
