PHDWT-35 PowerHD HV Waterproof Servo 3.8KG, 0.075 sec @ 7.4V
by Power HD
$79.99
Inventory :

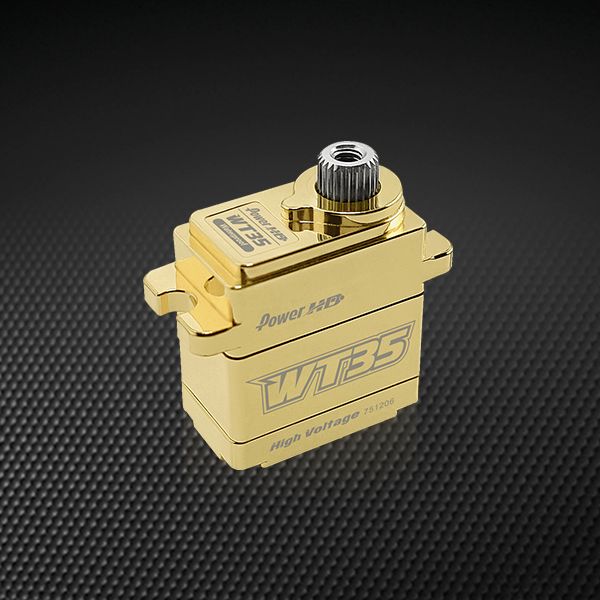

PowerHD High Voltage Balance Weight Waterproof Servo 3.8KG, 0.075 sec @ 7.4V
Constructed with copper and aluminum components and a brass case, this servo delivers excellent strength and performance for its size.
Specifications
| Torque (4.8V) | 3.0 kg-cm (41.7 oz/in) |
| Torque (6.0V) | 3.5 kg-cm (48.6 oz/in) |
| Torque (7.4V) | 3.8 kg-cm (52.8 oz/in) |
| Speed | 0.10 sec (4.8V) │ 0.085 sec (6.0V) │ 0.075 sec (7.4V) |
| Operating Voltage | 4.8 ~ 7.4 DC Volts |
| Weight | 35.0 g (1.23 oz) |
| Gear Type | Copper & Aluminum |
| Connector Wire Length | JR 180 mm |
| Operating Temperature | -10℃ ~ 60℃ |
| Working Frequency | 1520μs / 50Hz |
| Size | 22.5 x 12.9 x 24.5 mm (0.89 x 0.51 x 0.96 in) |
