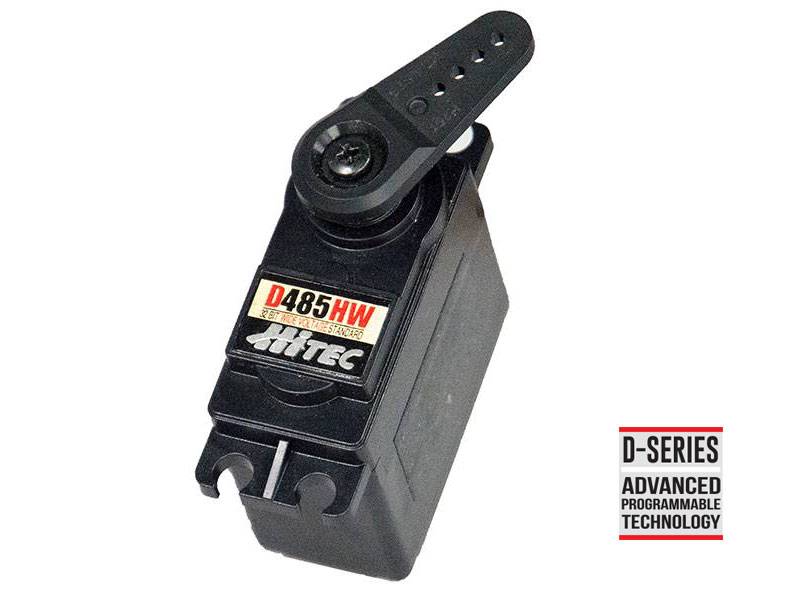

HIT36485S Hitec D485HW, 32-Bit, Wide Voltage, Carbonite Servo
by HITEC RCD INC
$40.99
Inventory :
Replacing the standard-size HS-5485HB and HS-5495BH servos, the sport class D485HW brings faster response and accuracy to your various radio control needs with D-series high resolution 32-bit technology and wide voltage operation.
This is the upgraded version of the HS-5485HB and HS-5495BH
| Radio Control Applications | |
|---|---|
| Physical Specifications | |
| Performance Specifications | |
| Operating Voltage Range (Volts DC): | 4.8V ~ 7.4V |
| Speed (Second @ 60°): | 0.20 ~ 0.15 |
| Maximum Torque Range oz. / in.: | 72 ~ 104 |
| Maximum Torque Range kg. / cm.: | 4.8 ~ 7.4 |
| Current Draw at Idle: | 30 mA |
| No Load Operating Current Draw: | 320mA |
| Stall Current Draw: | 1,500mA |
| Dead Band Width: | N / A |
| Dimensions (Inches): | 1.57 x 0.78 x 1.49 |
| Dimensions (Metric): | 39.8 X 19.8 X 38.0 |
| Weight (Ounces): | 1.59 |
| Weight (Gram): | 45 |
| Circuit Type: | 32 bit Programable Digital |
| Motor Type: | 3 Pole Cored Carbon Brush |
| Gear Material: | MK 1st Gear & 3 Karbonite Resin Gears |
| Bearing Type: | Top Ball Bearing |
| Output Shaft (type / 0mm): | 25 / 6 |
| Case Material: | Plastic |
| Dust / Water Resistance: | N / A |
| Connector Gauge (AWG) / Strand Count: | N / A |
| Parkflyer: | N / A |
| Sport Plane: | 50 - 64 oz. |
| Sailplane: | 2 meters and up |
| 3D Performance: | N / A |
| Scale: | 50 - 64 oz |
| Electric Helicopter: | N / A |
| Gas Helicopter: | N / A |
| On Road: | N / A |
| Monster Truck: | N / A |
| Buggies: | N / A |
| Truggies: | N / A |
| Short Course / Truck: | N / A |
| Crawlers: | N / A |
| Sail Boat: | < 1M |
| Power Boat: | 1/10th |
