HIT35805S Hitec HS-5805MG Digital Mega Metal Gear, Dual BB Servo
by HITEC RCD INC
$105.99
Inventory :
The HS-5805MG is the digital sibling of the HS-805MG and just like the HS-805MG it was designed to handle the punishment dished out by the latest wave of big vehicles. Built big and tough, the HS-5805MG adds the massive holding torque and the programmability of our digital circuit.
Features:
- Programmable Digital Circuit
- Large 8mm Output shaft
- Dual Ball Bearings
- Heavy Duty Metal Gear Train
- Water and Dust Resistant Case
Programmable Functions:
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Data Save / Load
- Program Reset
| Radio Control Applications | |
|---|---|
| Physical Specifications | |
| Performance Specifications | |
| Operating Voltage Range (Volts DC): | 4.8V ~ 6.0V |
| Speed (Second @ 60°): | 0.19 ~ 0.14 |
| Maximum Torque Range oz. / in.: | 275 ~ 343 |
| Maximum Torque Range kg. / cm.: | 19.8 ~ 24.7 |
| Current Draw at Idle: | 3 mA |
| No Load Operating Current Draw: | 520 mA |
| Stall Current Draw: | 6,000 mA |
| Dead Band Width: | 5 us |

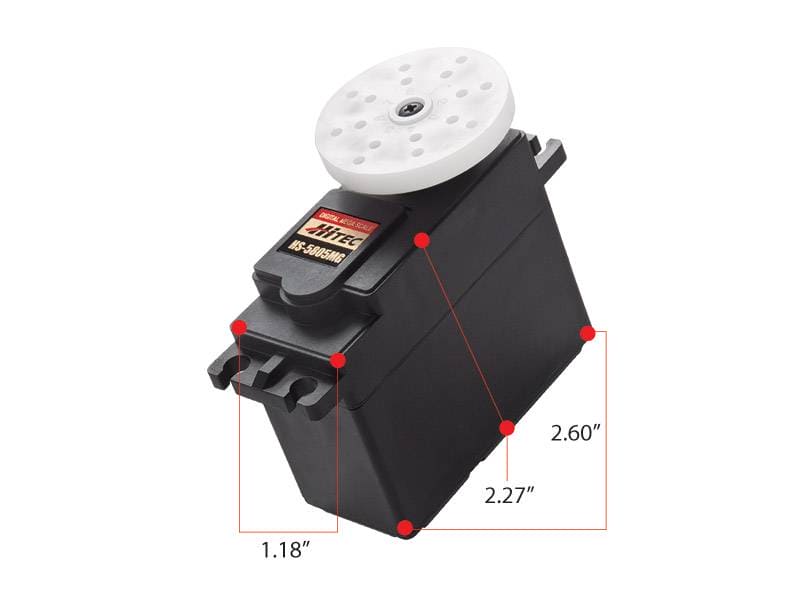

| Dimensions (Inches): | 2.60 x 1.18 x 2.27 |
| Dimensions (Metric): | 66.0 x 30.0 x 57.6 |
| Weight (Ounces): | 6.95 |
| Weight (Gram): | 197 |
| Circuit Type: | G1 Programable Digital |
| Motor Type: | 3 Pole Metal Brush Ferrite |
| Gear Material: | Metal |
| Bearing Type: | Dual Ball Bearing |
| Output Shaft (type / 0mm): | Mega 15 |
| Case Material: | Plastic |
| Dust / Water Resistance: | Splash Proof |
| Connector Gauge (AWG) / Strand Count: | 22 / 60 |
| Parkflyer: | N / A |
| Sport Plane: | N / A |
| Sailplane: | N / A |
| 3D Performance: | N / A |
| Scale: | > 40% |
| Electric Helicopter: | N / A |
| Gas Helicopter: | N / A |
| On Road: | 1/4th & 1/5th |
| Monster Truck: | 1/4th & 1/5th |
| Buggies: | 1/4th & 1/5th |
| Truggies: | 1/4th & 1/5th |
| Short Course / Truck: | 1/4th & 1/5th |
| Crawlers: | N / A |
| Sail Boat: | = >1M & Scale |
| Power Boat: | 1/5th & Up Scale |
