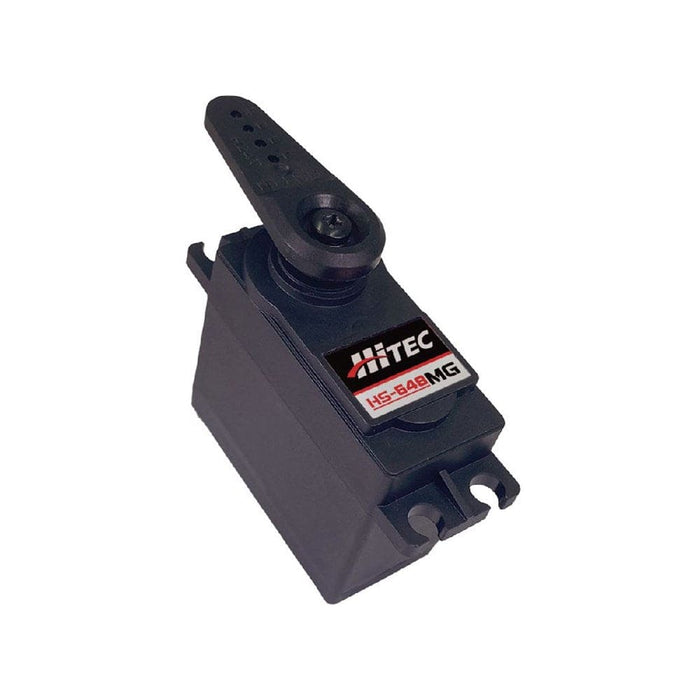

HIT32648S Hitec HS-648MG High Torque Metal Gear 25T Analog Sport Servo
by HITEC RCD INC
$48.98
Inventory :
Hitec HS-648MG High Torque Metal Gear 25T Analog Sport Servo
Featuring the industry standard 25-tooth output spline with 3mm hex screw and metal gears for maximum durability, the new HS-648MG is the 25-tooth version of the powerful high-torque HS-645MG. It’s the perfect choice for larger sport planes or monster trucks and buggies requiring a durable high torque servo. Equipped with unique M/P and metal gear train technology, the HS-648MG offers one of the strongest gear trains available in any servo.
Features
- High Torque Metal Gear Servo
- 25 Tooth Output Spline
- Revolutionary Metal/Plastic First Gear (MP Gear)
- Cored Metal Brush Motor
- Dual Ball Bearing Supported Output Shaft
- Top Selling High Torque Metal Gear Servo
General Specifications
| Specification | Value |
|---|---|
| Operating Voltage Range | 3.5 ~ 6.8V |
| No Load Speed (4.8V / 6.0V) | 0.24 sec/60° / 0.20 sec/60° |
| Stall Torque (4.8V / 6.0V) | 7.7 kgf·cm (106.93 oz·in) / 9.6 kgf·cm (133.32 oz·in) |
| Peak Efficiency Torque (4.8V / 6.0V) | 1.5 kgf·cm (20.8 oz·in) / 1.9 kgf·cm (26.4 oz·in) |
| Standing Current | 9mA |
| No Load Running Current (4.8V / 6.0V) | 350mA / 450mA |
| Stall Current | - |
| Deadband | 8μs |
| Continuous Rotation | n/a |
| Connector Wire Length | 300mm (11.811 in.) |
| Connector Wire Gauge | 24AWG |
| Dimensions | 40.6 x 19.8 x 37.8mm (1.598 x 0.780 x 1.488 in.) |
| Weight | 55.2g (1.947 oz) |
| Motor Type | Cored Metal Brush |
| Bearing Type | 2 Ball Bearings |
| Case Material | Engineering Plastic |
| Gear Material | 1 Metal+Plastic & 3 Metal Gears |
| Horn Gear Spline | 25T (Ø6.0) |
| IP Rating | IP4X |
| Servo Amplifier Type | Analog Controller |
