HIT32125S Hitec HS-125MG Slim Metal Gear Wing, Dual BB
by HITEC RCD INC
$54.99
Inventory :

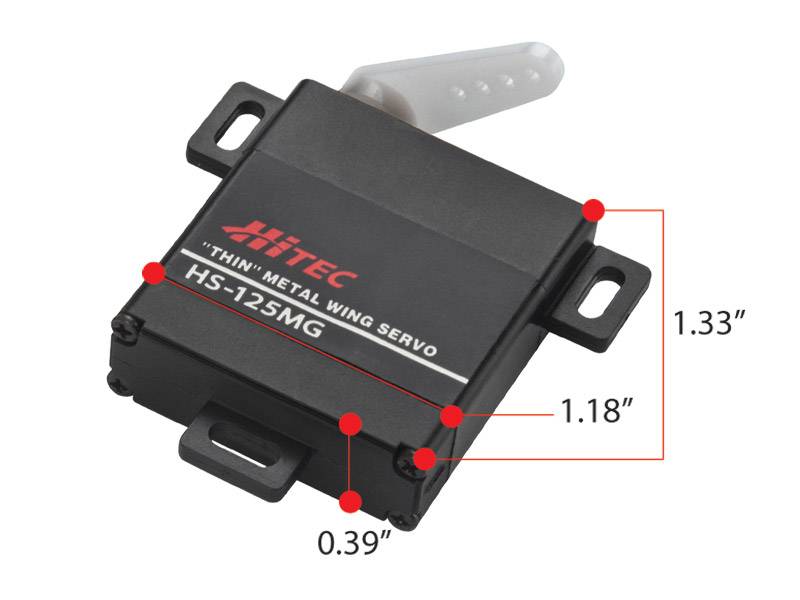

The analog HS-125MG is truly a super thin servo measuring 1.2"? x 0.4"? x 1.3"?. Featuring Hitec's MP Gear, the HS-125MG is very durable, and a perfect fit in the slim wings of today's high performance gliders.
Features:
- Super Thin Wing Servo
- Strong Metal Gears
- Dual Ball Bearings
- Perfectly Designed to Fit in Slim Aircraft and Glider Wings
| Radio Control Applications | |
|---|---|
| Physical Specifications | |
| Performance Specifications | |
| Performance Specifications: | |
| Operating Voltage Range (Volts DC): | 4.8V ~ 6.0V |
| Speed (Second @ 60°): | 0.17 ~ 0.13 |
| Maximum Torque Range oz. / in.: | 42 ~ 49 |
| Maximum Torque Range kg. / cm.: | 3.0 ~ 3.5 |
| Current Draw at Idle: | 8 mA |
| No Load Operating Current Draw: | 230 mA |
| Stall Current Draw: | 1,200 mA |
| Dead Band Width: | 1 us |
| Dimensions (Inches): | 1.18 x 0.39 x 1.33 |
| Dimensions (Metric): | 30.0 x 10.0 x 34.0 |
| Weight (Ounces): | 0.84 |
| Weight (Gram): | 24 |
| Circuit Type: | HT7003 Analog SMT |
| Motor Type: | 3 Pole Metal Brush Ferrite |
| Gear Material: | Metal |
| Bearing Type: | Dual Ball Bearing |
| Output Shaft (type / 0mm): | Micro 23 |
| Case Material: | Plastic |
| Dust / Water Resistance: | N / A |
| Connector Gauge (AWG) / Strand Count: | 25 / 40 |
| Parkflyer: | N / A |
| Sport Plane: | 42 - 50 oz. |
| Sailplane: | 3 Meter |
| 3D Performance: | 42 - 50 oz. |
| Scale: | N / A |
| Electric Helicopter: | N / A |
| Gas Helicopter: | N / A |
| On Road: | N / A |
| Monster Truck: | N / A |
| Buggies: | N / A |
| Truggies: | N / A |
| Short Course / Truck: | N / A |
| Crawlers: | N / A |
| Sail Boat: | N / A |
| Power Boat: | 1/16th |
