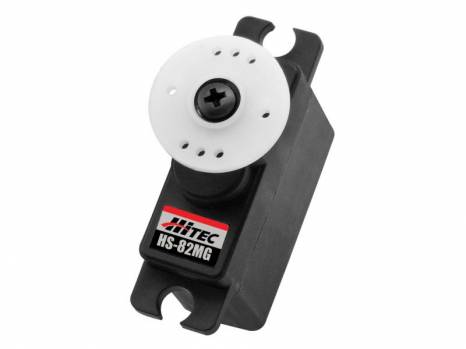

HIT32082S Hitec HS-82MG Micro Metal Gear Servo
by HITEC RCD INC
$33.99
Inventory :
We took one of our top selling servos and made it even better. Based on the ultra popular HS-81MG the HS-82MG gets a new stronger motor and updated electronics for more precise centering. The HS-82MG is perfect for smaller aircraft and helicopters where a durable geartrain is required.
Features:
- Top Selling Metal Gear Micro Servo
- Strong Three-Pole Ferrite Motor
- Rugged Metal Gears
| Radio Control Applications | |
|---|---|
| Physical Specifications | |
| Performance Specifications | |
| Operating Voltage Range (Volts DC): | 4.8V ~ 6.0V |
| Speed (Second @ 60°): | 0.12 ~ 0.10 |
| Maximum Torque Range oz. / in.: | 39 ~ 47 |
| Maximum Torque Range kg. / cm.: | 2.8 ~ 3.4 |
| Current Draw at Idle: | 10 mA |
| No Load Operating Current Draw: | 280 mA |
| Stall Current Draw: | 1,800 mA |
| Dead Band Width: | 5 us |
| Dimensions (Inches): | 1.17 x 0.47 x 1.16 |
| Dimensions (Metric): | 29.8 x 12.0 x 29.6 |
| Weight (Ounces): | 0.66 |
| Weight (Gram): | 19 |
| Circuit Type: | HT7003 Analog SMT |
| Motor Type: | 3 Pole Metal Brush Ferrite |
| Gear Material: | Metal |
| Bearing Type: | None |
| Output Shaft (type / 0mm): | Standard 24 |
| Case Material: | Plastic |
| Dust / Water Resistance: | N / A |
| Connector Gauge (AWG) / Strand Count: | 28 / 20 |
| Parkflyer: | < 50 oz. |
| Sport Plane: | 42 - 50 oz. |
| Sailplane: | < 2 meter / DLG |
| 3D Performance: | N / A |
| Scale: | N / A |
| Electric Helicopter: | N / A |
| Gas Helicopter: | N / A |
| On Road: | 1/16th |
| Monster Truck: | N / A |
| Buggies: | 1/16th |
| Truggies: | N / A |
| Short Course / Truck: | 1/16th |
| Crawlers: | N / A |
| Sail Boat: | N / A |
| Power Boat: | 1/16th |
