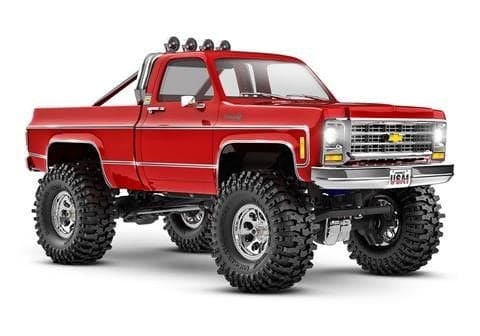

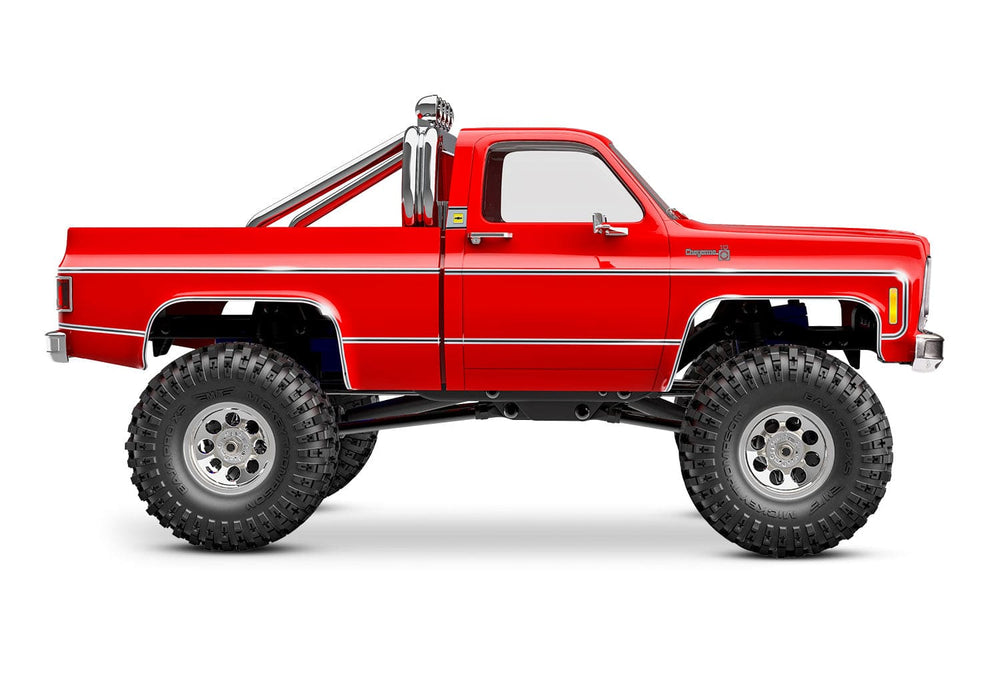

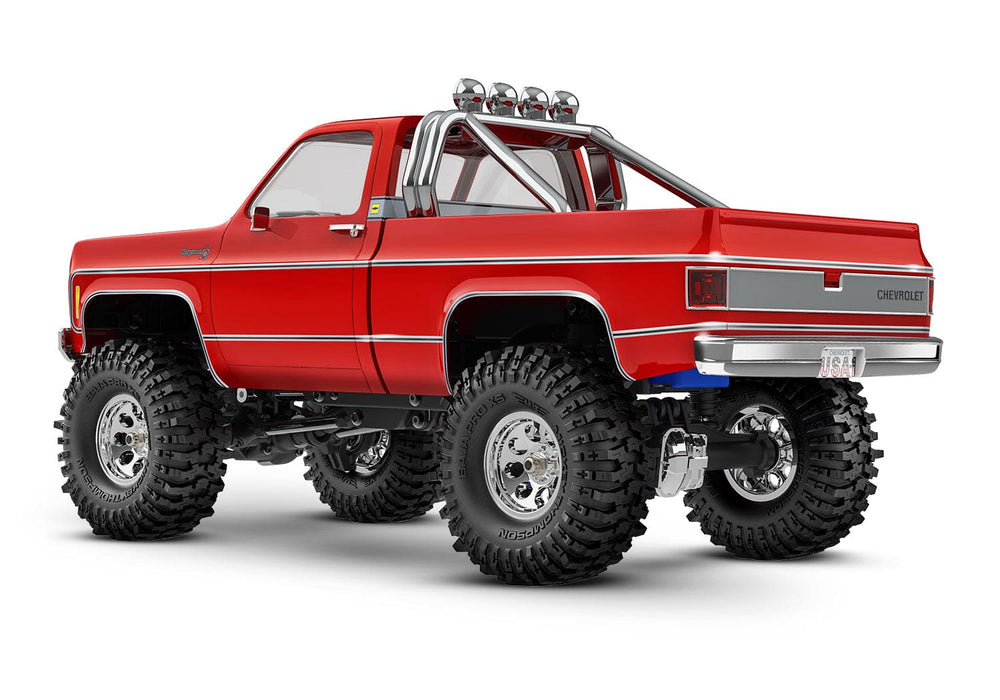

TRA97064-1RED Traxxas 1/18 TRX-4M Chevrolet K10 High Trail Truck - Red (Sold Separately extra battery please ORDER #TRA2821)
FOR EXTRA BATTERY ORDER TRA2821

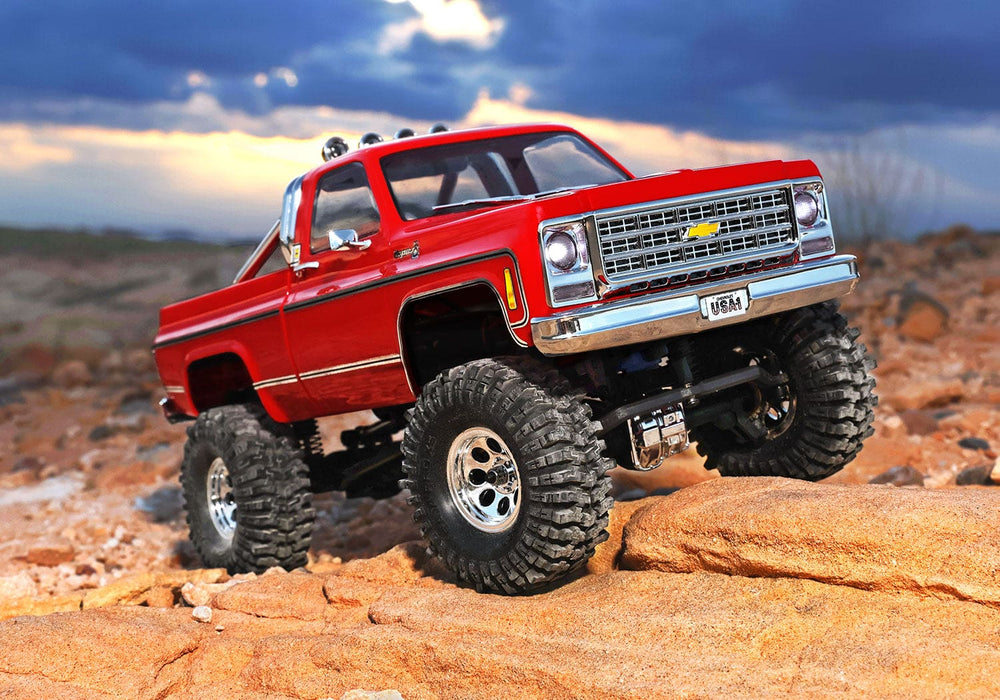

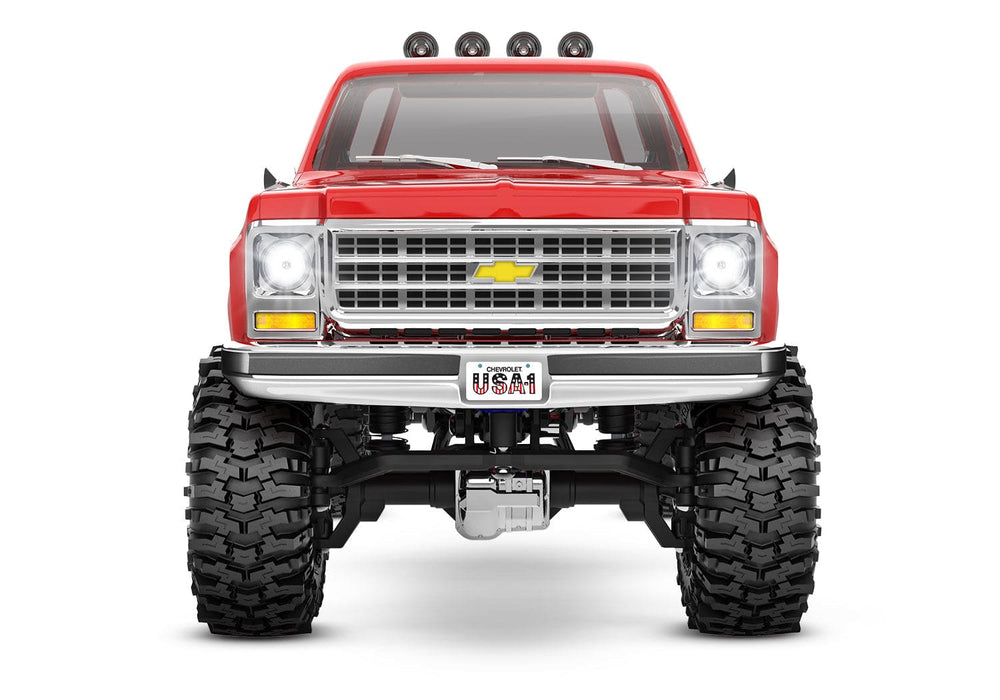

Small-scale adventure takes a big leap in performance with the TRX-4M™ Chevrolet® K10 High Trail™ Edition. The High Trail pickup comes with a pre-installed Long Arm Lift Kit for 35% more center ground clearance than a standard TRX-4M and an extended wheelbase for even more all-terrain capability. Oversize Mickey Thompson® Baja Pro™ XS tires enhance traction and give K10 a dramatic lifted truck profile. From indoor fun to outdoor adventure, TRX-4M K10 High Trail Edition delivers the quality and performance you expect from Traxxas.
LONG ARM LIFT KIT
The High Trail edition’s Factory Installed Long Arm Lift Kit and larger tires raise the center ground clearance over 35% for a dramatic lifted stance. Revised shock mounts and extended links ensure the truck maintains its carefully-tuned suspension geometry for peak performance on challenging terrain.
NEW LARGER 2.4″ TIRES
Larger 2.4″ Mickey Thompson® Baja Pro™ XS replicate the full size tire’s aggressive tread pattern and fill out the High Trail Edition’s wheel wells for an authentic “lifted truck” look. Sticky compound rubber and trail-tuned foam inserts give extra “bite” for superior traction on the trail.
EXTENDED WHEELBASE

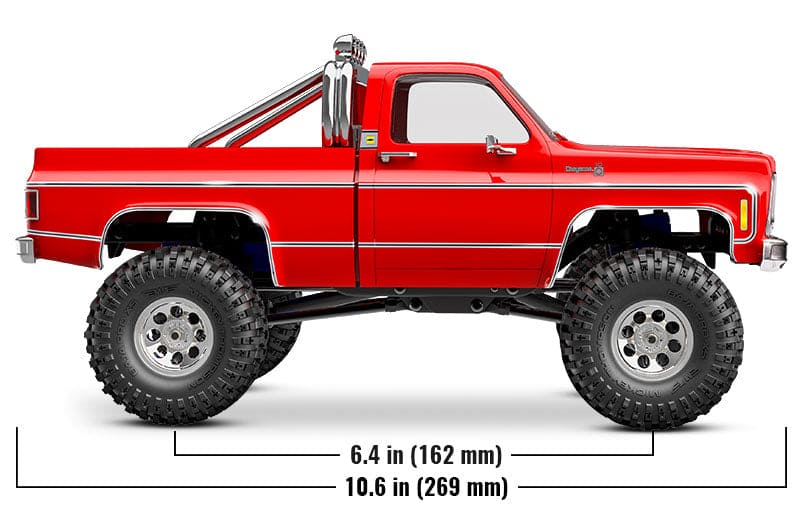

The High Trail Edition’s steel frame rails extend the wheelbase out to 162mm to capture the pickup’s real-world proportions perfectly. A longer wheelbase also translates into greater climbing stability and a smoother, more stable ride over rough terrain.
DETAILED CLIPLESS BODY
The TRX-4M Chevrolet K10 clipless body holds tight on the trail but releases in just seconds with a hidden latching system to preserve its clean lines. The tough ABS body featured molded-in color with highly detailed chrome trim for complete scale authenticity.
What’s In The Box:
- TRX-4M High Trail model
- Licensed ABS hard body
- Titan® 180 87-turn motor
- ECM-2.5 Electronic Control Module
- TQ transmitter
- 7.4 volt 750 mAh 2-cell LiPo battery
- 2-amp USB fast charger with iD®
- High quality maintenance tools
What You’ll Need:
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter
MODEL SPECS
| Model Name: | Chevrolet K10 High Trail Edition |
|---|---|
| Model Type: | Trail / Crawler |
| Model Skill Level: | 1 |
| Scale: | 1/18 |
| Weight: | 1.03 lb (468 g) |
| Length: | 10.6 inches (269 mm) |
| Width: | 5.0 inches (127 mm) |
| Front Track: | 5.0 inches (127 mm) |
| Rear Track: | 5.0 inches (127 mm) |
| Height: | 5.0 inches (127 mm) |
MOTOR SPECS
-

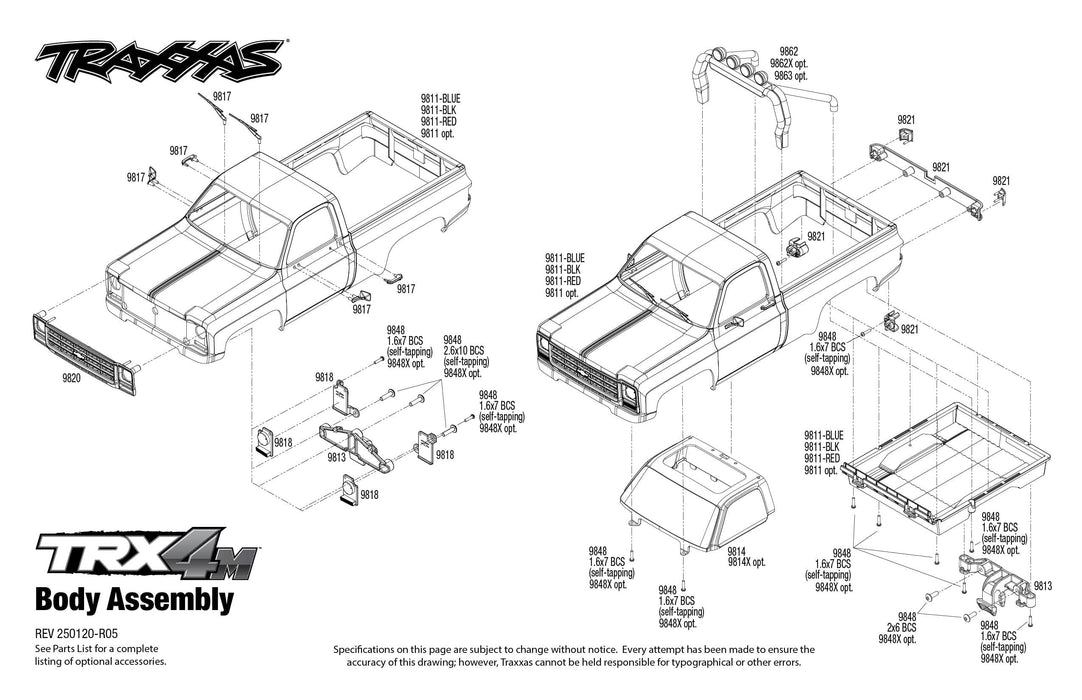

Officially Licensed Chevrolet® K10 Clipless Body
- Molded-in color won’t chip or flake
- Tough fender flares and rock sliders
- Realistic side mirrors, door handles, roll bar, & wipers
- LED headlights
- Hold tightly on the trail
- Release in just seconds
- Highly-detailed ABS hard body
- Heavy-duty latching clips
-
ECM-2.5™ Electronic Control Module
- Sport Mode — forward / brake / reverse
- Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
- Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
- Incorporates ESC, receiver, and LED controller in one chassis
- Fully waterproof for all-weather fun
- Three drive profiles
- Traxxas EZ-Set® one-button setup
- Built-in Pro Scale® LED functionality
- Two stage low voltage protection (LVD)
- Motor overload protection
- TQ™ 2.4 GHz Transmitter
- Full-size 2-channel transmitter
- All-day comfort with precise long-range control
- Titan® 180 87-Turn Brushed Motor
- Fixed gear mesh doesn’t require adjustment
- Forward mounting position for improved crawling dynamics

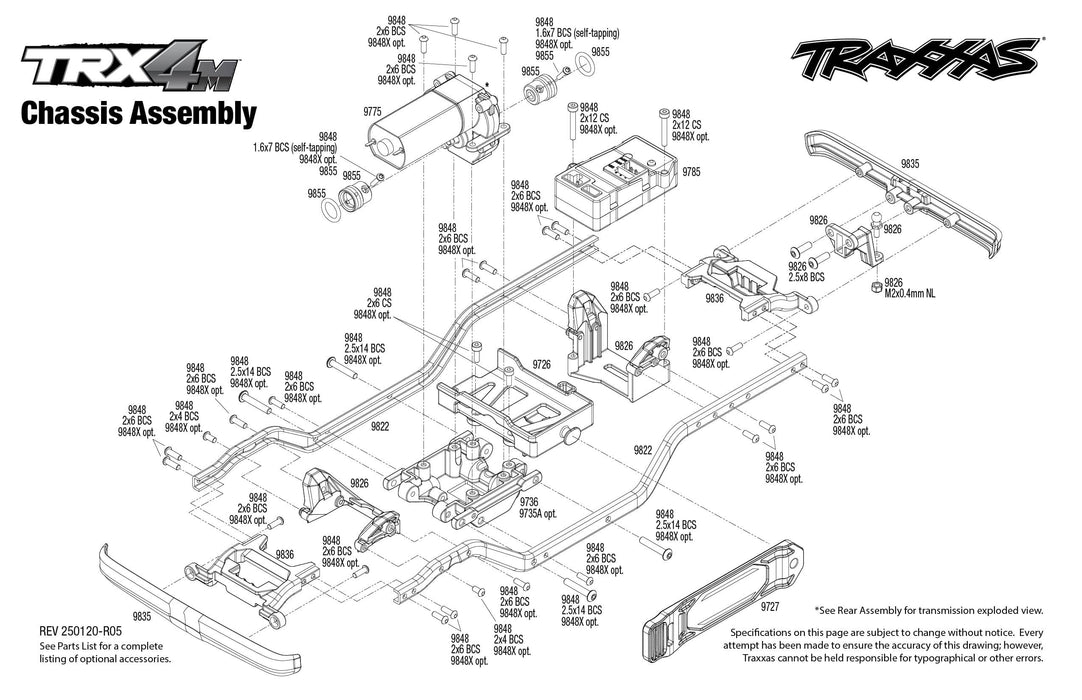

- Extended Heavy-Duty Steel Ladder Frame
- Deep C-channel design
- Thicker center section for maximum rigidity
- Rails run from bumper to bumper
- Drivetrain
- Full-time shaft-driven 4-wheel drive
- Solid steel axles
- Spool-equipped front and rear axles
- Heavy-duty CV center driveshafts
- Low-CG Battery Tray
- Concentrates weight lower for improved stability
- Wide rubber strap secures battery in place
- Optional Transmission Ratios (sold separately)
- Optional Low Range or Speed Gearing transmissions
- Modular design swaps out in minutes
-
Steering
- Metal main gear
- Heavy-duty 2065T steering servo
- Superior 45° steering angle
- Direct steering (no servo saver)

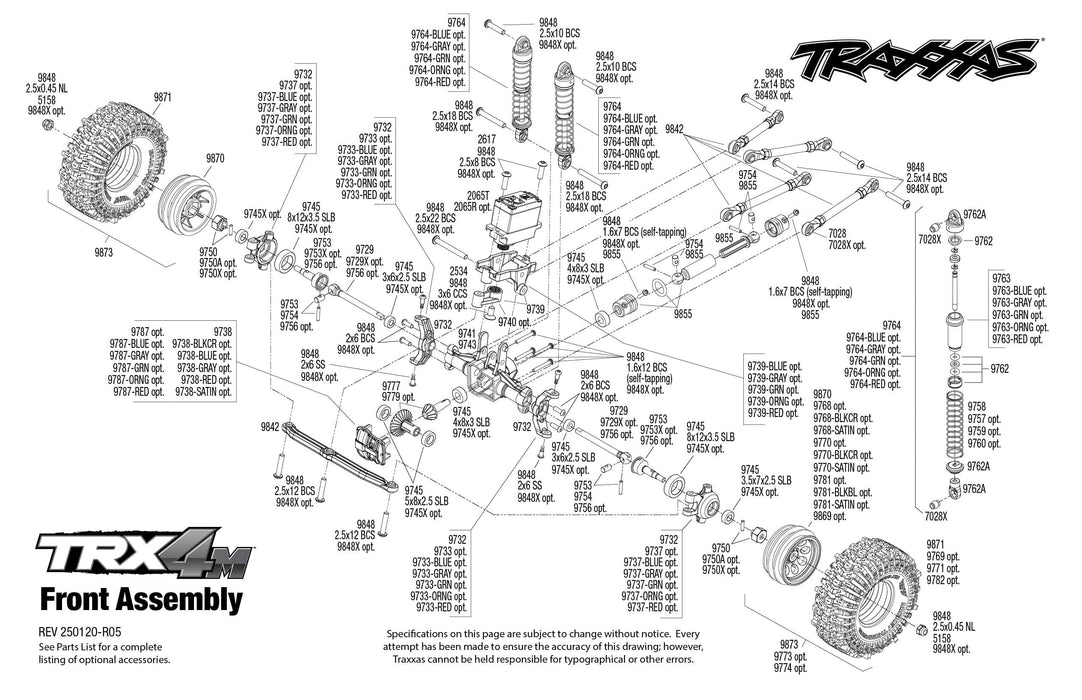

- Lifted High Trail™ Suspension
- Revised shock towers
- Triangulated 4 link front and rear
- Heavy-duty rod ends
- Oil-Filled GTM™ Shocks
- Provides smooth controlled damping
- Realistic driving body movements
- Adjustable pre-load spacers
- Easily refreshed with available rebuild kits
-
Wheels and Tires
- 7 mm hex
- 1″ Replica 8-hole chrome mag wheels
- Pre-mounted Mickey Thompson® Baja Pro™ XS tires
- Trail-tuned rubber compound
-
Battery and Charger Included
- 7.4 volts
- 750 mAh for over an hour of run time
- High-capacity 2-cell LiPo battery with iD®
- 2-amp USB-powered charger
- iD® technology for faster, safer charging
- Low-Maintenance Self-Lubricating Bushings
- Durable Hex hardware
| Motor Name: | Titan 180 |
|---|---|
| Motor Type: | 87-turn brushed motor |
| Motor Weight: | 1.16 ounces (33 g) |
| Motor Length: | 1.66 inches (42 mm) |
| Motor Diameter: | .81 inches (21 mm) |
ESC SPECS
| ESC Name: | ECM 2.5™ |
|---|---|
| ESC Type: | Brushed |
| ESC Case Size: | 1.79 inches ( 45 mm) x 1.26 inches (32 mm) x 0.6 inches (15 mm) |
| ESC Weight: | .92 ounces ( 26 g) |
