TRA105237-4WHITE Traxxas 4-Tec 2024 Ford Mustang Drift - White**Sold Separately you will need TRA2992 to run this
What’s In The Box:
- 4-Tec Drift with XL-5 ESC and Titan Drift motor
- Quick Start Guide
- TQi™ 2.4 GHz radio with Wireless Module
- Front and rear soft-compound tires
- High quality maintenance tools
What You’ll Need:
- Batteries
4-Tec Drift requires a single NiMH or LiPo battery. See full list of batteries.
- Charger
Traxxas EZ-Peak Live charger (2971) is recommended for easy and fast charging performance.
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
MODEL SPECS
| Model Name: | 4-Tec Drift |
|---|---|
| Model Type: | On-Road Cars |
| Model Skill Level: | 1 |
| Scale: | 1/10 |
| Weight: | 3.35 pounds (1.52 kg) |
| Length: | 18.24 inches (463 mm) |
| Width: | 7.91 inches (201 mm) |
| Front Track: | 7.87 inches (200 mm) |
| Rear Track: | 7.87 inches (200 mm) |
MOTOR SPECS
| Motor Name: | Titan Drift 21T 550 |
|---|---|
| Motor Type: | High-torque brushed motor |
| Motor Weight: | 8.47 ounces (240 g) |
| Motor Length: | 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length |
| Motor Diameter: | 1.53 inches (39 mm) |
| Motor Shaft Size: | 3 mm |
| Motor Connector Type: | Bullet |
ESC SPECS
| ESC Name: | Waterproof XL-5 ESC with low-voltage detection |
|---|---|
| ESC Type: | Brushed |
| ESC Case Size: | 1.23 inches (31 mm) / 2.18 inches (55 mm) / 0.61 inches (15 mm) |
| ESC Weight: | 2.44 ounces (69 g) |
| Motor Connectors: | Bullet |
| Battery Connectors: | Traxxas High Current Connector |
| ESC Power Wire: | 14 gauge |
PRECISE DRIFTING - POWERED BY TSM
Traxxas 4-Tec® Drift delivers the ultimate experience in modern, smooth, drifting action. Advanced TSM® Drift technology makes 4-Tec Drift easy to master and endless fun on the track. Use the included Wireless Module to take advantage of three customizable and powerful drift modes in the Traxxas Link™ app for maximum control. A new rear-wheel-drive 4-Tec 200 mm platform with clipless Mustang body features an all-new front suspension tuned for optimal drift geometry with over 60° of steering angle. Take your Traxxas experience to a new level with the 4-Tec® Drift!
High-Angle Steering
4-Tec Drift Drift provides over 60° of steering angle at full lock to enable big sideways drifts and quick transitions. The front suspension is specially tuned for drifting with new steering blocks, bellcranks and a drag link optimized for maximum throw.
Customizable Drift Modes
Only 4-Tec Drift lets you choose between three customizable drift modes. Innovative TSM Drift technology replaces old-fashioned drift gyros with smooth precise control that can be fine tuned with the Traxxas Link app. New drivers can drift like a pro without specialized knowledge or skills, and advanced enthusiasts will enjoy the refined controls for even smoother performance.
Clipless Ford Mustang Body
4-Tec Drift raises the bar for durability, ease of use, and scale detail with an all-new clipless Ford Mustang body. Beautiful metallic paint contrasts the molded body details for show-stopping looks and modern Mustang styling. Body mounts integrate neatly into the molded hood vents and rear spoiler for extra reinforcement and a seamless look.
TQi Radio with Wireless Module
A Traxxas Link™ Wireless Module is included to harness the full potential of 4-Tec Drift’s powerful TSM drift modes. Use the full-color graphical interface to personalize the 3-channel TQi™ radio’s settings and unlock its advanced tuning features. Tap the handbrake button on the side to initiate rotation and begin your drift.
Hard and Soft Compound Tires Included
4-Tec Drift is designed for maximum versatility with two sets of 1.9″ drift tires included in the box. Use the factory-installed hard compound tires on any hard abrasive surface like pavement or cement. The included soft compound tires provide refined drift control on polished surfaces.
New Rear-Wheel-Drive Platform
4-Tec Drift rides on a new rear-wheel-drive platform based on the responsive 200 mm 4-Tec chassis. The front bulkhead and suspension are all new to provide optimal drift geometry and over 60° of steering angle. Drivers can take advantage of individual settings for caster, roll center, ackerman, track width, and more.
Rubber-Sealed Ball Bearings
Rubber-sealed bearings offer the ultimate in super low-friction performance and maximum protection in dusty environments. They are used in all exposed locations on the truck and are virtually maintenance free.
Clipless Body Mounting
Locking tabs hold the body tightly to the chassis with an audible snap to signal they’re secure. The self-energizing locking tabs stay locked until you release them. This hidden latching system maximizes convenience and scale realism by removing traditional body clips which would interrupt the body’s clean lines.
Hard and Soft Compound Tires Included
4-Tec Drift rolls out of the box ready for action with 1.9″ hard-compound drift tires installed. These tires are designed for street driving on abrasive surfaces like concrete and asphalt. A second set of soft-compound tires is included in the box for improved control on polished track surfaces.

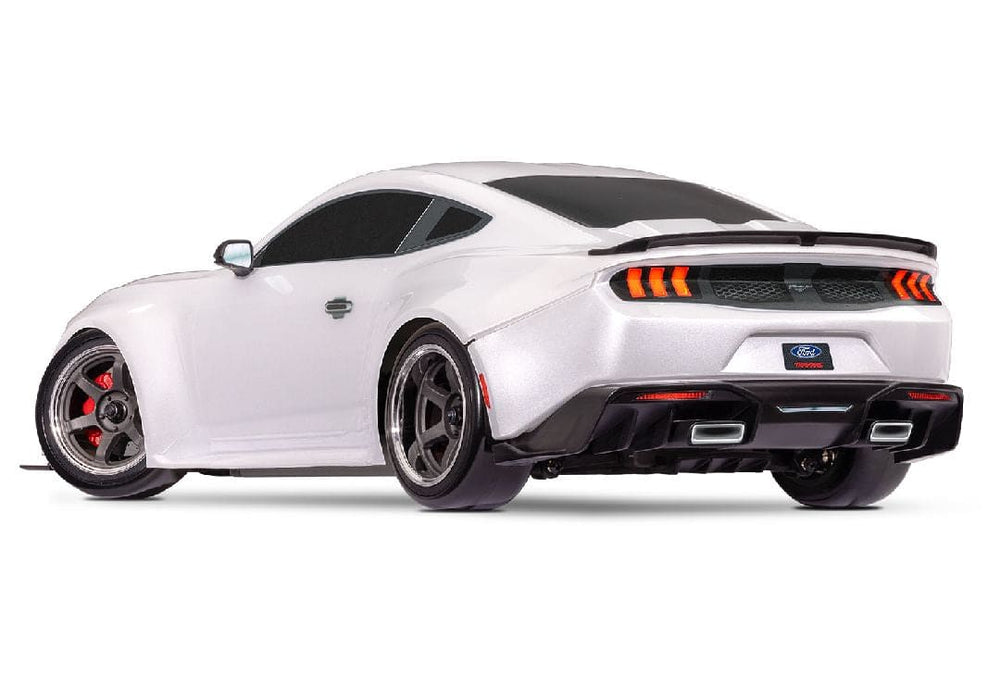

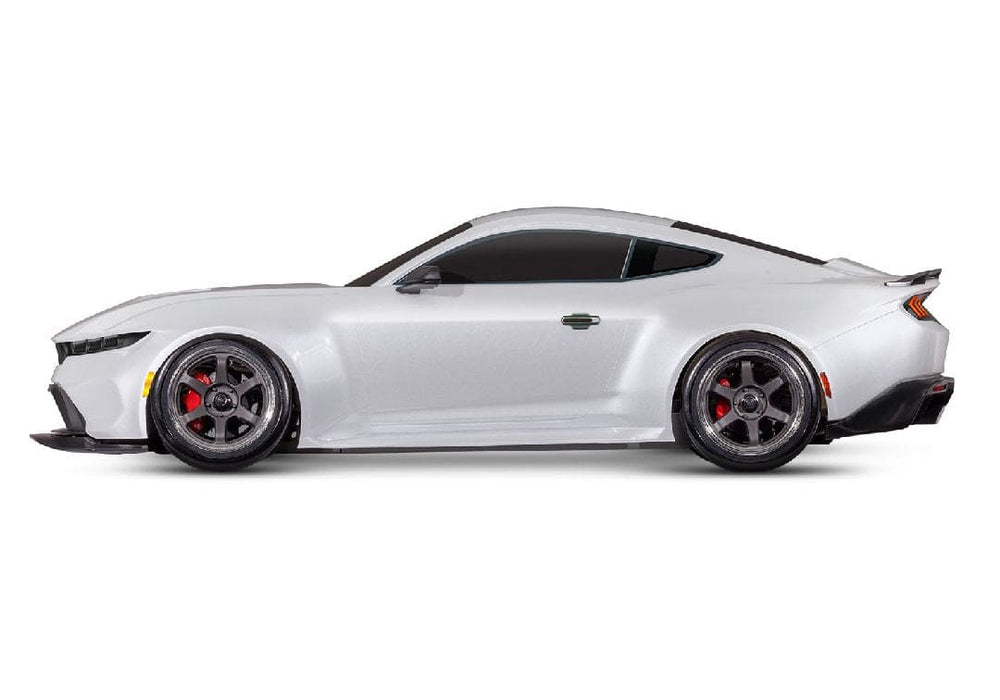

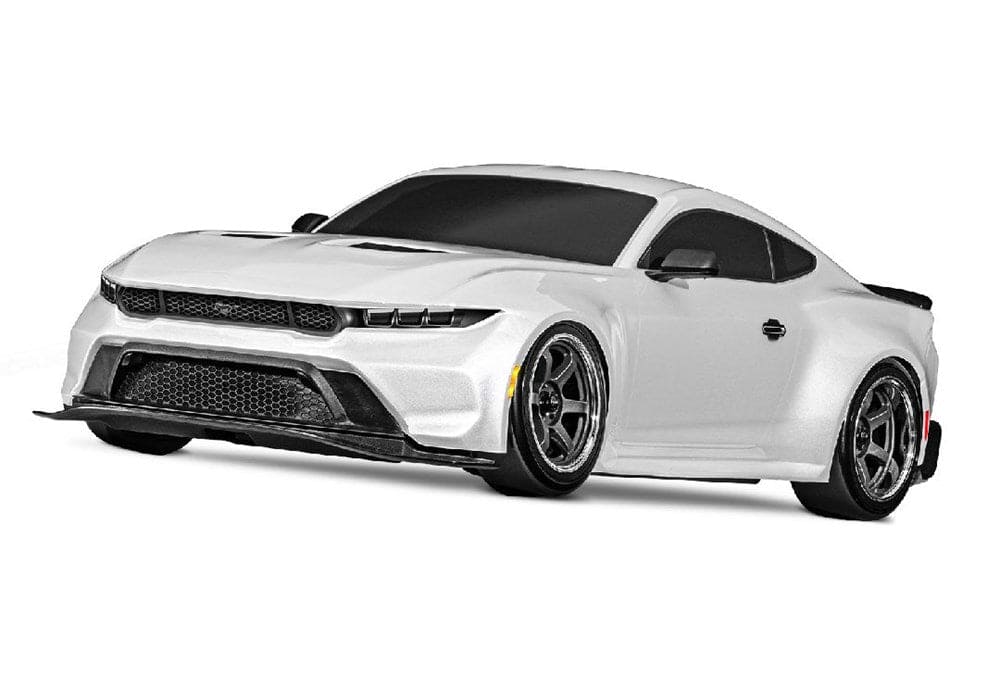

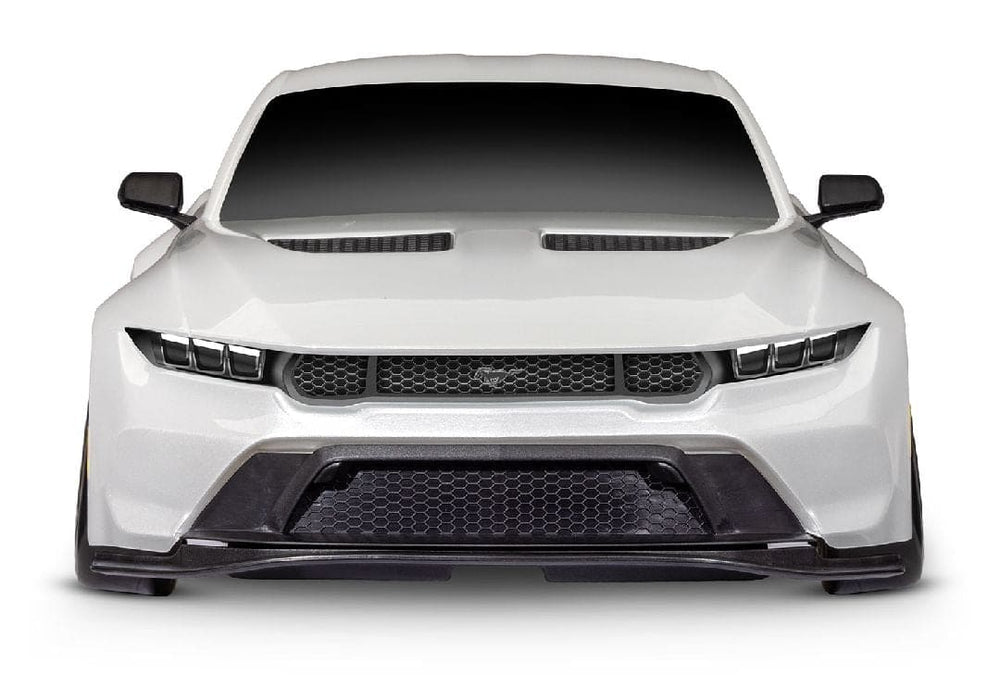

Clipless Mustang Body
Traxxas captures the strength and power of the Ford Mustang with this licensed clipless body. Mustang’s low, muscular stance is accentuated by wide tires riding on aggressive 6-spoke tuner wheels. Beautiful metallic paint contrasts the molded body details for show-stopping looks and timeless Mustang styling.
Injection-Molded Details
The Mustang body is superbly detailed with injection-molded side mirrors, lower grille with splitter, and rear diffuser. The molded rear spoiler and hood vents not only look great, they also act as body reinforcements for the clipless mounting system to create a seamless look.

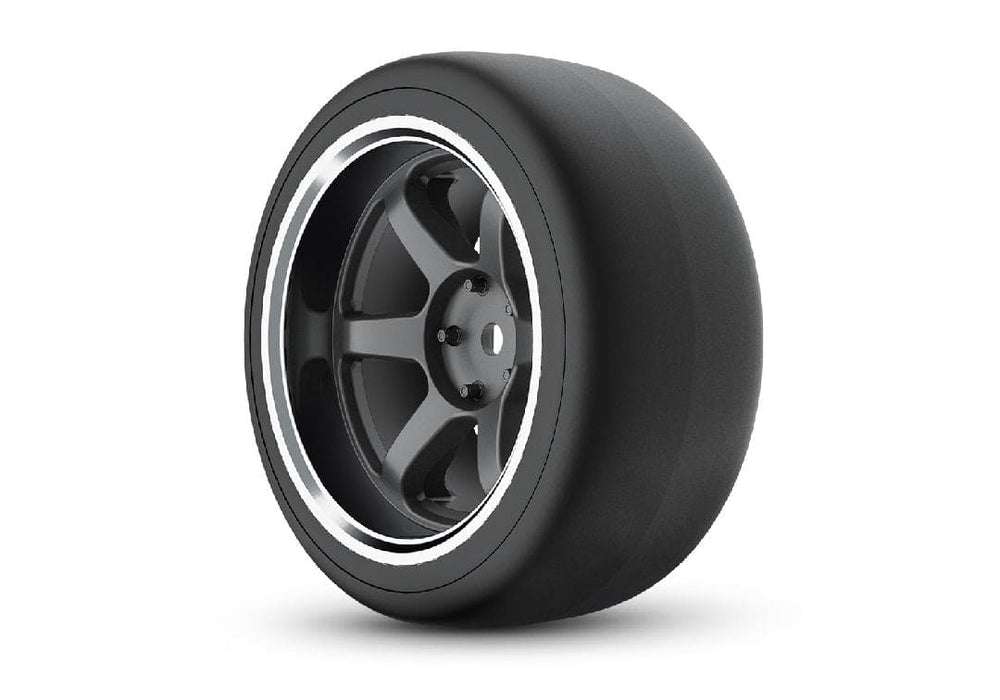

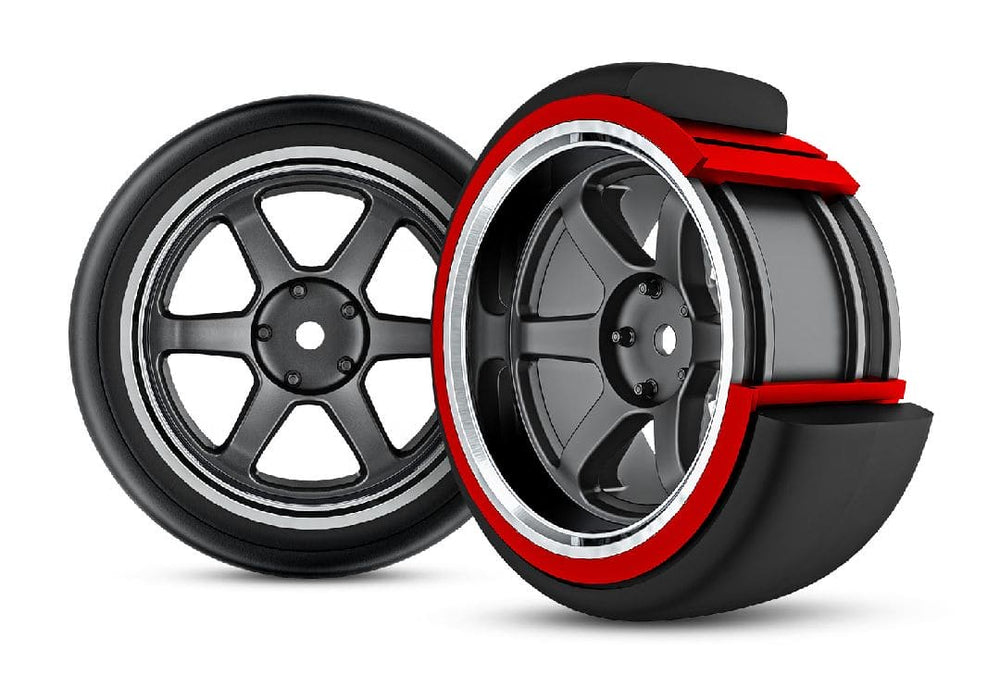

6-Spoke Wheels and Drift Tires
Stylish 6-spoke wheels feature a rubber inner liner with grooves to hold the tire securely in place. Tires swaps are quick and easy thanks to this innovative feature.

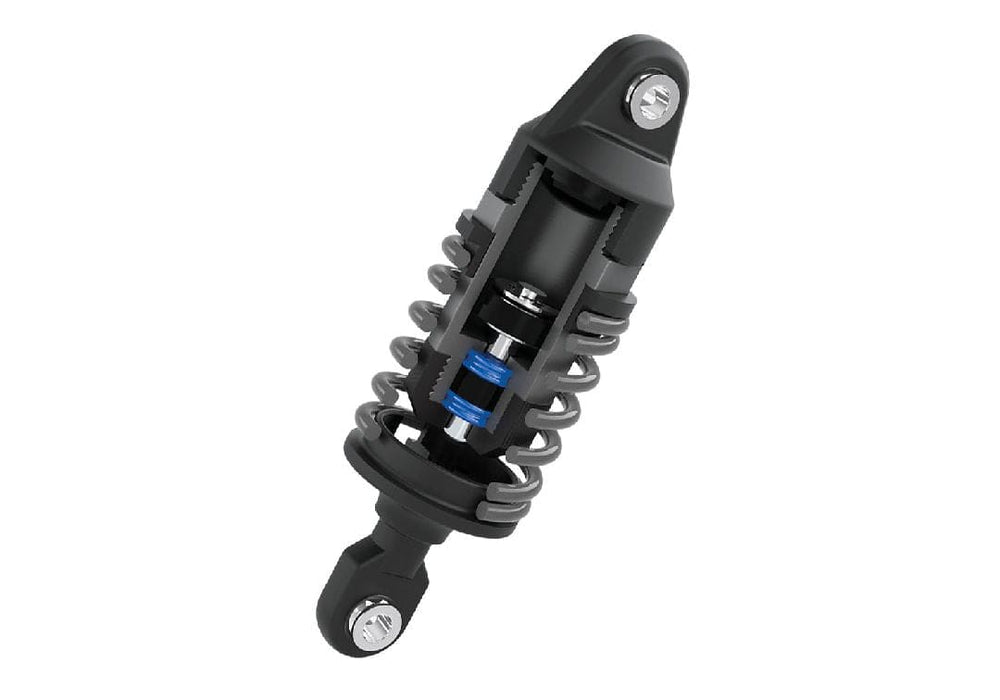

Oil-Filled Ultra Shocks
4-Tec Drift rides on oil-filled Ultra Shocks utilizing X-ring technology for a perfect seal and silky-smooth performance. They are fully tunable with a wide range of oils and pistons and feature spring clips to change the ride height and pre-load. New super soft spring are tuned to deliver maximum weight transfer for perfect drifts.

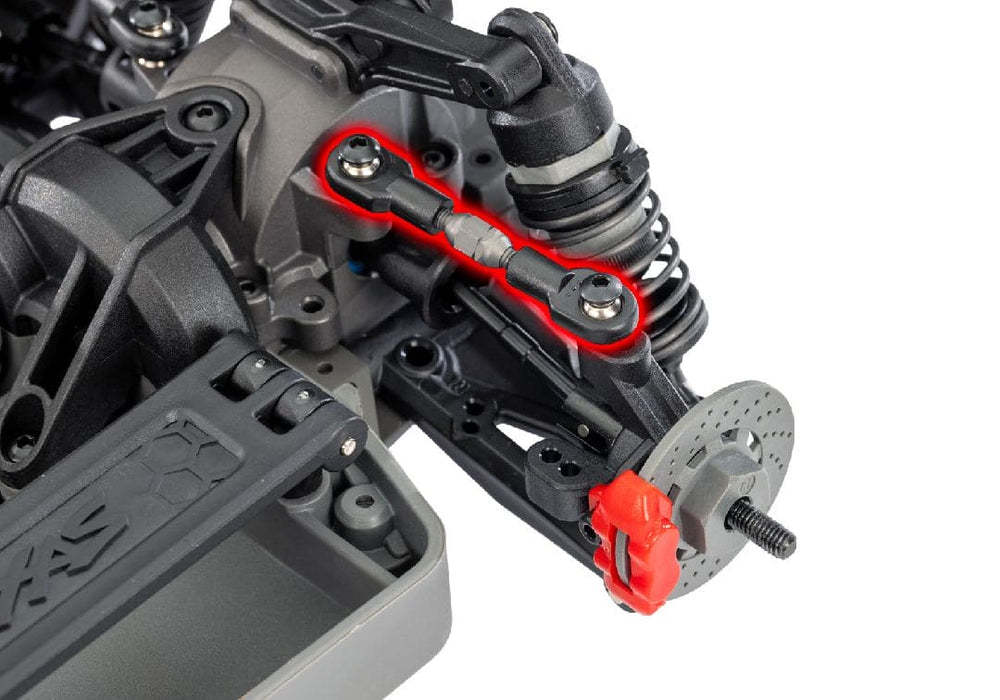

Adjustable steel turnbuckles allow easy camber tuning. The rear suspension features dual turnbuckle mounting points to accommodate different bodies.
Adjustable Rear Camber

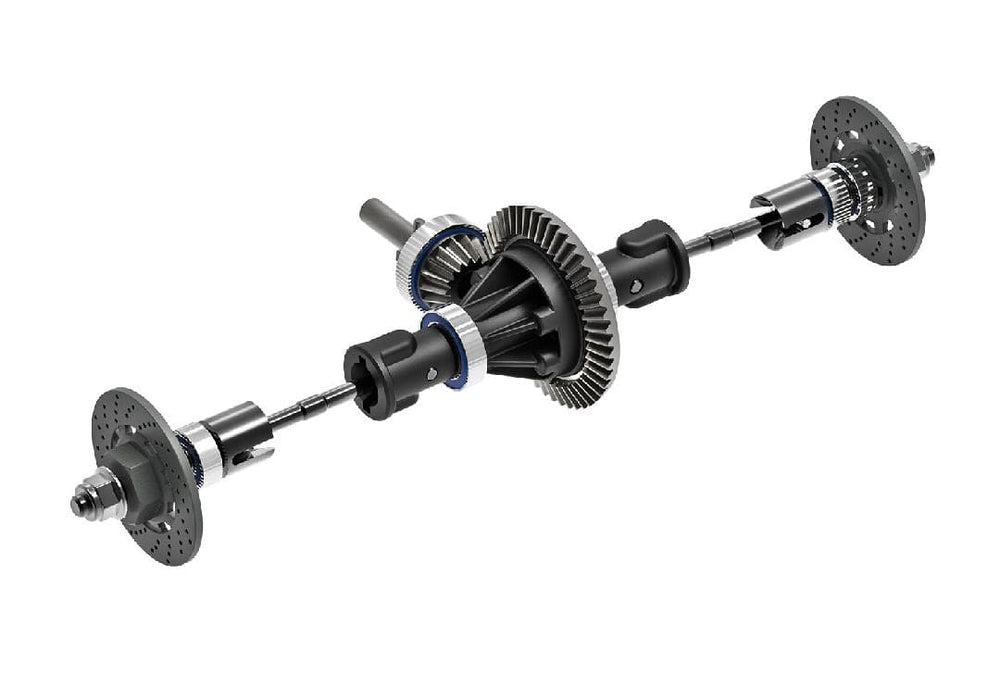

Rear Spool with 48-Pitch Gears
4-Tec Drift's rear spool features 48-pitch gears with a 5° spiral cut to reduce backlash for smooth, quiet running.
Fixed Gear Mesh System
4-Tec Drift eliminates the hassle of setting gear mesh with its innovative fixed positioning system. Use the convenient chart included in the user manual to select the proper hole for your pinion gear.
One-Piece Driveshafts
One-piece steel driveshafts save weight and send power directly to the wheels for lightning quick response times. Extended drive cups allow for maximum articulation and ultimate durability.
Molded Wire Retainer
A simple wire clip would look out of place with this futuristic high-tech chassis. Traxxas engineers designed a trick molded wire retainer to keep wiring secured safely out of the way.

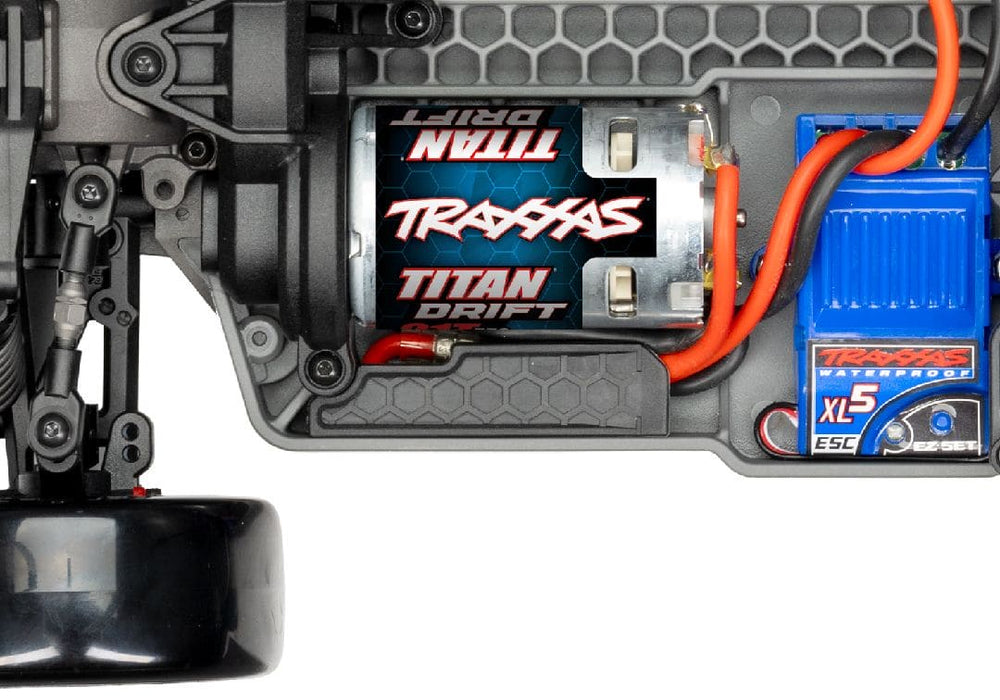

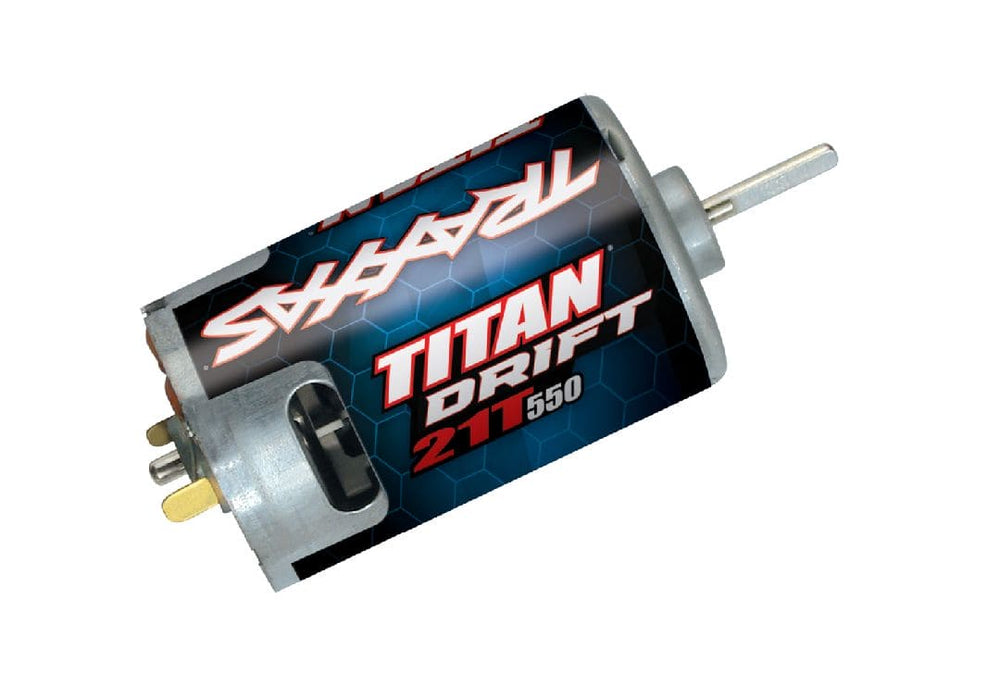

New Titan Drift 21T Motor
With 21 turns of pure copper wire, the new Titan Drift motor delivers smooth, predictable power at any RPM to initiate a slide with the blip of the throttle. An internal fan routes cooling air through the can for longer run times and lower temperatures.
XL-5 Waterproof Electronic Speed Control
The XL-5 electronic speed control balances high power output with the precise control required for mid-corner adjustments. The XL-5 is completely waterproof with three drive modes, low voltage detection, thermal shutdown protection, and 2-cell LiPo compatibility.

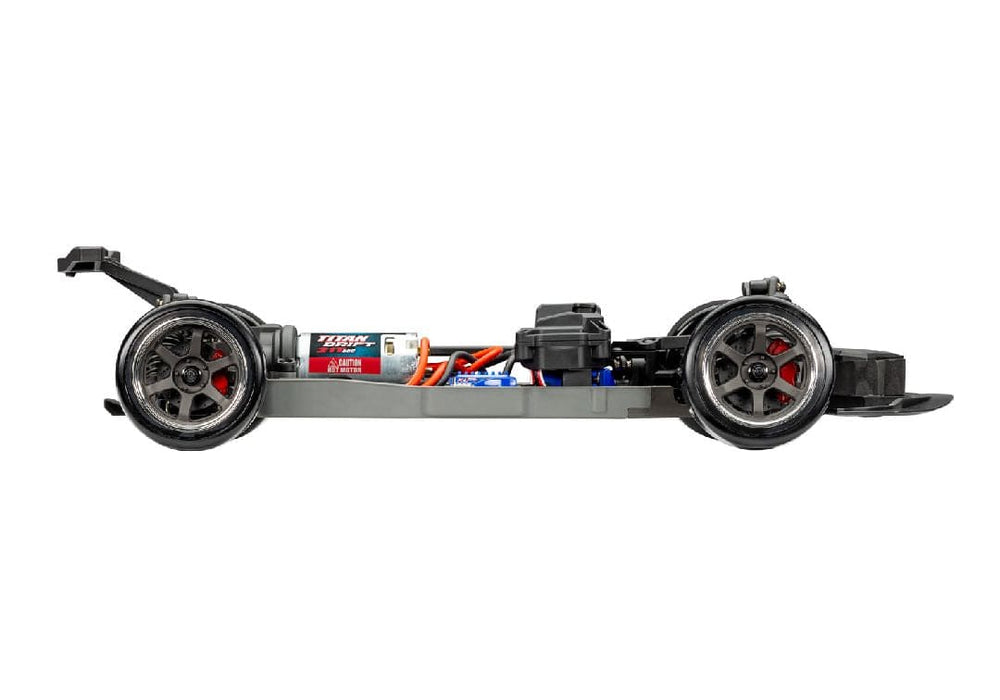

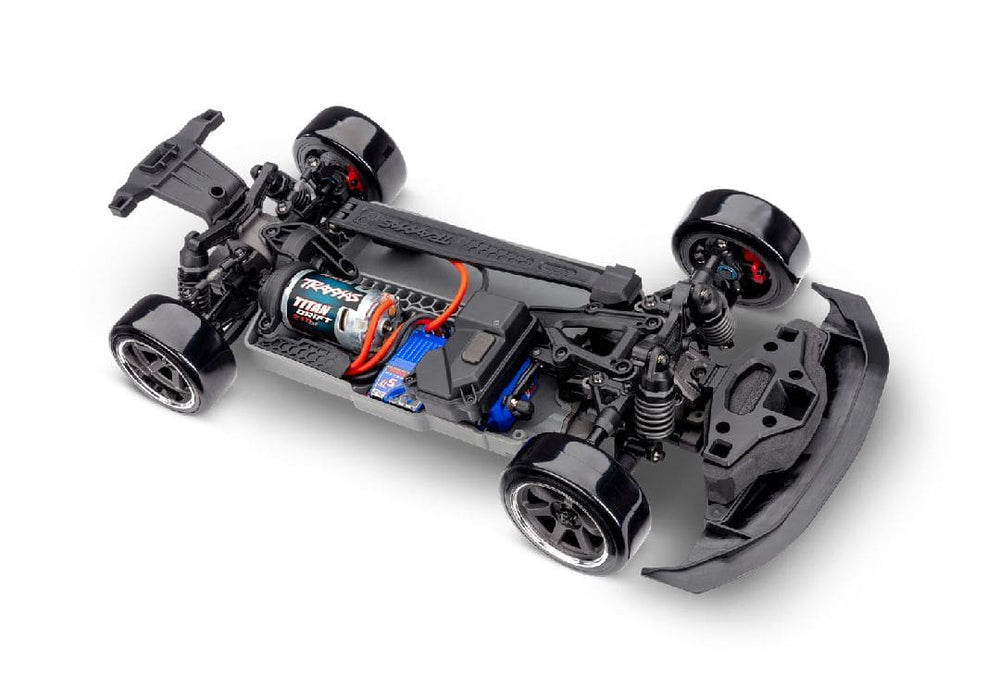

Low-CG Chassis
4-Tec Drift's high-tech chassis keeps weight positioned as low as possible for a crisp, responsive feel. Three interlocking modules provide unprecedented rigidity and tight tolerances with a completely smooth undertray to eliminate snags. Not only is the chassis stiffer and more responsive, it’s also easy to disassemble.
TSM Receiver with Fail-Safe Security
In the event of signal loss due to an accidental transmitter switch-off or depleted batteries, the receiver automatically returns the throttle to neutral and holds the last commanded steering position. The fail-safe programming is conveniently built-in and does not need to be activated.
Adjustable Battery Hold Down
A quick-release, dual-height battery mount accommodates a wide range of batteries including long format NiMH and 2-cell LiPo battery packs.
Waterproof Receiver Box
A sealed receiver box gives you the freedom to practice your drifting skills regardless of the weather. The antenna and servo wires route neatly through a patented watertight seal. A blue O-ring seals the receiver box to protect the receiver from water.
Digital Steering Servo
A high-performance chassis needs a precise steering servo for responsive performance and Traxxas delivers with the digital 2075 servo. This waterproof steering servo uses O-ring seals to keep the fun going when things get wet. Waterproof for all-weather action, the 2075 provides 125 oz-in of steering muscle.
Hex Hardware
4-Tec Drift uses high-grade metric hex-drive hardware throughout for extra strength and easy maintenance. The black oxide rust-resistant finish provides a high-tech look and feel.

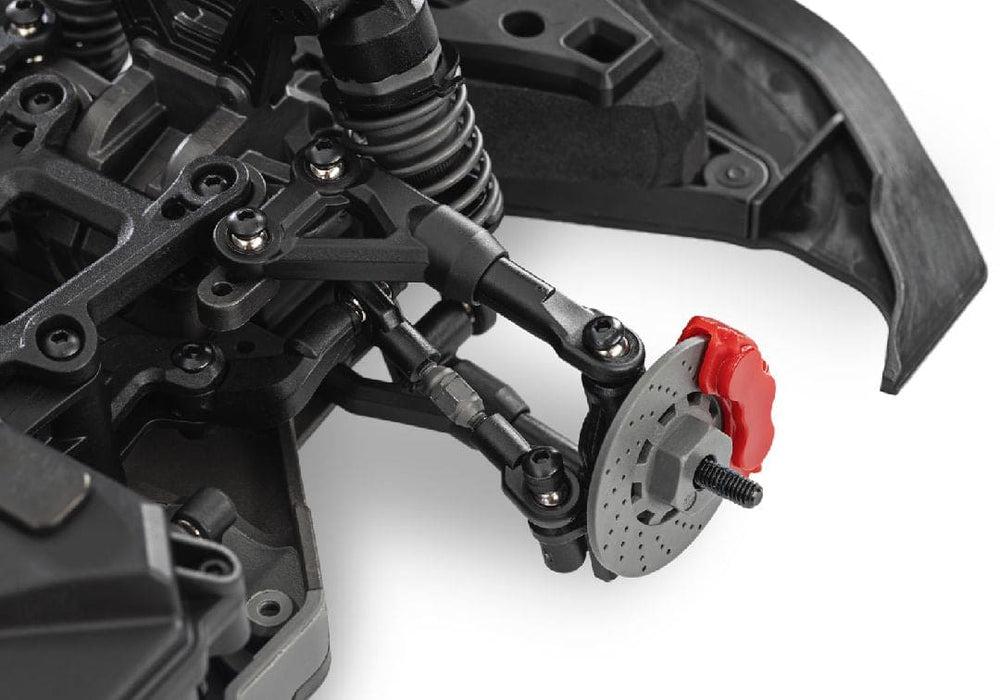

High-Angle Steering
4-Tec Drift provides over 60° of steering angle at full lock for huge slides and stable high-angle drifting fun. A completely redesigned front suspension incorporates a new servo horn and drag link optimized for maximum steering throw. This unique setup provides uncompromising precision while maintaining 4-Tec’s drift-tuned suspension geometry.
High-Performance Suspension Adjustments
4-Tec Drift gives drivers complete customization to tune their vehicles for any driving style or track surface with a fully adjustable suspension. All-new front suspension arms adjust for width to increase the front track. The suspension also includes adjustments for caster, roll center, ackerman, droop, toe, and bump steer.
Rubber-Sealed Ball Bearings
Rubber-sealed bearings offer the ultimate in super low-friction performance and maximum protection in dusty environments. They are used in all exposed locations on the truck and are virtually maintenance free.
Clipless Body Mounting
Locking tabs hold the body tightly to the chassis with an audible snap to signal they’re secure. The self-energizing locking tabs stay locked until you release them. This hidden latching system maximizes convenience and scale realism by removing traditional body clips which would interrupt the body’s clean lines.
Hard and Soft Compound Tires Included
4-Tec Drift rolls out of the box ready for action with 1.9″ hard-compound drift tires installed. These tires are designed for street driving on abrasive surfaces like concrete and asphalt. A second set of soft-compound tires is included in the box for improved control on polished track surfaces.
Clipless Mustang Body
Traxxas captures the strength and power of the Ford Mustang with this licensed clipless body. Mustang’s low, muscular stance is accentuated by wide tires riding on aggressive 6-spoke tuner wheels. Beautiful metallic paint contrasts the molded body details for show-stopping looks and timeless Mustang styling.
