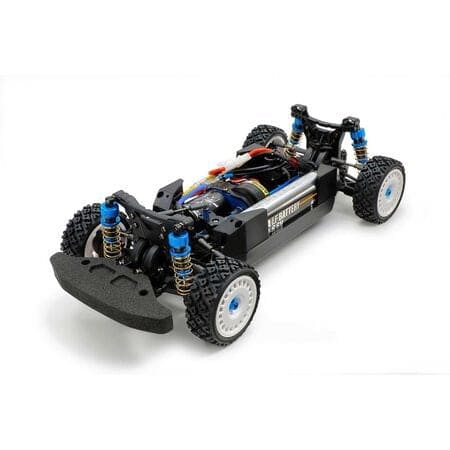

TAM58707 1/10 XV-02 PRO 4x4 Rally Chassis Kit
Introduction
The XV-01 Pro incorporated a 4WD belt drive system with clever positioning of the RC electronic components with debris protection compartments. The all-new XV-02 Pro takes its 4WD drivetrain into a different direction by using a shaft-driven system with front mid-ship motor placement that incorporates equal length front and rear propeller shafts!
XV-02 Chassis at a Glance
- Comes with two 39T differential gears and one 40T differential gear for adjustment of front and rear drive balance.
- Use 39T gear (w/15T gear) on the front and 40T gear (w/15T gear) on the rear for drive balance bias to front and vice-versa for drive balance bias to rear.
- Features newly-designed parts such as gears, bathtub frame chassis, chassis cover, caster blocks featuring 6-degree caster angle, and bumpers with skid angles to reduce surface contact.
- Long aluminum dampers are employed at front and rear.
- A polycarbonate chassis cover with wheel well liners help prevent dirt and dust from getting inside.
- Suspension arms and front uprights are based upon the XV-01 chassis kit.
- Comes with rally block tires and wheels.
- Features a longitudinal battery pack position in the center-left for optimum balance.
- The motor mount, propeller shafts, input and center shafts, and urethane bumpers have new metal parts.

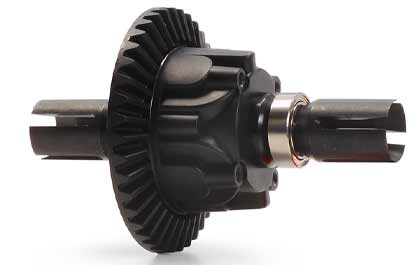

Differential Gears
Comes with two 39T differential gears and one 40T differential gear for adjustment of front and rear drive balance.

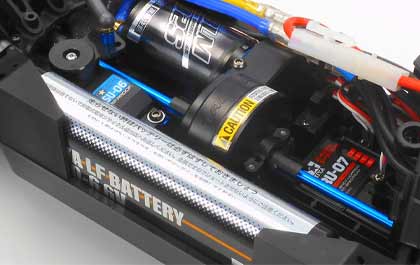

Battery Mount
Features a longitudinal battery pack position in the center-left for optimum balance.

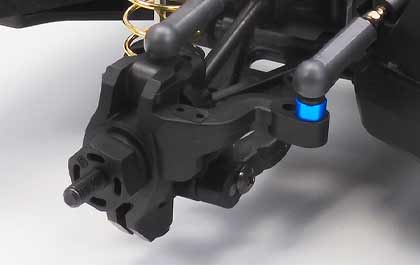

Caster Blocks
Features newly-designed parts such as caster blocks featuring 6-degree caster angle.

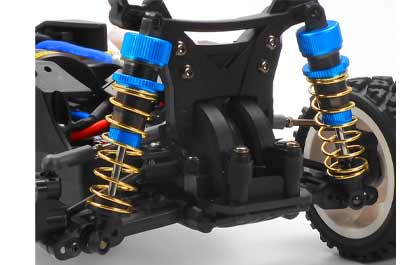

Aluminum Shocks
Long aluminum dampers are employed at front and rear.

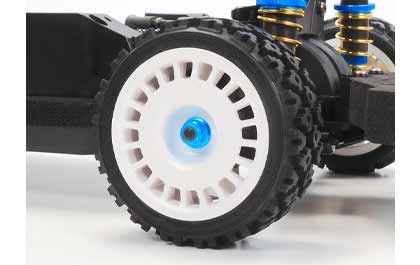

Rally Tires
Comes with rally block tires and wheels.
Specifications:
Chassis Length: 368mm (excluding body)
Chassis Width: 180mm
Wheel Base: 257mm
Frame: Bathtub type
Drive System: Front midship motor / shaft drive 4WD
Diff Gear: oil-filled gear differential for both front and rear
Steering: 3-split tie rod type
Suspension: 4-wheel double wishbone
Shocks: Aluminum body long oil damper
Gear Ratio: 9.58:1 when using the 19T pinion included in the kit (10.71:1 to 6.28:1 in combination with the separately sold pinions (Up to 14 types of gear ratios can be selected)
Needed to Complete:
- Body
- 2-channel Radio System
- Steering Servo
- ESC
- 540-Type Motor
- 7.2-7.4volt Battery
- Compatible Charger
