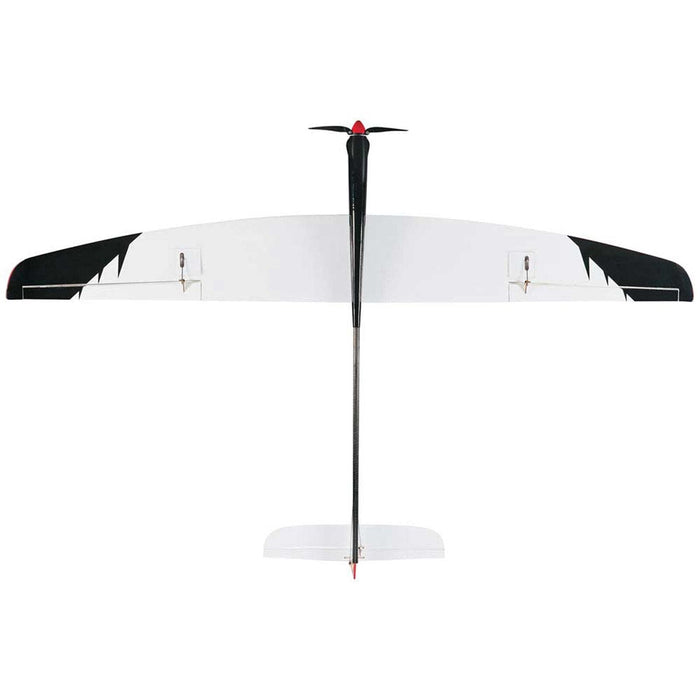

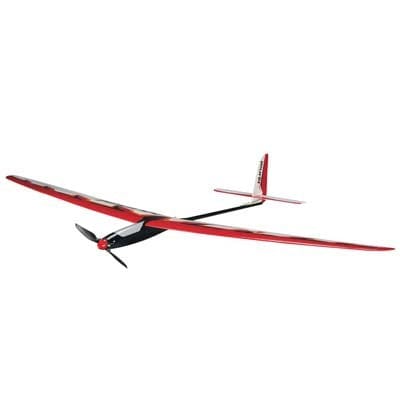

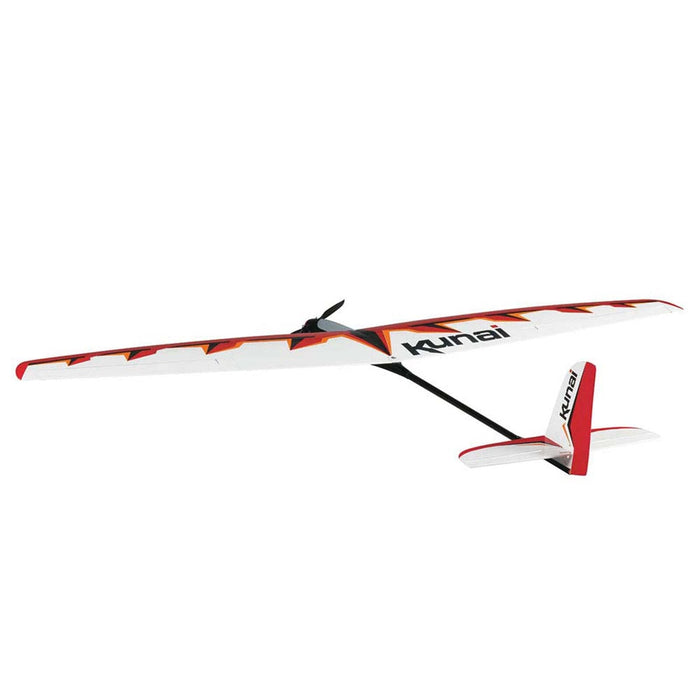

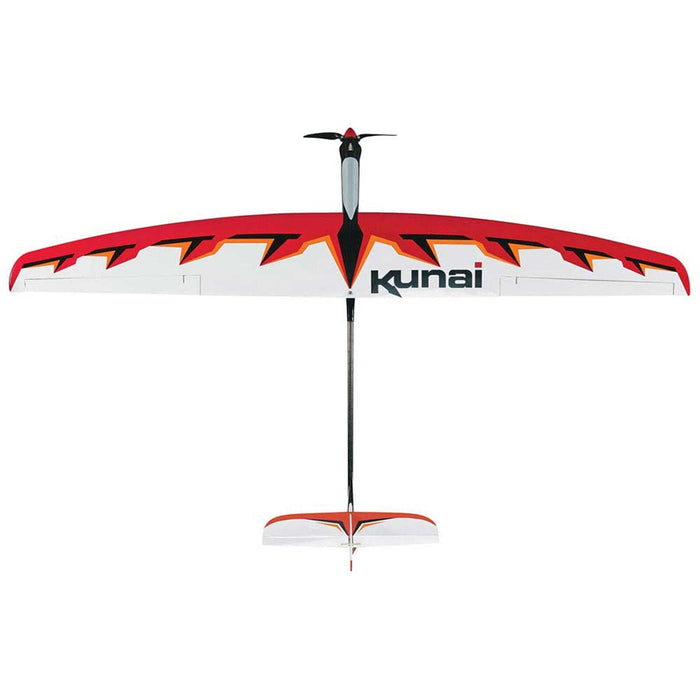

GPMA1815 Kunai 1.4M Sport Glider EP ARF 55"
Relaxed soaring...aggressive climb performance...exciting, high-speed aerobatics. The Kunai offers the best of all worlds! Four-channel control accommodates all sport aerobatic maneuvers and allows the use of optional spoilerons or flaperons. The Kunai’s designers kept the parts count low for quick, straightforward final assembly. A great-flying model that looks awesome — and is ready for fun FAST.
Key Features
- Construction: Fiberglass fuselage for high strength and low weight
- Tail Boom: Carbon fiber
- Wing: One piece, built-up, factory covered
- Canopy: Removable for battery exchange
- Controls: Ailerons (2-servos), rudder, elevator and throttle
- Brushless Motor: Factory installed 28x31mm 1400kV outrunner
- Propeller: 8x6 folding
- Spinner: Red plastic 1.25" (32mm) diameter
- Hardware: Included
Needed to Complete
- Radio: 4-5 channel with mini receiver with front-mount plugs
- Servos: 9G
- 12" (300mm) Servo Extensions: Two
- 3" (75mm) Servo Extensions: Two
- ESC: 20-25A brushless compatible
- LiPo Battery: 3S, at least 850-1200mAh
- Battery Charger: LiPo compatible

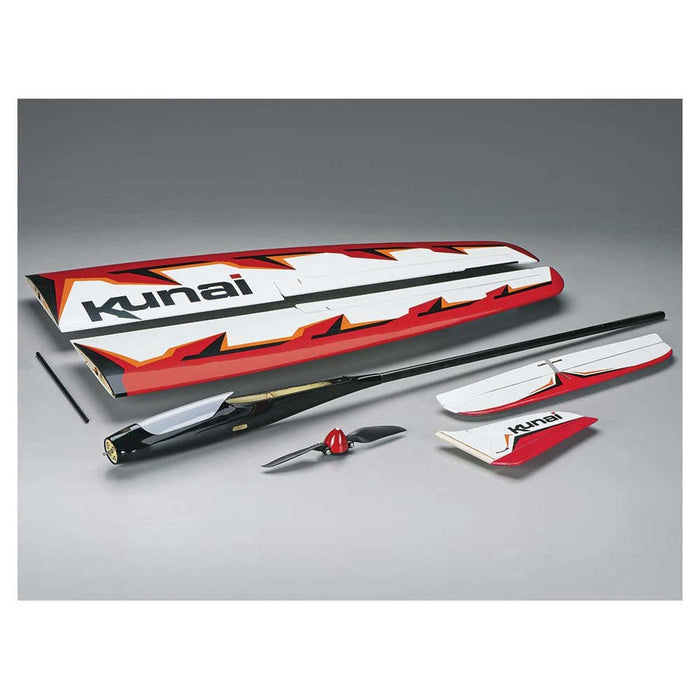

What's in the box?
- Fiberglass fuselage, main wing, tail section, hardware package, decal sheet and instruction manual
- Balsa And Ply Wing And Tail
- Fiberglass Fuselage
- 1400kV Outrunner Motor
- Plastic 8x6 Two-Blade Folding Prop
- Red Plastic Spinner
Kunai 1.4M Sport Glider EP ARF 55" Product Specs
- Battery Sold Separately
- CG (Center of Gravity) 2-3/4" (70mm) back from leading edge of wing measured at the fuselage
- Charger Sold Separately
- Completion Level Almost Ready-To-Fly
- LiPo Compatibility 3S
- Material Wood
- Motor Size 1400kV
- Motor Type Brushless
- Power Type Electric
- Product Length 36" (914 mm)
- Product Weight 20.0 - 21.5 oz (565 - 610 g)
- Radio Sold Separately
- Receiver Sold Separately
- Servos Sold Separately
- Skill Level Level 3
- Speed Control Sold Separately
- Wing Area 308 sq in (19.9 sq dm)
- Wing Loading 9.4 - 10.1 oz/sq ft (29 - 31 oz/sq dm)
- Wingspan 55" (1397 mm)
Kunai 1.4M Sport Glider EP ARF 55" Features
- Molded fiberglass fuselage and carbon fiber tail boom.
- Strong, built-up wood wing.
- Ailerons for rolls on demand.
- Includes a powerful brushless motor and folding propeller.

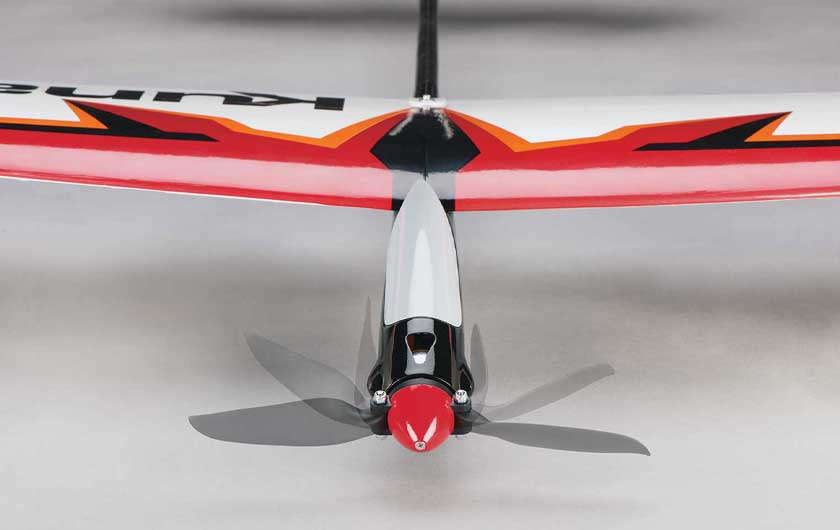

Propeller
The Kunai 1.4M includes a folding propeller for smooth gliding and damage-free landings.

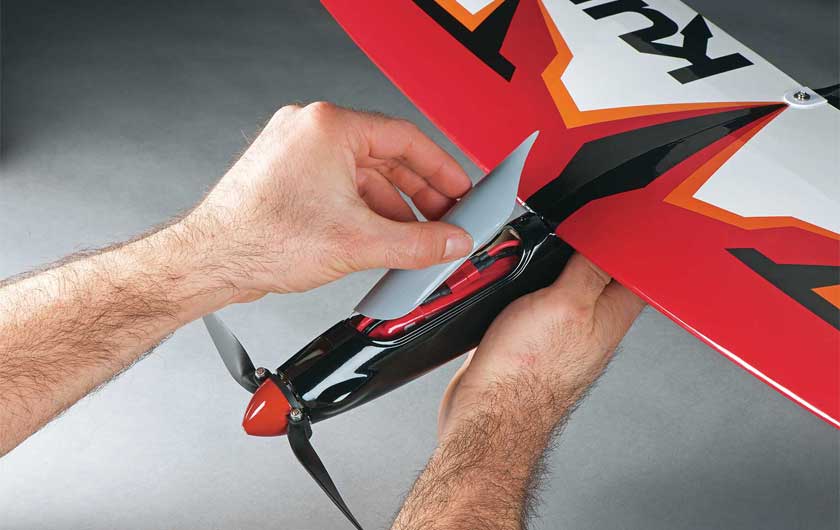

Hatch
A magnetic hatch provides easy access to your 11.1V LiPo battery of choice.

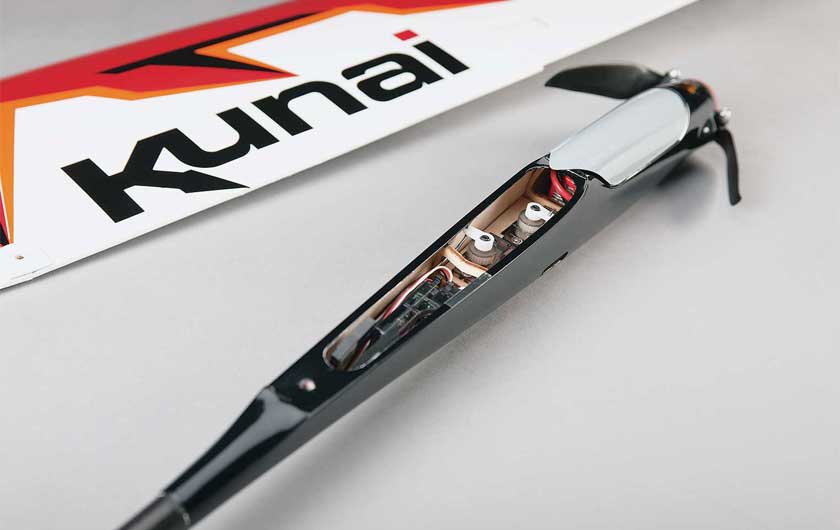

Fuselage
A micro receiver and two micro servos fit neatly inside the sleek fiberglass fuselage.

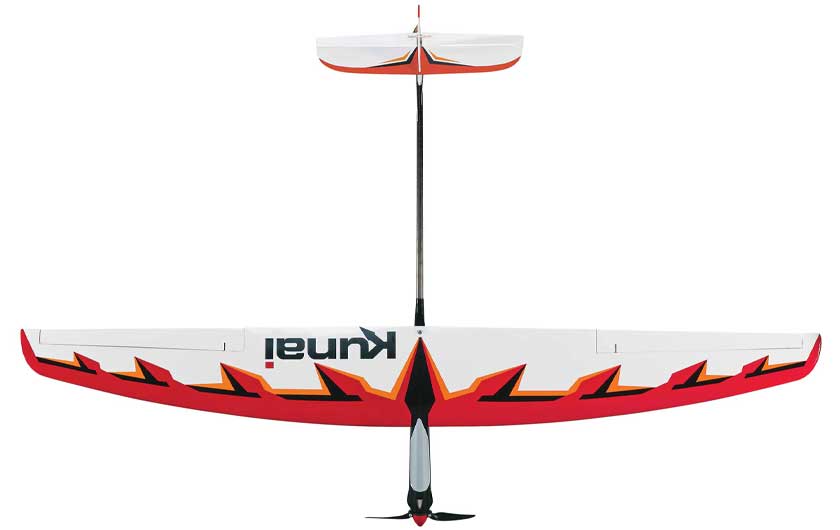

Covering
The Kunai 1.4M includes attractively covered wings and tail feathers. They look great, and reduce assembly time, too!

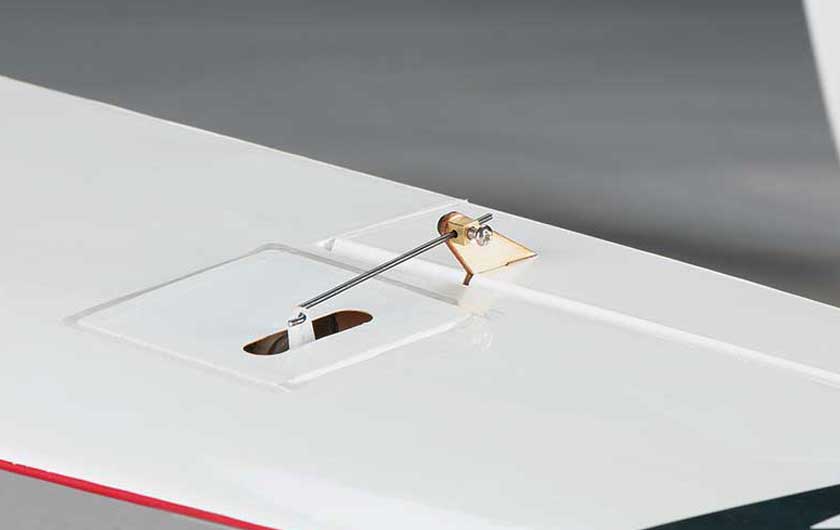

Aileron Servos
An aileron servo in each wing panel makes installation easy and allows mixing for spoileron and differential.

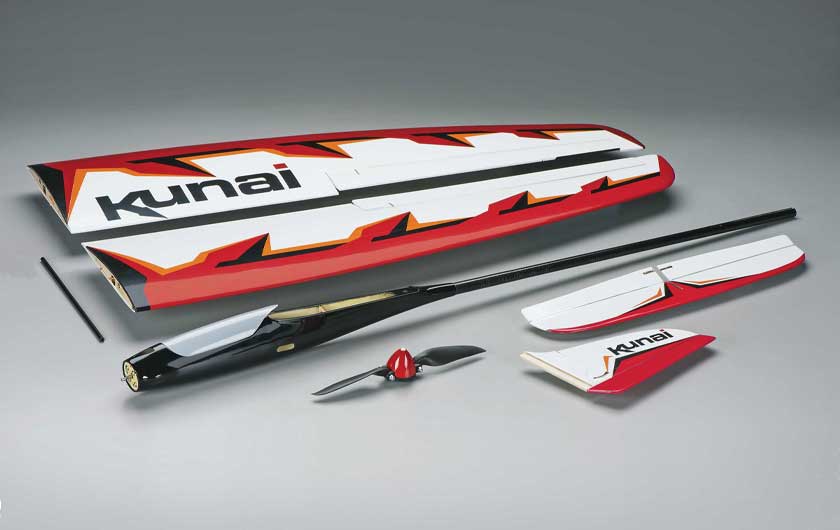

Assembly
A low parts count makes it possible to be airborne within a few hours. A wing tube speeds assembly, as does a keyed stabilizer and fin.
