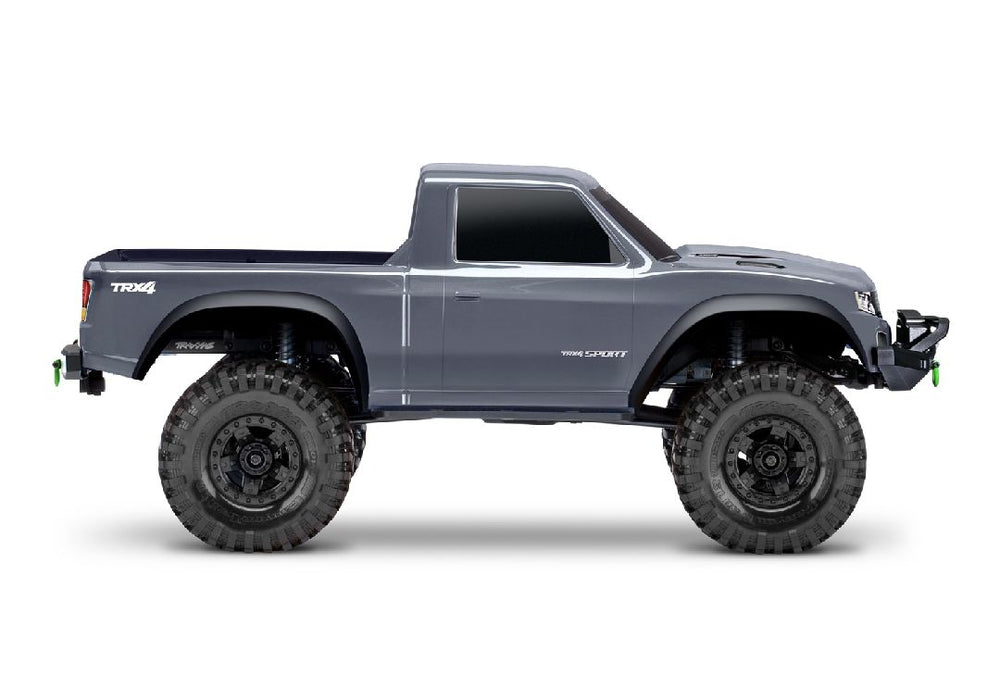

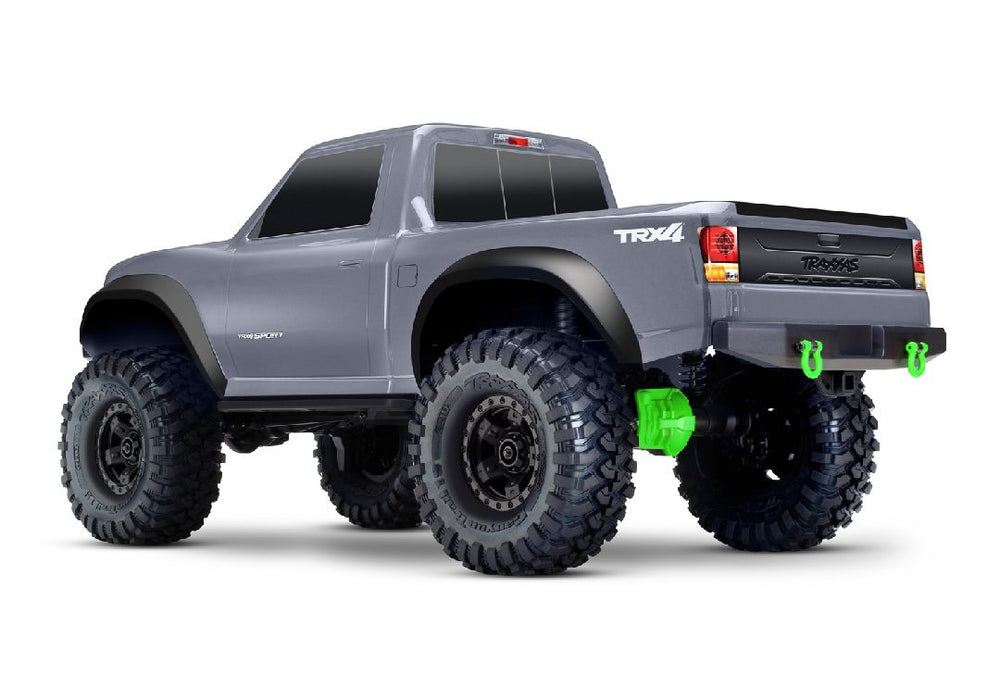

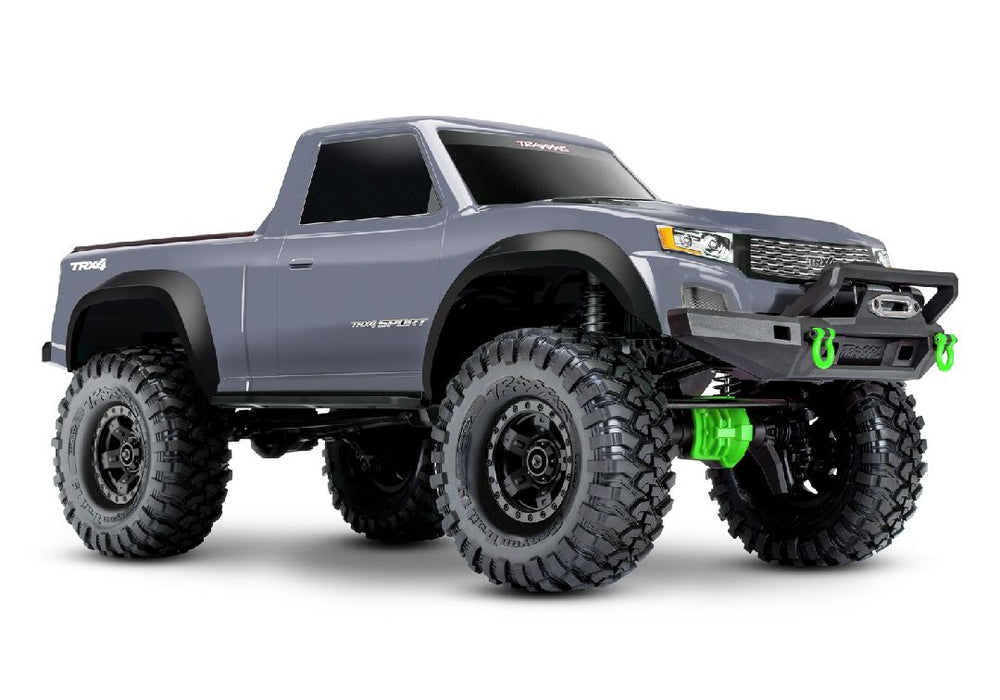

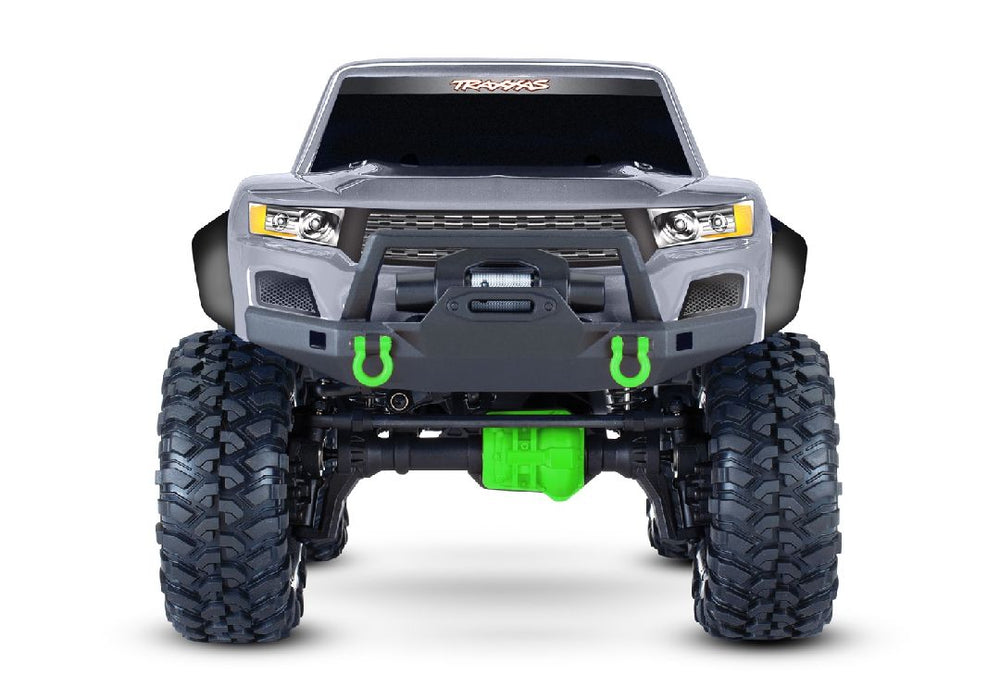

TRA82224-4GRAY Traxxas 1/10 TRX-4 Sport XL-5 4x4 RTD - Grey
by TRAXXAS
$509.98
Inventory :
PURPOSE BUILT

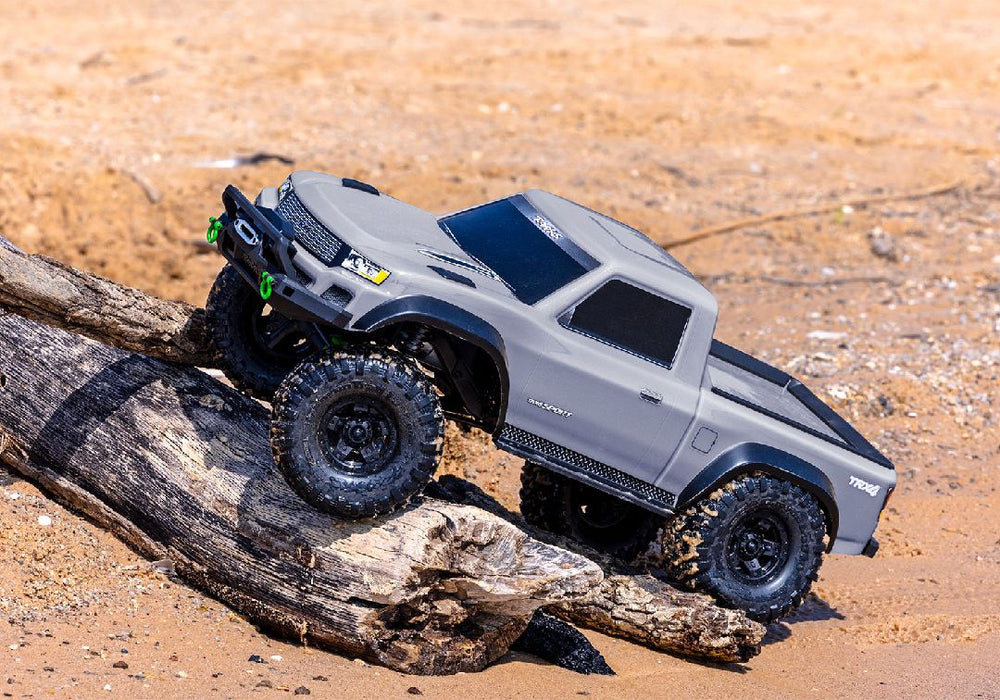

TRX-4® Sport combines the unbeatable ground clearance and driving dynamics of Traxxas portal axles, sticky Canyon Trail™ tires, and a lightweight pickup truck body for a leaner, performance-focused new TRX-4. The Sport’s unique bumpers, wheels, and body were designed for increased climbing versatility. Whether it’s a fun trail run or a hardcore technical crawl, the TRX-4 Sport’s capability and performance-built approach takes your outdoor adventure to a new level.
Chassis
Driveline
Geometry
Electronics
Heavy-Duty Steel Frame Rails
Adjustable Wheelbase
Molded Wire Retainers
Dual Battery Tray
Floor Pans
Aluminum Scale Shocks
Heavy-Duty Steel Links
Precision Hex Hardware
MODEL SPECS
| Name: | TRX-4 Sport Clipless |
|---|---|
| Type: | Trail / Crawler |
| Skill Level: | 1 |
| Scale: | 1/10 |
| Weight: | 5.79 pounds (2.63 kg) |
| Length: | 21.93 inches (557 mm) |
| Width: | 9.78 inches (249 mm) |
| Front Track: | 9.78 inches (249 mm) |
| Rear Track: | 9.78 inches (249 mm) |
MOTOR SPECS
| Name: | Titan® 21T Reverse Rotation |
|---|---|
| Motor Type: | High-torque brushed motor |
| Weight: | 8.47 ounces (240 g) |
| Length: | 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length |
| Diameter: | 1.53 inches (39 mm) |
| Shaft Size: | 3 mm |
| Connector Type: | Bullet |
ESC SPECS
| Name: | XL-5™ HV |
|---|---|
| ESC Type: | Brushed |
| Case Size: | 1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm) |
| Weight: | 2.60 ounces (74 g) |
| Motor Connectors: | Bullet |
| Battery Connectors: | Traxxas High-Current Connector |
| Power Wire: | 14 gauge |

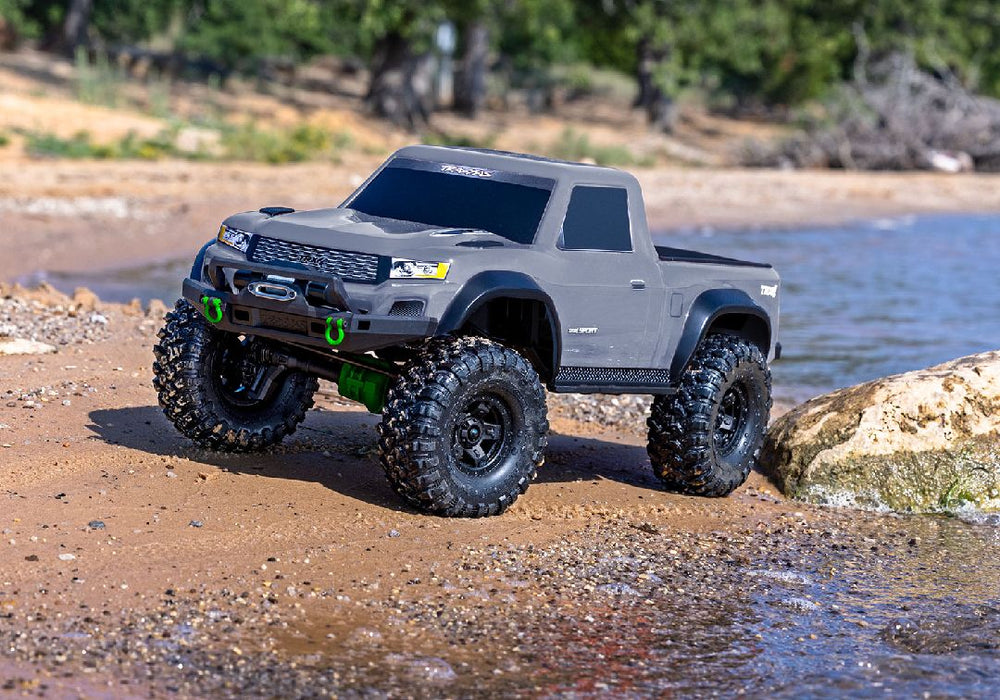

- Tough, Clipless Pickup Truck Body
- Clipless design for smooth body appearance
- Rugged internal body cage for added rigidity
- Low profile bumpers for increased clearance
- Trail-Tuned XL-5™ HV Waterproof Electronic Speed Control
- Fully waterproof design
- Five drive profiles
- Sport Mode — forward / brake / reverse
- Race Mode — forward / brake / no reverse
- Training Mode™ - 50% forward / 100% brake / 50% reverse (patented)
- Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
- Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
- Traxxas EZ-Set® one-button setup
- Large, efficient heat sink
- Wide voltage latitude 6–7 cell NiMH (7.2–8.4 V) and 2–3S LiPo (7.4–11.1 V)
- Two stage low voltage protection (LVD)

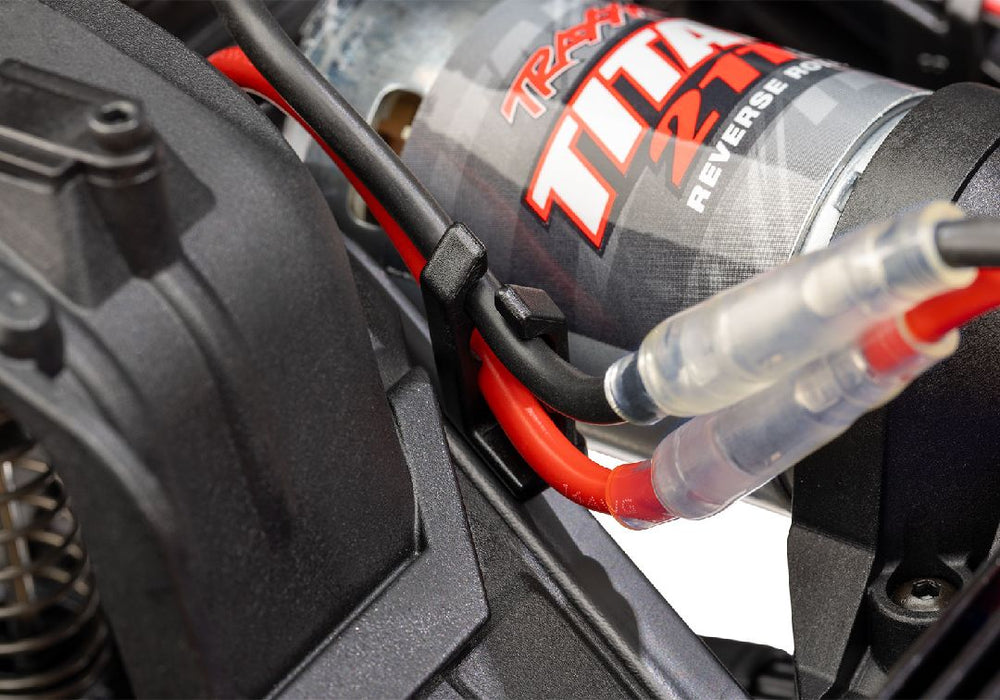

- Titan® 550 Motor
- Powerful Titan 21T reverse rotation motor with internal cooling fan
- Precise preset gear mesh adjustments
- Motor retention separate from gear mesh
- TQ™ 2.4 GHz 2-Channel
- Ergonomic transmitter with internal antenna
- Traxxas 6519 3-channel micro receiver with fail-safe security
- Patented O-ring sealed watertight receiver box keeps the micro receiver dry

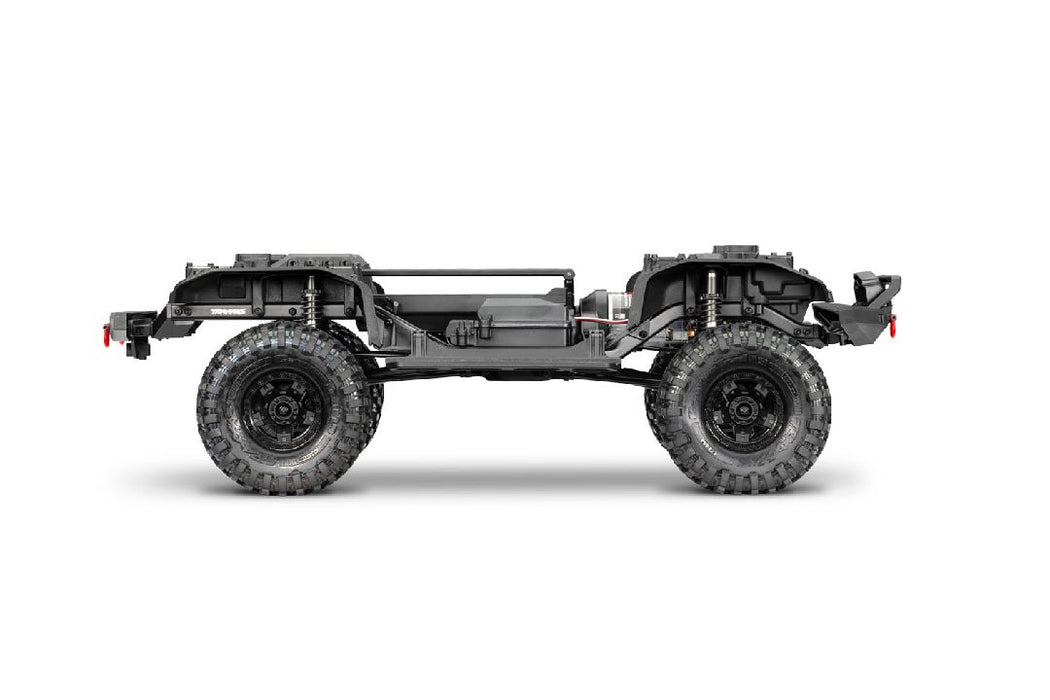

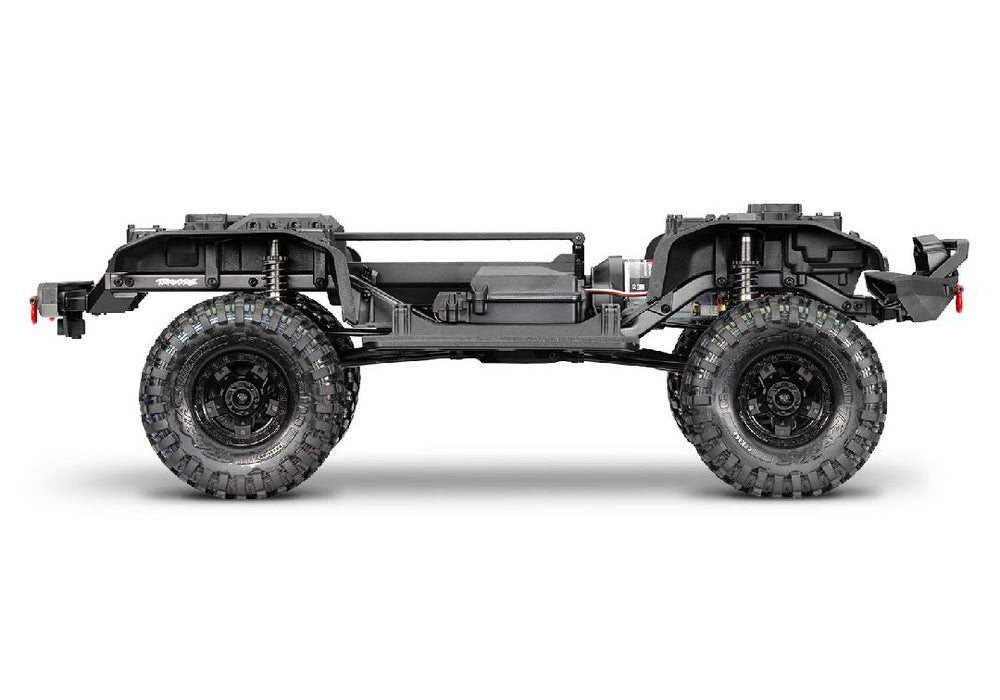

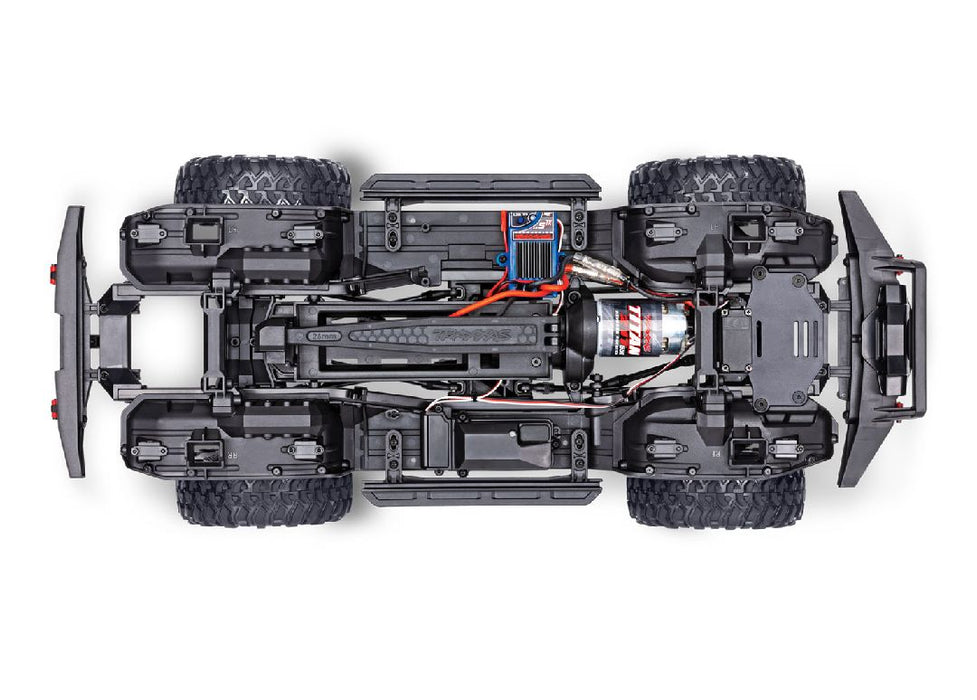

- Rigid Steel Frame
- 1.5 mm thick steel frame rails increase torsional rigidity
- Innovative design allows four wheelbase positions (300 mm, 312 mm, 324 mm, 336 mm)
- Adjustable rear shock tower positions for SWB and LWB configurations
- Bumpers adjust fore and aft
- Rugged rock rails adjust for width
- Wire routing clips integrated into frame rails
- Innovative Battery Compartment
- Hinged battery strap allows quick and easy battery access
- No pins to lose
- Accommodates different height batteries
- Accepts full-size long battery packs
- Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)

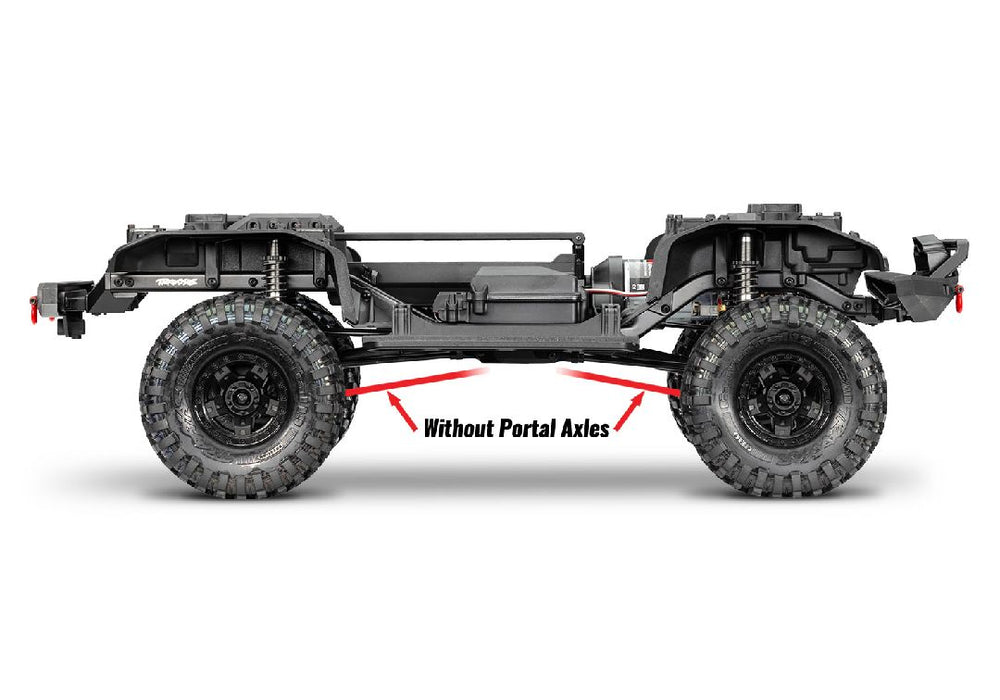

- Portal Axles

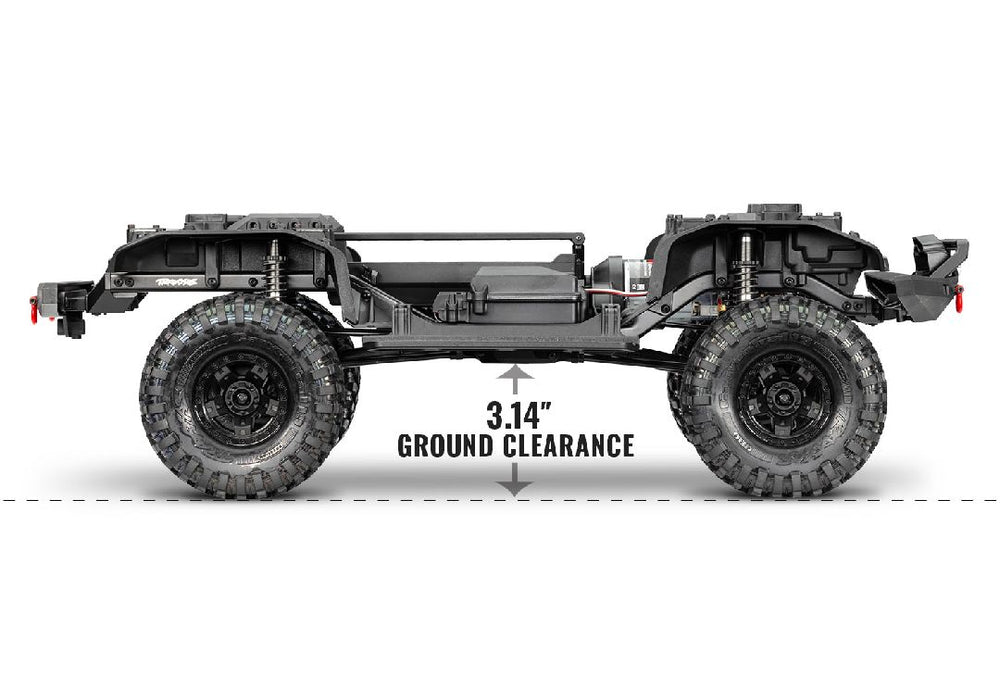

- Increase ground clearance
- Eliminate torque twist
- Steel gears
- Improve axle geometry and reduce strain on driveshafts

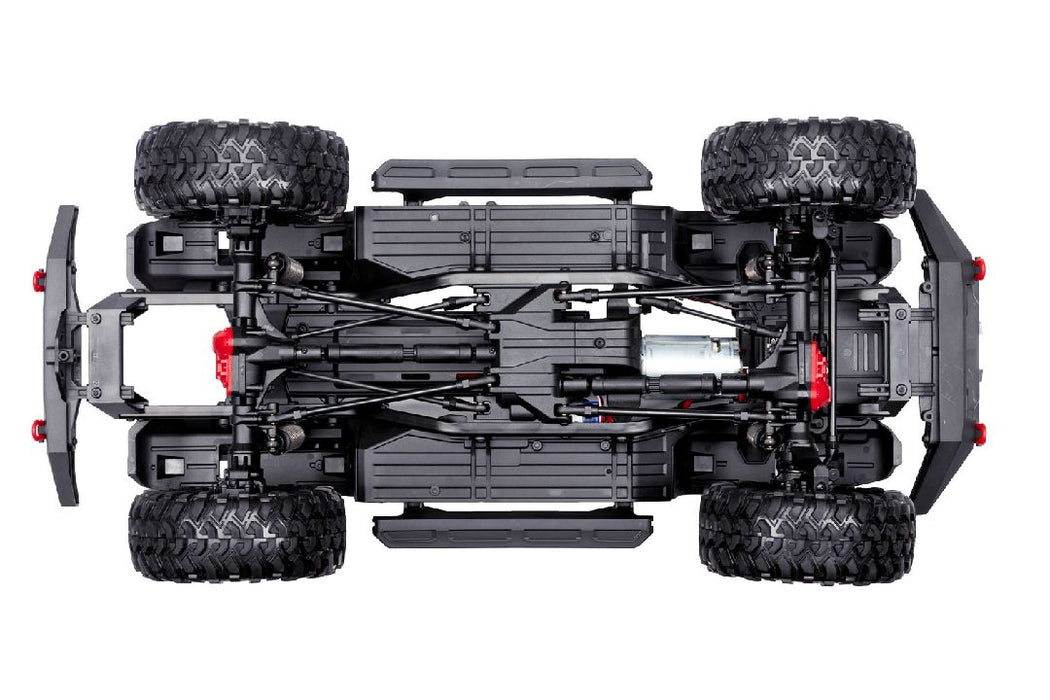

- Driveline
- Full-time shaft driven 4-wheel drive
- Tough 6 mm stub axles
- Steel front CV driveshafts
- Hardened steel rear axle shafts

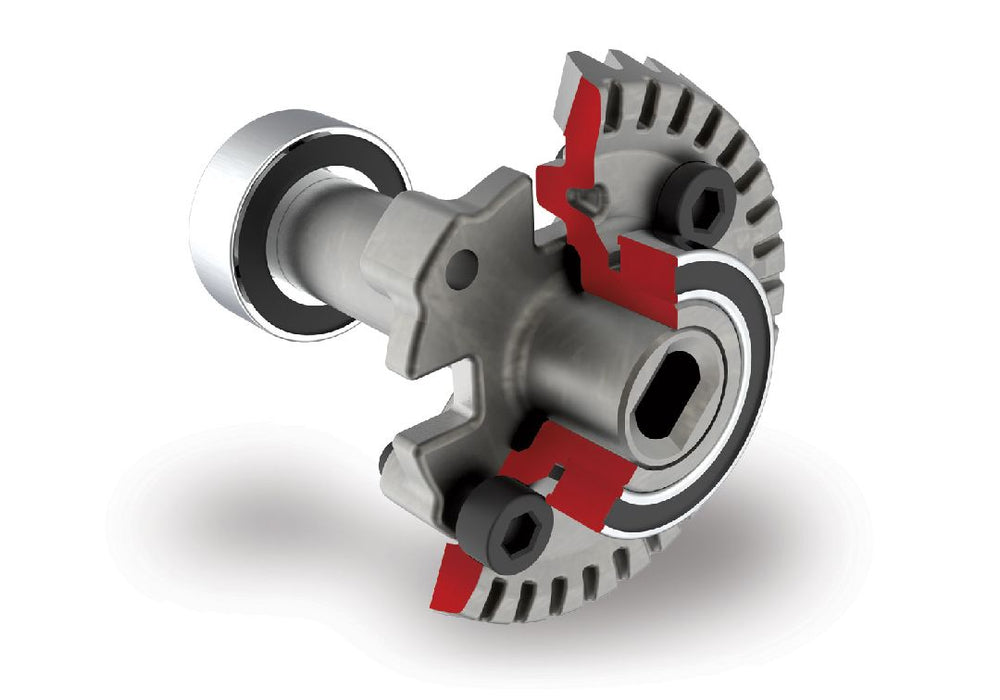

- Spool-locked front and rear differentials
- Steel gear transfer case

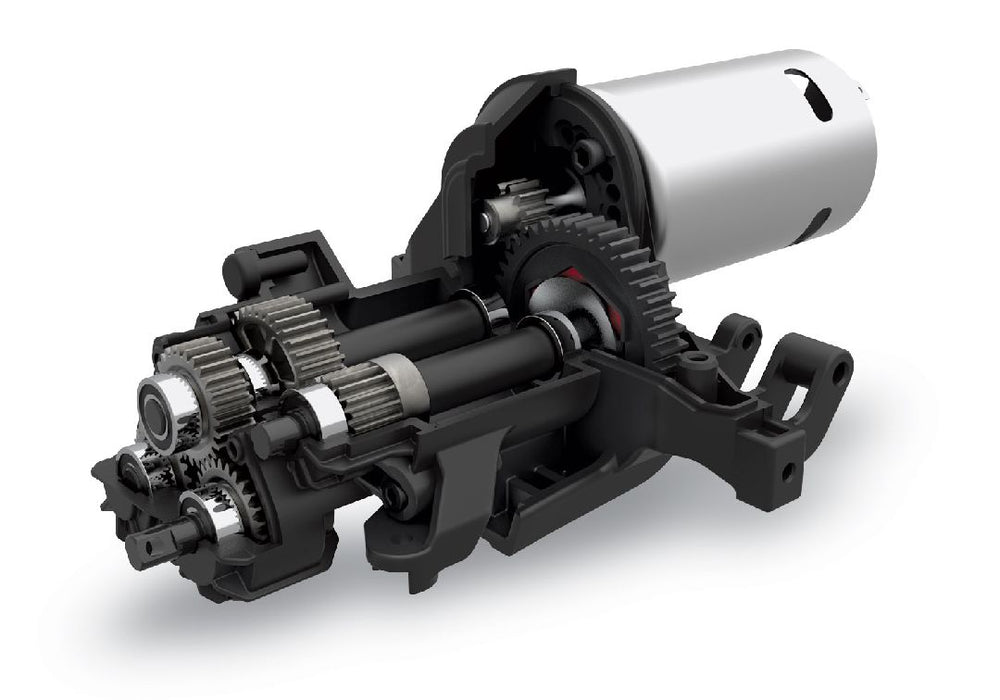

- Transmission
- Single-speed with steel gears
- Dual horizontal shafts
- Twin friction plate slipper clutch
- Easily removed for servicing
- Steering

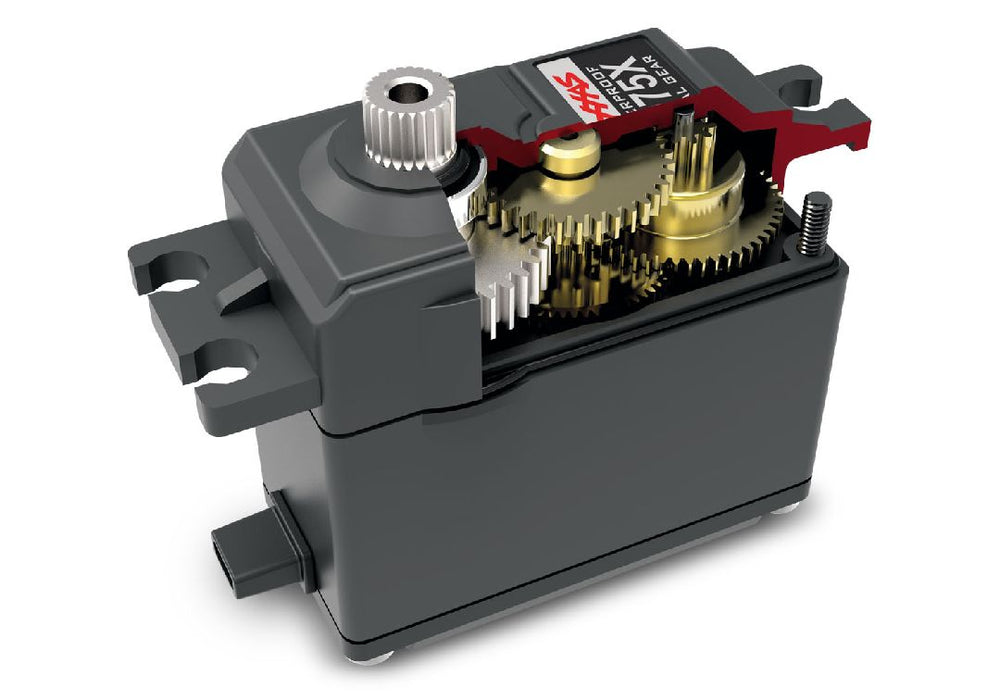

- Chassis mounted 2075X metal gear digital servo
- Superior 45° steering angle
- Direct steering (no servo saver)
- Steering geometry corrected for bump steer
- Suspension
- Front — 3 link with panhard
- Rear — triangulated 4 link
- Heavy-duty rod ends with steel hollow balls
- 5 mm diameter steel link rods with 4 mm threaded ends

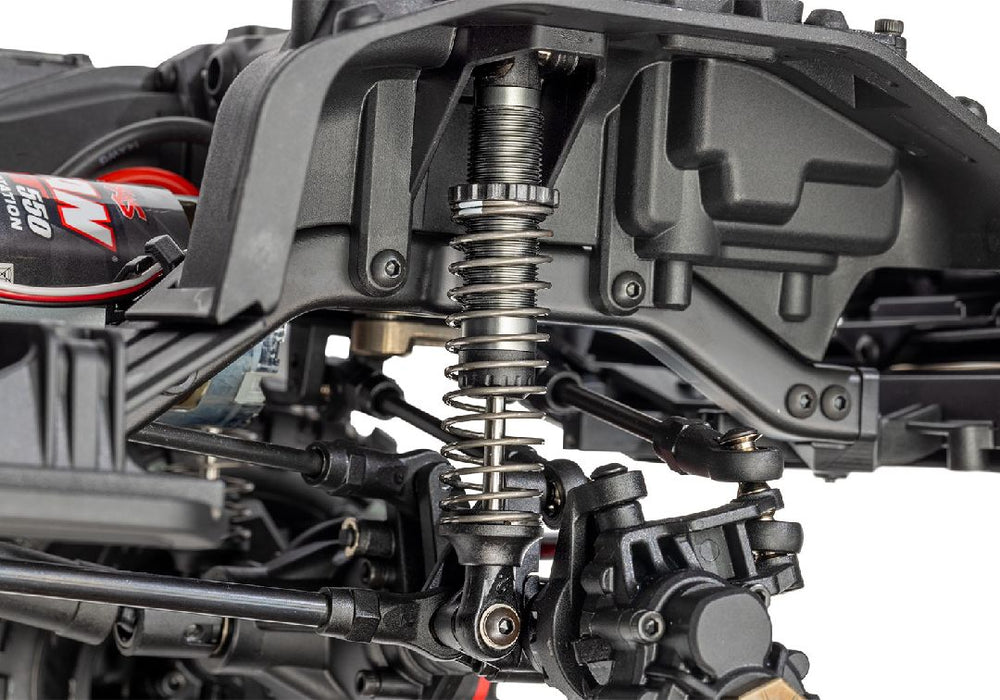

- Aluminum GTS Shocks
- Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
- Silver-anodized aluminum bodies
- Threaded bodies with collars easily adjust ride height
- Silky smooth damping for the toughest trails
- O-ring cap seal and dual X-ring shaft seals
- Wheels and Tires
- Rugged black 5-spoke wheels
- Pre-mounted 1.9" Canyon Trail tires with trail-tuned foam inserts
- Trail tuned S1 rubber compound
- 12 mm steel hex
- Sealed Ball Bearings
- Hex Hardware with Rust-Resistant Black Oxide Coating
- Requires Battery and Charger (Sold Separately)
MODEL 82024-4: TRX-4 Sport: 1/10 scale 4X4 trail truck, fully-assembled, waterproof electronics, Ready-To-Drive®, with TQ™ 2.4 GHz 2-channel radio system, XL-5™ HV speed control, and painted body.
What’s In The Box:
- TRX-4, Ready-To-Drive model
- XL-5 HV waterproof electronic speed control
- Titan 21T reverse rotation motor
- TQ 2.4 GHz radio system
- High quality maintenance tools
What You’ll Need:
- Batteries
TRX-4 accepts a wide variety of NiMH (6–7 cell) and LiPo (2S–3S) batteries.
- Charger
Traxxas EZ-Peak® Live charger is recommended for easy and fast charging performance (model 2971).
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
