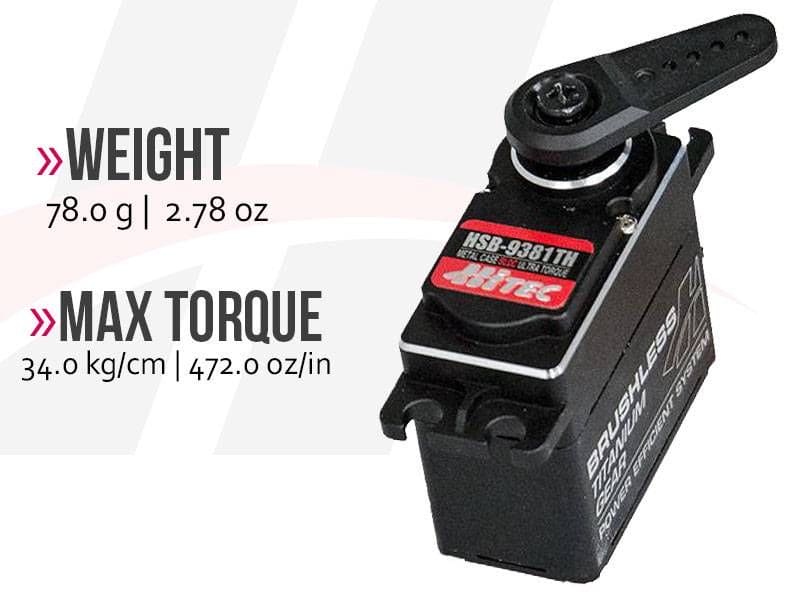

HIT39384S Hitec HSB-9381TH Full Metal Case, Ultra Torque, Brushless Servo
by HITEC RCD INC
$274.99
Inventory :
With ultra-efficient brushless motors, titanium gear trains, low current consumption and constant output power, the full metal case HSB-9381TH is the perfect match for the most demanding radio control pilots and racers.
Features:
- Programmable 12-Bit PWM Digital Amplifier
- Custom Long Life Brushless Motor
- 1M Cycle Long Life Potentiometer
- Constant Output Torque
- Wide Operating Voltage (5 ~ 9 Volts DC)
- Dual Ball Bearing Supported Output Shaft
- Dust Resistant and Splash Proof Case
- 25-Tooth Output Spline
- Hybrid Nylon Reinforced Plastic and Aluminum Case
- Low Power Consumption
Programmable Functions:
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Soft Start Rate
- Data Save / Load
- Program Reset (From File)
| Radio Control Applications | |
|---|---|
| Physical Specifications | |
| Performance Specifications | |
| Operating Voltage Range (Volts DC): | 6.0V ~ 7.4V |
| Speed (Second @ 60°): | 0.17 ~ 0.14 |
| Maximum Torque Range oz. / in.: | 472 |
| Maximum Torque Range kg. / cm.: | 34 |
| Current Draw at Idle: | 27 mA |
| No Load Operating Current Draw: | 250 mA |
| Stall Current Draw: | 2,700 mA |
| Dead Band Width: | 1 us |
| Dimensions (Inches): | 1.57 x 0.79 x 1.50 |
| Dimensions (Metric): | 40.0 x 20.0 x 38.0 |
| Weight (Ounces): | 2.4 |
| Weight (Gram): | 72 |
| Circuit Type: | EBL Digital |
| Motor Type: | Brushless |
| Gear Material: | Titanium |
| Bearing Type: | Dual Ball Bearing |
| Output Shaft (type / 0mm): | H25T |
| Case Material: | Plastic / Aluminum |
| Dust / Water Resistance: | Splash Proof |
| Connector Gauge (AWG) / Strand Count: | 20 / 80 |
| Parkflyer: | N / A |
| Sport Plane: | >40% |
| Sailplane: | 2 meter and up |
| 3D Performance: | >40% |
| Scale: | >40% |
| Electric Helicopter: | N / A |
| Gas Helicopter: | N / A |
| On Road: | N / A |
| Monster Truck: | 1/8th |
| Buggies: | 1/8th |
| Truggies: | 1/8th |
| Short Course / Truck: | 1/8th |
| Crawlers: | Super |
| Sail Boat: | = > 1 meter & scale |
| Power Boat: | 1/8th |
