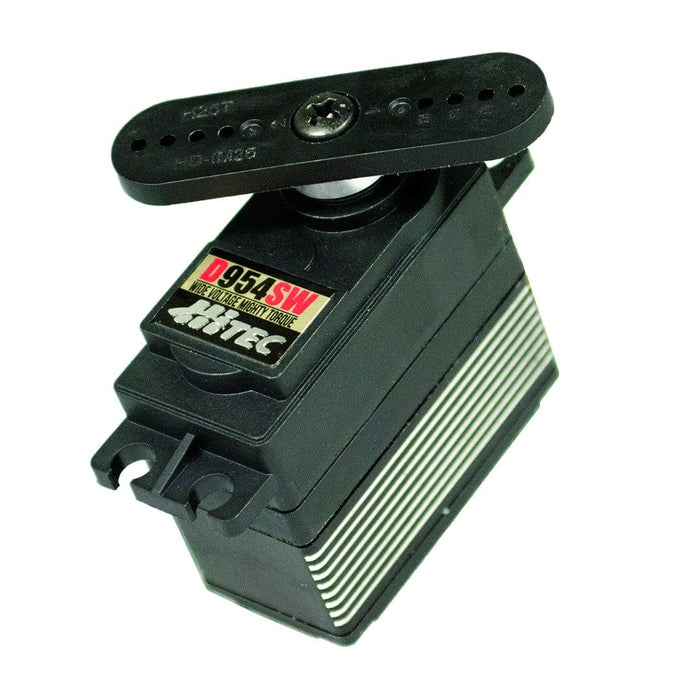

HIT36954S Hitec D954SW High Torque Steel Gear Servo
The power of Hitec's D-Series servos continues with the introduction of the next Premium Class trio: the D930SW, D954SW and D955TW. As with our entire "D" line, these technologically-advanced servos are powered by our 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science and possess Smart Sense engineering with rapid, high resolution response. Their unprecedented programmability and wide-voltage capabilities deliver the most progressive, leading-edge performance for all your radio control needs. Built with incredibly durable steel gears, the D930SW are the perfect upgrade from our popular HS-7954SH servo. Advancing servo technology and providing superior engineering has always been Hitec's mission and that continues today as we expand our outstanding D-Series product line.
Features:
- Programmable PWM Digital Amplifier
- 32-Bit MCU with 12-Bit ADC Circuitry
- 4096 Resolution
- 1M Cycle Long Life Potentiometer
- Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
- Dual Ball Bearing Supported Output Shaft
- 25-Tooth Output Spline
- Coreless Metal Brush Motors
- Nylon Reinforced Plastic Upper and Lower Case
- Diamond Cut Aluminum Heat Sink Center Case
- Dust Resistant and Splash Proof Case
Programmable Functions:
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Soft Start Rate
- Overload Protection
- Data Save / Load
- Program Reset
| Radio Control Applications | |
|---|---|
| Physical Specifications | |
| Performance Specifications | |
| Operating Voltage Range (Volts DC): | 4.8V ~ 7.4V |
| Speed (Second @ 60°): | 0.19 ~ 0.12 |
| Maximum Torque Range oz. / in.: | 251 ~ 405 |
| Maximum Torque Range kg. / cm.: | 18.0 ~ 29.0 |
| Current Draw at Idle: | 30 mA |
| No Load Operating Current Draw: | 500 mA |
| Stall Current Draw: | 5,200 mA |
| Dead Band Width: | 1 us |
| Dimensions (Inches): | 1.57 x 0.78 x 1.46 |
| Dimensions (Metric): | 40.0 x 20.0 x 37.0 |
| Weight (Ounces): | 2.4 |
| Weight (Gram): | 68 |
| Circuit Type: | 32bit Programable Digital |
| Motor Type: | Coreless Metal Brush |
| Gear Material: | MK 1st Gear & 3 Steel Alloy Gears |
| Bearing Type: | Dual Ball Bearing |
| Output Shaft (type / 0mm): | H25T |
| Case Material: | Plastic / Aluminum |
| Dust / Water Resistance: | Splash Proof |
| Connector Gauge (AWG) / Strand Count: | 20 / 80 |
| Parkflyer: | N / A |
| Sport Plane: | 30 - 40% |
| Sailplane: | 2 meters and up |
| 3D Performance: | 30 - 40% |
| Scale: | 30 - 40% |
| Electric Helicopter: | N / A |
| Gas Helicopter: | N / A |
| On Road: | 1/8th |
| Monster Truck: | 1/8th |
| Buggies: | 1/8th |
| Truggies: | 1/8th |
| Short Course / Truck: | 1/8th |
| Crawlers: | 1/8th |
| Sail Boat: | = >1M & Scale |
| Power Boat: | N/A |
