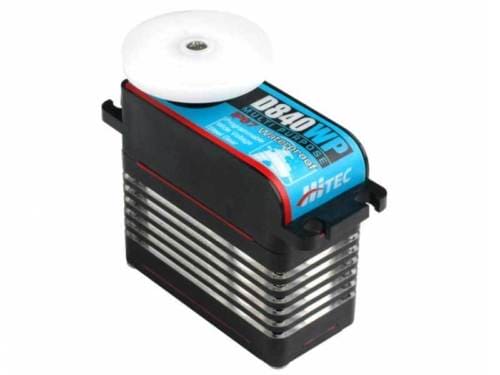

HIT36840S Hitec D-840WP 32-bit Waterproof Servo 333oz-in 0.14sec@6.0V

by HITEC RCD INC
$157.99
Inventory :

The steel D-840WP is part of our D-Series servo line. All Hitec D-Series servos have been designed using our brand new, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec's 15 tooth HD output spline with 3mm hex screw, each D-Series servo brings monster performance never known before in the market.

Radio Control Applications
Physical Specifications
Performance Specifications
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V ~ 7.4V
Speed (Second @ 60°): 0.17 ~ 0.14 ~ 0.11
Maximum Torque Range oz. / in.: 265 ~ 335 ~ 419
Maximum Torque Range kg. / cm.: 19.0 ~ 24.0 ~ 30.0
Current Draw at Idle: 30 mA
No Load Operating Current Draw: 1,600 mA
Stall Current Draw: 9,000 mA
Dead Band Width: 2 us
Dimensions (Inches): 2.59 x 1.26 x 2.44
Dimensions (Metric): 66 x 32 x 62
Weight (Ounces): 8
Weight (Gram): 227
Circuit Type: Digital Amplifier with Mosfet Drive
Motor Type: 5 Poles Cored Metal Brush
Gear Material: Steel
Bearing Type: Dual Ball Bearing
Output Shaft (type / 0mm): Mega 15
Case Material: Plastic / Aluminum
Dust / Water Resistance: IP 67
Connector Gauge (AWG) / Strand Count: 25 / 80
Parkflyer: N / A
Sport Plane: N / A
Sailplane: N / A
3D Performance: N / A
Scale: > 40%
Electric Helicopter: N / A
Gas Helicopter: N / A
On Road: 1/4th & 1/5th
Monster Truck: 1/4th & 1/5th
Buggies: 1/4th & 1/5th
Truggies: 1/4th & 1/5th
Short Course / Truck: 1/4th & 1/5th
Crawlers: N / A
Sail Boat: = >1M & Scale
Power Boat: 1/5th & Up Scale
