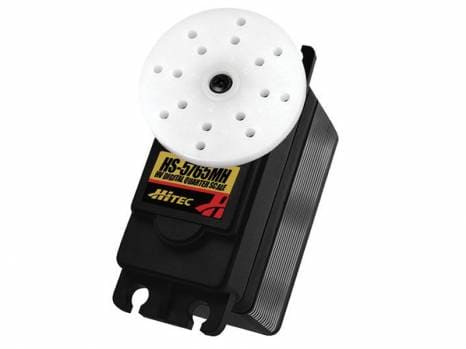

HIT35765S Hitec HS-5765MH Digital Servo
by HITEC RCD INC
$123.99
Inventory :
When it comes to your big RC projects, size does matter - that's why Hitec engineered the HS-5765MH. This high voltage cousin of our popular HS-5755MG is 2-cell LiPo (7.4V) capable and features heavy duty, metal gears with a 10mm output shaft for the strength you need for the most demanding large scale applications. With 347 oz-in torque, our giant HS-5765MH is tough enough to tackle your biggest RC projects from 1/5thon and off-road vehicles to large high-powered boats and giant scale aircraft!
Features:
- Large 10mm Output shaft
- Triple Ball Bearings
- Heavy Duty Metal Gear Train
- Water and Dust Resistant Case
Programmable Functions:
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Data Save / Load
- Program Reset
| Radio Control Applications | |
|---|---|
| Physical Specifications | |
| Performance Specifications | |
| Operating Voltage Range (Volts DC): | 6.0V ~ 7.4V |
| Speed (Second @ 60°): | 0.16 ~ 0.13 |
| Maximum Torque Range oz. / in.: | 278 ~ 347 |
| Maximum Torque Range kg. / cm.: | 20.0 ~ 25.0 |
| Current Draw at Idle: | 3 mA |
| No Load Operating Current Draw: | 1,100 mA |
| Stall Current Draw: | 5,800 mA |
| Dead Band Width: | 5 us |
| Dimensions (Inches): | 2.32 x 1.14 x 2.04 |
| Dimensions (Metric): | 59.0 x 29.0 x 52.0 |
| Weight (Ounces): | 6.07 |
| Weight (Gram): | 172.3 |
| Circuit Type: | G1 Programable Digital |
| Motor Type: | 3 Pole Metal Brush Ferrite |
| Gear Material: | Metal |
| Bearing Type: | Triple Ball Bearing |
| Output Shaft (type / 0mm): | Mega 15 |
| Case Material: | Plastic / Aluminum |
| Dust / Water Resistance: | Splash Proof |
| Connector Gauge (AWG) / Strand Count: | 22 / 60 |
| Parkflyer: | N / A |
| Sport Plane: | N / A |
| Sailplane: | N / A |
| 3D Performance: | N / A |
| Scale: | > 40% |
| Electric Helicopter: | N / A |
| Gas Helicopter: | N / A |
| On Road: | 1/4th & 1/5th |
| Monster Truck: | 1/4th & 1/5th |
| Buggies: | 1/4th & 1/5th |
| Truggies: | 1/4th & 1/5th |
| Short Course / Truck: | 1/4th & 1/5th |
| Crawlers: | N / A |
| Sail Boat: | = >1M & Scale |
| Power Boat: | 1/5th & Up Scale |
