TRA58276-74FOX Traxxas Slash VXL (Fox):1/10 Scale 2WD Short Course Racing Truck **Sold Separately YOU will need this part #TRA2970-3S to run this truck *
MODEL SPECS
| Model Name: | Slash 2WD VXL Clipless |
|---|---|
| Model Type: | Short Course Trucks |
| Model Speed: | 60+ mph with 3s LiPo and pinion/spur 31/76 |
| Model Skill Level: | 2 |
| Scale: | 1/10 |
| Weight: | 5.64 pounds (2.56 kg) |
| Length: | 22.36 inches (568 mm) |
| Width: | 11.65 inches (296 mm) |
| Front Track: | 11.65 inches (296 mm) |
| Rear Track: | 11.65 inches (296 mm) |
| Height: | 8.43 inches (214 mm) |
MOTOR SPECS
| Motor Name: | Velineon® 3500 |
|---|---|
| Motor Type: | Sensorless brushless |
| Motor Weight: | 9.24 ounces (262 g) |
| Motor Length: | 3.03 inches (77 mm) overall length, 2.2 inches (56 mm) can length |
| Motor Diameter: | 1.41 inches (36 mm) |
| Motor Shaft Size: | 3 mm |
| Motor Connector Type: | 3.5 mm bullet |
ESC SPECS
| ESC Name: | VXL-3s™ electronic speed control |
|---|---|
| ESC Type: | Brushless |
| ESC Case Size: | 1.54 inches (39 mm) / 2.18 inches (55 mm) / 1.30 inches (33 mm) |
| ESC Weight: | 3.17 ounces (90 g) |
| Motor Connectors: | 3.5 mm bullet |
| Battery Connectors: | Traxxas High-Current Connector |
| ESC Power Wire: | 12 gauge Maxx® Cable |
Traxxas Slash® VXL 2WD
60+ MPH Short-Course Truck
The Traxxas Slash VXL puts you in the driver’s seat for intense fender-to-fender, high-flying off-road action. Since its introduction, the Slash has set the standard for durability, performance, and technology. Traxxas Stability Management® puts Slash VXL’s tire-shredding power to the ground while making it incredibly agile and easily controllable. Extreme Velineon® brushless power provides screaming 60+mph† speed while the advanced TQ™ radio system keeps everything under precise control. With just one drive you will see why the Traxxas Slash VXL elevates short course performance to a whole new level.
| |
| QUICK FEATURES ON SLASH VXL (58276-74) |
| |
|
| |
| |
Model Highlights
- Clipless ProGraphix® Painted Body
- Pre-painted body with applied decals
- Scale dimensions and looks of actual short course race trucks
- Chassis nerf bars absorb impact and support the body
- Scale front and rear tube-style bumpers
- VXL-3s™ Waterproof Electronic Speed Control
- Sport Mode - Forward / Brake / Reverse
- Traxxas EZ-Set® one-button setup
- Race Mode - Forward / Brake
- Large heat sink
- Built-in two-stage low-voltage detection for LiPo batteries
- Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
- NiMH battery packs: 6-9 cells (7.2 to 10.8 volts)
- LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)
- Velineon® Brushless Motor
- Ultra high-temperature sintered Neodymium magnets
- Low-maintenance design
- Efficient, high-speed ball bearings
- Precision-balanced rotor
- 3500 kV
- Brilliant blue-anodized finish
- Improves straight line acceleration and braking on low-traction surfaces
- Maintains steering composure to allow throttle-on powerslides
- Never dulls throttle or slows the truck
- Adjusts from off to 100% assistance from the transmitter
- TQi 2-channel transmitter
- 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately)
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
- Programmable multi-function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle end points
- Patented waterproof receiver box
- Long 13.2″ wheelbase for increased stability
- Over 3.5″ of ground clearance
- All electronics securely fastened to chassis
- Adjustable steel turnbuckles
- Captured rod ends won't pop off
- Redesigned heavy-duty low-CG case
- 3.2 mm aluminum motor plate
- Case supported bearings
- Fixed gear mesh
- High-strength steel gears
- Sealed bevel-gear differential
- Easy differential access
- Torque-Control™ slipper clutch system
- Heavy-duty telescoping U-joint driveshafts and yokes
- Digital High-torque waterproof Traxxas 2075 steering servo
- Dual-bellcrank steering with integrated servo saver
- Fully adjustable oil-filled Ultra Shocks™ with X-ring technology
- Race-tuned progressive rate white powder-coated springs
- Pre-glued scale all-terrain tires with performance foam inserts
- 2″ outer diameter, 3″ inner diameter dual-profile SCT wheels

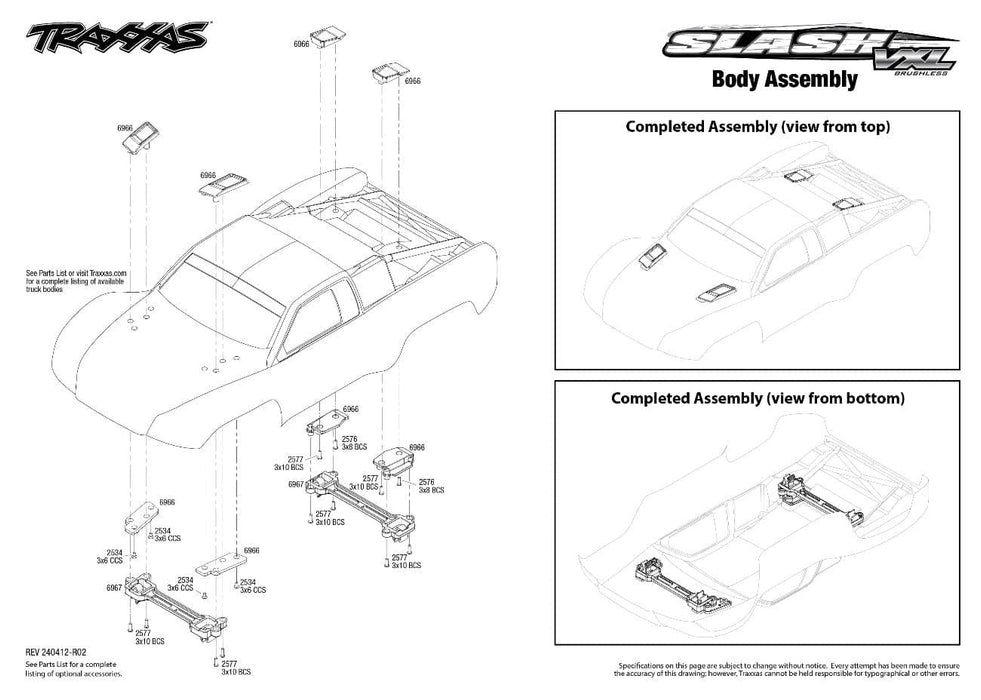

Clipless Body Mounting
Slash's innovative clipless body features secure mounting with quick and easy removal. No posts, no clips—just drop the body onto the chassis and snap it into place for a secure hold. When it’s time to change the battery, depress the tabs under the wheel wells and lift up to access the chassis in just seconds.

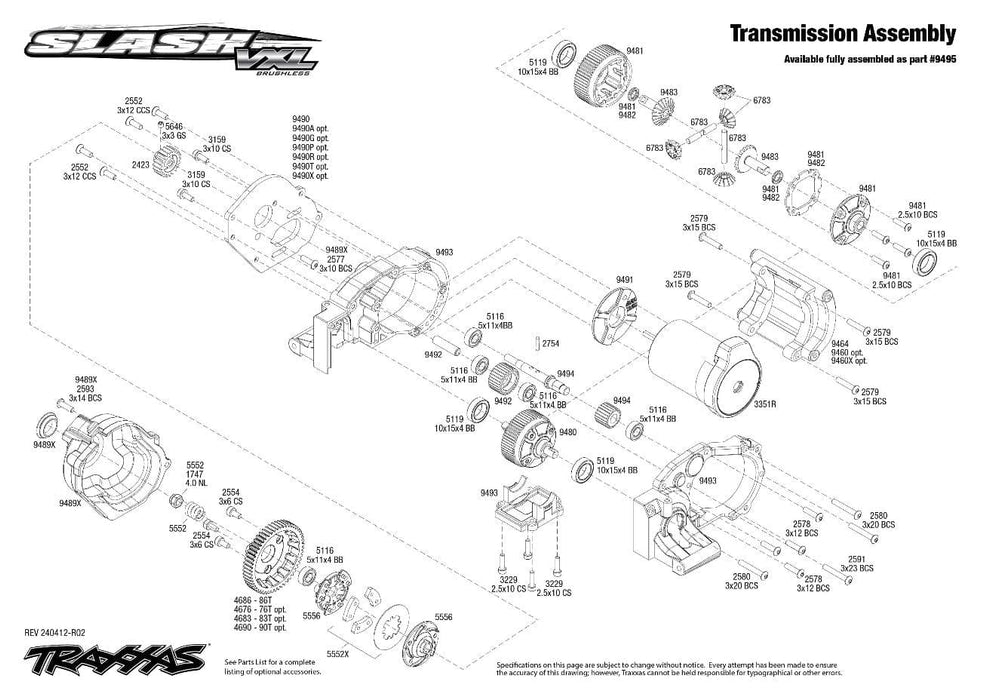

Pro Series Magnum 272R™ Transmission
The Magnum 272R uses a new low-profile housing with a rock-solid 3.2 mm aluminum motor plate. A hardened steel top shaft and all-metal gears send power to a sealed, silicone-filled 4-gear differential for maximum traction. A removable panel gives you easy access to the differential for tuning with different viscosity fluids. Originally developed for the hard-hitting Drag Slash, the Magnum 272R delivers competition-grade performance for your Slash VXL. Learn more.
Class-Leading Velineon Brushless Power
The Velineon brushless motor and electronic speed control deliver the ultimate in efficiency, speed, and run time. With the Slash VXL, your battery selection determines your speed and skill level. Velineon accepts a wide range of batteries, including powerful 3-cell LiPo packs. These packs pump out over 11 volts of power for intense, skill level 5 speeds beyond 65 mph! Built-in low-voltage detection in the VXL-3s™ ESC helps you maintain your LiPo packs in top condition.
Slash VXL lets you choose the performance you want!
Select the right Traxxas iD battery to fit your needs from the options below
| Speed | 35+ mph* | 35+ mph* | 60+ mph** |
|---|---|---|---|
| Battery |
2923X (1) 3000 mAh NiMH |
2843X (1) 5800 mAh 2s LiPo |
2872X (1) 5000 mAh 3s LiPo |
| Pinion/Spur | 23-T / 86-T | 23-T / 86-T | 31-T / 76-T |
| Skill Level | 2 | 4 | 5 |
*With stock gearing **Optional gearing (not included)
Choose your charging option with Slash VXL!
Traxxas iD Auto Battery Identification makes charging simple
| EZ-Peak |
2970 EZ-Peak Plus |
2971 EZ-Peak Live |
2972 EZ-Peak Dual |
|---|---|---|---|
| Charging Amperage | 4-amp | 12-amp Bluetooth® |
4-amp (dual) 8-amp (single) |
100% Fully Assembled and Ready-To-Race®
Slash VXL rolls out of the box Ready-To-Race® with the advanced TQi 2.4 GHz 2-channel radio system and powerful Velineon Brushless Power System. With over 30 years in the hobby industry, Traxxas goes the extra mile to ensure that your RC experience is easy and fun. A staff of skilled representatives is on-hand to answer your questions via phone, chat, or email. Contact Us.
MODEL 58276-74: Fully assembled with Traxxas Stability Management TSM®, TQi™ 2.4 GHz
radio system, Velineon® brushless power system, Pro Series Magnum 272R™ Transmission,
and Clipless ProGraphix® race replica painted body
