TAM58725-A RC Squash Van

SPECIFICATIONS

267 mm

Length:

223 mm

Front Width:

221 mm

Rear Width:

267 mm

Wheelbase:

122.8 mm

Front Wheels:

122.8 mm

Rear Wheels:

4WD

Drivetrain:

2-Channel

Radio Requirements:

2-Channel

Receiver Requirements:

Steering Servo

Servo Requirements:

To suit motor

ESC Requirements:

540 type

Brushed Motor Included:

No

ESC Included:

FEATURES

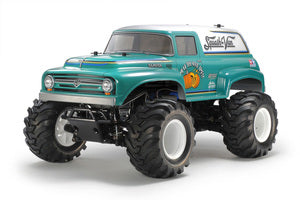

 The Squash Van is our latest fun-to-drive big tire vehicle that is inspired by 1950’s American panel vans. The polycarbonate body shell sits on top of the new gear-driven 4WD GF-02 chassis, which is a variant of the comical GF-01. While the GF-01 chassis features a comical design, the GF- 02 chassis employs a more realistic wheelbase and a frame with ladder and pipe motifs.

GF-02 chassis

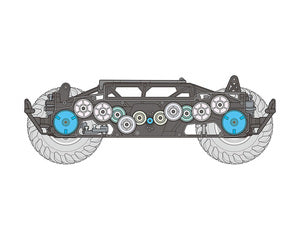

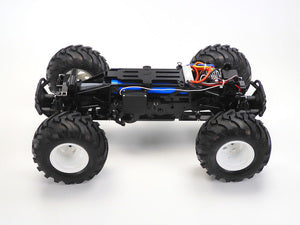

The gear-driven 4WD GF-02 chassis features its motor in a low, central position in the lightweight, durable monocoque frame, and transmits power to front and rear via gears. The long wheelbase and wide tread setup ensure stable off-road performance. The slim frame features ladder/pipe motifs and features integrated sealed gearboxes which help keep stones out. Front and rear gear differentials allow smooth cornering, while separately sold pinion gears offer a choice from three types of gear ratios, and a motor guard enhances reliability off-road. The 4-wheel double wishbone suspension employs four friction dampers, and the steering servo is positioned on the left with identical-length tie-rods.
