CP.RN.00000049.01 Ronin-SC Part 6 Focus Motor
CP.RN.00000049.01 Ronin-SC Part 6 Focus Motor
CP.RN.00000049.01 Ronin-SC Part 6 Focus Motor
CP.RN.00000049.01 Ronin-SC Part 6 Focus Motor
CP.RN.00000049.01 Ronin-SC Part 6 Focus Motor

CP.RN.00000049.01 Ronin-SC Part 6 Focus Motor

by DJI
$159.00
Inventory :

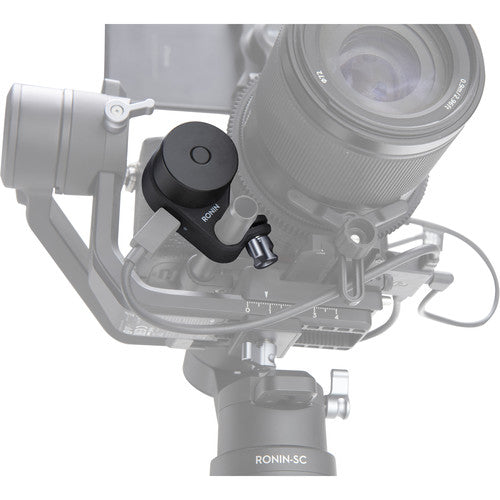

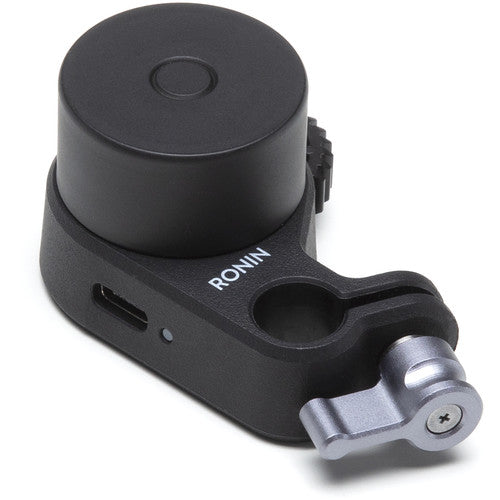

Pull focus while balancing your camera on the Ronin-SC gimbal with this Focus Motor from DJI. Designed specifically for use with the Ronin-SC, the motor features a standard 0.8 MOD gear, a gear belt to affix around your camera lens, and a 12mm rod and rod clamp to mount onto your Ronin-SC.

The motor comes with an RSS splitter to connect it to the camera and the camera control port, so you can use the Ronin-SC focus wheel to remotely control your camera's focus.





Maximum Torque
0.2 Nm
Maximum Speed
100 rpm
Gear
Motor: 0.8 MOD, 40 Teeth
Gear: 0.8 MOD, 151 Teeth
Operating Current
Free Current: 50 mA, 5 V
Stall Current 1.2 A, 5 V
Operating Voltage
5 V
Noise
25 dB
Rod Support
12 mm
Operating Temperature
-4 to 113°F / -20 to 45°C
Dimensions
Motor: 2.8 x 1.9 x 1.3" / 71 x 47 x 34 mm
Gear Diameter: 1.2 x 4.3" / 30 to 110 mm
Gear Length: 14.8" / 37.7 cm
Weight
3.1 oz / 88 g
Packaging Info
Package Weight
0.5 lb
Box Dimensions (LxWxH)
5.75 x 3.5 x 2.25"
