HIT37950S Hitec HS-7950TH Digital Ultra Torque HV Coreless Servo
Hitec's strongest servo period, the "Ultra Torque" HS-7950TH is designed to operate on a two cell LiPo Pack. Featuring our high resolution "G2" second generation programmable digital circuit and our indestructible Titanium gears, the HS-7950TH has the performance and durability you've come to expect from a Hitec servo. Other features in the HS-7950TH include a 7.4V optimized coreless motor, integrated heat sink case, and a top case with two hardened steel gear pins supported by axial brass bushing.
The HS-7950TH has been designed for the most demanding hobby applications including the largest aircraft and monster trucks. Featuring a titanic 403 oz./in. of torque at 6.0 volts, while still maintaining a respectable 0.15 second transit time.
Features:
- G2 Digital Circuit
- Titanium Gear Train (MK first gear)
- Ultra Performance Coreless Motor
- Heatsink Case
- (8) O-Rings for Water/Dust/Fuel protection
- Dual Ball Bearing Supported Output Shaft
Programmable Functions:
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Overload Protection
- Resolution
- Data Save / Load
- Program Reset
*These features are only programmable with the HFP-20, HPP-20 or HPP-21 programmers.
| Radio Control Applications | |
|---|---|
| Physical Specifications | |
| Performance Specifications | |
| Operating Voltage Range (Volts DC): | 6.0V ~ 7.4V |
| Speed (Second @ 60°): | 0.17 ~ 0.14 |
| Maximum Torque Range oz. / in.: | 403 ~ 486 |
| Maximum Torque Range kg. / cm.: | 29.0 ~ 35.0 |
| Current Draw at Idle: | 10 mA |
| No Load Operating Current Draw: | 440 mA |
| Stall Current Draw: | 9,000 mA |
| Dead Band Width: | 2 us |

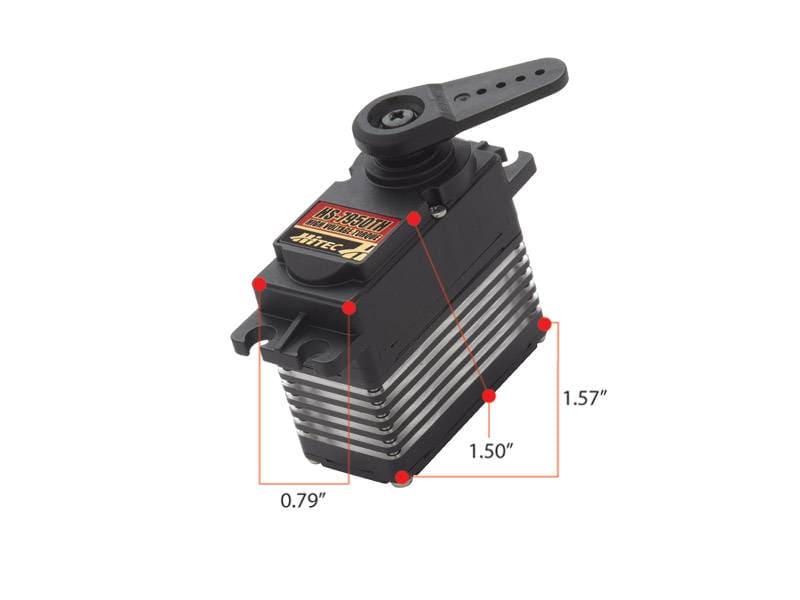

| Dimensions (Inches): | 1.57 x 0.79 x 1.50 |
| Dimensions (Metric): | 40.0 x 20.0 x 38.0 |
| Weight (Ounces): | 2.29 |
| Weight (Gram): | 65 |
| Circuit Type: | G2 Programable Digital |
| Motor Type: | Coreless Metal Brush |
| Gear Material: | Titanium |
| Bearing Type: | Dual Ball Bearing |
| Output Shaft (type / 0mm): | Standard 24 |
| Case Material: | Plastic / Aluminum |
| Dust / Water Resistance: | Splash Proof |
| Connector Gauge (AWG) / Strand Count: | 22 / 60 |
| Parkflyer: | N / A |
| Sport Plane: | > 40% |
| Sailplane: | 2 meters and up |
| 3D Performance: | > 40% |
| Scale: | > 40% |
| Electric Helicopter: | N / A |
| Gas Helicopter: | N / A |
| On Road: | 1/8th |
| Monster Truck: | 1/8th |
| Buggies: | 1/8th |
| Truggies: | 1/8th |
| Short Course / Truck: | 1/8th |
| Crawlers: | 1/8th |
| Sail Boat: | = >1M & Scale |
| Power Boat: | N / A |
