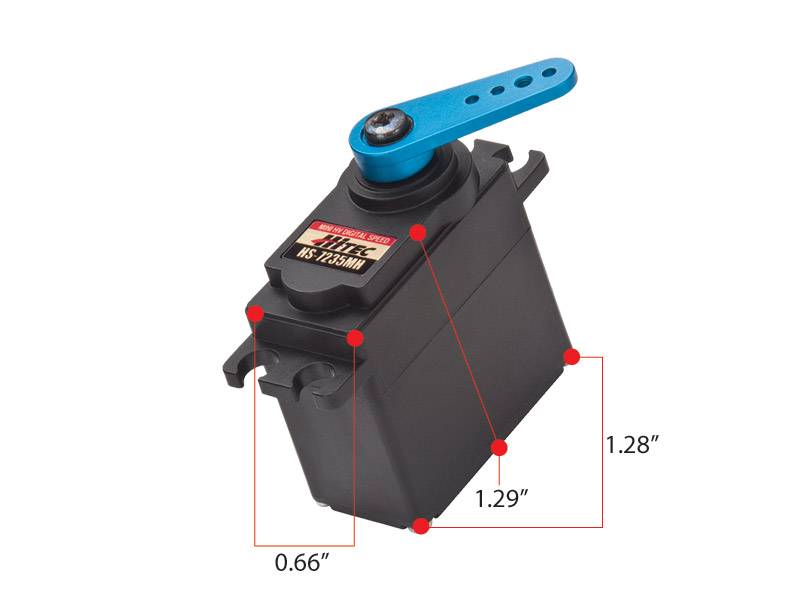

HIT37235S Hitec HS-7235MH Digital High Speed HV Coreless Servo
by HITEC RCD INC
$75.99
Inventory :
Watch out, here it comes! Our new high voltage, coreless HS-7235MH servo delivers exceptional speed and torque in a compact package. Built with an efficient coreless motor optimized for 7.4V operation and heavy-duty metal gear train with dual ball bearings, this high-end mini servo delivers unbridled performance, as does its brother, the HS-7245MH.
Whether you are flying mid-size gas and electric airplanes, 500-550 electric helis, or driving 1/12th scale on-road racers and 1/18th scale rock crawlers, the lightning speed of this servo will make you the master of your RC domain.
Features:
- Our Best High Speed Mini Servo
- Efficient Coreless Motor
- Heavy Duty Metal Gear Train
- Dual Ball Bearing
- 7.4v 2-Cell LiPo Capability
- G2.5 Fully Programmable Digital Circuitry
Programmable Functions:
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Overload Protection
- Resolution
- Data Save / Load
- Program Reset
| Radio Control Applications | |
|---|---|
| Physical Specifications | |
| Performance Specifications | |
| Operating Voltage Range (Volts DC): | 6.0V ~ 7.4V |
| Speed (Second @ 60°): | 0.09 ~ 0.08 |
| Maximum Torque Range oz. / in.: | 50 ~ 61 |
| Maximum Torque Range kg. / cm.: | 3.6 ~ 4.4 |
| Current Draw at Idle: | 12 mA |
| No Load Operating Current Draw: | 190 mA |
| Stall Current Draw: | 1,600 mA |
| Dead Band Width: | 2 us |
| Dimensions (Inches): | 1.28 x 0.66 x 1.29 |
| Dimensions (Metric): | 32.4 x 16.8 x 32.8 |
| Weight (Ounces): | 1.2 |
| Weight (Gram): | 34 |
| Circuit Type: | G2.5 Programable Digital |
| Motor Type: | Coreless Metal Brush |
| Gear Material: | Metal |
| Bearing Type: | Dual Ball Bearing |
| Output Shaft (type / 0mm): | Standard 24 |
| Case Material: | Plastic |
| Dust / Water Resistance: | N / A |
| Connector Gauge (AWG) / Strand Count: | 22 / 60 |
| Parkflyer: | N / A |
| Sport Plane: | 4 - 12 lbs. |
| Sailplane: | 2 meters |
| 3D Performance: | 4 - 12 lbs. |
| Scale: | 4 - 12 lbs. |
| Electric Helicopter: | 500mm |
| Gas Helicopter: | 50 - 59 Class |
| On Road: | 1/12th |
| Monster Truck: | N / A |
| Buggies: | 1/12th |
| Truggies: | N / A |
| Short Course / Truck: | N / A |
| Crawlers: | N / A |
| Sail Boat: | <1 meter |
| Power Boat: | N / A |
