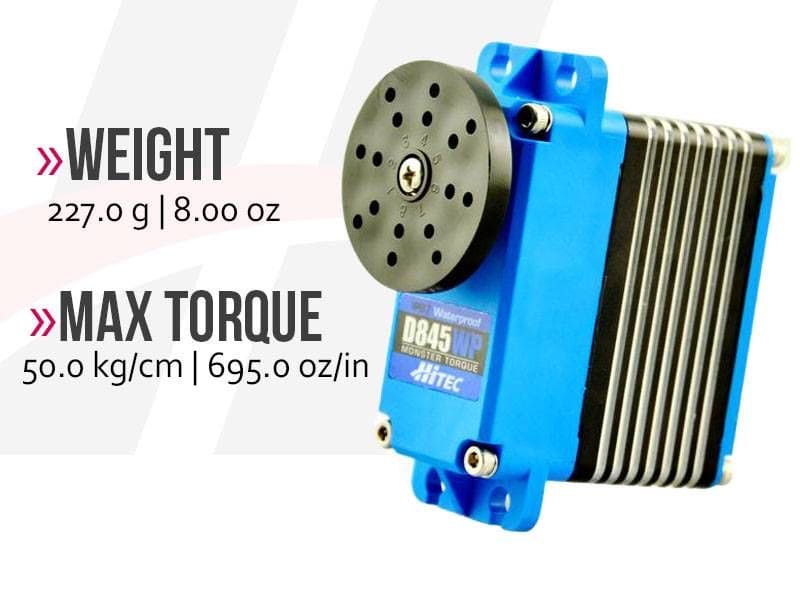

HIT36845S Hitec D-845WP 32-bit Waterproof Servo 562oz-in 0.21sec@6.0V
The D845WP servo is a IP-67 rated servo capable of being truly waterproof, dust resistant, and ready for 1/5th-scale Rock Crawlers and Off-Road Trucks. As with our entire "D" line, this technologically-advanced servo is powered by our 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science and possess Smart Sense engineering with rapid, high resolution response. The unprecedented programmability and wide-voltage capabilities deliver the most progressive, leading-edge performance for all your radio control needs. With incredibly durable steel gears, dual ball bearing and hardened steel output shaft, the high-end performing D845WP produces the mighty torque and reliability required to take bashers to the next level.
Features:
- Programmable PWM Digital Amplifier
- 32-Bit MCU with 12-Bit ADC Circuitry
- 4096 Resolution
- 1M Cycle Long Life Potentiometer
- Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
- Dual Ball Bearing Supported Output Shaft
- 25-Tooth Output Spline
- Coreless Metal Brush Motors
- Nylon Reinforced Plastic Upper and Lower Case
- Diamond Cut Aluminum Heat Sink Center Case
- IPD 67 Rated Water Resistant and Waterproof Proof Case
Programmable Functions:
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Soft Start Rate
- Overload Protection
- Data Save / Load
- Program Reset
| Radio Control Applications | |
|---|---|
| Physical Specifications | |
| Performance Specifications | |
| Operating Voltage Range (Volts DC): | 4.8V ~ 7.4V |
| Speed (Second @ 60°): | 0.26 ~ 0.17 |
| Maximum Torque Range oz. / in.: | 452 ~ 695 |
| Maximum Torque Range kg. / cm.: | 32.5 ~ 50.0 |
| Current Draw at Idle: | 30 mA |
| No Load Operating Current Draw: | 1,600 mA |
| Stall Current Draw: | 10,000 mA |
| Dead Band Width: | 1 us |
| Dimensions (Inches): | 2.6 x 1.26 x 2.44 |
| Dimensions (Metric): | 66.0 x 32.0 x 62.0 |
| Weight (Ounces): | 8.01 |
| Weight (Gram): | 227 |
| Circuit Type: | 32bit Programable Digital |
| Motor Type: | Coreless Metal Brush |
| Gear Material: | MK 1st Gear & 3 Steel Alloy Gears |
| Bearing Type: | Dual Ball Bearing |
| Output Shaft (type / 0mm): | 15T / 8 |
| Case Material: | Plastic / Aluminum |
| Dust / Water Resistance: | IP67 Rating |
| Connector Gauge (AWG) / Strand Count: | 20 / 80 |
| Parkflyer: | N / A |
| Sport Plane: | N / A |
| Sailplane: | N / A |
| 3D Performance: | N / A |
| Scale: | N / A |
| Electric Helicopter: | N / A |
| Gas Helicopter: | N / A |
| On Road: | 1/5th |
| Monster Truck: | 1/5th |
| Buggies: | 1/5th |
| Truggies: | 1/5th |
| Short Course / Truck: | 1/5th |
| Crawlers: | 1/5th |
| Sail Boat: | N / A |
| Power Boat: | Gas |
