HIT33065S Hitec HS-65HB Mighty Karbonite Feather, Top BB Servo
by HITEC RCD INC
$35.99
Inventory :
Considered one of the most powerful servos in the micro class, the HS-65 is offered with a choice of "shock resistant"? Metal or "zero wear"? Karbonite gears. The 65 series features a top-ball bearing for long life and positive centering, 31 ounces/inches of power at 6 volts and is an excellent choice for higher performance micro helicopters, electric park flyers, and 1/18 scale cars.
Features
- Premium Feather Servo
- Strong Karbonite Gears
- Ball Bearing-Supported Output Shaft
- High Torque and High Speed
| Radio Control Applications | |
|---|---|
| Physical Specifications | |
| Performance Specifications | |
| Operating Voltage Range (Volts DC): | 4.8V ~ 6.0V |
| Speed (Second @ 60°): | 0.16 ~ 0.13 |
| Maximum Torque Range oz. / in.: | 22 ~ 26 |
| Maximum Torque Range kg. / cm.: | 1.6 ~ 1.9 |
| Current Draw at Idle: | 7.7 mA |
| No Load Operating Current Draw: | 220 mA |
| Stall Current Draw: | 1,200 mA |
| Dead Band Width: | 5 us |

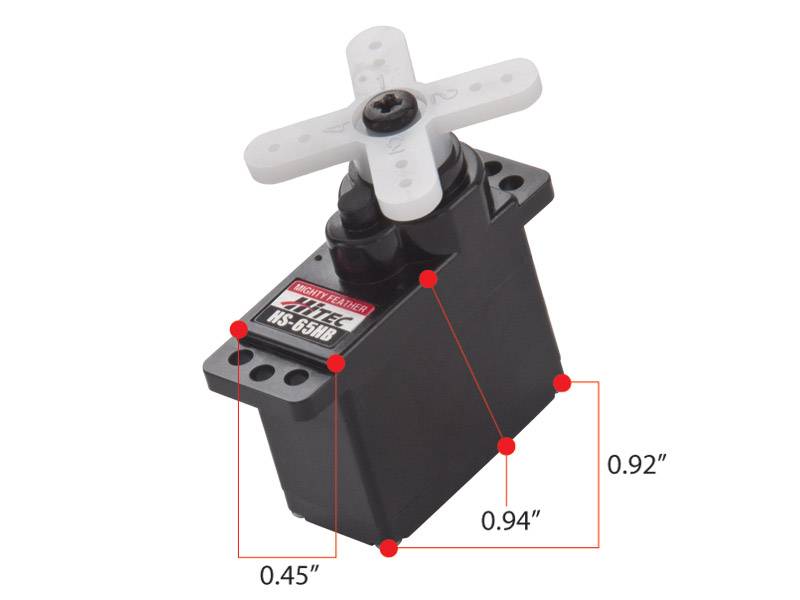

| Dimensions (Inches): | 0.92 x 0.45 x 0.94 |
| Dimensions (Metric): | 23.6 x 11.6 x 24.0 |
| Weight (Ounces): | 0.39 |
| Weight (Gram): | 11.2 |
| Circuit Type: | HT7003 Analog SMT |
| Motor Type: | 3 Pole Metal Brush Neodymium |
| Gear Material: | Karbonite |
| Bearing Type: | Top Ball Bearing |
| Output Shaft (type / 0mm): | Feather 15 / 8 |
| Case Material: | Plastic |
| Dust / Water Resistance: | N / A |
| Connector Gauge (AWG) / Strand Count: | 28 / 20 |
| Parkflyer: | < 42 oz. |
| Sport Plane: | 36 - 41 oz. |
| Sailplane: | < 2 meter / DLG |
| 3D Performance: | Foamies |
| Scale: | N / A |
| Electric Helicopter: | 400 - 500mm |
| Gas Helicopter: | 30 - 39 Class |
| On Road: | N / A |
| Monster Truck: | N / A |
| Buggies: | N / A |
| Truggies: | N / A |
| Short Course / Truck: | 1/8th |
| Crawlers: | N / A |
| Sail Boat: | N / A |
| Power Boat: | 1/8th |
