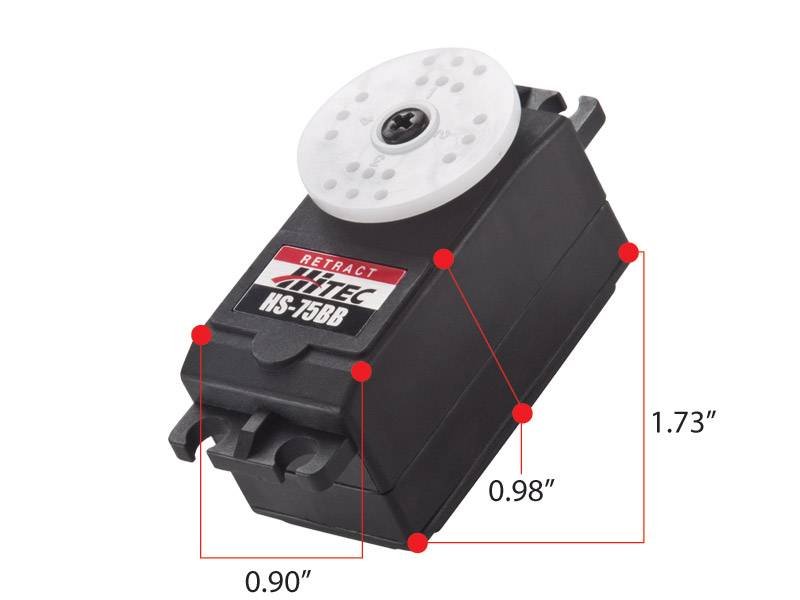

HIT31075S Hitec HS-75BB Retract, Nylon, Top BB Servo
by HITEC RCD INC
$45.99
Inventory :
With its low profile design, strong torque and precision movement, the HS-75BB is a great choice to move your retract gear in a realistic manner that you need. Note, this is a retract or "bang bang" servo and only travels from one end to the other (180°). If you require a proportional servo this size, use the Hitec HS-77BB.
Features
- Low Profile Design
- Durable Nylon Gears
- Top Ball Bearings
- Strong Torque and Precise Movement
- Slow Speed for Realistic Retract Action
| Physical Specifications | |
|---|---|
| Performance Specifications | |
| Operating Voltage Range (Volts DC): | 4.8V ~ 6.0V |
| Speed (Second @ 60°): | 0.45 ~ 0.34 |
| Maximum Torque Range oz. / in.: | 92 ~ 114 |
| Maximum Torque Range kg. / cm.: | 6.6 ~ 8.2 |
| Current Draw at Idle: | 1 mA |
| No Load Operating Current Draw: | 150 mA |
| Stall Current Draw: | 1,000 mA |
| Dead Band Width: | 20 us |
| Dimensions (Inches): | 1.73 x 0.90 x 0.98 |
| Dimensions (Metric): | 44.0 x 23.0 x 25.0 |
| Weight (Ounces): | 1.23 |
| Weight (Gram): | 35 |
| Circuit Type: | HT7003 Analog SMT |
| Motor Type: | 3 Pole Metal Brush Ferrite |
| Gear Material: | Nylon |
| Bearing Type: | Top Ball Bearing |
| Output Shaft (type / 0mm): | Standard 24 |
| Case Material: | Plastic |
| Dust / Water Resistance: | Splash Proof |
| Connector Gauge (AWG) / Strand Count: | 25 / 40 |
