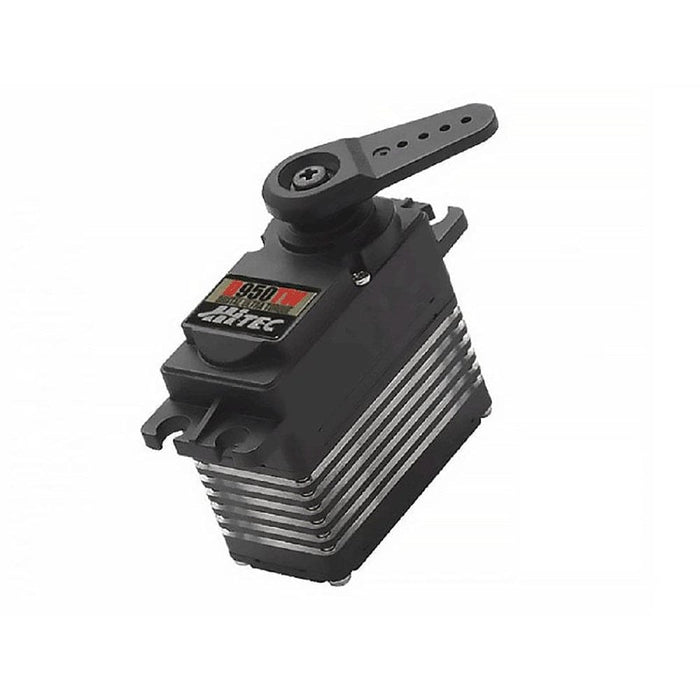

Hitec D950TW 25T Digital, Wide Voltage Titanium Coreless Servo
The titanium D950TW is part of our D-Series servo line. All Hitec D-Series servos are designed with cutting-edge custom engineering. Combining high-resolution, ultra-response technology with a 32-bit MCU and 12-bit ADC, these servos deliver smooth movement. They operate on a wide 4.8 ~ 8.4 voltage range, compatible with any battery chemistry without adapters or regulators. Featuring Hitec’s 25-tooth output spline with a 3mm hex screw, the D-Series servos provide performance like never before.
Features
- Programmable PWM Digital Amplifier
- 32-Bit MCU with 12-Bit ADC Circuitry
- 4096 Resolution
- 1M Cycle Long Life Potentiometer
- Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
- Dual Ball Bearing Supported Output Shaft
- 25-Tooth Output Spline
- Coreless Metal Brush Motors
- Nylon Reinforced Plastic Upper and Lower Case
- Diamond Cut Aluminum Heat Sink Center Case
- Dust Resistant and Splash Proof Case
Programmable Functions
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Soft Start Rate
- Overload Protection
- Data Save / Load
- Program Reset
-
DB950SW Servo Specifications
Performance Specifications Operating Voltage Range (Volts DC) 4.8V ~ 6.0V ~ 7.4V Speed (Second @ 60°) 0.23 ~ 0.17 ~ 0.14 Maximum Torque Range oz. / in. 486 ~ 555 ~ 555 Maximum Torque Range kg. / cm. 35.0 ~ 40.0 ~ 40.0 Current Draw at Idle 35 mA No Load Operating Current Draw 350 mA Stall Current Draw 4,200 mA Dead Band Width 1 µs Physical Specifications Dimensions (Inches) 1.58 x 0.79 x 1.52 Dimensions (Metric) 40.0 x 20.0 x 38.0 Weight (Ounces) 2.4 Weight (Gram) 68.0 Circuit Type 32bit Programable Digital Motor Type Brushless Gear Material Steel Bearing Type Dual Ball Bearing Output Shaft (type / Ømm) 25T Case Material Plastic / Aluminum Dust / Water Resistance IP54 Connector Gauge (AWG) 20
