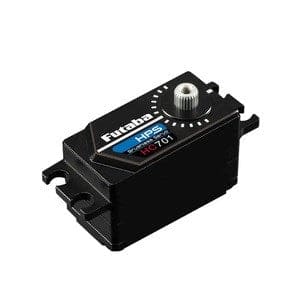

FUT01102382-3 HPS-HC701 S.Bus2 High-Voltage Low-Profile Heli Cyclic Servo
by FUTABA
$367.49
Inventory :
- Suitable for RC helicopters 500-800 3D/F3C
- Programmable/HV Brushless Servo.
- Custom New high power Brushless Motor.
- Supports 760uS (Factory Default, able to be set to 1520uS w/ GPB-1 v4.3.)
- Programmable and compatible with S.Bus and S.Bus2 systems.
- Can be connected to a PC using the CIU-2/-3 USB adapter sold separately.
- Upper/middle/bottom: Aluminum Case
-
Specifications @1520uS: - Speed:0.07sec/60deg(7.4V); 0.08sec/60deg(6.6V)
- Torque:30.0gf/cm(7.4V); 26.5kgf/cm(6.6V)
- 416.6ozf/in(7.4V); 368.0ozf/in(6.6V)
Specifications @760uS:
- Speed:0.07sec/60deg(7.4V); 0.08sec/60deg(6.6V)
- Torque:27.0kgf/cm(7.4V); 24.0kgf.cm(6.6V)
- 375.0ozf/in(7.4V); 333.3ozf/in(6.6V)
Specifications:
- Dimensions/Weight:40.5x21.0x26.2mm/54g (1.59x0.83x1.03in)
- Rated Voltage: DC 6.0V-7.4V
- Operating Voltage: DC 4.8-8.4V
- NO DRY BATTERY USE
- Features: S.Bus, S.Bus2, Brushless, HV, Metal Case
